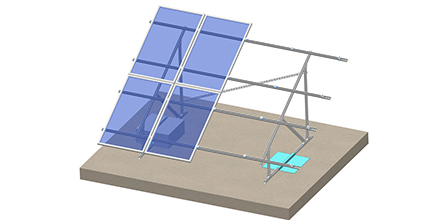

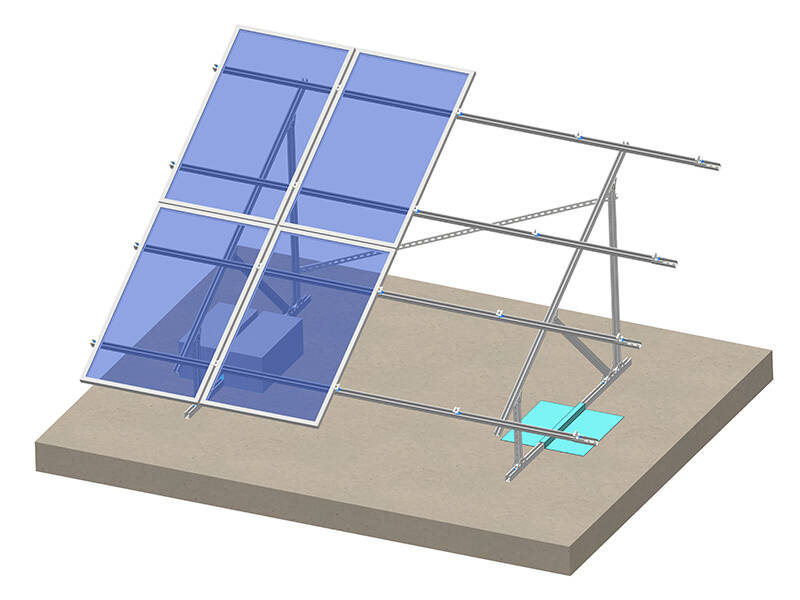

Flat roof solar mounting - C type steel ballasted roof mounting system

Flat roof solar mounting - C type steel ballasted roof mounting system

Flat roof solar mounting - C type steel ballasted roof mounting system which can be installed on concrete flat roof,non-penetrating the roof,pre-assembled structure will make the installation easier and more flexible,customized tilt angle.

Item NO.:
AS-FR-CSB
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

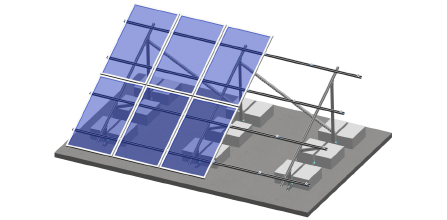

flat roof solar mounting - C type steel ballasted roof mounting system

· Design Features

Non-penetrating the roof.
Pre-assembled structure will make the installation easier and more flexible.

· Surface treatment:
80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum.

· Design Strength:
Designed according to wind load and snow load request.

· Certification:
Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.

Category : Flat Roof Mount

Suitable for	Metal roof
Module	Framed, thin film
Material&Surface treatment	10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color	silver, black or customer requirement
Module orientation	Landscape and portrait
Wind load	Max 60m/s
Snow load	Max 1.5kn/m2
Standards	Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty	20 years

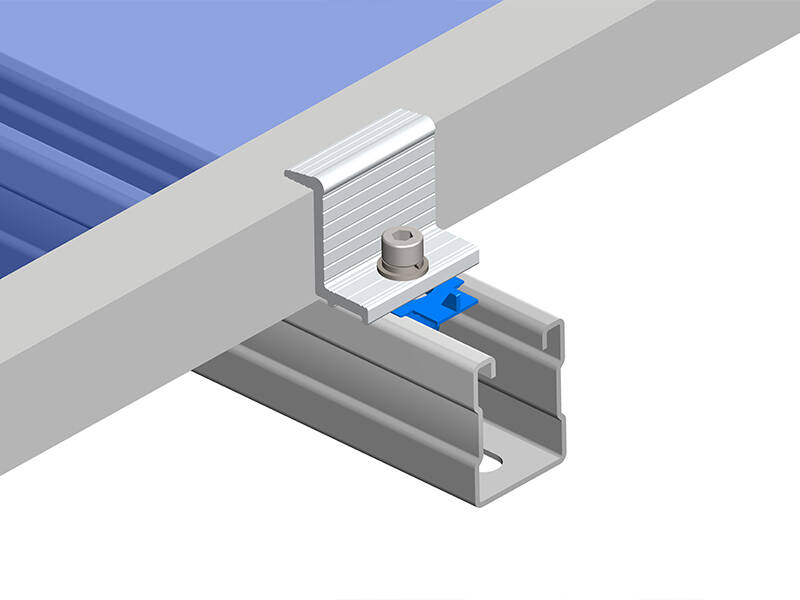

AS-C41/52	AS-CTMC-P	AS-CTEC-P

AS-SRS-C41	AS-C52-TTB	AS-SAB-830-STN

AS-BB-C41-700/500

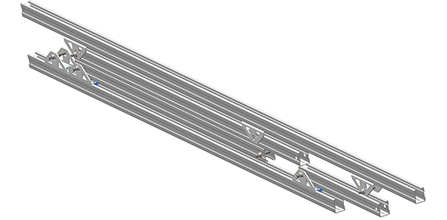

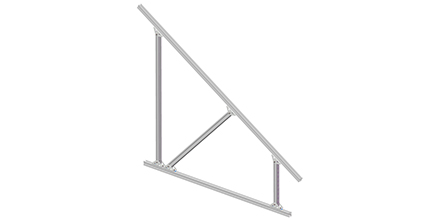

Step 1 Prepare the pre-assembled structures		Step 2 Open the pre-assembled structures

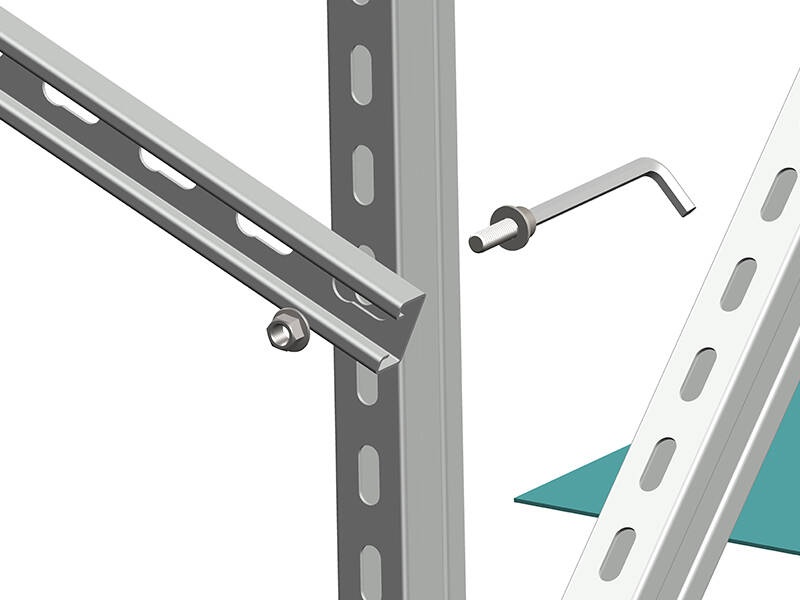

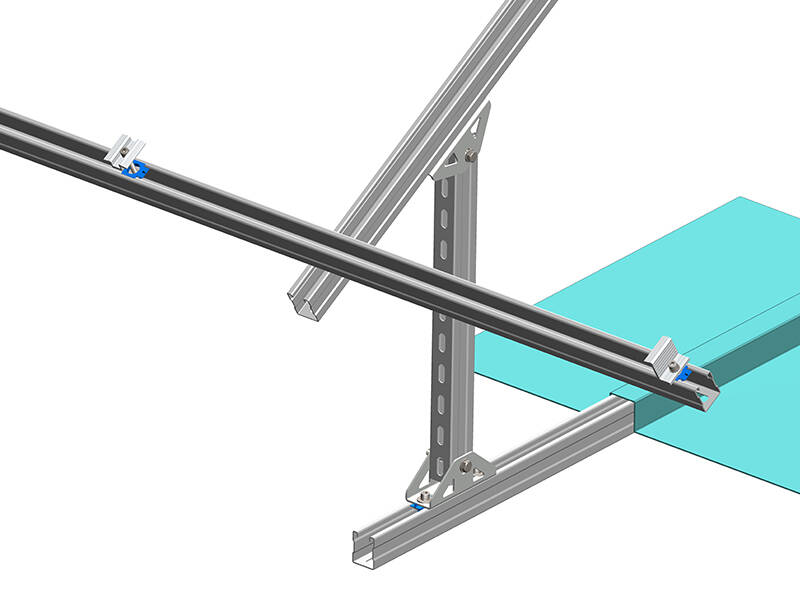

Step 4 place the ballasted concrete pad		Step 3 rail and bracing connection,ballasted bracket placed and solar panel installation

flat roof solar mounting - C type steel ballasted roof mounting system
