Ground solar panel pole mount racking
· Design Features

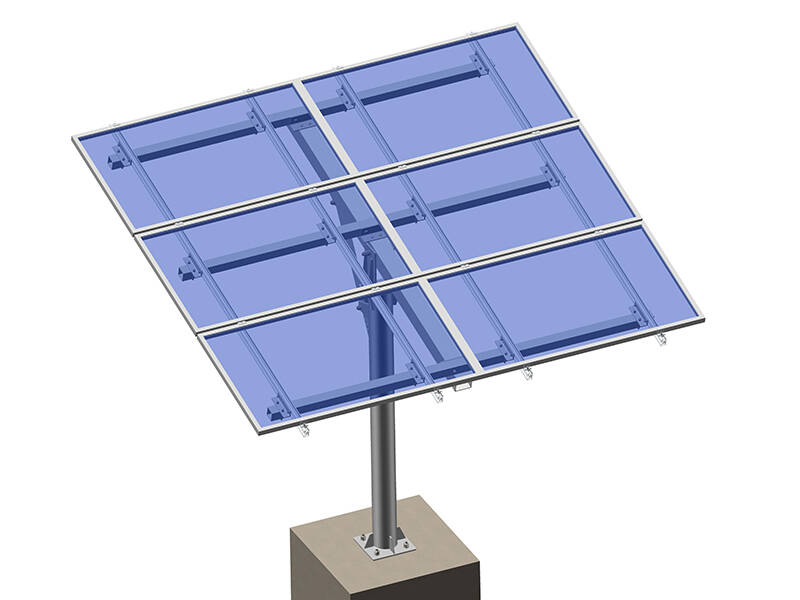

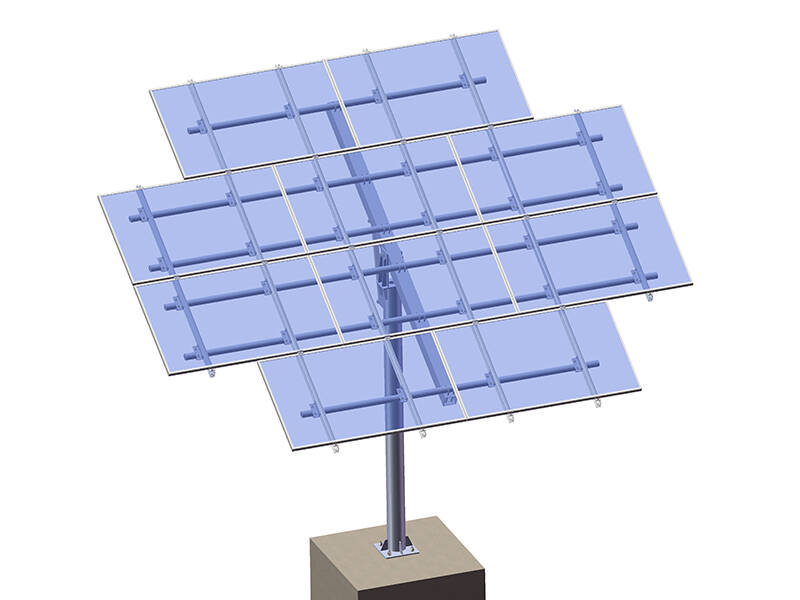

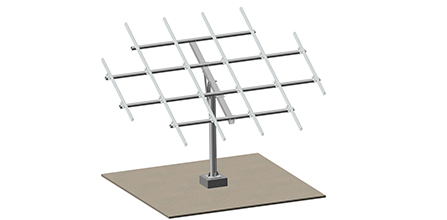

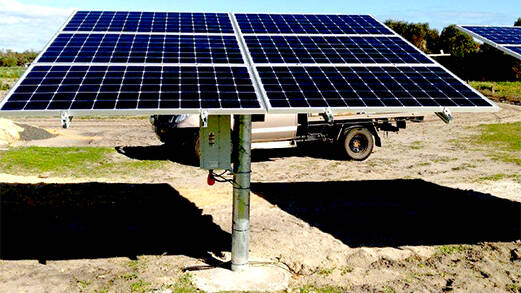

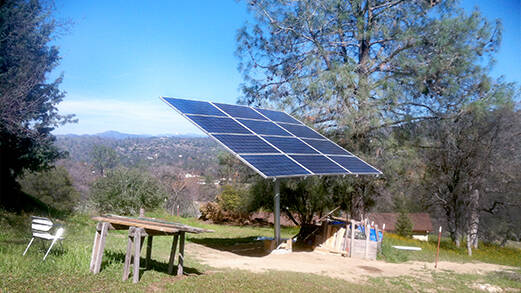

Large pole mounting system is suited for 6-12 panels each.

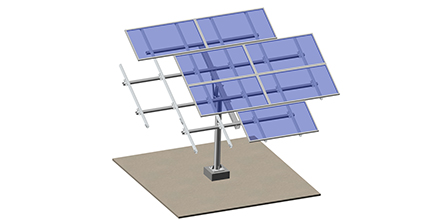

Mini pole mounting system is suited for 1-4 panels each.
 |
|
 |
|
 |
|

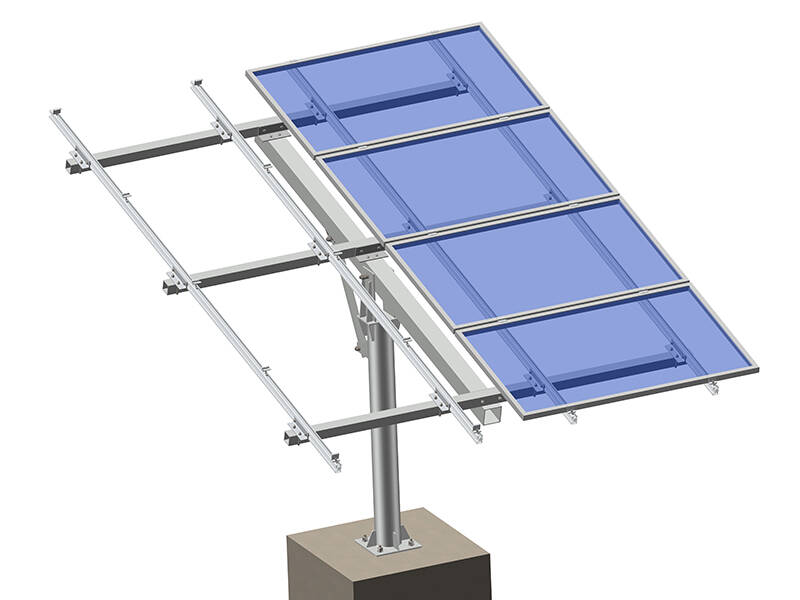

Large pole mount: Steel tube connect with aluminim rail via aluminum L connector |
|
Large pole mount: Steel tube connect with steel beam via steel connector |
|

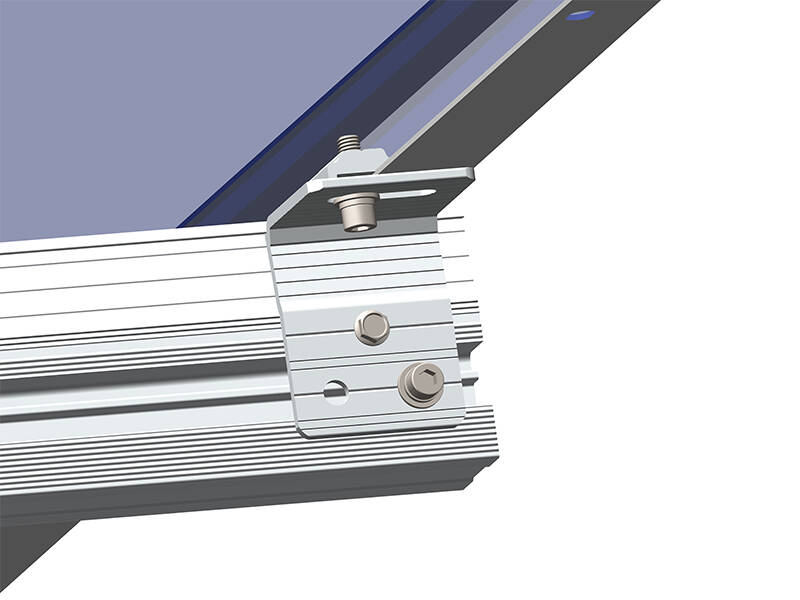

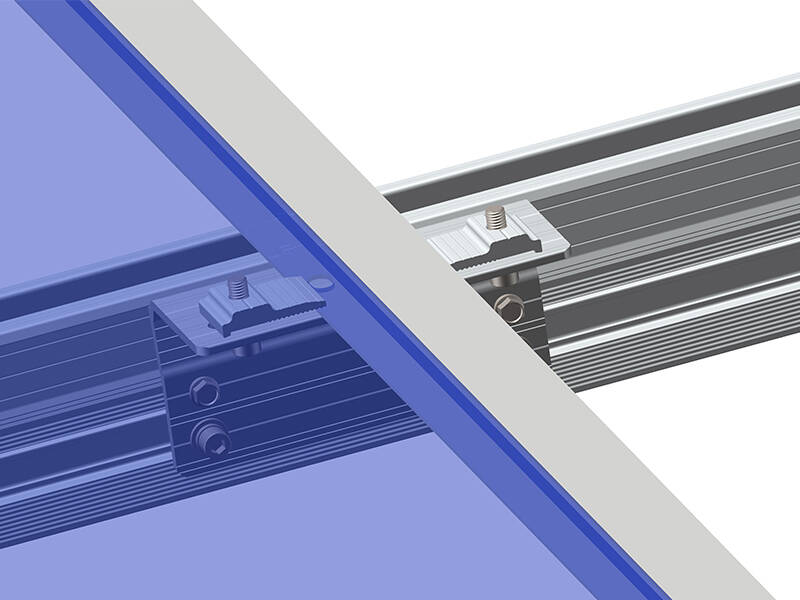

Mini pole mount: aluminum rail beam Aluminum rail beam connect rail via 40mm L connector |
 |
 |
|

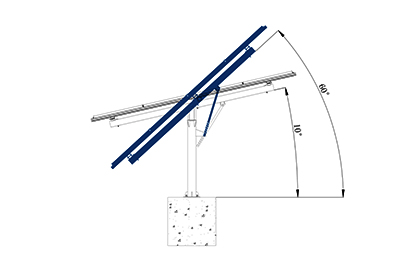

Large pole mount: adjust 10-60° |

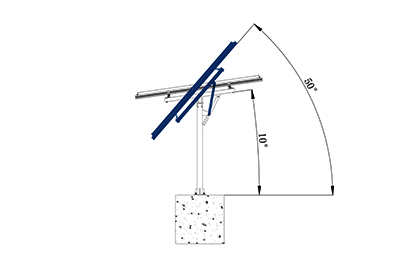

Mini pole mount： adjust 10-50° |
· Surface treatment:
80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.
· Design Strength:
The structure is designed according to the wind load or snow load request.
· Certification:
Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test; USA ASCE7-10 minimum design loads for buildings and other structures.
Category : Steel Ground Mount
|
Suitable for |
Open field |
|
Module |
Framed, thin film |
|
Material&Surface treatment |
80μm thk. hot dipped galvanized steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts |
|
Color |
silver, black or customer requirement |
|
Module orientation |
Landscape and portrait |
|
Wind load |
Max 60m/s |
|
Snow load |
Max 1.5kn/m2 |
|
Standards |
Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS |
|
Warranty |
20 years |
 |
 |
 |
| AS-R-06 |
AS-R-18 |
AS-LC-01 |
 |
 |
 |
|
AS-LC-04 |
AS-LC-80 |
AS-SLC-01 |
 |
 |
 |
|
AS-PEB |
AS-PIB |
AS-MC |
 |
|
|
|
AS-EC |
|
|
 |
 |
 |
|
Steel beam |

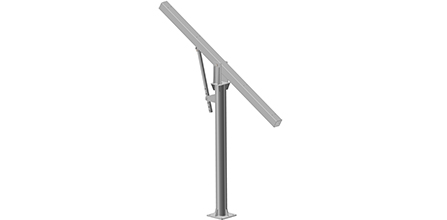

Adjustable tube |
Steel support |
 |
|
|
|

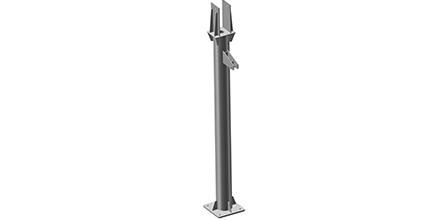

Steel Post φ 165mm |
|
|
 |
 |
 |
|
Adjustable bar |
Steel support |
Rail beam 6#/18# rail |
 |
|
|
|
Steel post φ 89mm |
|
|
solar panel pole mount
Step 2
Install adjustable bar
