Rooftop components of solar PV system installation

Rooftop components of solar PV system installation

No-Drilling Clamps standing seam metal roof solar panel mounting. Rooftop components of solar PV system installationn with 20 years warranty, material is Anodized aluminum 6005-T5 and stainless steel 304. Products are preassembly, easy to be install to save labour costs and installation time.

Item NO.:
AS-ARH-03
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

No Drilling Components of Solar pv System Roof Clamps for Solar Metal Roof Mounting Rack System |Art Sign

Design Features

— Adjustable, quicker and easier installation for solar roof mount.
— No damage to the roof.
— Adjustable width, wide range of use.

Mode Number	AS-ARH-03	Brand Name	ART SIGN

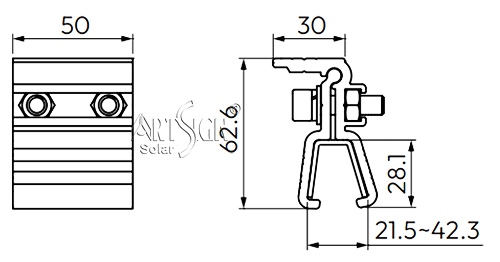

Specs	L30W62.6H28.1mm	Material	Aluminum 6005-T5
Application	Solar metal roof	Packing	Carton
Keyword	Fujian company adjustable solar panel brackets	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

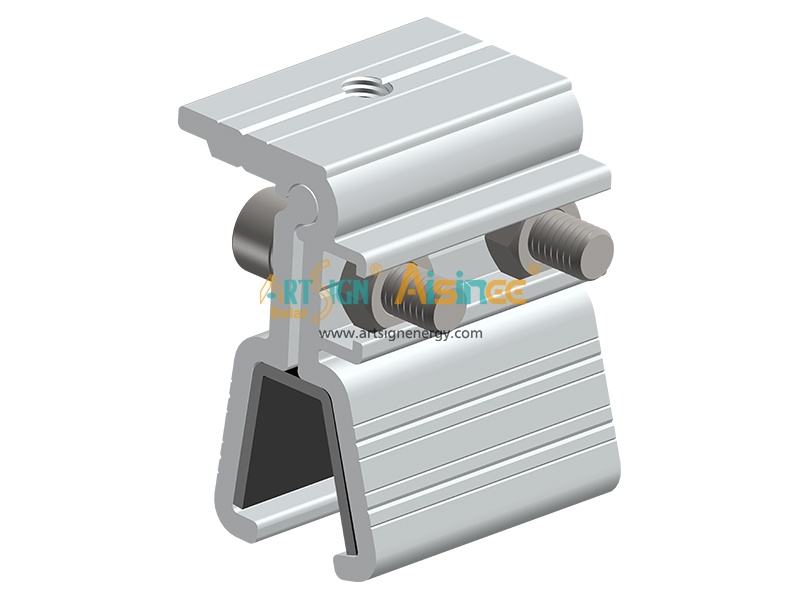

Designed to be able to attach the solar system superstructure profiles to seam metal joints.

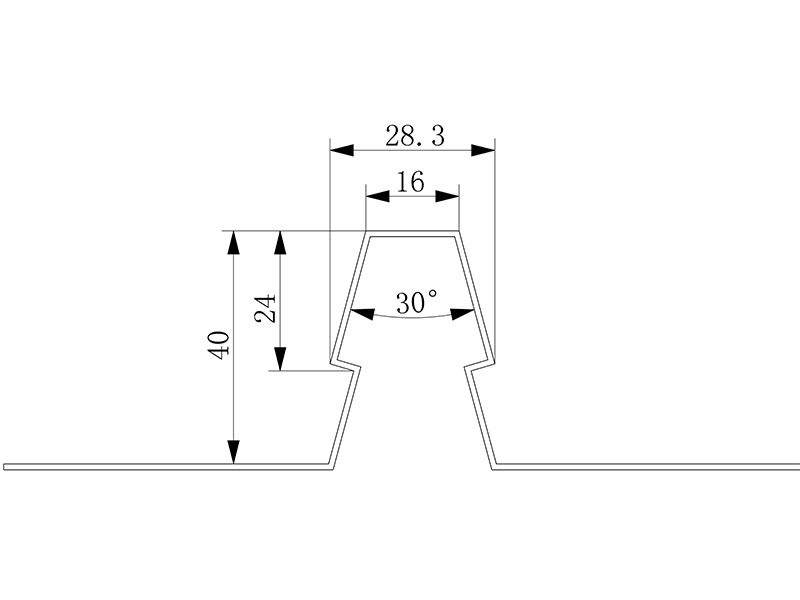

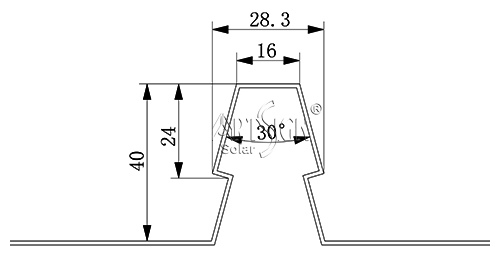

Clip size	Application Roof sheet

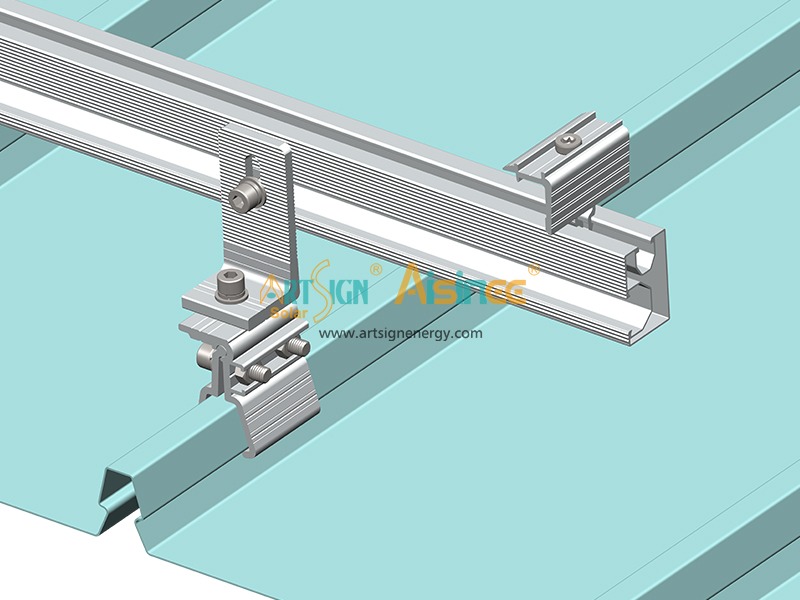

Roof solar panel mounting brackets are used with L-shaped feet and track clamps.	solar panel mounting brackets for metal roof.

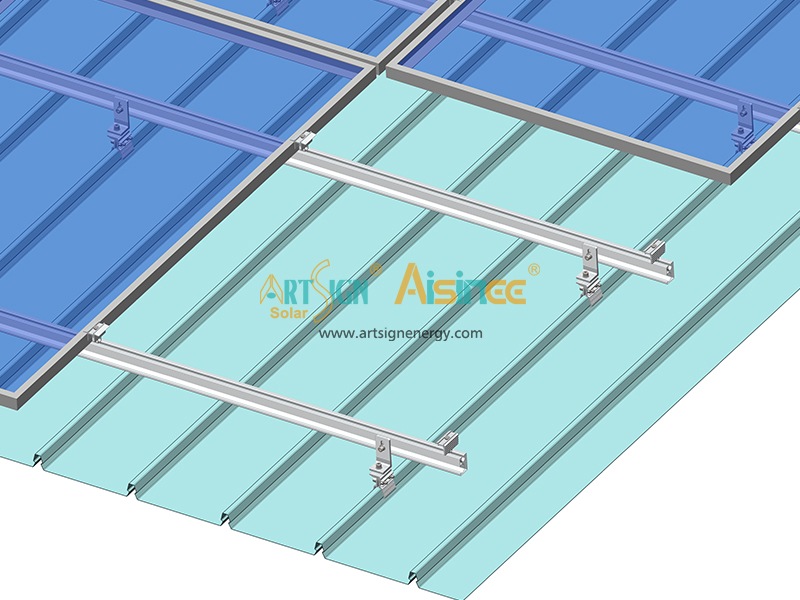

Solar bracket aluminium solar panel mounting structure.

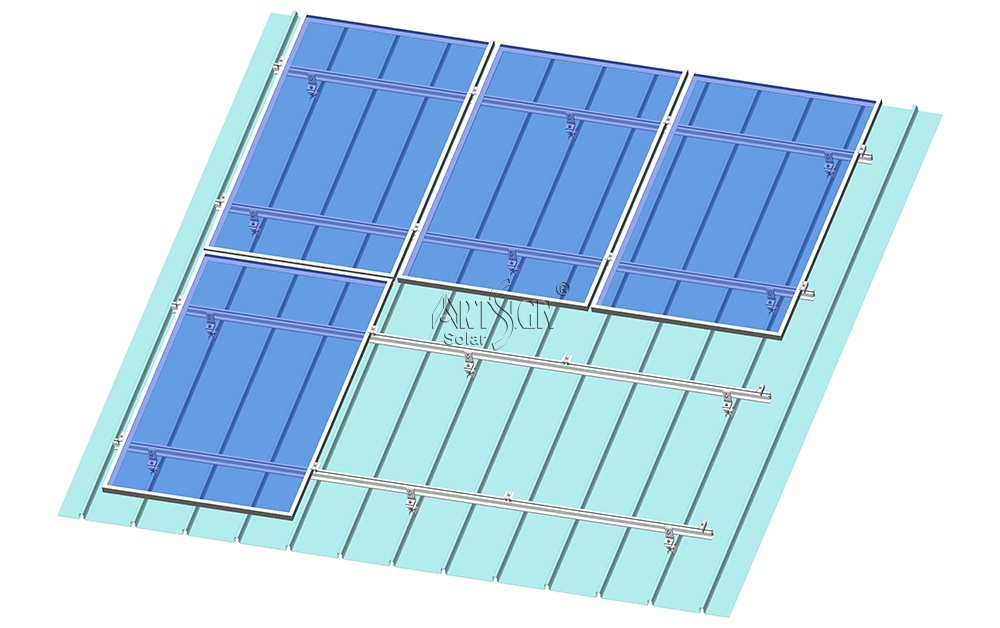

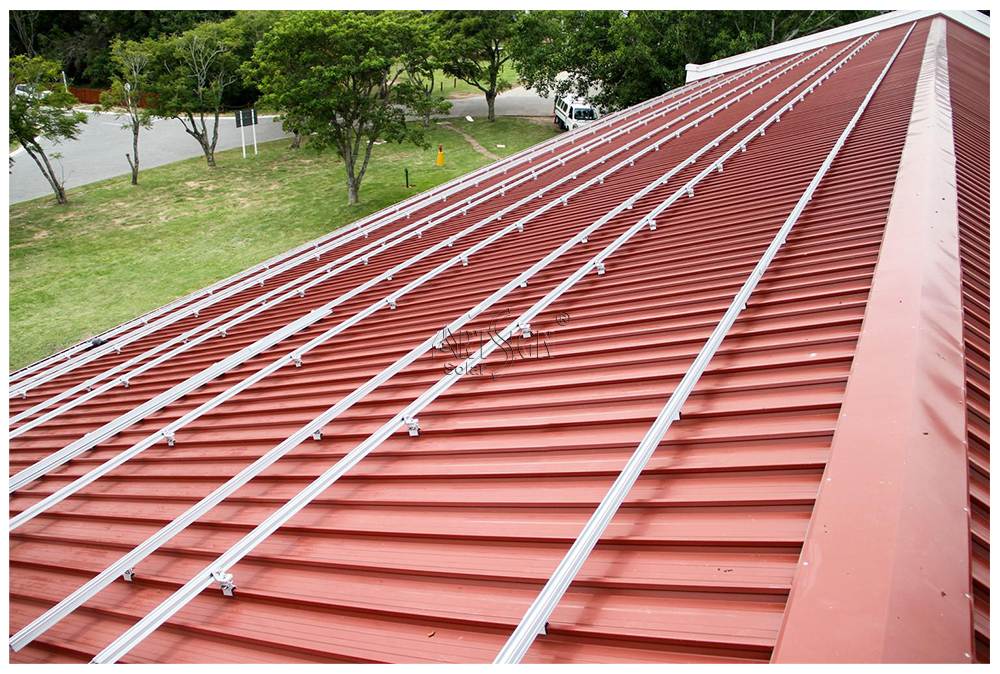

ART SIGN solar mounting case study

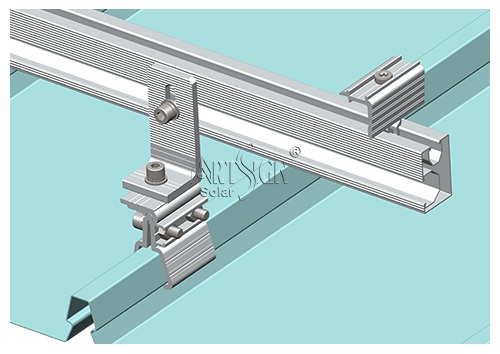

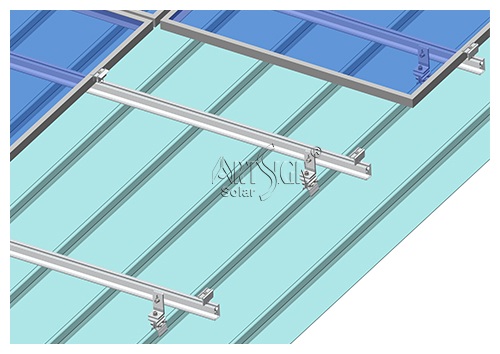

solar ibr bracket

ART SIGN quick installation solar end clamp 30-40mm related accessories

Customized cutting length to be suitable for different wind load and snow load requirements.

Category : Aluminum roof bracket


AS-ARH-01	AS-ARH-03	AS-ARH-03F3	AS-ARH-08A

AS-ARH-08B	AS-ARH-08C	AS-ARH-10B	AS-ARH-18D
