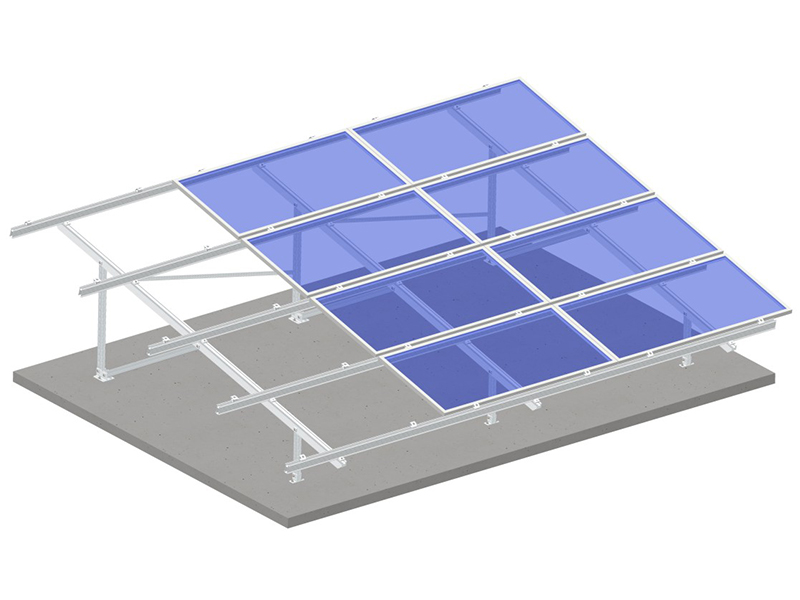

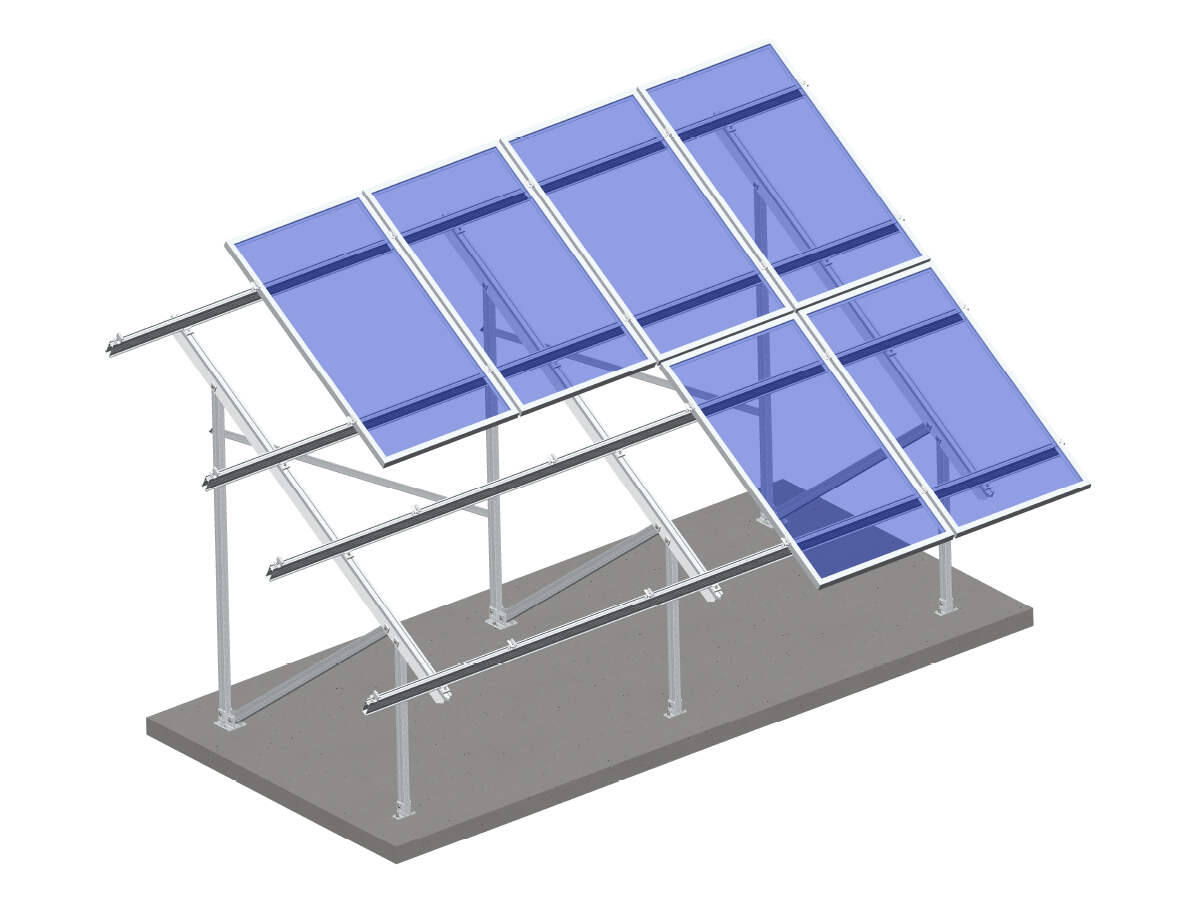

Aluminum solar ground mount- Single slot U beam

Aluminum solar ground mount-Single slot U beam is more economical and most suitable for lower wind load and snow load.
  • Item NO.:

    AS-AG-SSUB
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Aluminum solar ground mount - Single slot U beam


· Design Features

  Single slot U beam is more economical and most suitable for lower wind load and snow load.


· Foundation type:

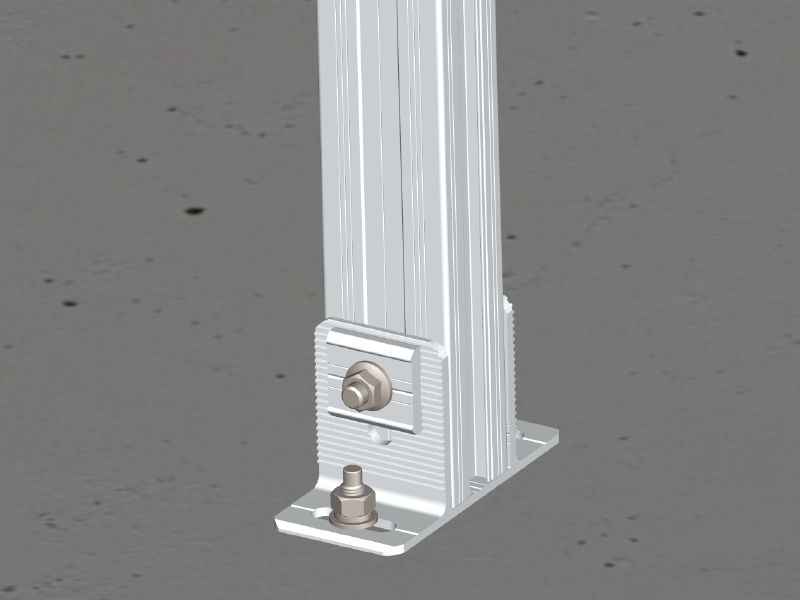

  Pile driven, ground screw, concrete pad.


· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  The structure designed according to the wind load or snow load request.



Category : Aluminum Ground Mount


Suitable for
  open field ground or rooftop
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-TMC AS-TEC
AS-TCMC



AS-TCEC
AS-TR65-01
AS-TR65-02



AS-TR85-01
AS-TR85-02
AS-TR85-03



AS-TRS-65
AS-TRS-85
AS-RS-16



AS-TEP-3
AS-AS-4
AS-R-16



AS-KC-02
AS-TEP-2
AS-AUB-4T



AS-OB3
AS-OB3-2







Step 1
prepare the pre-assembled triangle kit

Step 2

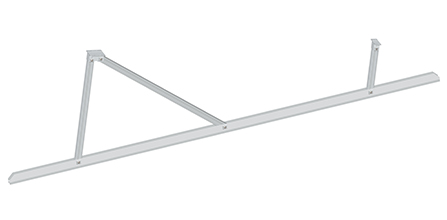

Open the pre-assembled triangle kit

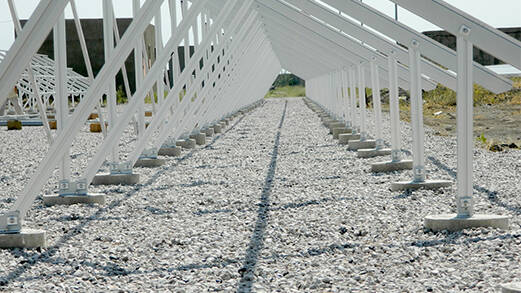

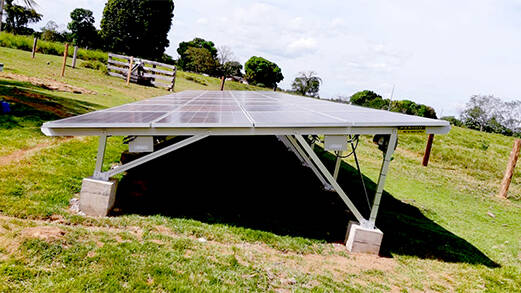

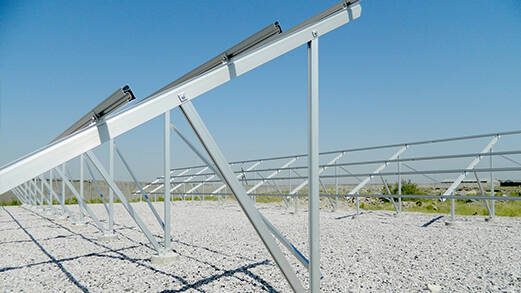

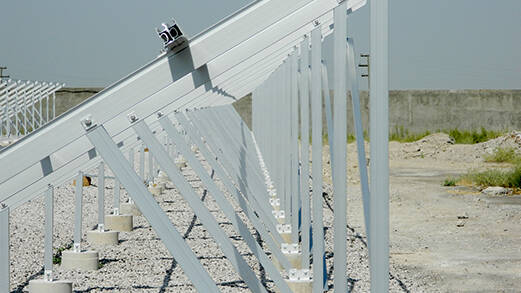

Solar ground mounting systems


Step 4
fix solar panel on the pre-assembled structures

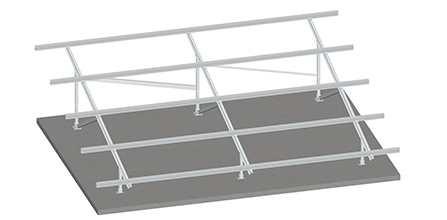

Step 3
fix the pre-assembled triangle kit and rail

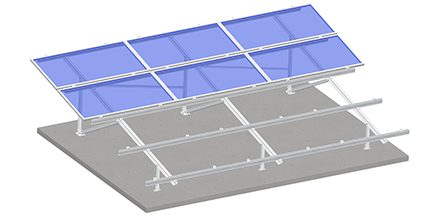

Aluminum solar ground mounting system - Single slot U beam
