East-West solar flat roof mounting system

East-West solar flat roof mounting system which can be installed on concrete flat roof and metal roof, meanwhile the degree can be fixed 10 degree or another other customized request.
  • Item NO.:

    AS-FR-EWTK
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

East-West solar flat roof mounting system

Inclination angle 10°, within 43m/s wind load, as long as the solar module length is within 1100mm, two modules can share one rear leg.

If the solar module length is more than 1100mm, or wind load is more than 43m/s, each module needs to use a separate rear leg.

Besides above mentioned 10°inclination, we have also 15° and 20°tilt for choice.


· Design Features

  ① Suited for concrete flat roof and the ground.
  ②

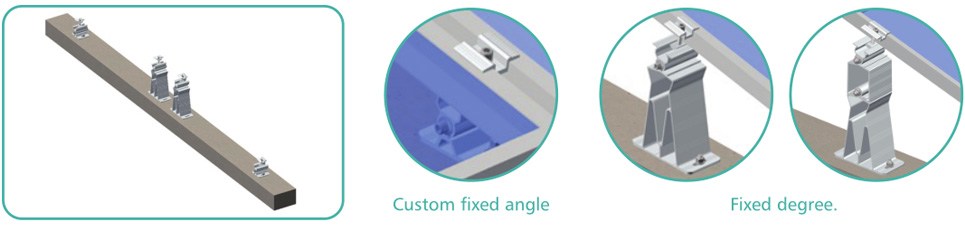

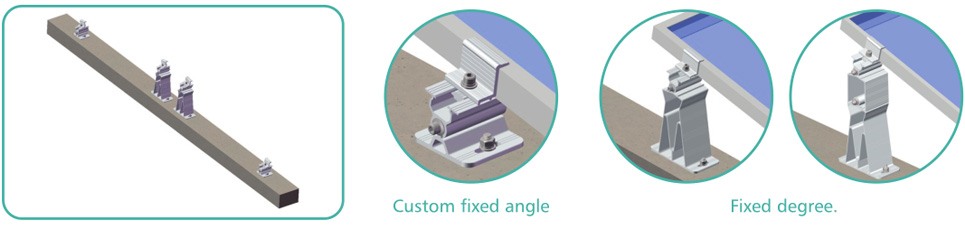

Angle can be fixed 10°or customized.
  ③
Suitable for landscape and portrait panel orientation.

  ④ Solar panel installed facing east and west orientation, it optimizes the roof space by increasing the power production.

  ⑤ Simple flat roof solar mounting solutions with less part needed, less work on site.

  ⑥ Suitable for both commercial and residential flat roof installation.



· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  Suited for different range of wind load and snow load.


· Certification:
  Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical & Physical test.



Portrait panel design or Landscape panel design


Category : Flat Roof Mount


Suitable for
  concrete flat roof and metal roof
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-DEC AS-DMC




AS-AFL-03
D10
AS-ABL-03-10EW



AS-A-A160
AS-ABL-03-D15
AS-ABL-03-D20

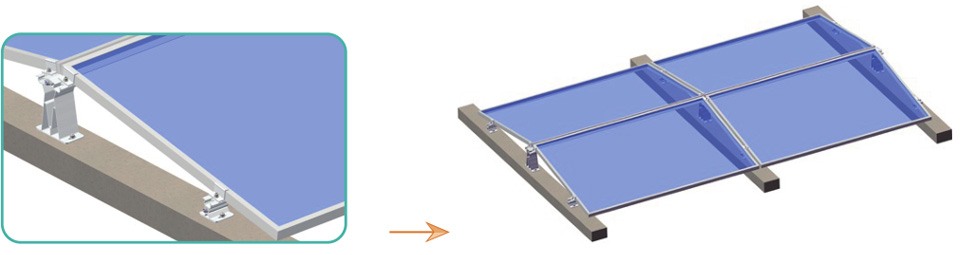

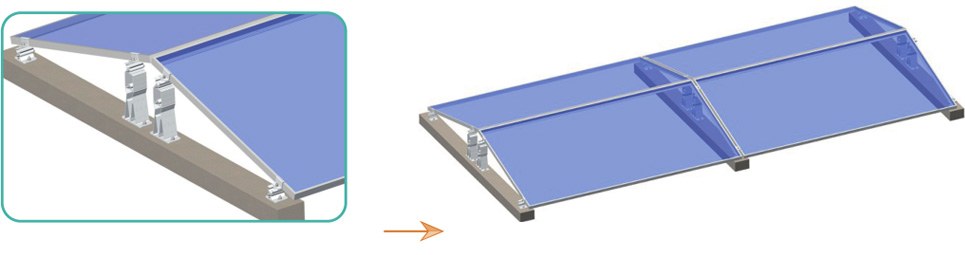

Step 1
Fixed legs to the concrete foundation or the ground.


Step 2
Fix Art Sign Solar Aluminum Rails with the legs.


Step 3
Solar panel installation, fix them with solar mid clamp, end clamp.


East-West solar flat roof mounting system






Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
