Solar panel pv bracket flat roof mounting U beam triangle kit

U beam Triangle kit is suitable for metal tin roof,concrete flat roof and open field, meanwhile the degree can be fixed or adjustable from 10-15,15-30 degree, also can be railless design.
  • Item NO.:

    AS-FR-UBTK
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

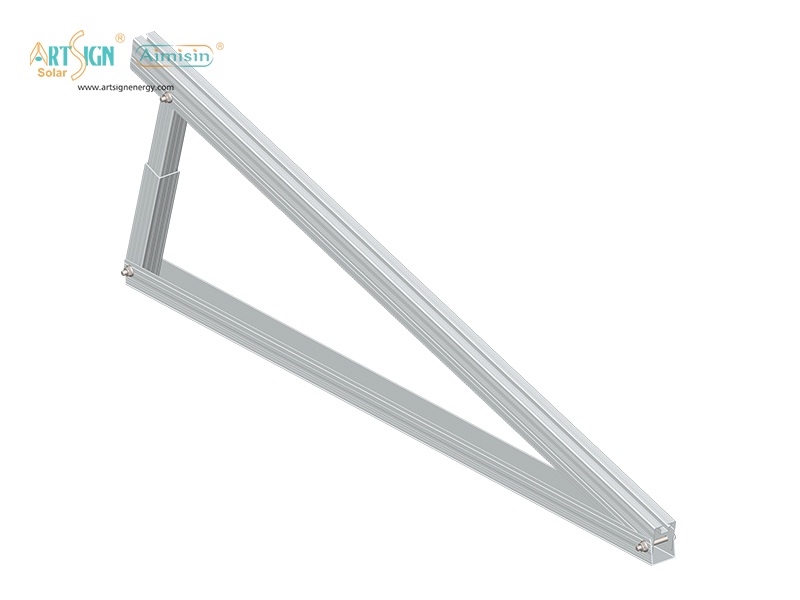

Solar panel pv bracket flat roof mounting U beam triangle kit


Design Features

— Pre-assembled triangle kit makes easier installation
— Fixed customized degree or adjustable (10-15,15-30°) degree design
— With rail or without rail solution is alternative
— Optional foundation type anchor bolt or ballasted
— 10um thk anodized aluminum structures, stainless steel 304 bolts and nuts
— Australia AS/NZS 1170.2 - Wind load report, SGS report-Chemical & Physical test

Mode Number

  AS-FR-UBTK

Brand Name

  ART SIGN
Specs

  U57.1 beam W38.8xH57.1mm, U43.1 base W43.8xH43.1mm

Material

  Aluminum 6005-T5

Application
   solar pv flat roof mounting systems Packing
  Wooden case
Keyword
  China factory oem solar panel flat roof mounting kits Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

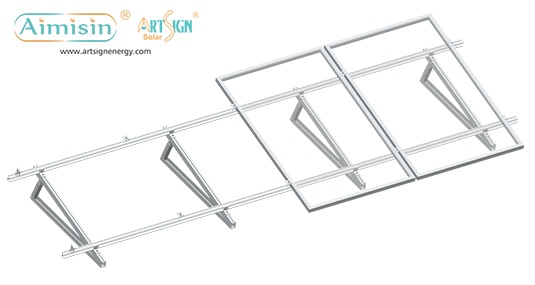

ART SIGN Railless U shape triangle kit

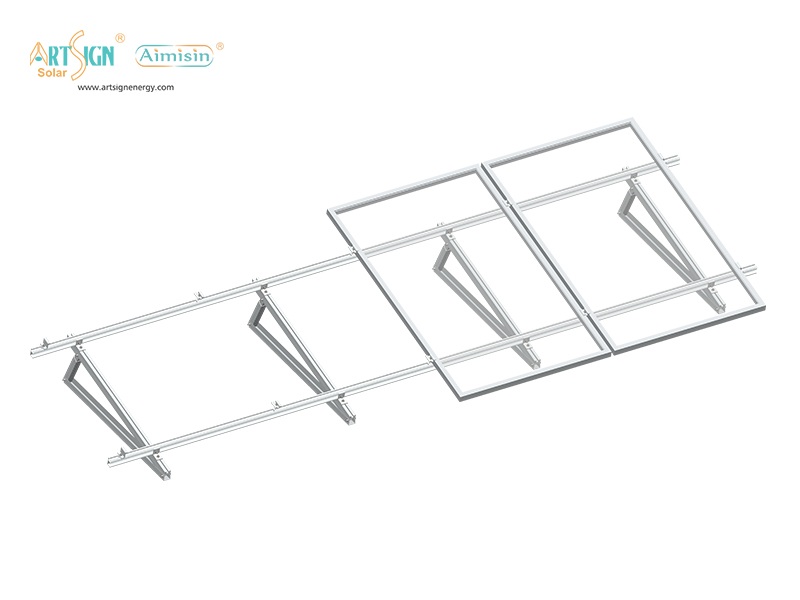

ART SIGN U shape triangle kit with rail solution

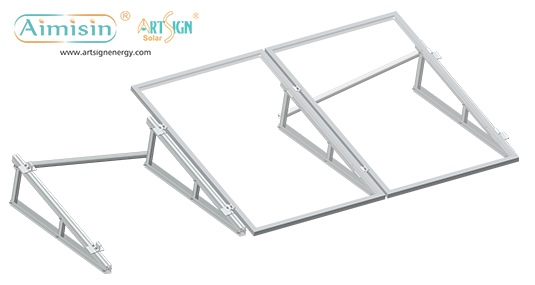

Railless U shape triangle kit

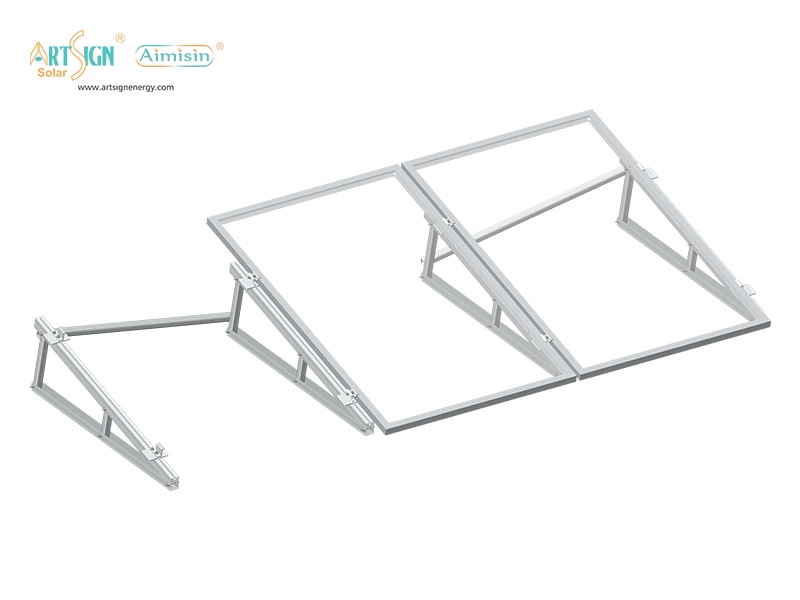

U shape triangle kit with rail solution

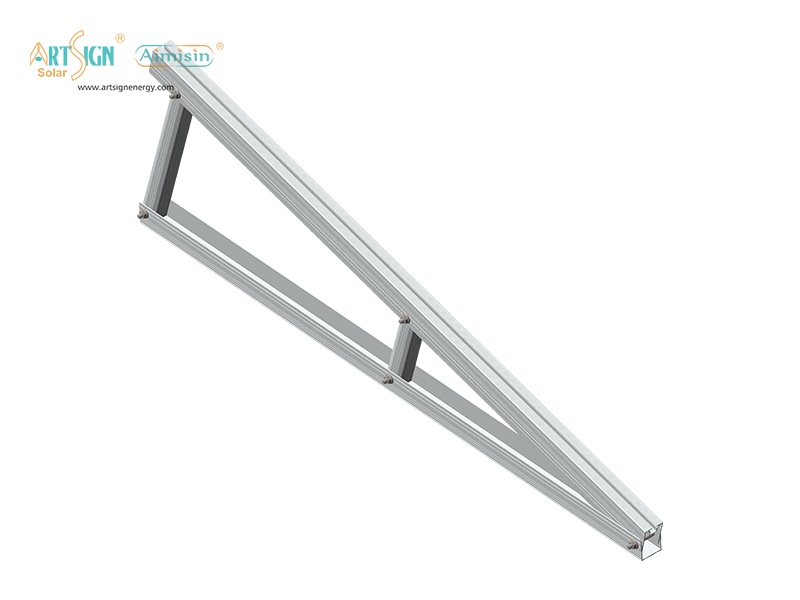

U Beam Triangle Kit design

ART SIGN Fixed triangle kit
ART SIGN Adjustable triangle kit

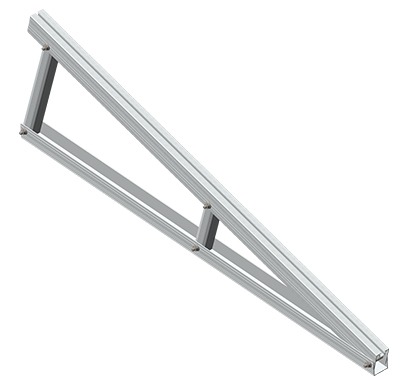

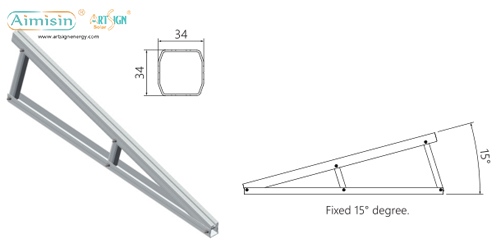

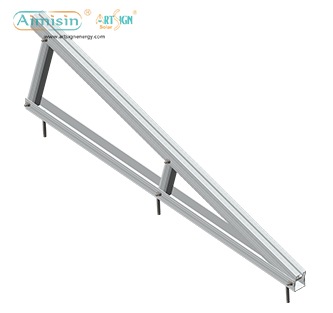

① Fixed triangle kit

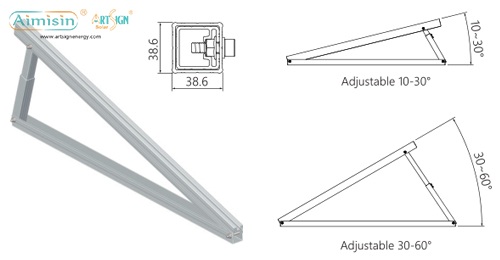

② Adjustable triangle kit


Three fixation methods

ART SIGN Ballasted plate for flat roof
ART SIGN Anchor bolt fixation for flat roof

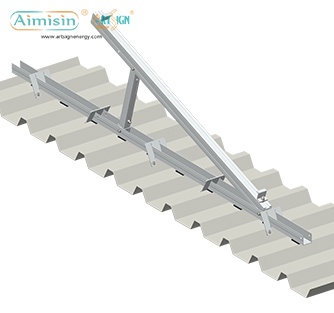

ART SIGN Aluminum fixing plate for metal roof

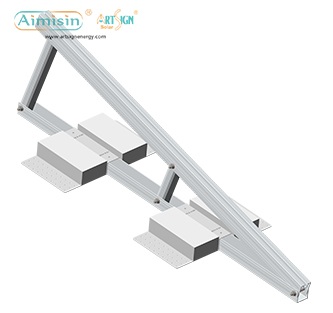

① Ballasted plate for flat roof
② Anchor bolt fixation for flat roof
③ Aluminum fixing plate for metal roof


Installation step

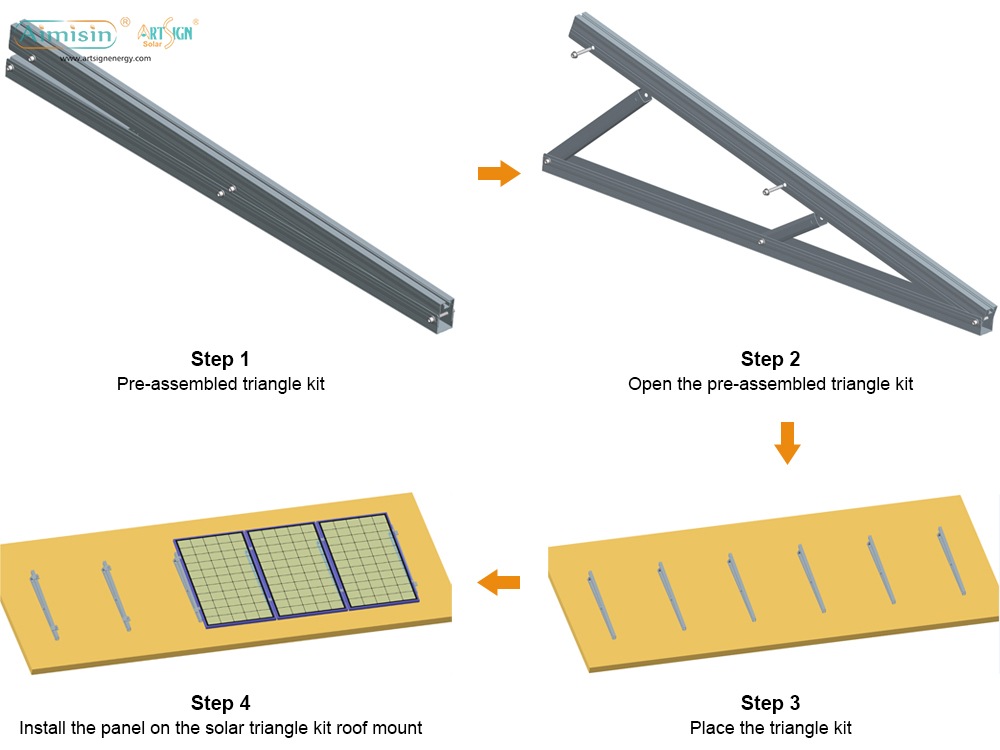

ART SIGN U beam installation step


ART SIGN solar mounting package

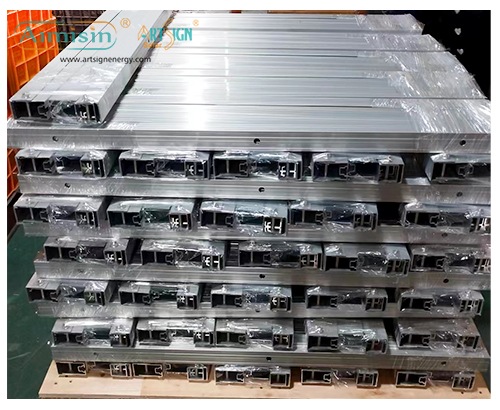

ART SIGN Each pre-assembled kit Stretch Film

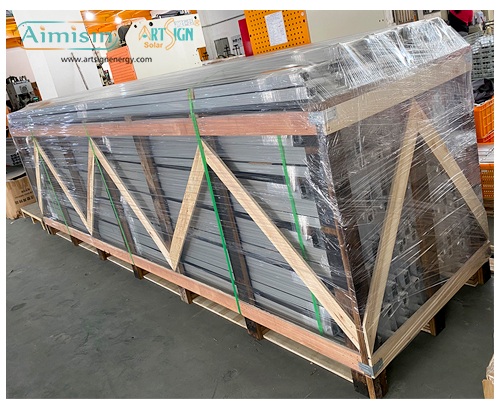

ART SIGN Packing into wooden pallet
Each pre-assembled kit Stretch Film
Packing into wooden pallet


ART SIGN U beam case study



ART SIGN solar mounting related accessories

Click to see more Flat roof mount.

ART SIGN Angle Bar Triangle Kit - Fixed Type
ART SIGN Angle Bar Triangle Kit - Adjustable Type
Angle Bar Triangle Kit - Fixed Type
Angle Bar Triangle Kit - Adjustable Type
ART SIGN U Beam Triangle Kit - Fixed Type
ART SIGN U Beam Triangle Kit - Adjustable Type

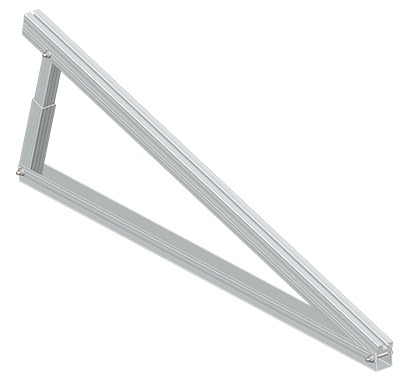

U Beam Triangle Kit - Fixed Type
