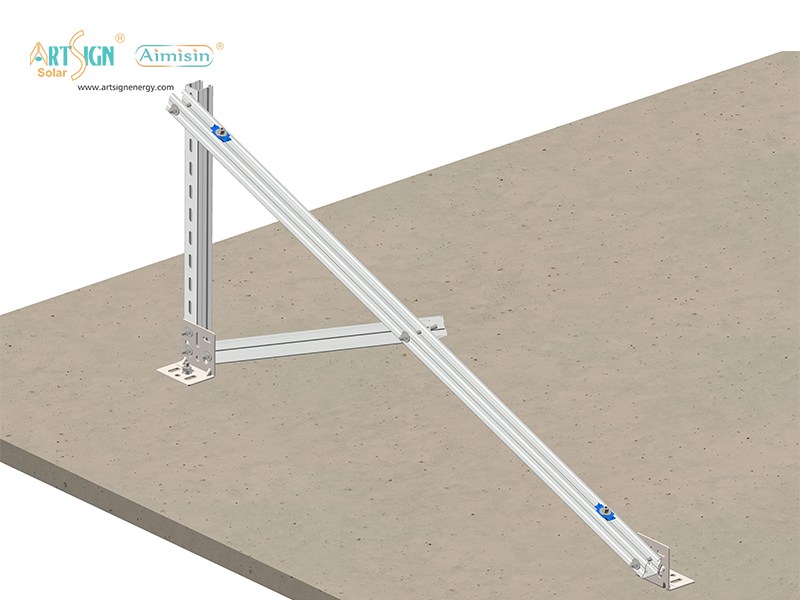

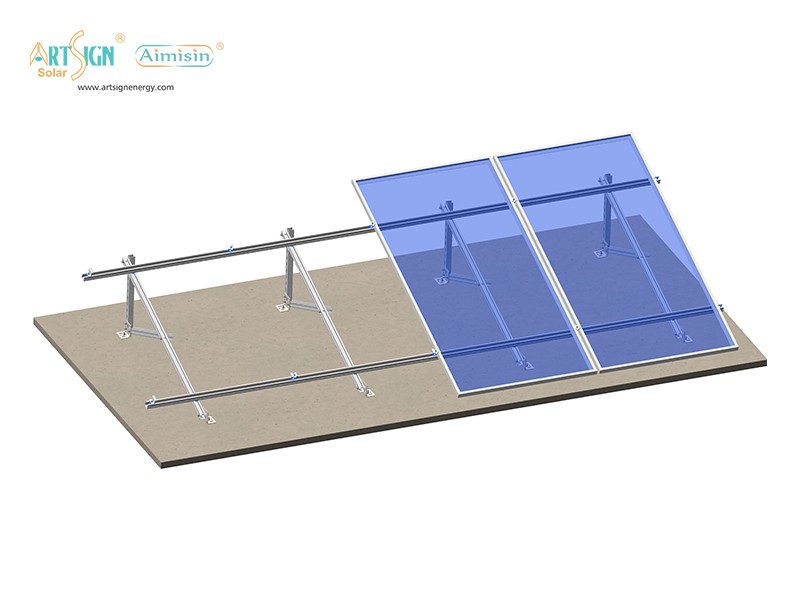

C41x41 steel triangle kit

C41x41 steel triangle kit which is convenient to install with pre-assembled, can be installed on concrete flat roof.

Item NO.:
AS-FR-CTK
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

C41x41 steel triangle kit

· Design Features

Fewer elements, quick installation, cheaper price, stronger strength.

· Surface treatment:
ZAM steel

· Design Strength:
Designed according to wind load and snow load request.

· Certification:
Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.

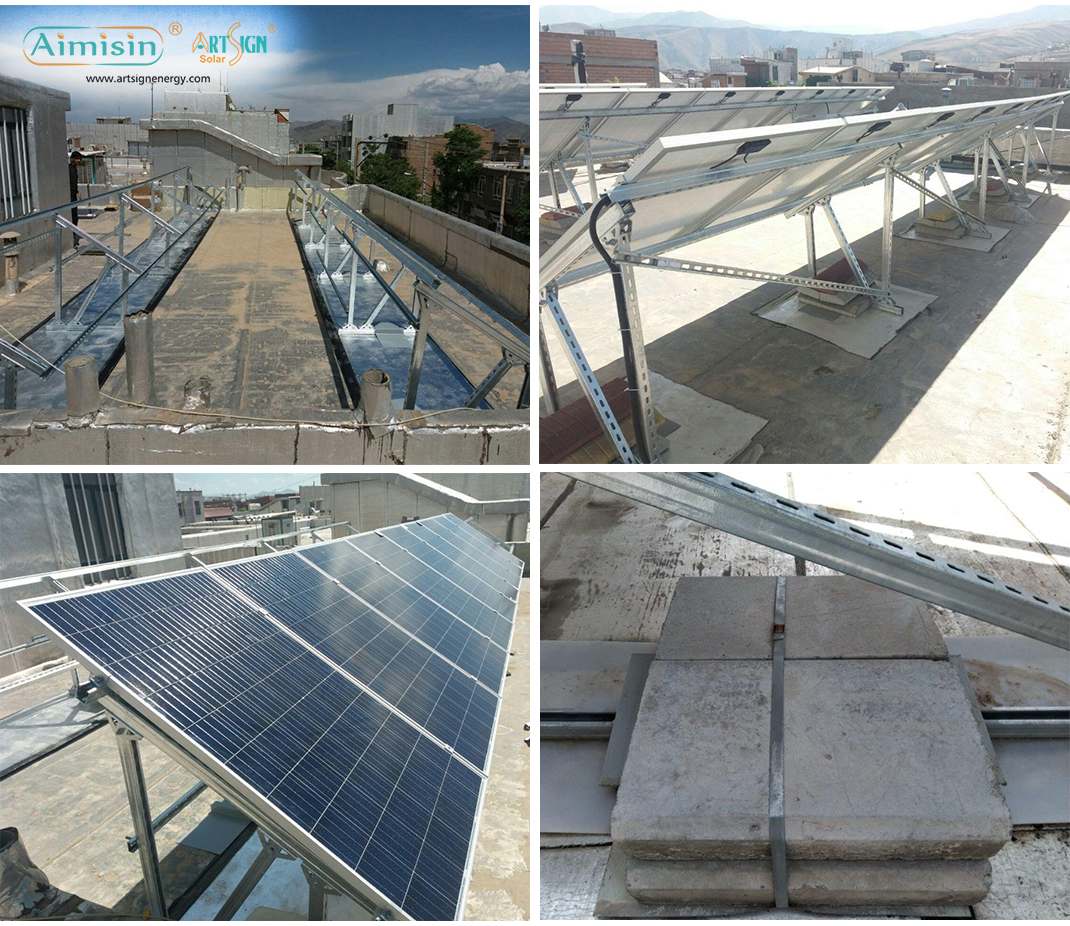

Suitable for	concrete flat roof
Module	Framed, thin film
Material & Surface treatment	ZAM steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color	silver, black or customer requirement
Module orientation	Landscape and portrait
Wind load	Max 60m/s
Snow load	Max 1.5kn/m2
Standards	Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty	20 years

Category : Flat Roof Mount

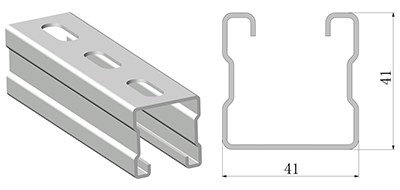

AS-C41x41		AS-I-A032

AS-CTEC-P	AS-CTMC-P	AS-Z-A019

AS-SAB-8-30-STN

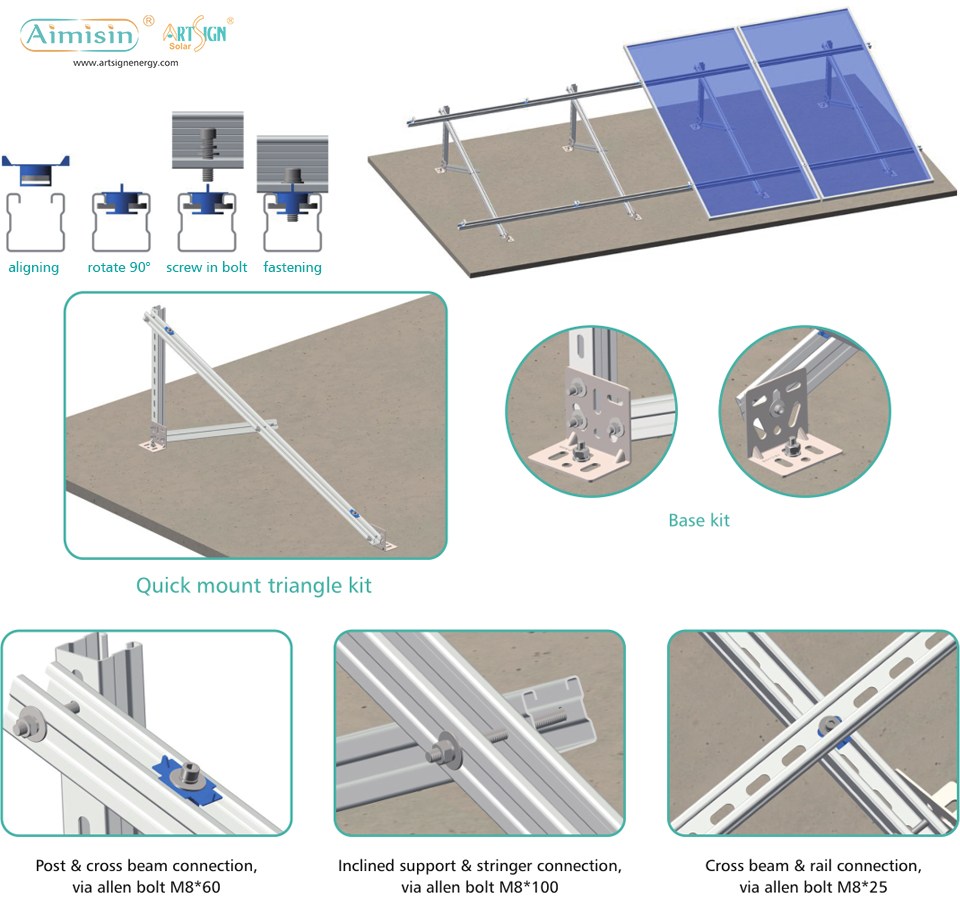

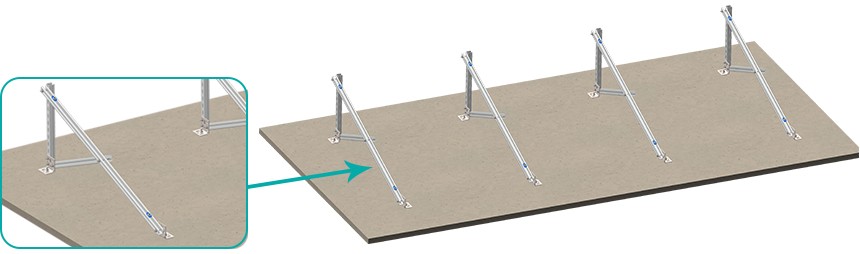

Step 1

Open the pre-assembled triangle kit

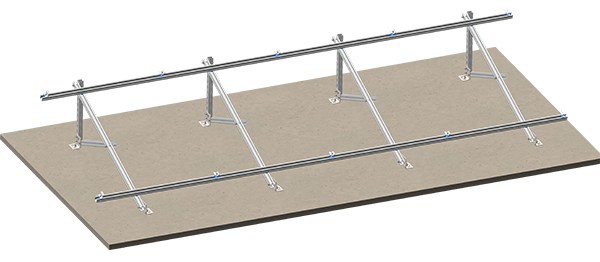

Step 2

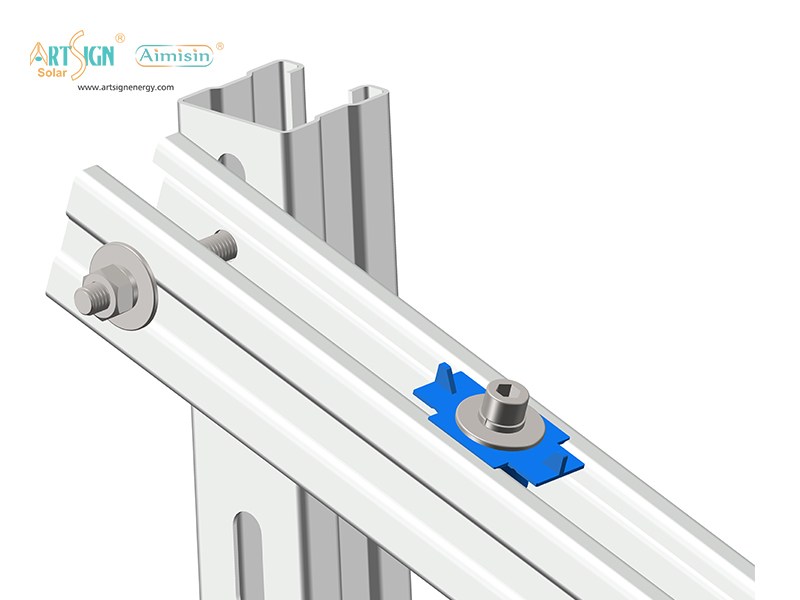

Fix solar rail on the triangle kit

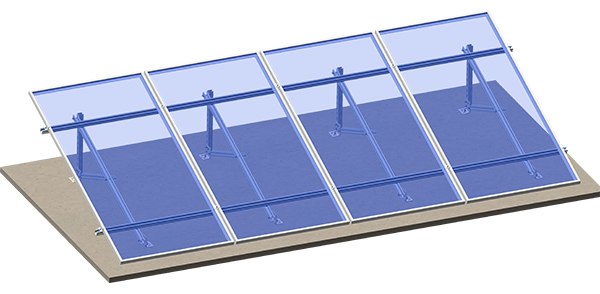

Step 3

install solar panel on the triangle kit

C41x41 steel triangle kit
