solar rail end clamps for solar panel mounting

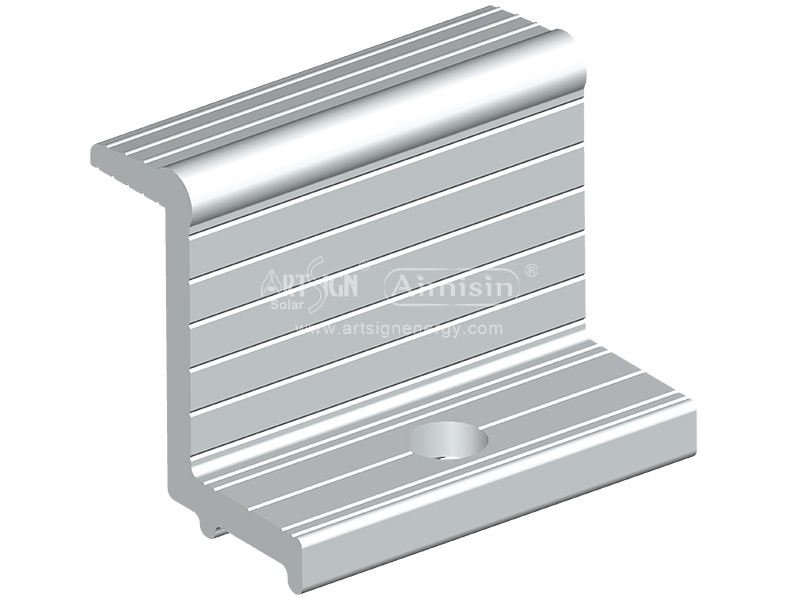

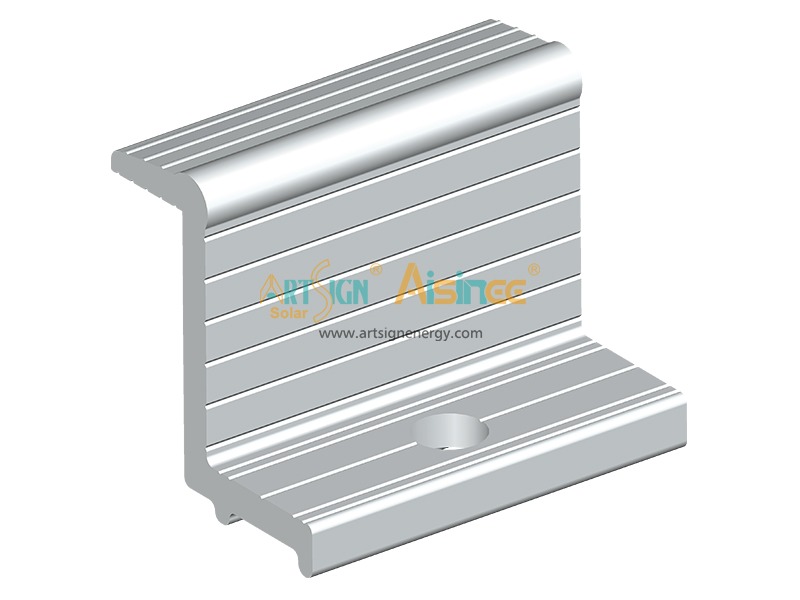

Anodized extruded aluminum profile solar rail end clamps for solar panel mounting

Module clamps with grounding pins reduce Material & Labor Costs.

Item NO.:
AS-EC-G
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Aluminum solar PV mounting clamps with grounding pins |ART SIGN

Design Features

— Standarded and customized solar clamps for your choosing.
— TUV, SGS, CE, ISO certified PV end rail clamps meet safety standards for your markets.

Mode Number	AS-EC-G	Brand Name	ART SIGN
Specs	40/50mm	Material	Aluminum 6005-T5
Application	Solar rail end clamps for solar panel mounting	Packing	carton box / plywood pallet
Keyword	Solar mounting rail end clamp with grounding pins China Manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

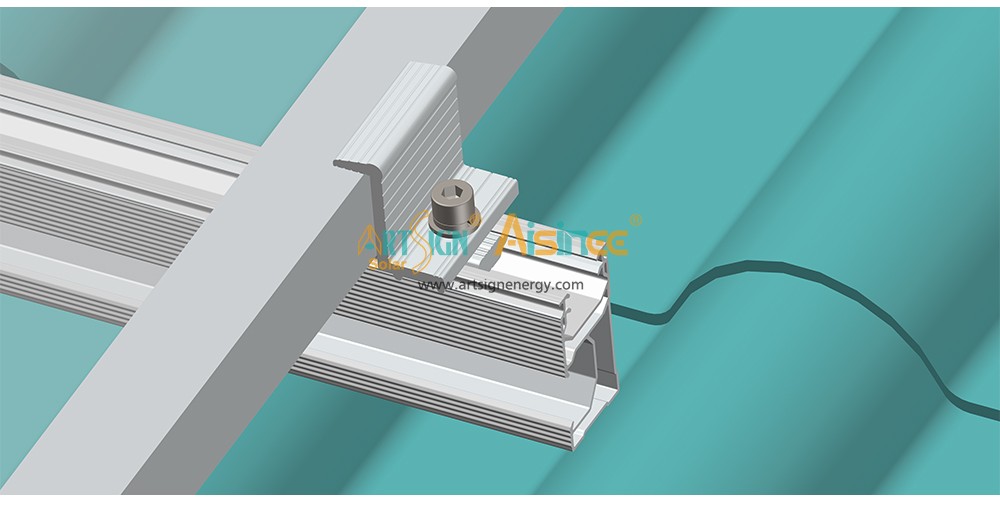

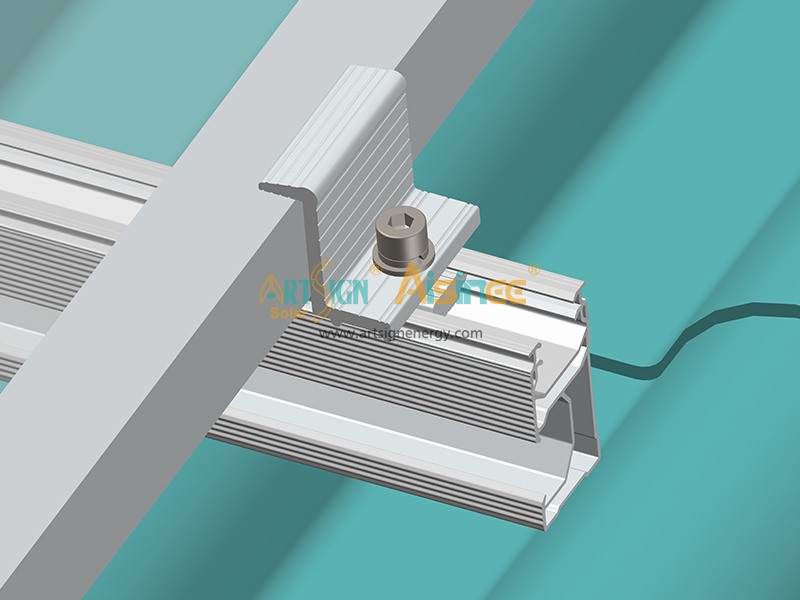

ART SIGN solar mounting details PV mounting clamps are essential components that secure solar panels to mounting rails

ART SIGN solar end clamp AS-EC-G

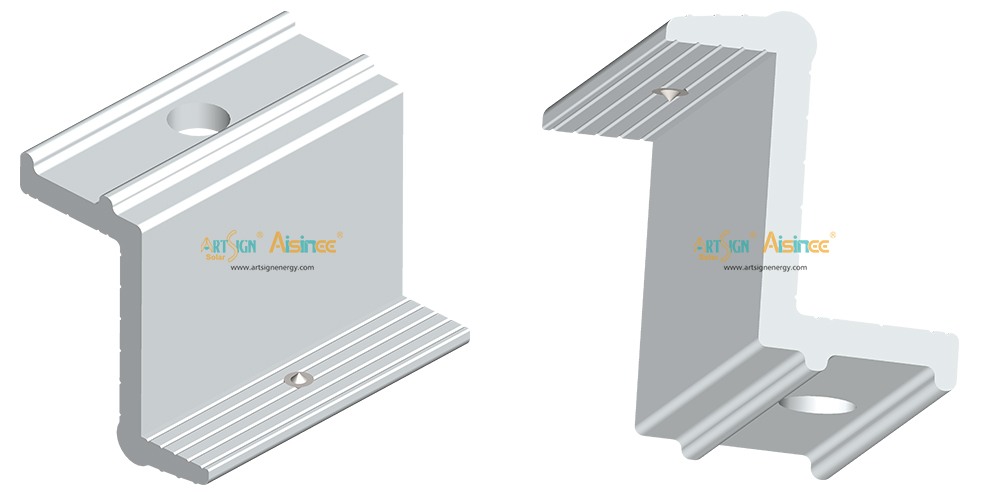

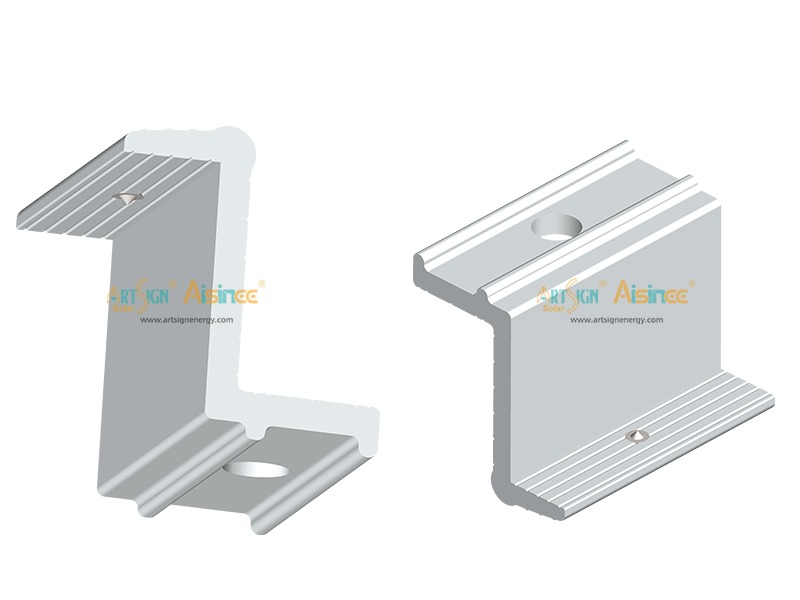

ART SIGN solar mounting details Solar Mounting Clamps with Integrated Grounding Pins

ART SIGN solar end clamp AS-EC-G

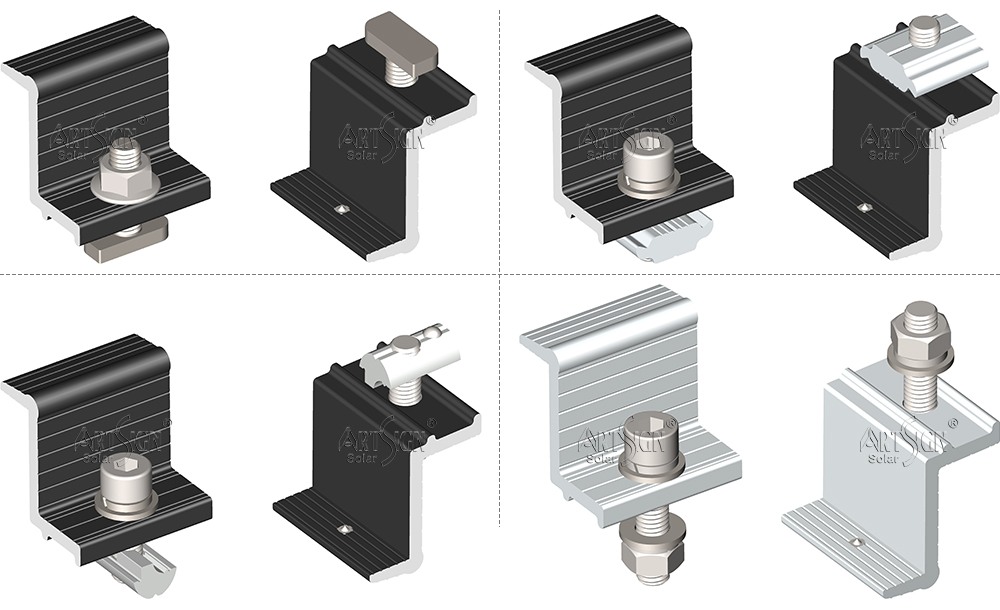

ART SIGN solar mounting details End clamps with various nuts

ART SIGN solar end clamp AS-EC-G

Selling Units

per meter / per pcs

Package Type

Inner packing: poly bag into carton;

Outer packing: wooden case /pallet

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time(days)	15	20	25	To be negotiated

ART SIGN solar mounting related accessories

Solar clamp can be cut by 40mm/50mm etc. different lengths to be suitable for various projects. Color can be silver or black.

Click to see more module clamps.

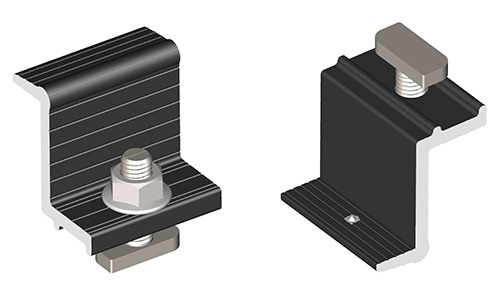

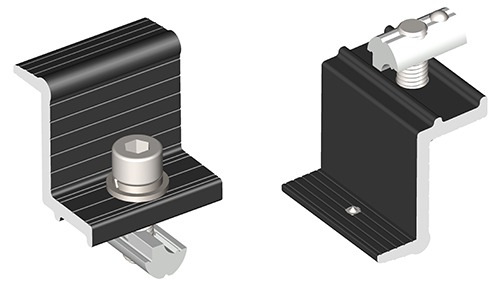

Black solar rail end clamp with G nut		aluminum solar panel mounting end with T bolt

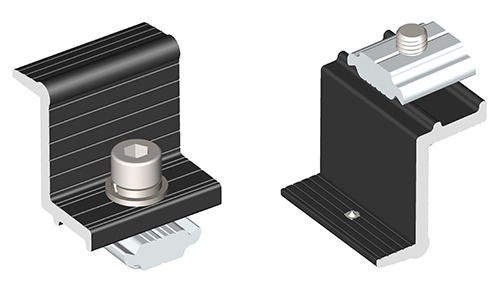

Solar PV mounting end clap with D nut		Customized solar clamps with grounding pins
