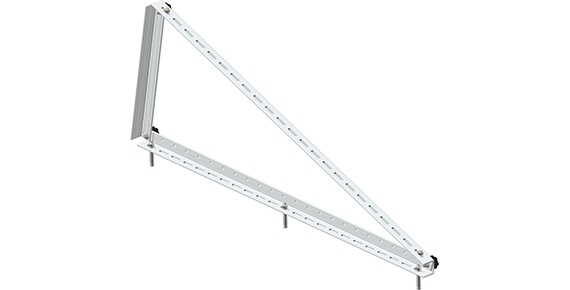

FLAT ROOF - Adjustable tilt solar mount bracket with foldable tilt legs

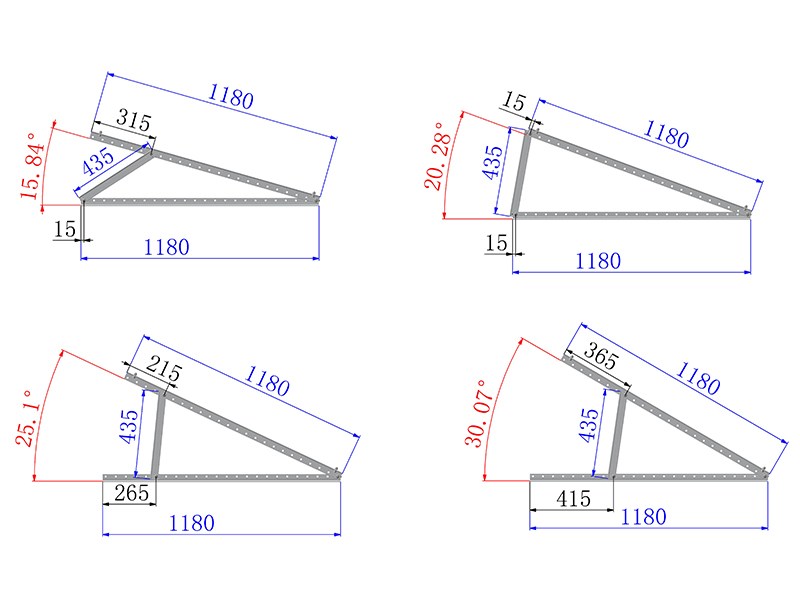

solar mounts for flat roofs - Adjustable tilt solar mount bracket with foldable tilt legs which is convenient to install with pre-assembled, can be installed on concrete flat roof, meanwhile the degree can be fixed or adjustable from 10-30, 30-60 degree.
  • Item NO.:

    AS-FR-ATB-FL
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

FLAT ROOF - Adjustable tilt solar mount bracket with foldable tilt legs


· Design Features

  ① The perfect solution to mount a solar panel to the roof of your RV, travel trailer or any other flat surface.
  ② Adjustable angle.
  ③ Suitable for landscape panel installation.


· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  Suited for different range of wind load and snow load.


· Certification:
  Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.



Suitable for
  concrete flat roof
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years



Category : Flat Roof Mount






AS-A-A162 AS-LC-02
AS-AB-B



AS-ATK-05
AS-A-A064-L30
AS-PBHS-8-25



AS-S-AB-8-20

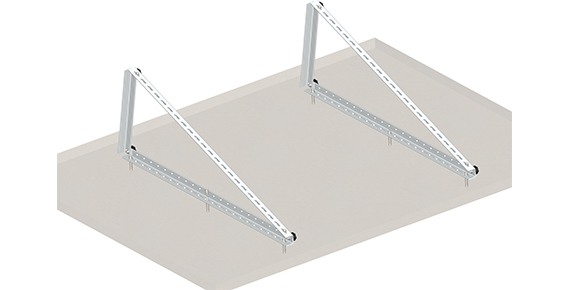

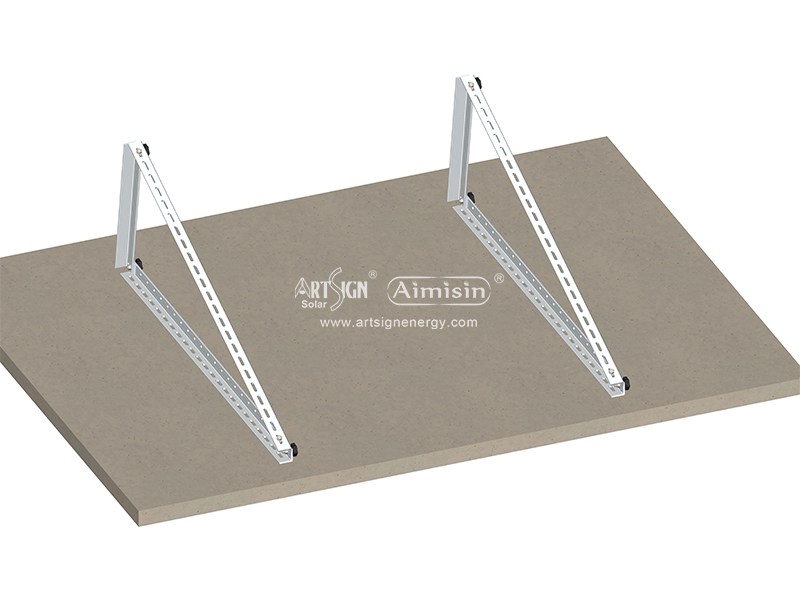

Step 1
Open the pre-assembled triangle kit


Step 2
Fix solar rail on the triangle kit

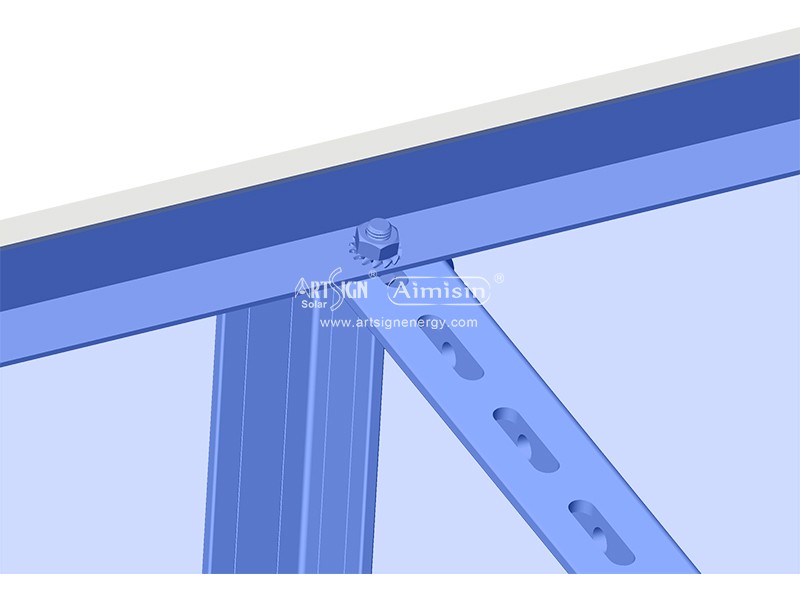

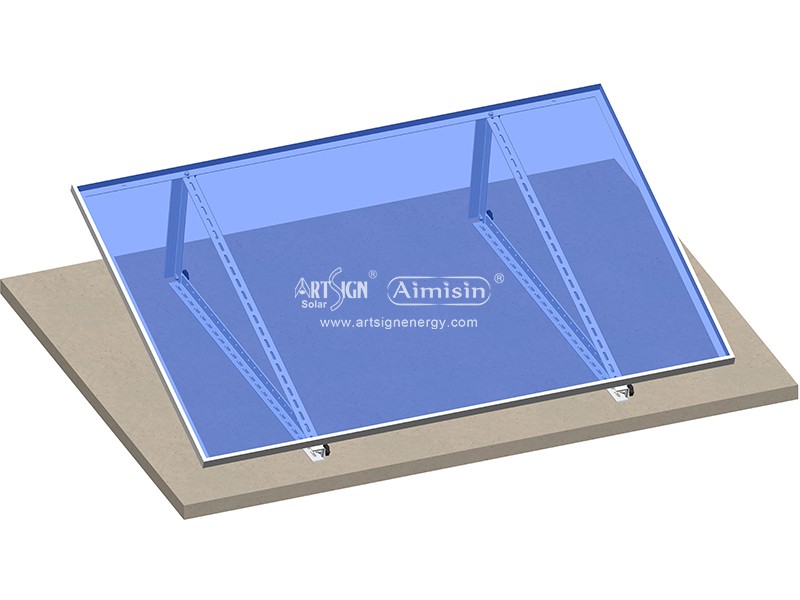

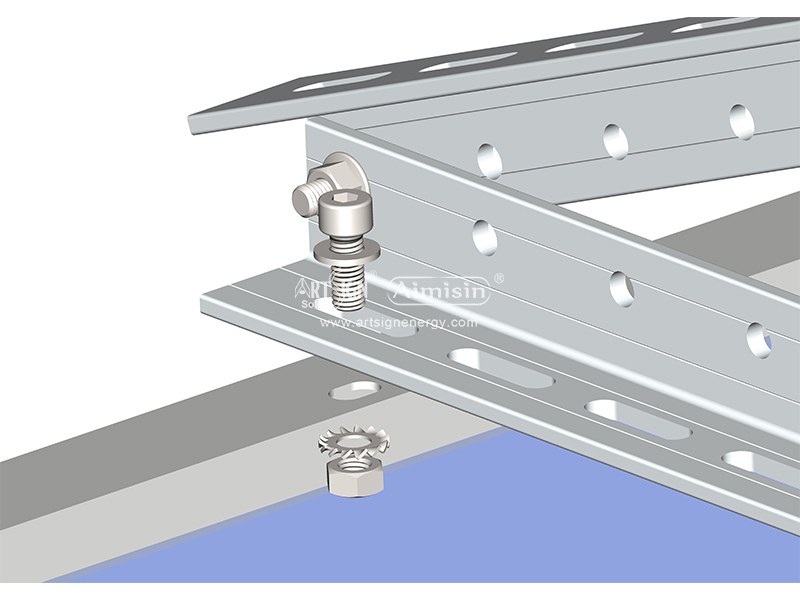

Step 3
install solar panel on the triangle kit


FLAT ROOF - Adjustable tilt solar mount bracket with foldable tilt legs
