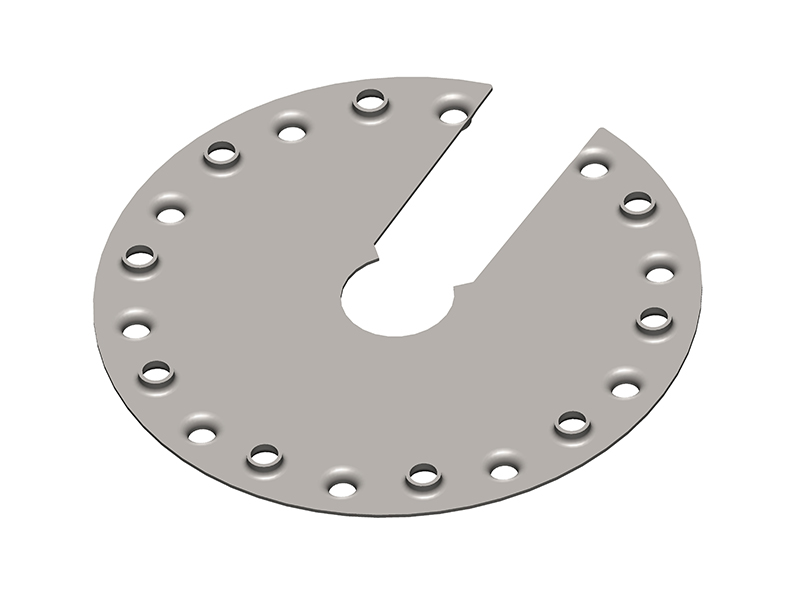

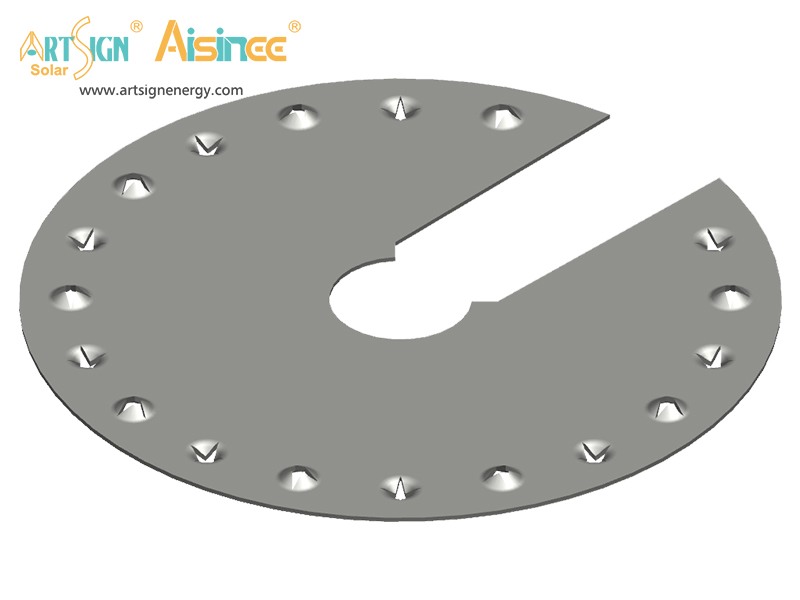

Solar system ground lug panel conduct plate｜ART SIGN
Design Features
— Grounding Lug ensures a quick and easy installation.
— Multiple equipment ground conductor allowance.
— Components usable across metal roof types.
— Multiple equipment ground conductor allowance.
— Components usable across metal roof types.
|
Mode Number |
AS-EL-08 |
Brand Name |
ART SIGN |
|
Specs |

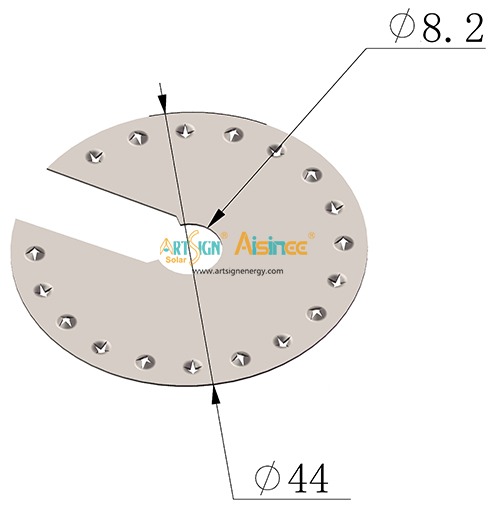

44*8.2*0.3mm |
Material |
Stainless steel 304 |
|
Application |
Roof mounting system |
Packing |
carton, plywood pallet / case |
|
Keyword |
OEM ODM solar mounts grounding lug |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
|
Solar grounding lugs of excellent conductivity without oxidation have been built, frame and rails are combined to form a whole structure to create an electrical path to the ground. |
 |

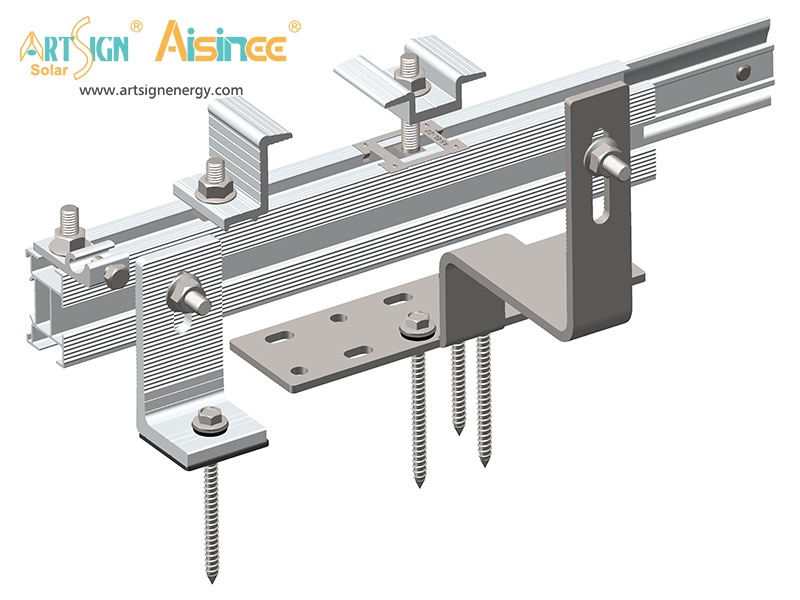

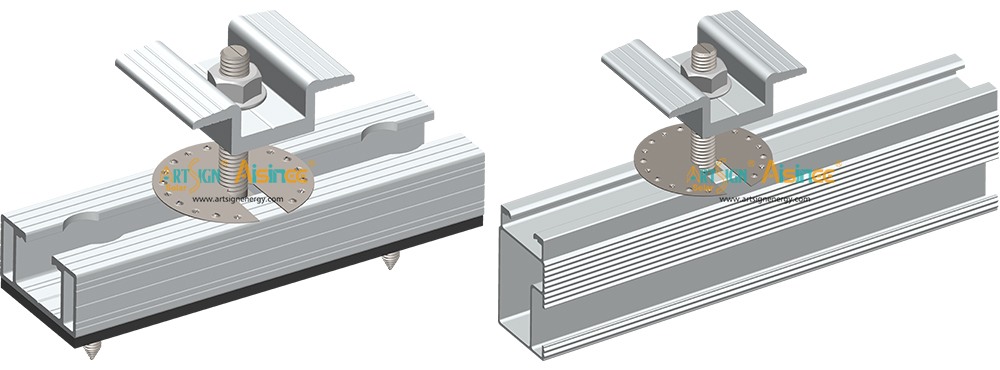

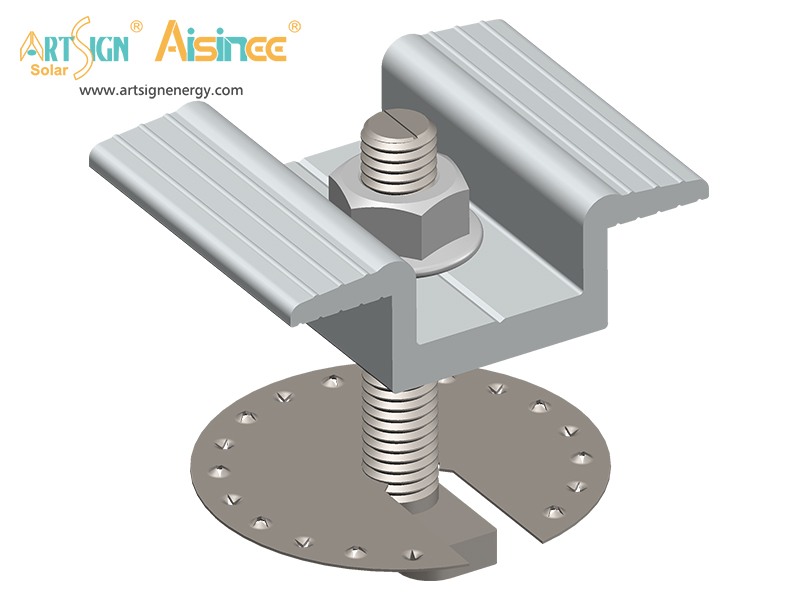

High durability connecting the solar panel frame and aluminum rails, creates an electrical path to the ground.

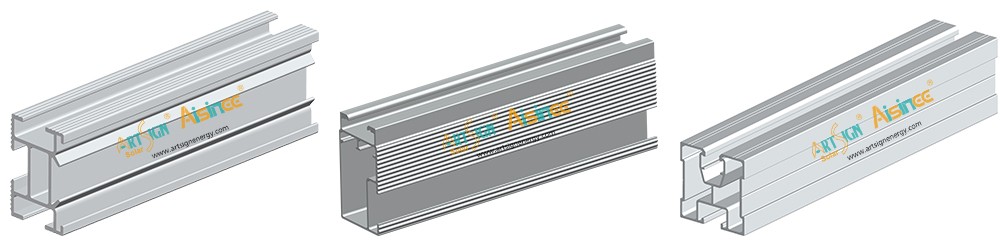

Various grounding earth plates could meet different rails, include T rails, CR rails, GR rails.
|
Selling Units |
per meter / per pcs |
Package Type |
Inner packing: poly bag into carton; Outer packing: wooden case /pallet |
||||||||||
|
Lead Time： |
|
||||||||||||
Solar grounding copper wire bonding jumper is used for grounding between rail splice of solar mounting brackets.
