New design PV panel mounting structures solar triangle steel brackets

New design PV panel mounting structures solar triangle steel brackets

Used for tin roof/flat roof solar mounting brackets, steel material can be more stronger.

Item NO.:
AS-Z-FTK-01
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

New design PV panel mounting structures solar triangle steel brackets

Design Features

— Fixed angle for steel triangle solar kits.
— S350GD+ZM material will be more stronger.

Mode Number	AS-Z-FTK-01	Brand Name	ART SIGN
Specs	1. 40/50mm wideth can be option 2. Pre-assembled steel tripod kit 3. Tilt degree can be customized	Material	S350GD+ZM
Application	solar panel roof mounting system	Packing	wooden case
Keyword	Steel fixed triangle solar bracket for flat roof	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

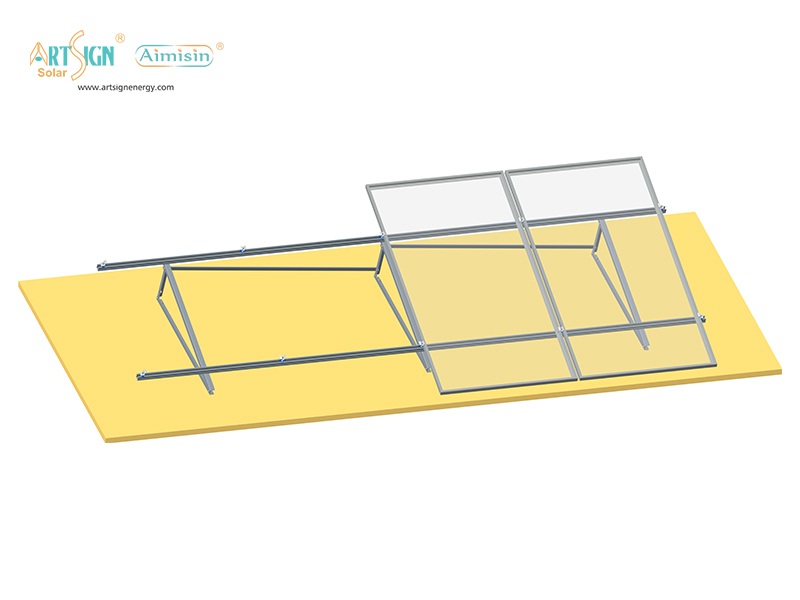

ART SIGN solar mounting details

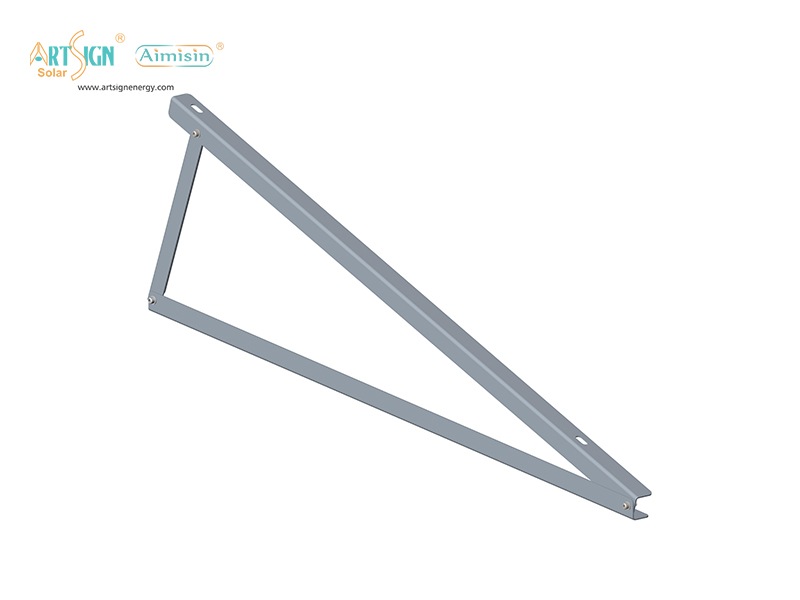

solar tripod bracket

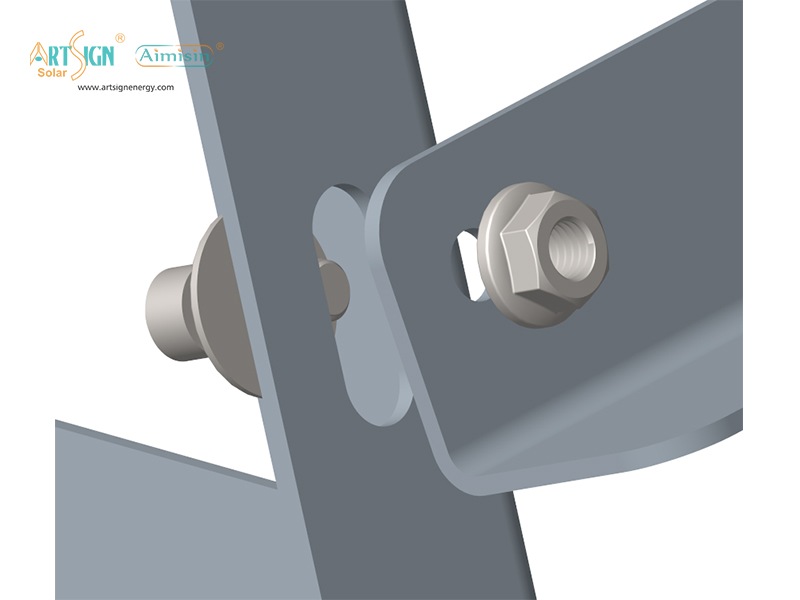

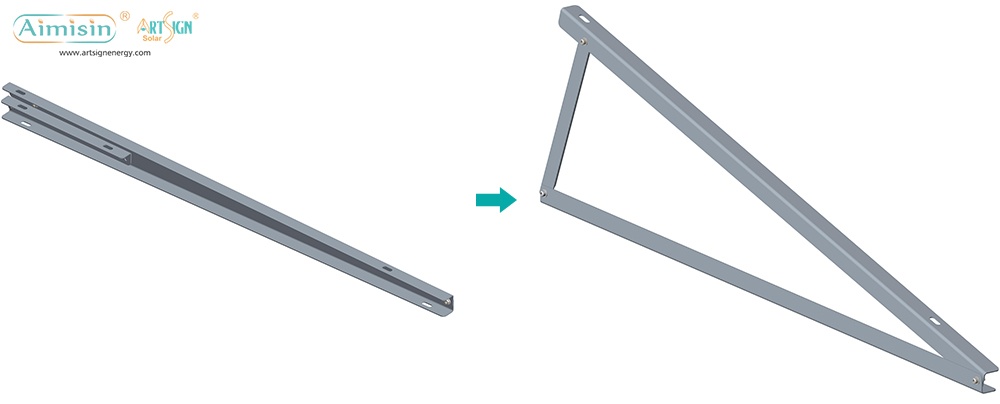

Pre-assemble

Product Description

solar tripod bracket

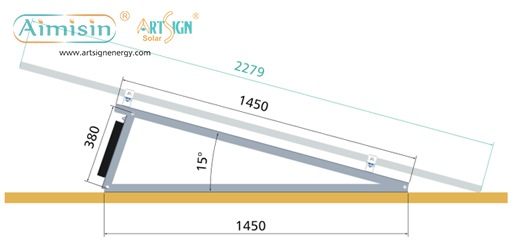

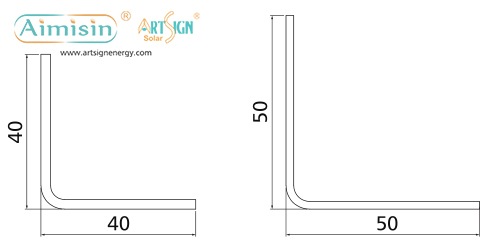

The tilt angle is customized.	Optional specifications for steel angle bar

solar tripod bracket

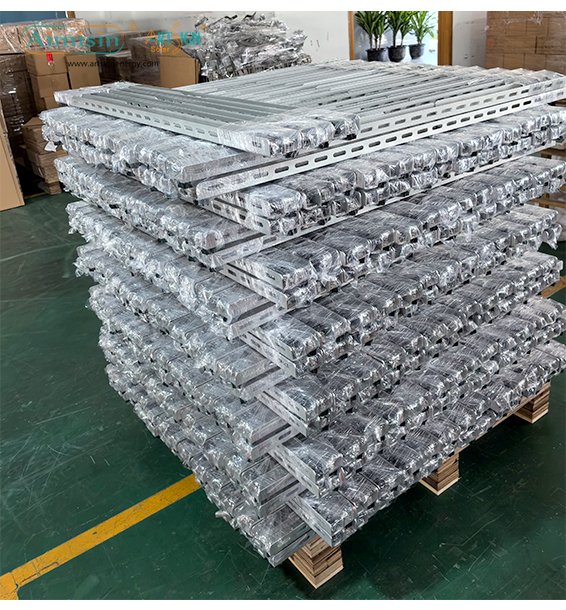

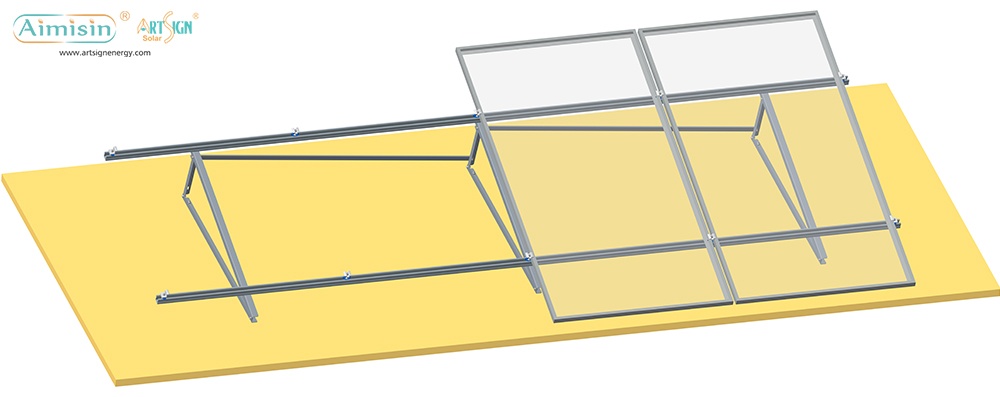

ART SIGN solar mounting package

solar tripod bracket

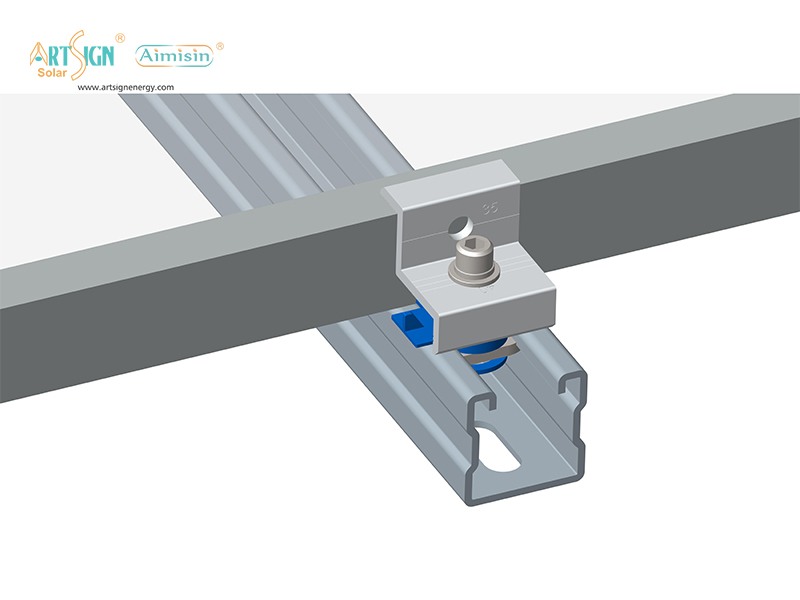

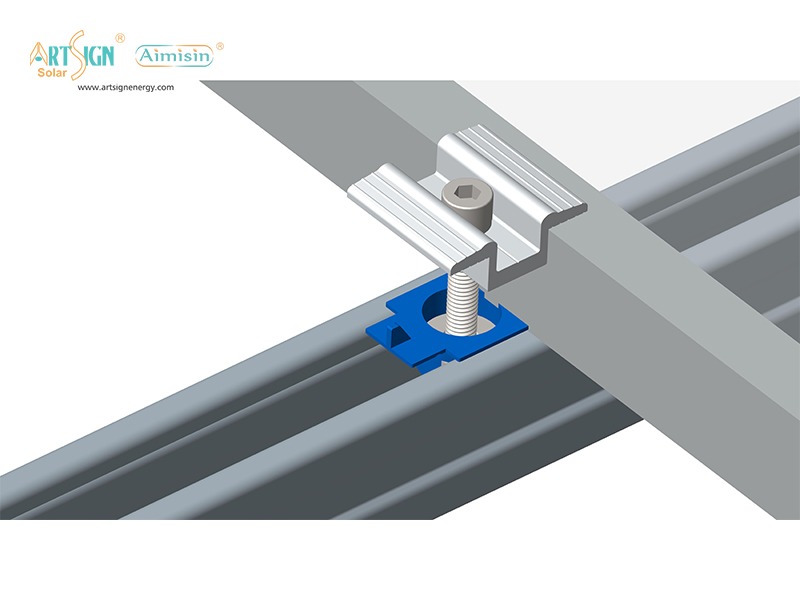

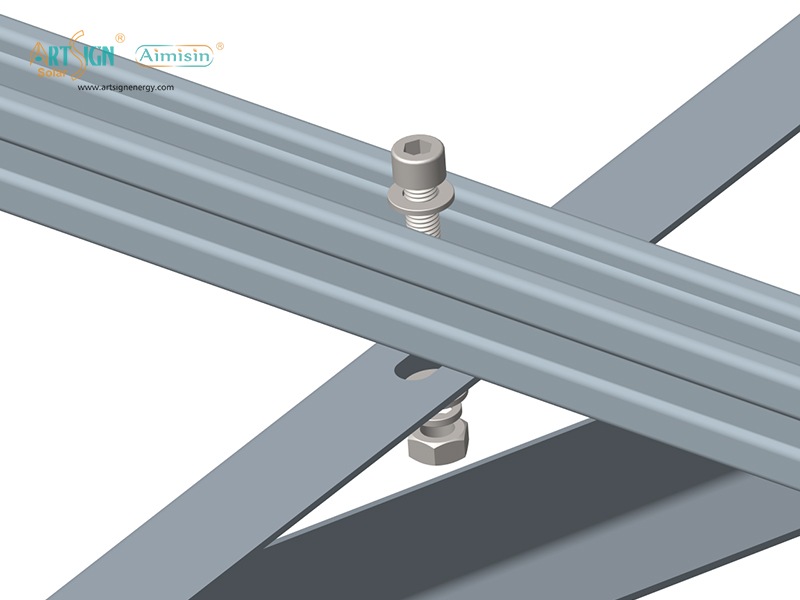

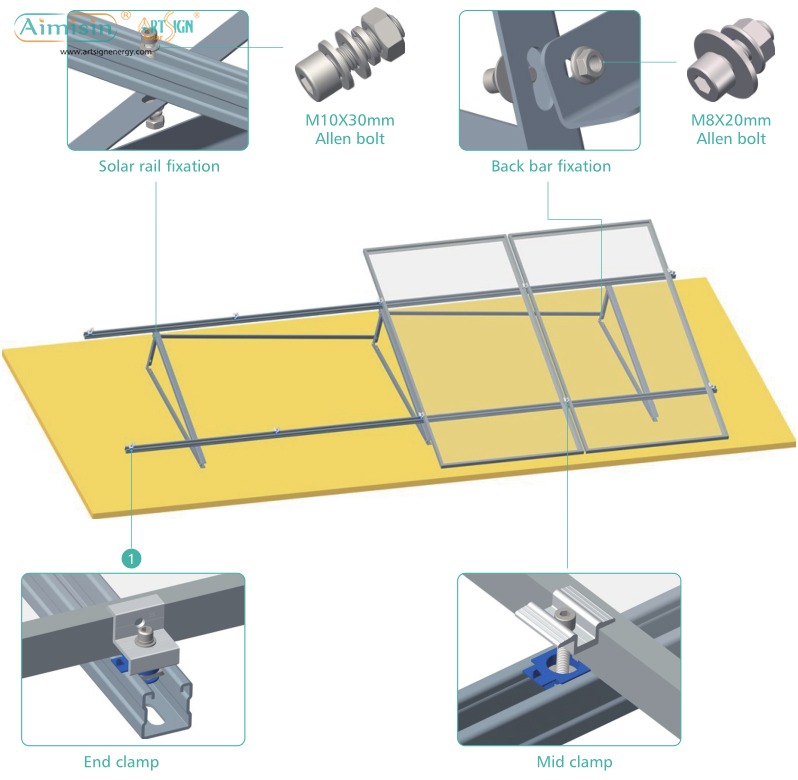

ART SIGN solar mounting related accessories

Click to see more Flat roof mount.


Angle Bar Triangle Kit - Fixed Type	Angle Bar Triangle Kit - Adjustable Type

U Beam Triangle Kit - Fixed Type	U Beam Triangle Kit - Adjustable Type

Foldable Triangle Kit
