C rail 01# splice kit for solar rail mounting

C rail 01# splice kit for solar rail mounting

Drop-in splice that connect solar rails “click” together in 5 seconds.

Item NO.:
AS-CRS-01
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

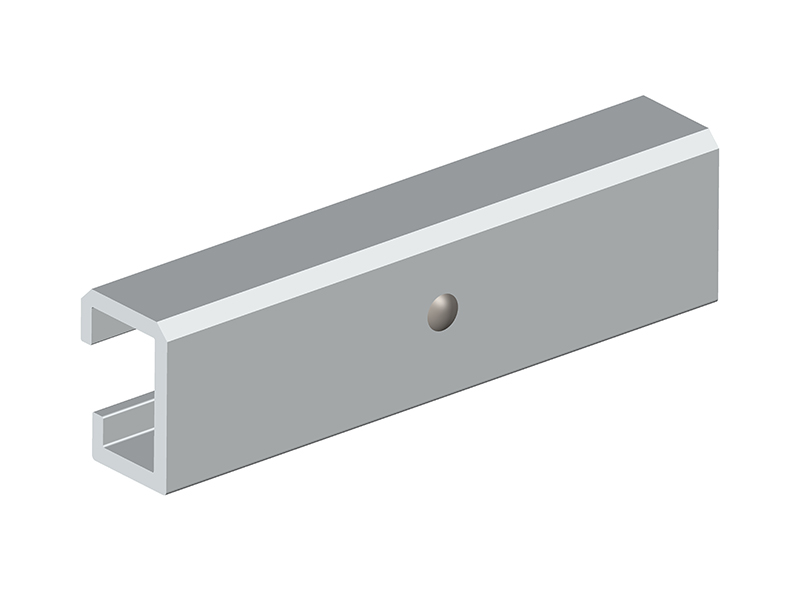

AS-CRS-01 Aluminum Solar Mounting Rail Splice |ART SIGN

Design Features

— Easy installation,pre-installed rivet that anchors the splice inside the two rails.
— High-strength, corrosion-resistant anodized aluminum material.
— Specifically designed for the C rail,matches the dimensions of the C rails.

Mode Number	AS-CRS-01	Brand Name	ART SIGN
Specs	W27.8 x H38.8mm, cutting length=150mm	Material	Aluminum 6005-T5
Application	Solar panel roof mounting system	Packing	Wooden case
Keyword	Customized solar rail joint, solar connector	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

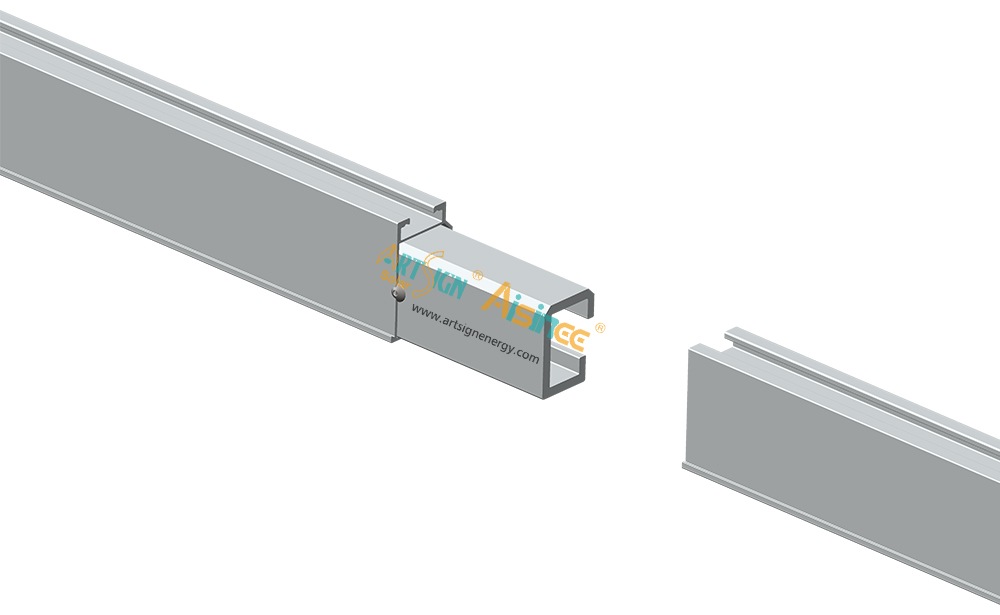

Installation Steps

Fix one side of rail on half position of the rivet

Insert another rail on the other half of rivet.

ART SIGN aluminum solar mount rail jointer AS-CRS-01

Securely connect the two rails.

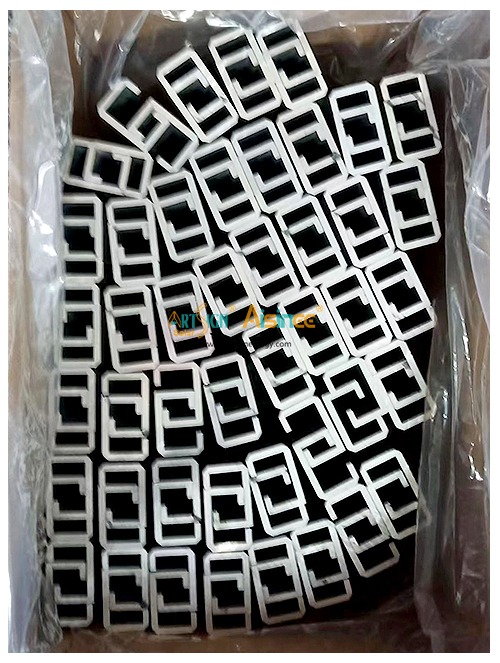

Products are packed in corrugated cartons.	Finished goods are shipped on pallets.

Click to see more N module series.


CR N nut	AS-CR-01	AS-CRS-01
