Solar panel flat roof mounting system - adjustable tilt kit

solar panel flat roof mounting system-adjustable tilt kit which can be installed on concrete flat roof and metal roof, meanwhile the degree can be fixed or adjustable from 10-15, 15-30,30-60 degree.
  • Item NO.:

    AS-FR-ATK
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

solar panel flat roof mounting system - adjustable tilt kit


· Design Features

  ① Suited for concrete flat roof and metal roof.
  ② Adjustable type structure which has 3 angle range for options: 10-15°,15-30°,30-60°.
  ③ All the components will be pre-assembled.



Anchor bolt for fixing the mounting on the concrete roof.
Spec. for anchor bolt: M12*100, M10*90, M6*50

Self-tapping screw for fixing the mounting on the metal roof.


· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  2 kinds of design to meet the different wind load and snow load requirements.


· Certification:
  Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.



Category : Flat Roof Mount


Suitable for
  concrete flat roof and metal roof
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-DR-01A AS-DR-01B
AS-DR-03



AS-DR-04
AS-DRS-01
AS-DRS-02



AS-DEC
AS-DMC
AS-AFL-01



AS-AFL-02
AS-ABL-01
AS-ABL-02



AS-ABL-01-D
AS-ABL-02-D

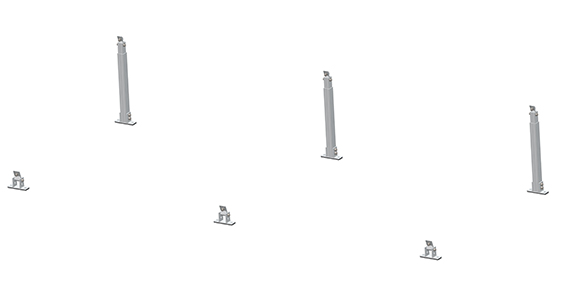

Step 1
Open the pre-assembled triangle kit ,plan the foot base and fix the legs


Step 2
fix Art Sign Rails with the legs


Step 3

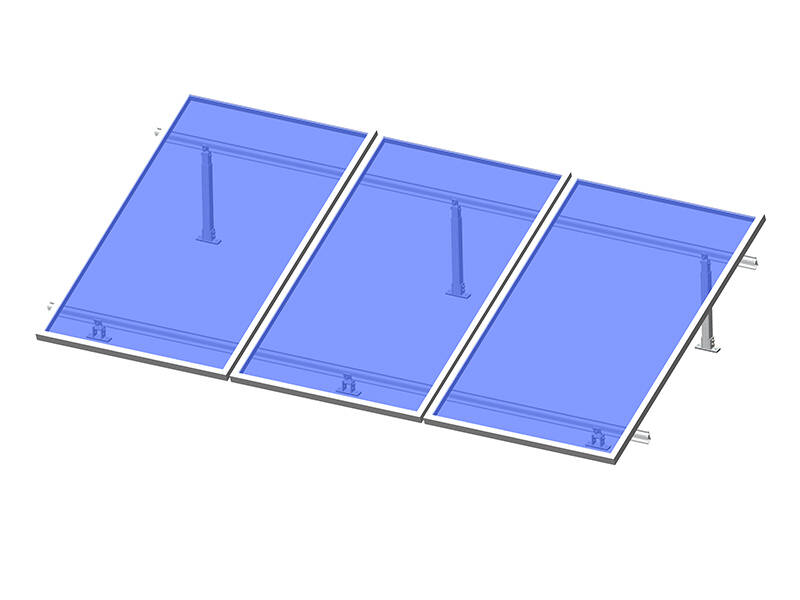

solar panel installation , fix them with mid clamp,end clamp


FLAT roof - Adjustable tilt kit
