Standing seam rooftop solar panel mounting structure clamp

Designed specifically for standing seam metal roofs, the Art Sign Non-Penetration N-Clip is a professional solution that features a clip-based, non-penetration design that requires no drilling or roof modifications.
  • Item NO.:

    AS-N1A-50
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

Art Sign non-penetrating N-clip solar panel mounting bracket for metal roof


Design Features

— Non-penetrating the roof, fast and cost-effective installation.

— Various N clip which is fit for different roof shape and the panel can be installed landscape or portrait.

— Panel can be installed on the rail or without rail.

— Minimum fasteners to save installation time.

— Suit for different range of wind load and snow load.


Mode Number

  AS-N1A-50

Brand Name

  ART SIGN
Specs

 L50*W37*H42mm

Material

  Aluminum 6005-T5

Application
  N-clip for metal/tin roof Packing
  Wooden Pallet
Keyword
  China non-penetrating standing seam roof clamp Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details


ART SIGN solar panel roof mounting bracket AS-N1A-50

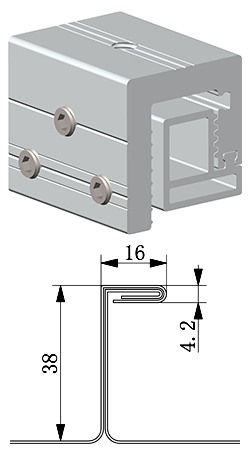

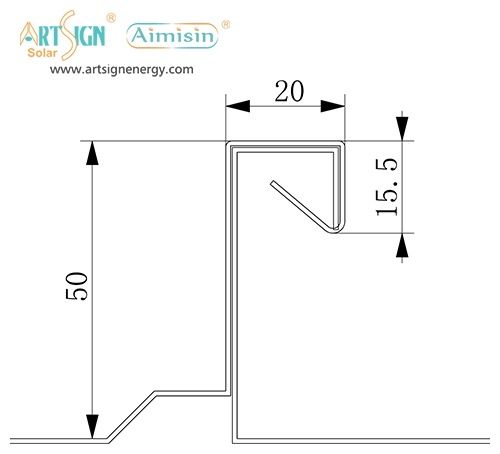

ART SIGN solar panel roof mounting bracket AS-N1A-50 Applicative roof sheet

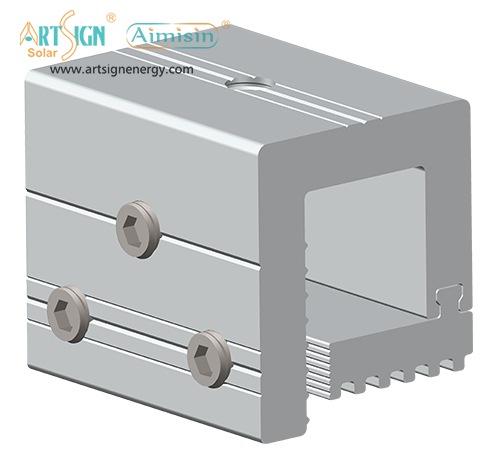

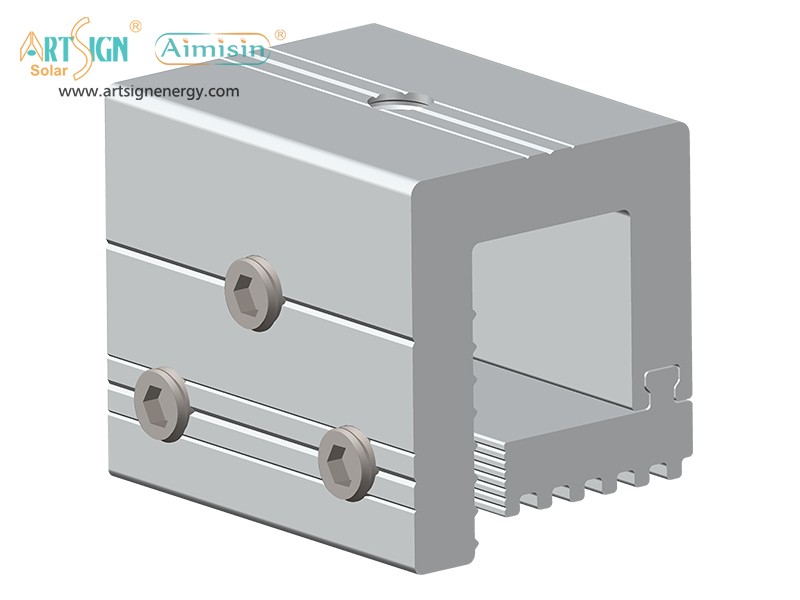

AS-N1A-50 N-clip

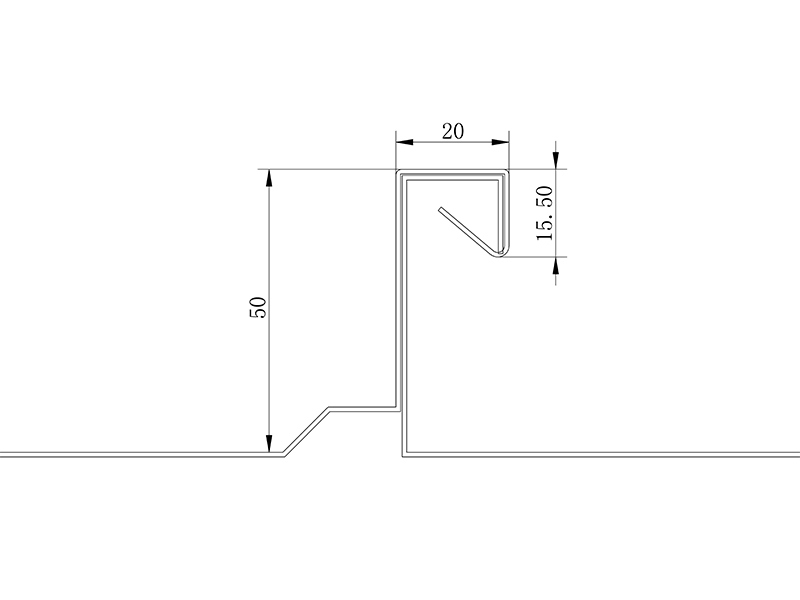

Applicative roof sheet

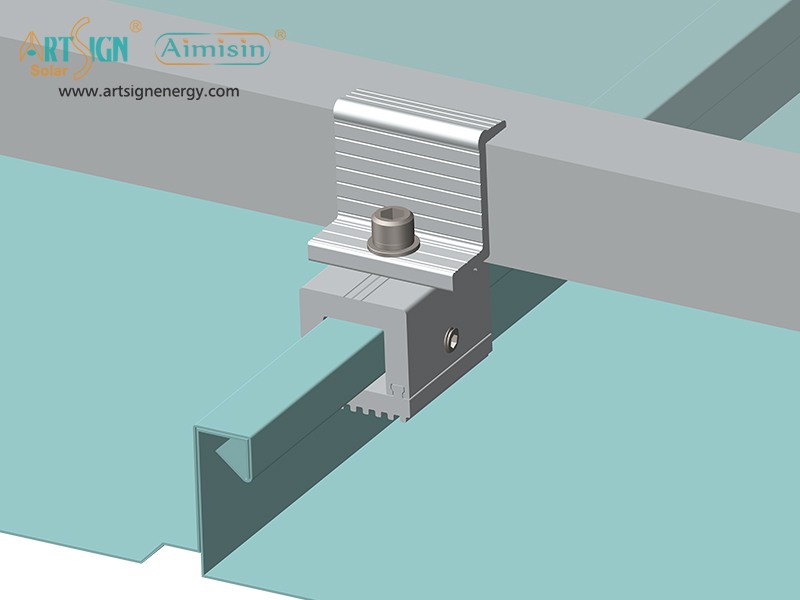

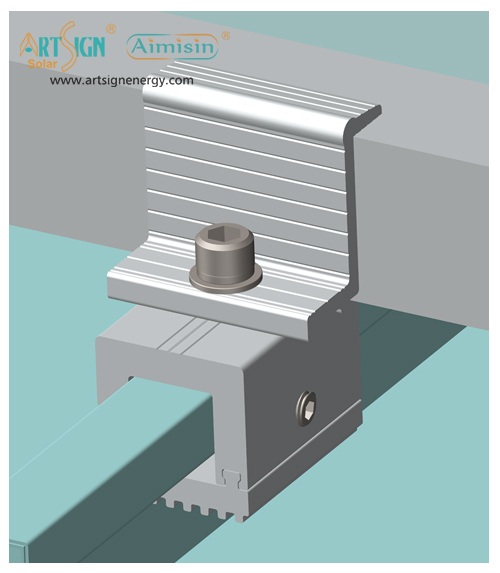

AS-N1A-50 with end clamp

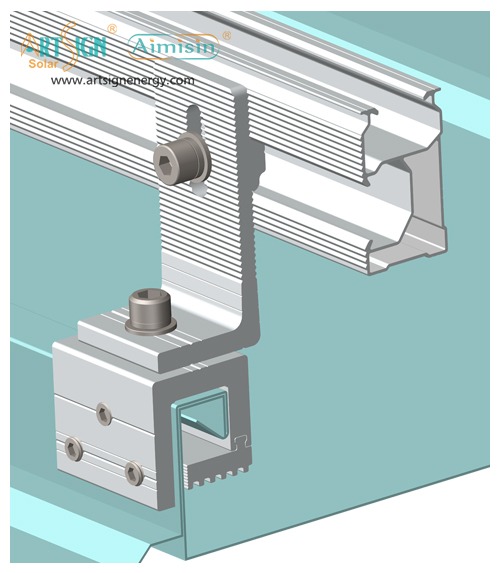

AS-N1A-50 N-clip with L feet kit
AS-N1A-50 N-clip with L feet kit
AS-N1A-50 with end clamp

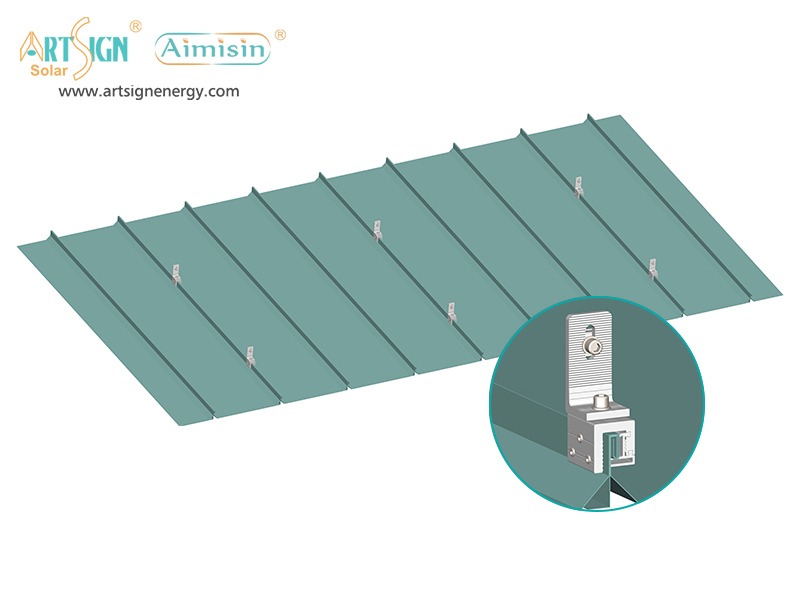

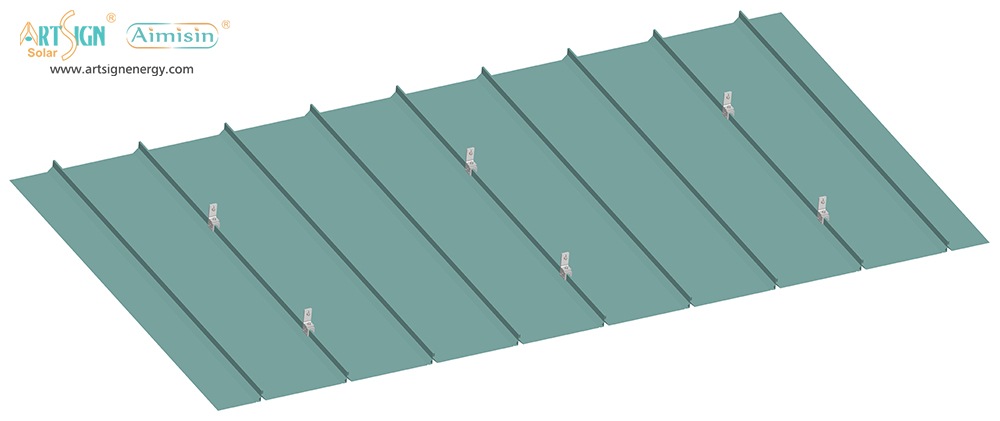

ART SIGN AS-N1A-50 Positioning the Brackets

Positioning the Brackets

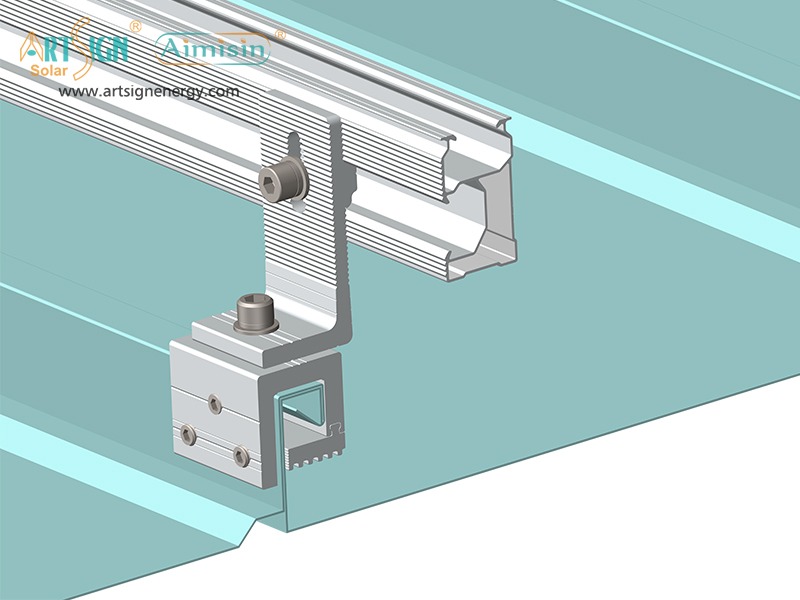

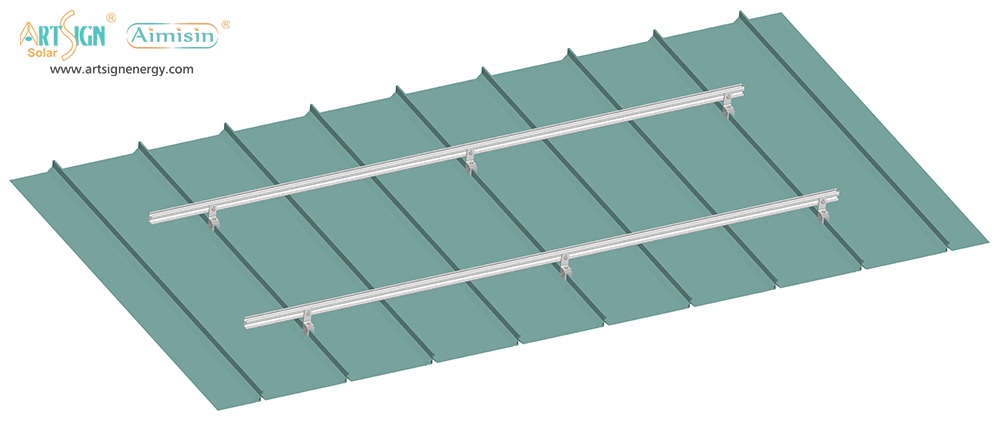

ART SIGN AS-N1A-50 Attaching the Mounting Rails
Attaching the Mounting Rails


  Package Type

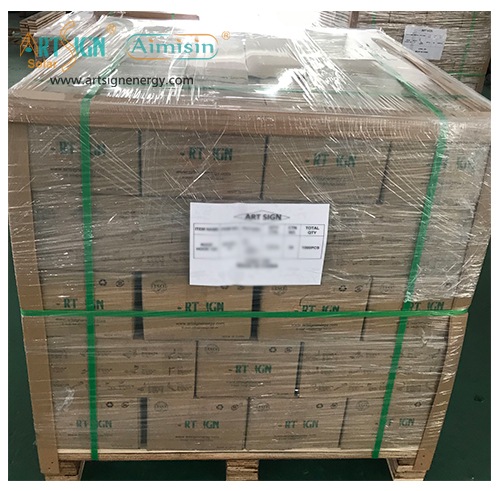

  Inner packing: Kraft paper packaging ART SIGN solar panel roof mounting bracket AS-N1A-50 packages
  Outer packing: wooden case / pallet


ART SIGN solar panel roof mounting bracket AS-N1A-50 case study


ART SIGN solar mounting related accessories

Non penetrating and railless solution, it's waterproof and cost-effective, directly work with mid and end clamps. Easy for packing, transportation and installation.

Click to see more N series roof clip(standing seam roof clip);

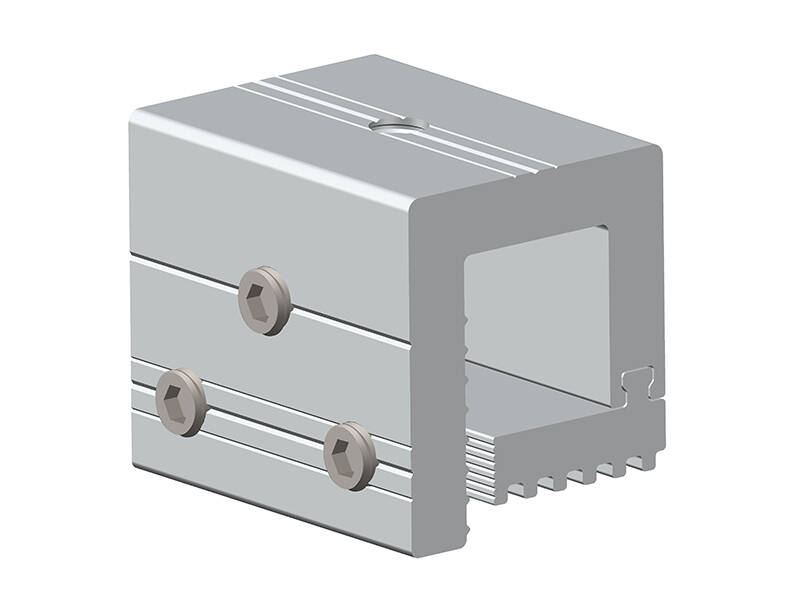

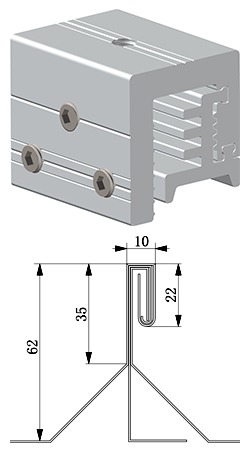

ART SIGN non-penetrating N-clip AS-N1A-50

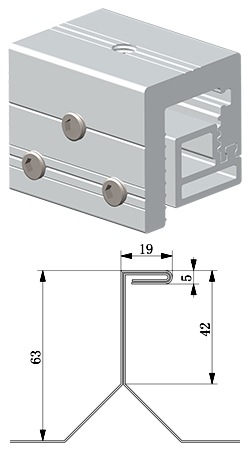

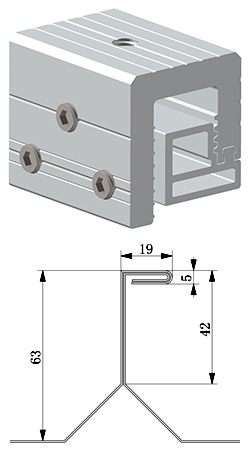

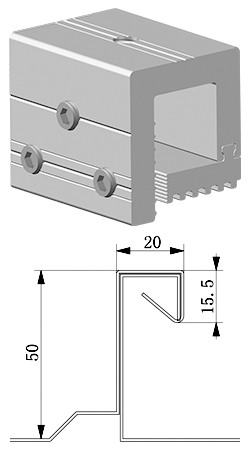

ART SIGN non-penetrating N-clip AS-N2E-50

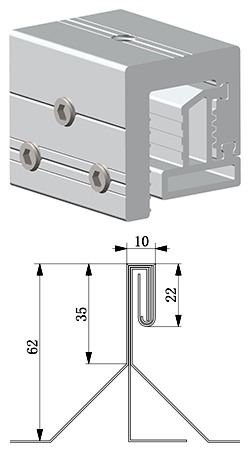

ART SIGN non-penetrating N-clip AS-N2F-50
ART SIGN non-penetrating N-clip AS-N3-50
AS-N1A-50
AS-N2E-50
AS-N2F-50
AS-N3-50
ART SIGN non-penetrating N-clip AS-N4-50
ART SIGN non-penetrating N-clip AS-N5-50
ART SIGN non-penetrating N-clip AS-N5B-50
ART SIGN non-penetrating N-clip AS-N7-70
AS-N4-50
AS-N5-50
AS-N5B-50
AS-N7-70
