ART SIGN Solar Roof Racking Ballasting Mounting Frame East - West Mounting System

ART SIGN Solar Roof Racking Ballasting Mounting Frame East - West Mounting System

East-west flat roof solar mounting is a growing trend on flat commercial and industrial rooftop mounting. By placing modules back-to-back, clearance for module shading can be avoided, more modules can be placed in the same area, and can increase the power production.

Item NO.:
AS-FR-EWTK-02
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

ART SIGN Solar Roof Racking Ballasting Mounting Frame East - West Mounting System

Design Features

— Suitable for concrete flat roof and the ground.
— Angle can be fixed 10°or customized.
— Suitable for landscape panel orientation.
— Solar panel installed facing east and west orientation, it optimizes the roof space by increasing the power production.
— Simple flat roof solar mounting solutions with less part needed, less work on site.
— Suitable for both commercial and residential flat roof installation.

Mode Number	AS-FR-EWTK-02	Brand Name	ART SIGN
Specs	10636.3mm; 134203.5mm	Material	Aluminum 6005-T5
Application	Solar Panel roof mounting system	Packing	Carton Box
Keyword	Solar Panel front and rear leg	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

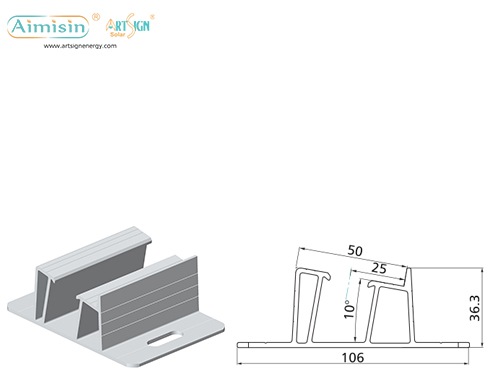

Solar flat roof mount structure	D nut design: easy & fast to install

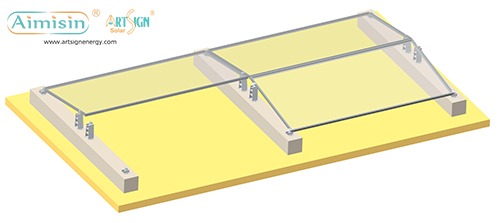

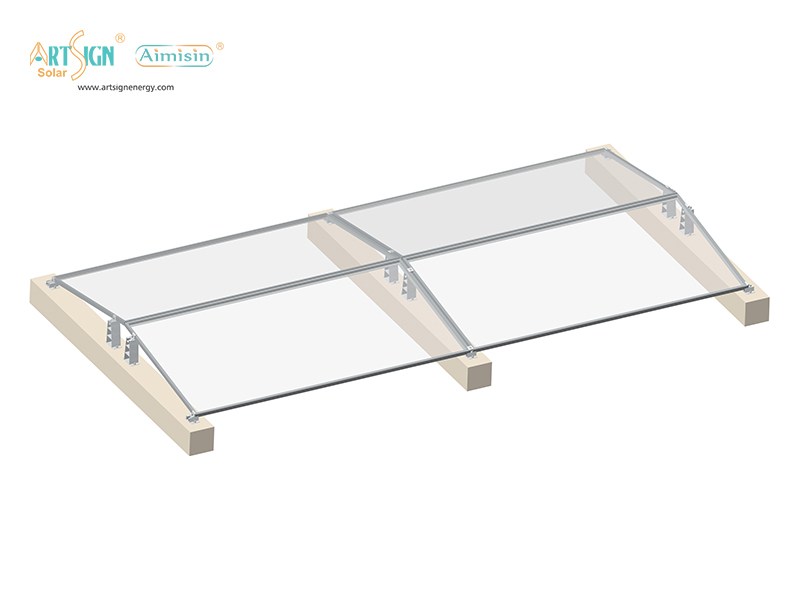

It has concrete bolck and ballast for foundation

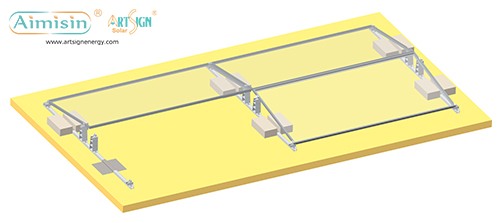

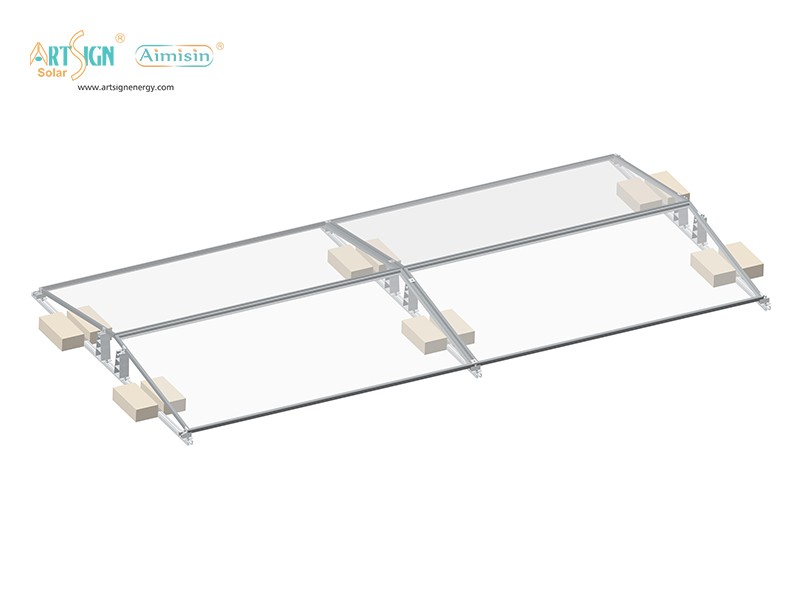

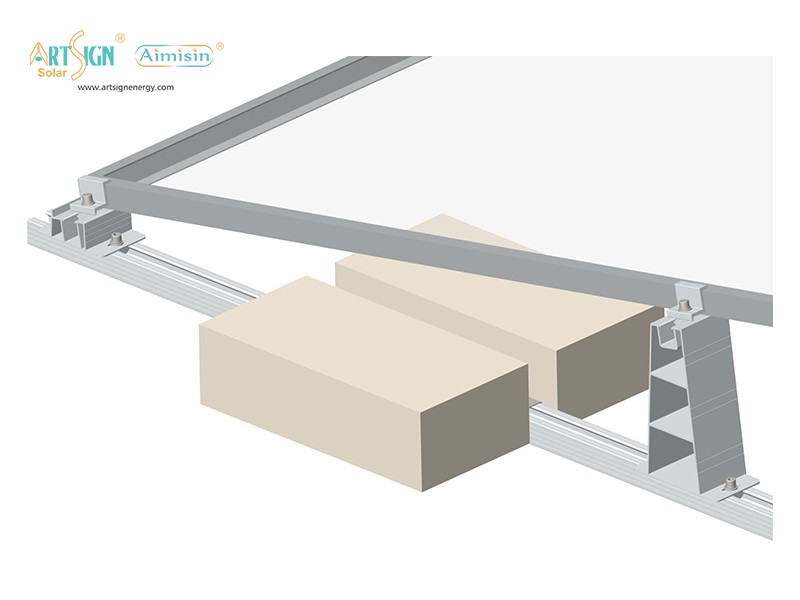

East and west mounting concrete Block	East and west mounting ballasted one

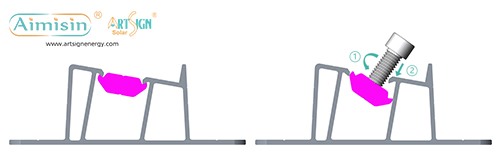

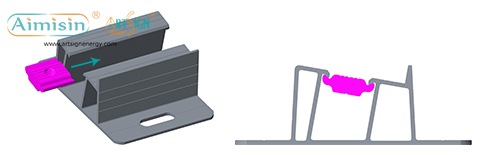

Two nuts for choice, D1 can be slide in from the side only, can't be inserted in.


Front leg slide into with D1 nut	Front leg to be deducted with D2 nut

Installation step

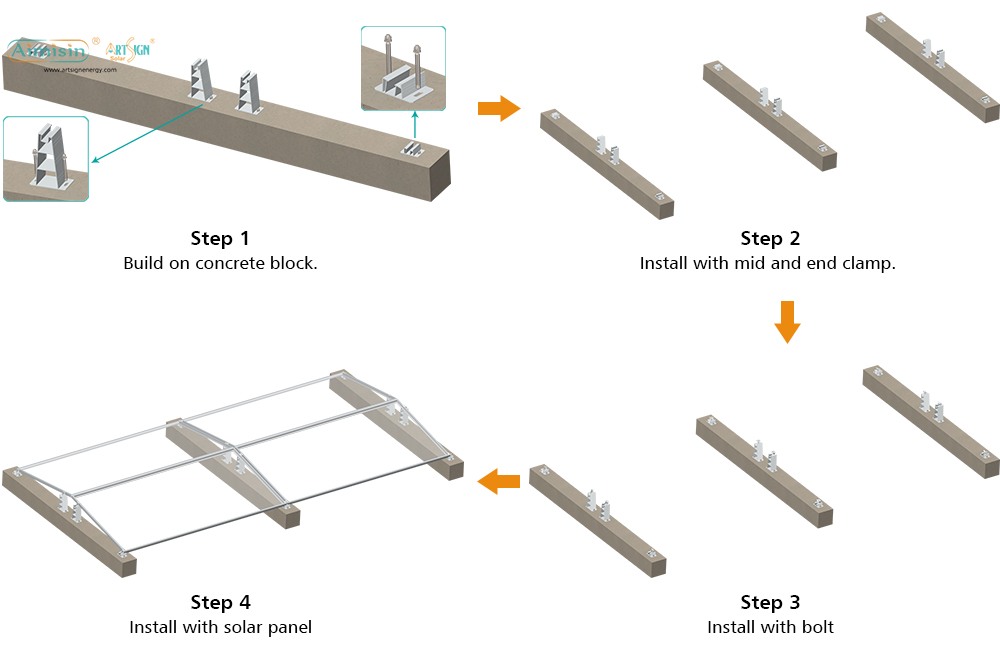

ART SIGN East- West Mounting System installation step

ART SIGN solar mounting package

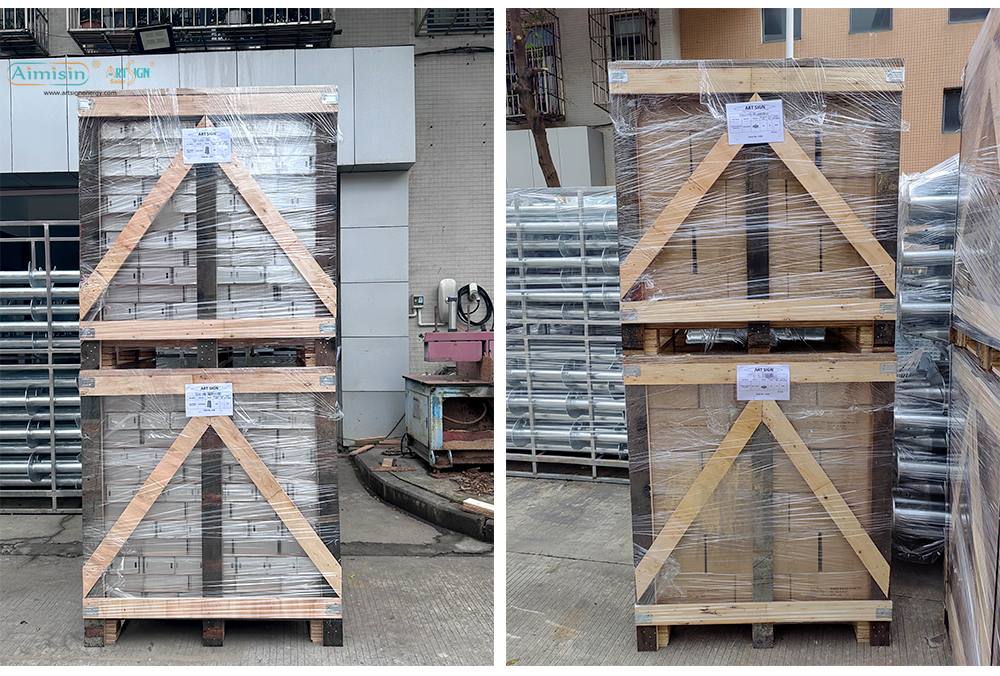

ART SIGN East- West Mounting System packages
