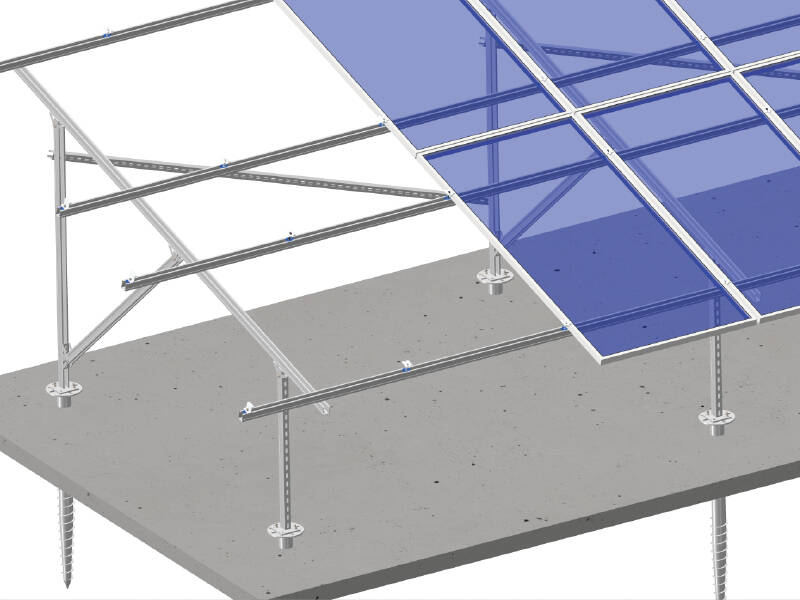

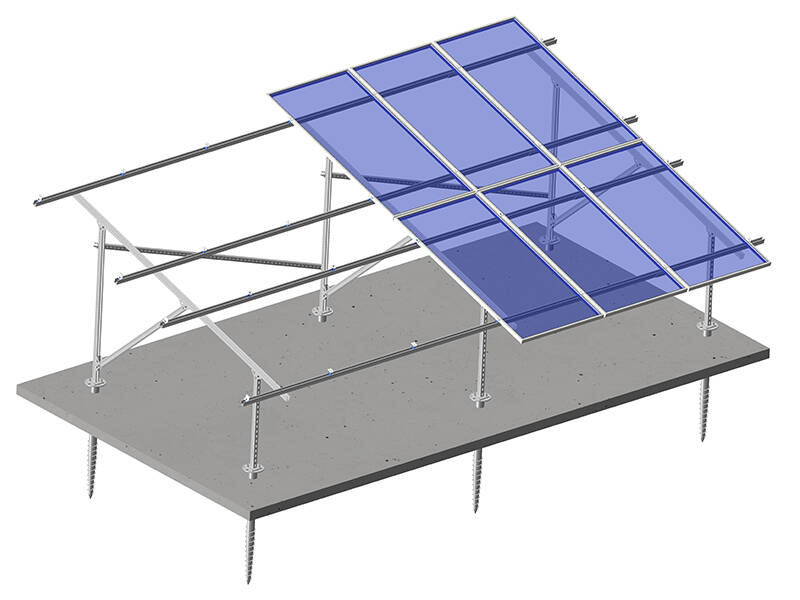

Ground mount solar racking with galvanized steel screw

Ground mount solar racking with galvanized steel screw is workable for different wind load and snow load. No need welding and cutting on site. The structure is assembly with bolts. Solar module orientation can be both landscape or portrait. The galvanized steel coating is 80μm, aluminum clamp's anodized coating is 10μm. Certificates: Japanese JIS, Australia AS/NZS 1170.2 wind load report, SGS chemical & physical test report.
  • Item NO.:

    AS-SG-PB
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

Ground mount solar racking with galvanized steel screw


· Design Features

  ① No need welding, the structure installed with bolts.
  ② Panel orientation can be installed landscape or portrait.


· Surface treatment:

  80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum, stainless steel 304 or steel Q235B bolts and nuts.


· Design Strength:
  The structure is designed according to the wind load or snow load request.


· Certification:
  Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.



Suitable for
  Open field
Module
  Framed, thin film
Material&Surface treatment
  80μm thk. Hot dipped galvanized steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-BCP-C52 AS-BCP-C62
AS-C41/52



AS-C62
AS-C62-PTB / AS-C62-BTB
AS-SRS-C41/C62



AS-PIB-3
AS-PEB-3
AS-CTMC-P


AS-CTEC-P

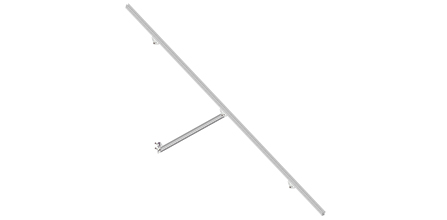

Pre-assembly structure


AS-HB-10-30-TN

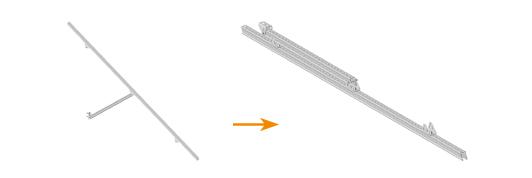

Step 1

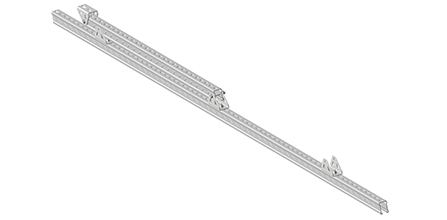

Open the pre-assembly ground mount solar racking

Step 2
Tighten bolt and nuts






Step 4
Solar panel installation

Step 3

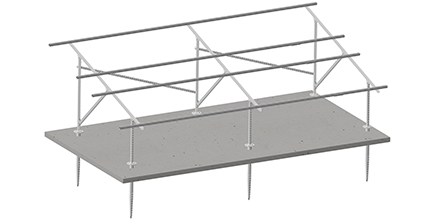

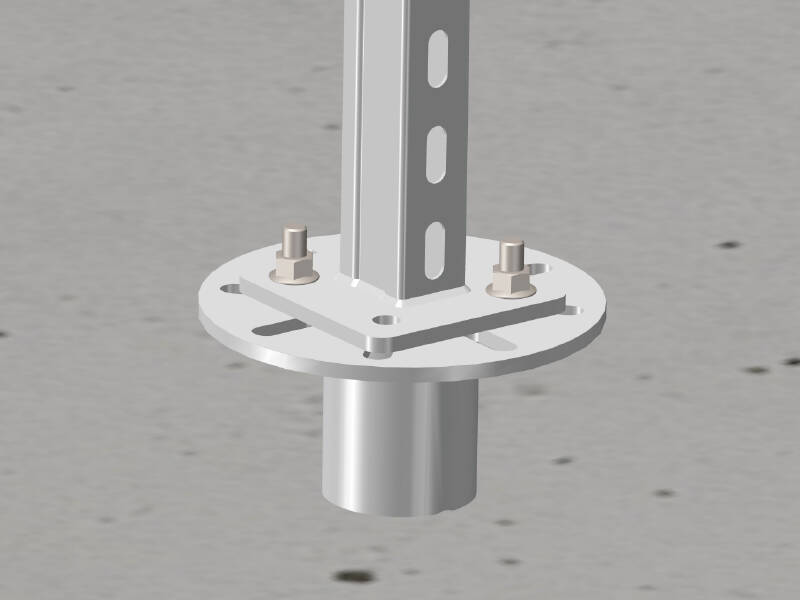

Fix the preassembly structure onto the ground screw, and then install solar rails


Ground mount solar racking with galvanized steel screw



Category : Ground Mount
