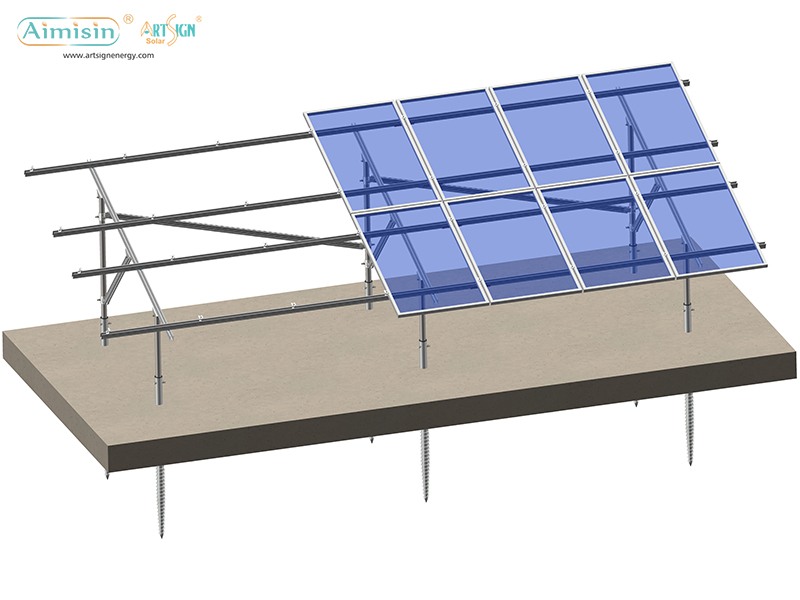

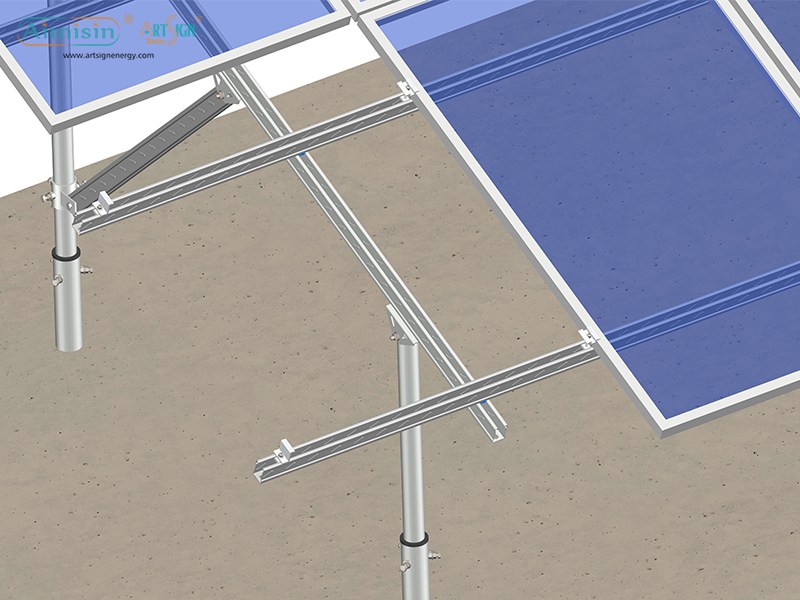

ART SIGN C channel steel ground solar panel mounting brackets

C channel steel ground solar panel mounting brackets with 20 years warranty, suitable for different terrains. Solar panel orientation can be both portrait and landscape. Less components, strong and easy to be install.
  • Item NO.:

    AS-SG-PS
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

ART SIGN C channel steel ground solar panel mounting brackets


· Design Features

  ① Preassembly solar mounting brackets to save installation time, labour costs.
  ② Less components, but strong and long duration.


· Surface treatment:

  80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  The structure is designed according to the wind load or snow load request.


· Certification:
  Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.


Mode Number

  AS-SG-PS

Brand Name

  ART SIGN
Module
  Framed, thin film
Suitable for
  Open field
Material & Surface treatment
  80μm thk. hot dipped galvanized steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait Application
   Solar ground mounting system
Wind load
  Max 60m/s
Snow load
   Max 1.5kn/m2
Keyword
  China solar ground mounting structures factory
Packing
  Steel frame
Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years



ART SIGN solar mounting details

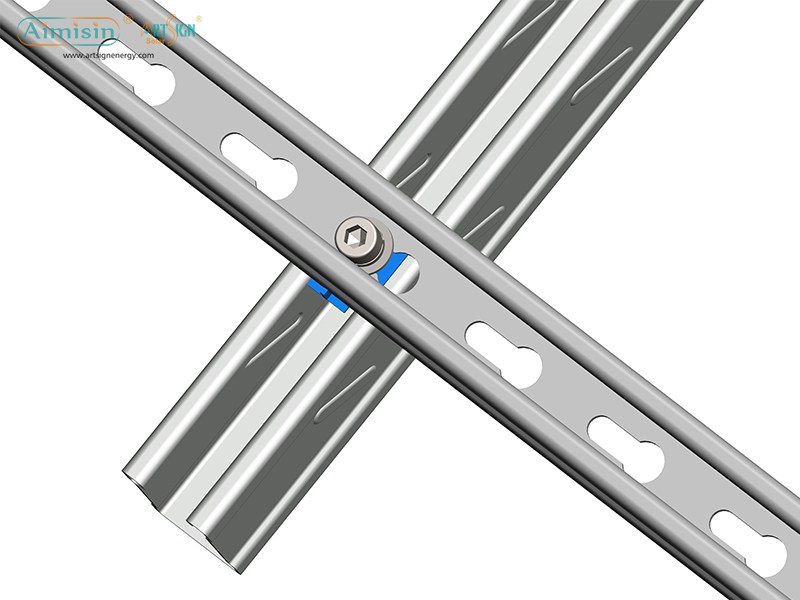

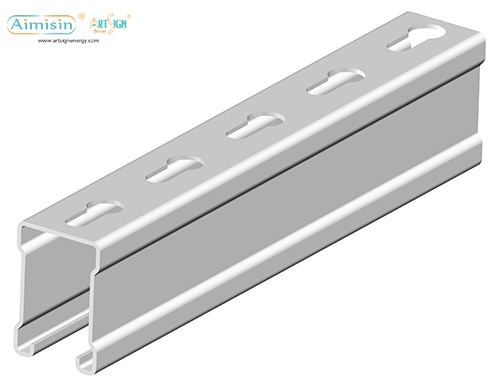

ART SIGN Rail beam C42x61
ART SIGN Steel post

Rail beam C42x61

Zinc-aluminum-magnesium coated steel

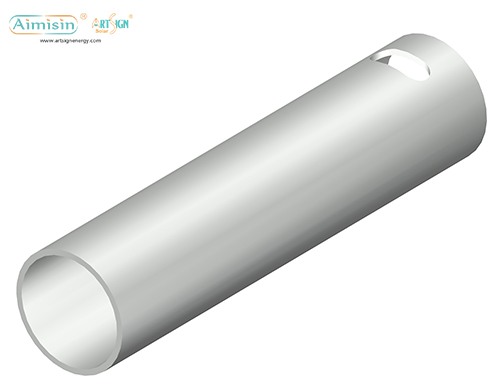

Steel post

Hot dipped galvanized steel Q235

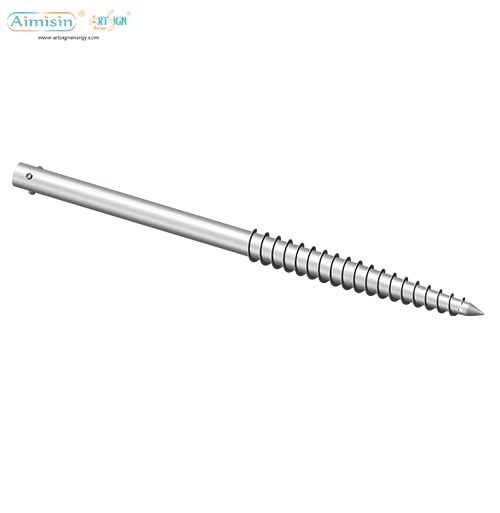

ART SIGN Ground screw-customized sizes
ART SIGN pile screw foundation

Ground screw-customized sizes

Hot dipped galvanized steel Q235

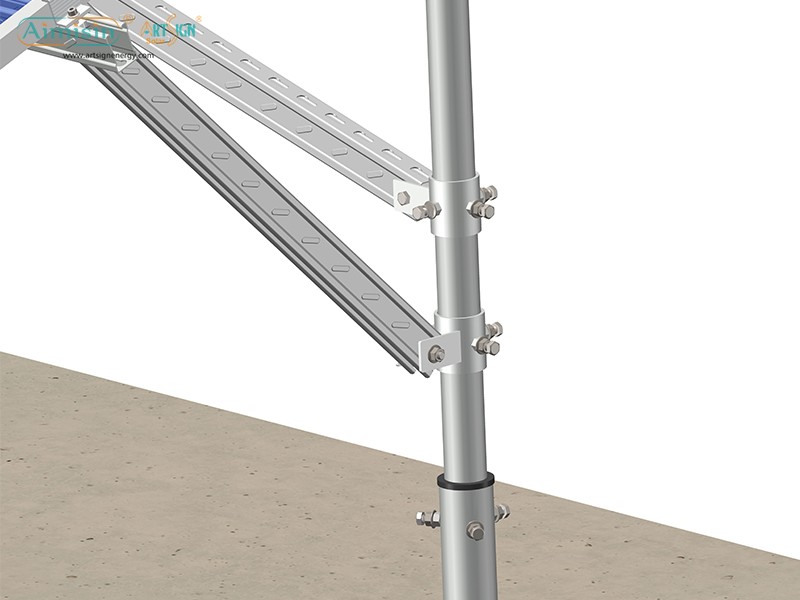

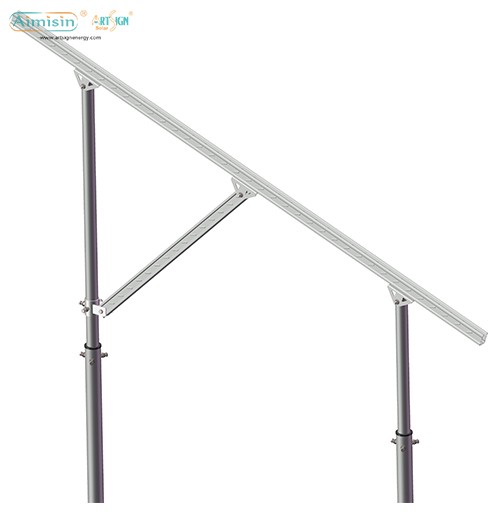

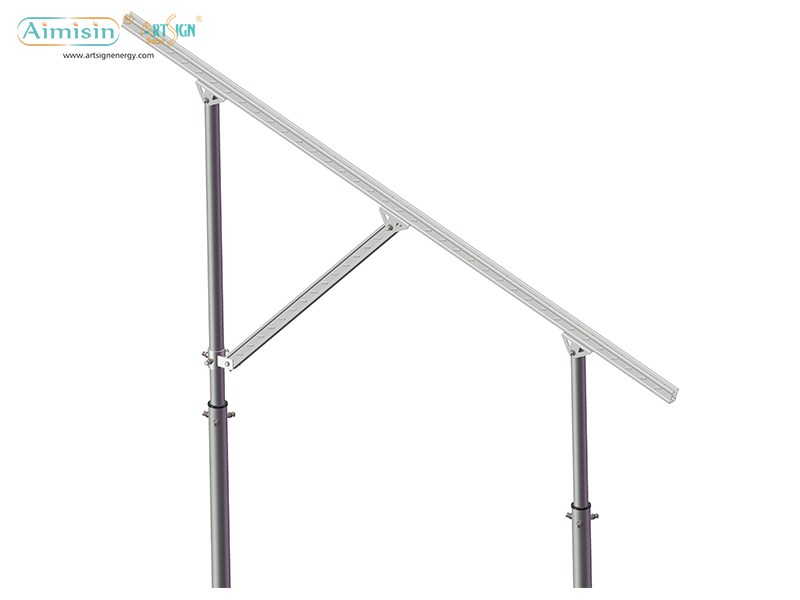

Fix the all components for the solar ground mounting system



Installation step

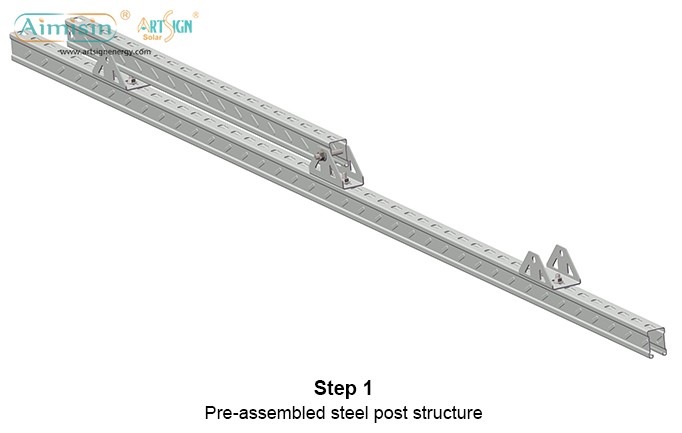

ART SIGN pile screw foundation installation step1

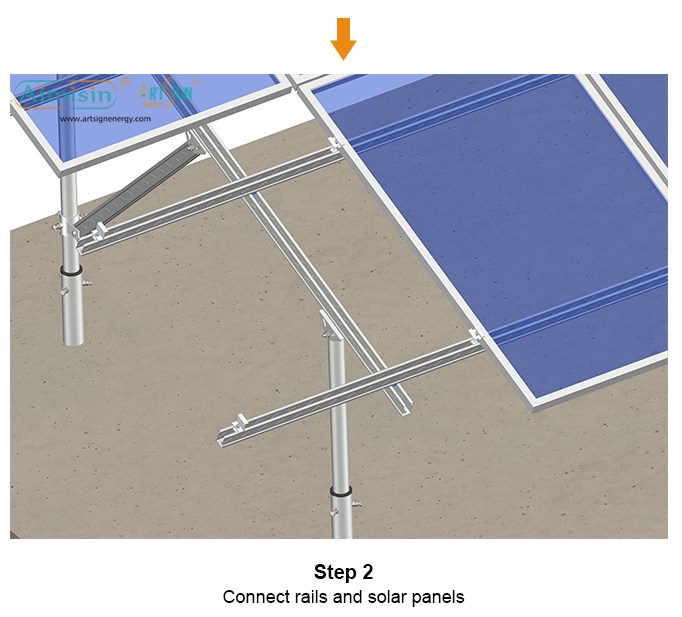

ART SIGN pile screw foundation installation step2

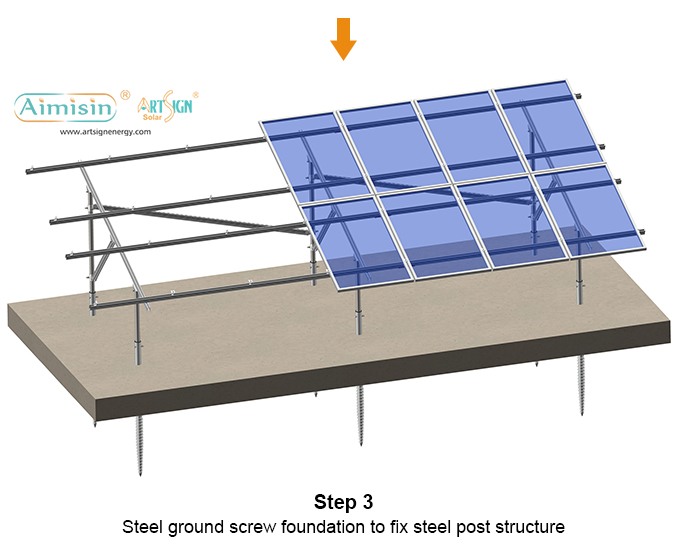

ART SIGN pile screw foundation installation step3

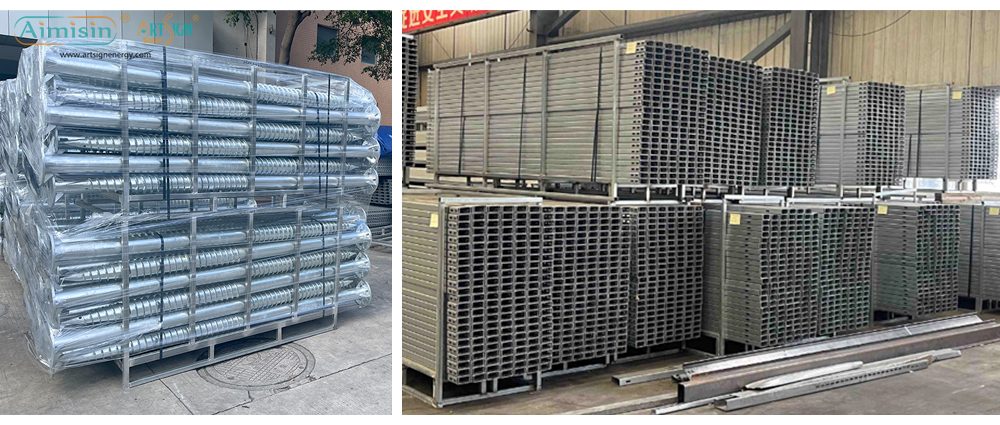

ART SIGN solar mounting package

ART SIGN pile screw foundation packages

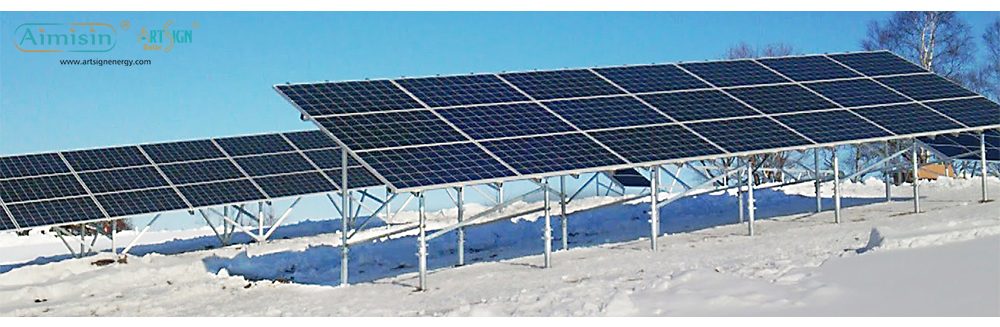

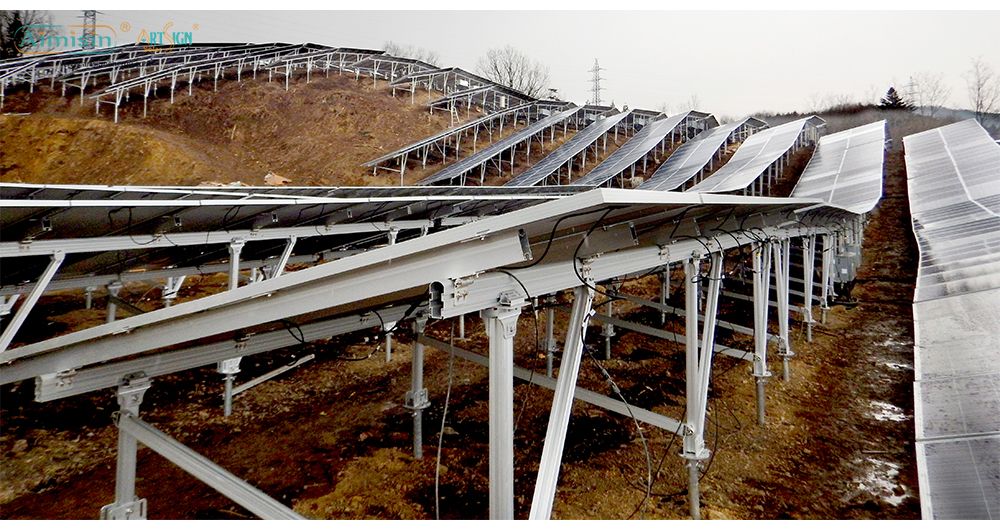

ART SIGN pile screw foundation case study

ART SIGN pile screw foundation case study

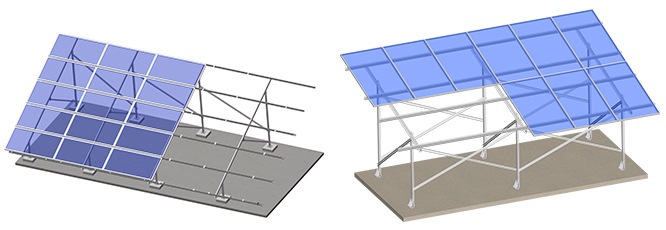

We have many below solar steel ground mounting structures like below:

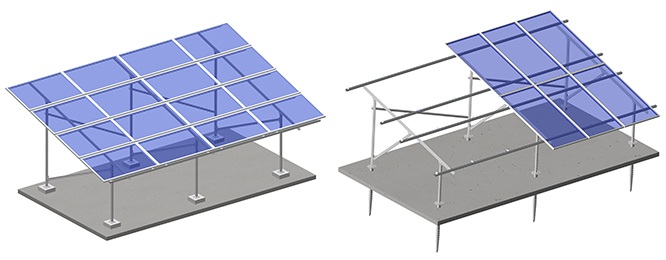

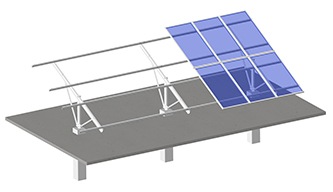

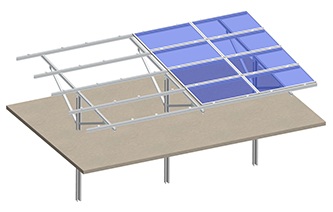

ART SIGN C type carbon steel ground mounting system - plate base
ART SIGN C type carbon steel ground mounting system - plate base
C type carbon steel ground mounting system - Plate Base
C type carbon steel ground mounting system - Plate Base
ART SIGN C type carbon steel ground mounting system - C80 post

C type carbon steel ground mounting system - C80 Post

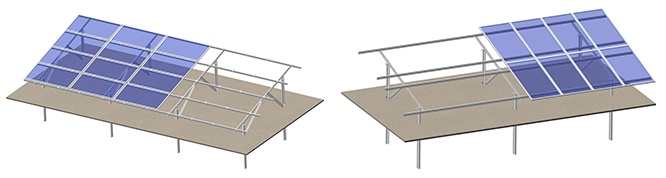

ART SIGN C type carbon steel ground mounting system - U95 Pillar
ART SIGN C type carbon steel ground mounting system - U133 Pillar
C type carbon steel ground mounting system - U95 Pillar
C type carbon steel ground mounting system - U133 Pillar
