ART SIGN solar PV rail splicing connector for solar panel mounting system

ART SIGN solar PV rail splicing connector for solar panel mounting system

Solar panel mounting system with 20 years warranty: solar rail connector with rail solution is strong, easy, and quick to be installed. High grade aluminum rails are corrosion-resistant with anodized treatment.

Item NO.:
AS-BG07-02
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

ART SIGN solar PV rail splicing connector for solar panel mounting system

Design Features

Installation: much easier, faster, more convenient.

Surface Treatment:
10um thk anodized aluminum structures, stainless steel 304 bolts and nuts

Design Strength:
Suitable for various wind load and snow load as per requested.

Certification:
ISO Australia AS/NZS 1170.2 - Wind load report, SGS report-Chemical & Physical test

Mode Number	AS-BG07-02	Brand Name	ART SIGN
Specs	anodized above10um	Material	Anodized Aluminum 6005-T5
Application	Mounting solar panels pv rail connector	Packing	Wooden case
Keyword	Pv panel mounting brackets factory	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

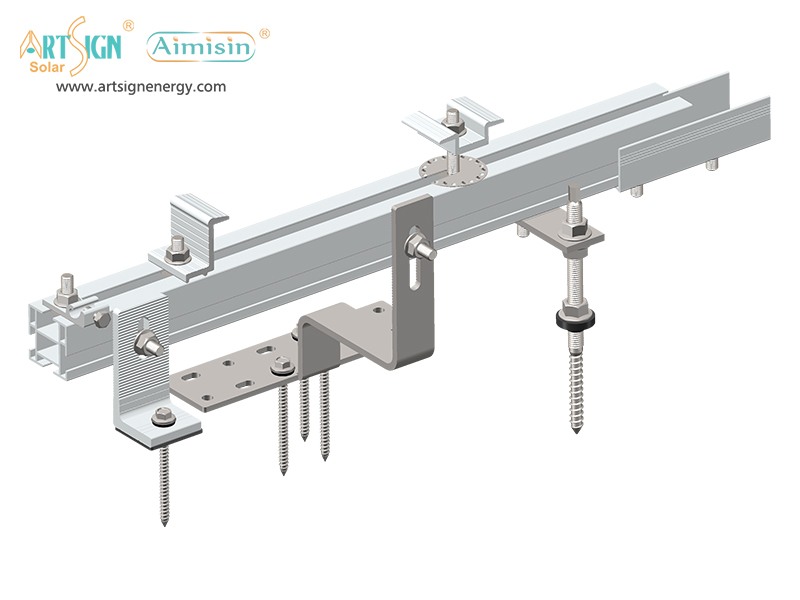

ART SIGN solar mounting details

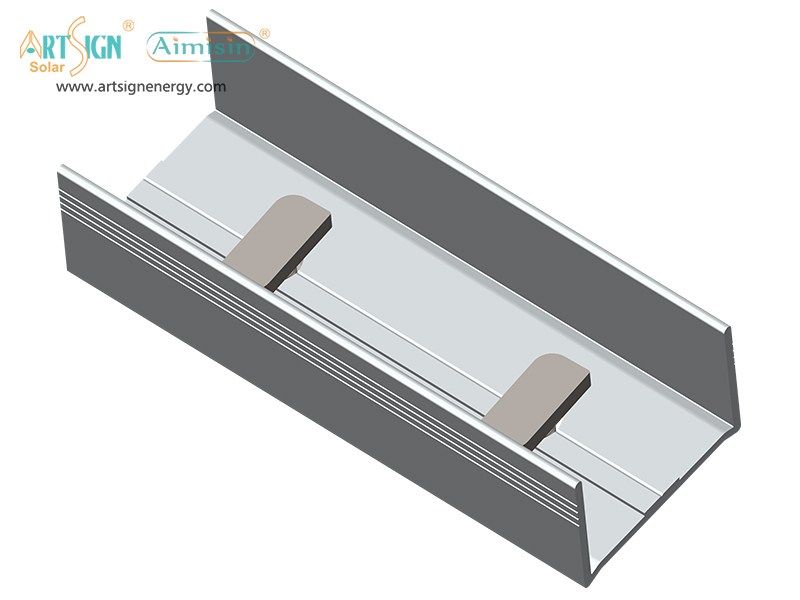

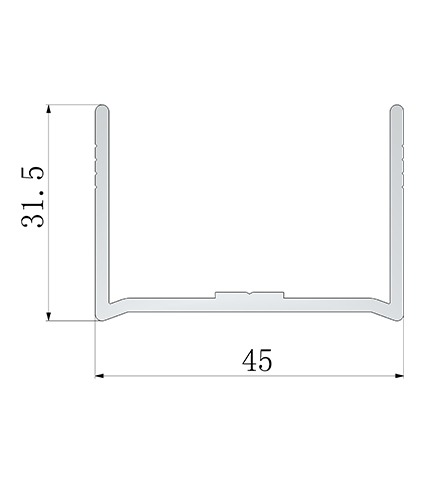

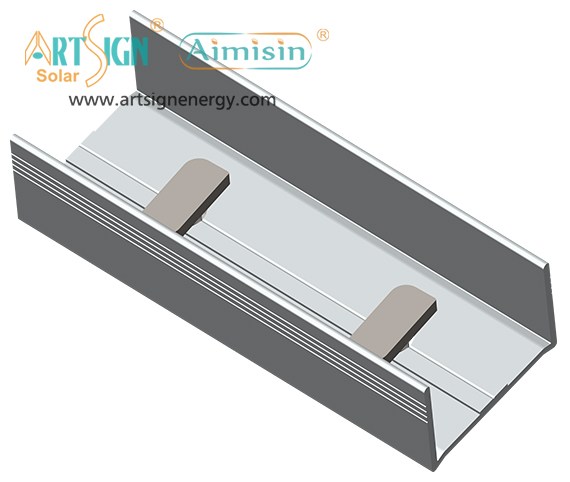

AS-BG07-02 Customizable cutting lengths	Suitable for T rails, width 40mm

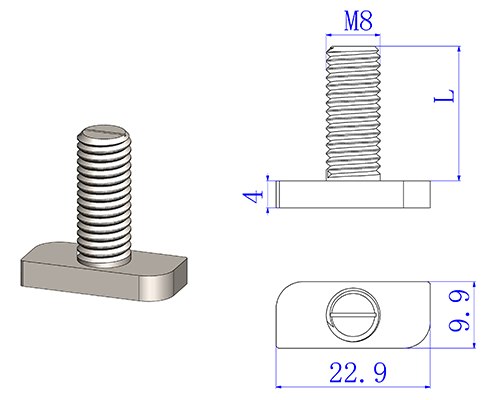

T bolt is a common and universal accessory, SUS304.


T bolt, SUS304	That is suited for our T rail solt.

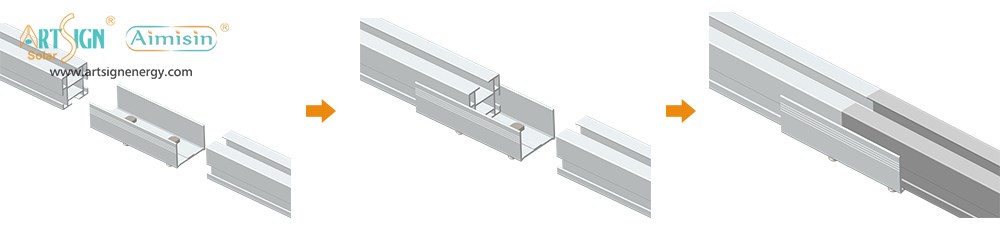

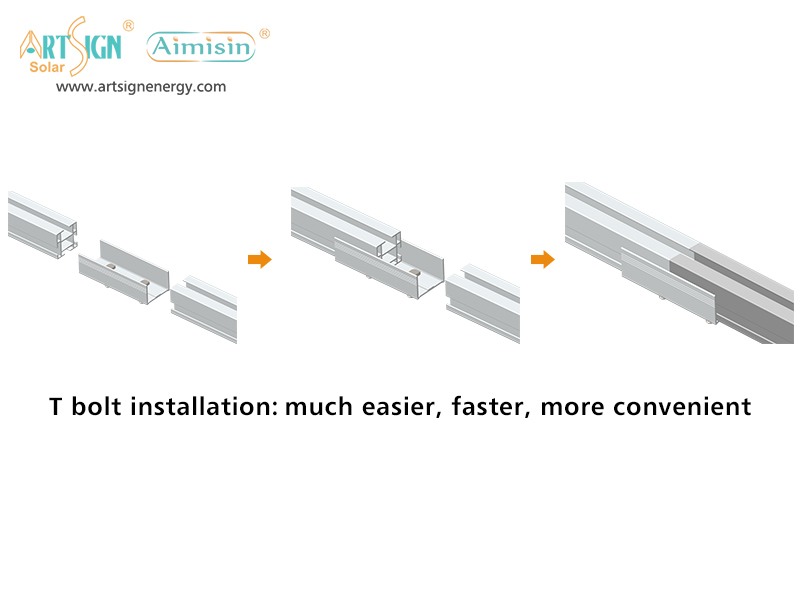

T bolt installation: much easier, faster, more convenient

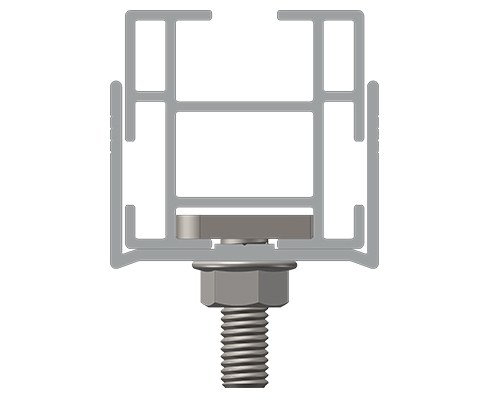

ART SIGN T bolt installation

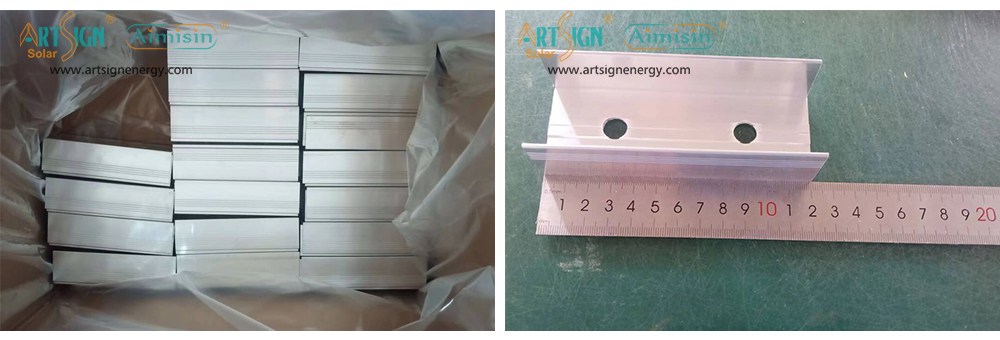

ART SIGN pv rail connector AS-BG07-02 packages

ART SIGN solar mounting related accessories

Click to see more T bolt series.


AS-R-09B	AS-R-09H	AS-RS-09	AS-A-R59
