ART SIGN unique design aluminum solar mounting rail splice

ART SIGN unique design aluminum solar mounting rail splice

Rail jointers allow the tracks to be connected together, allowing them to be cut to any length for easy transportation.

Item NO.:
AS-A-A159
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

ART SIGN unique design aluminum solar mounting rail splice

Design Features

— High quality aluminum for a more long-lasting installation.

— Adjustable, quicker, and easier to install.

Mode Number	AS-A-A159	Brand Name	ART SIGN
Specs	L120W44.8H31.2mm	Material	Aluminum 6005-T5
Application	Solar rooftop mounting	Packing	Wooden Pallet
Keyword	Factory solar rail jointer for mounting	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

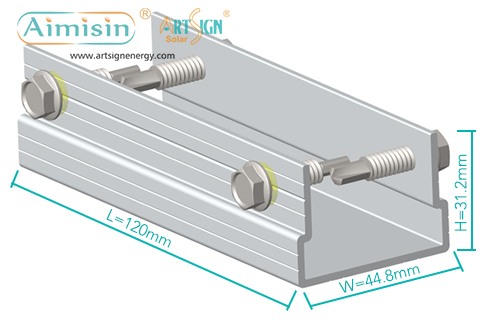

Specs: L120W44.8H31.2mm	Applicable to AS-A-SR01, AS-A-SR02, AS-A-SR06 solar rails

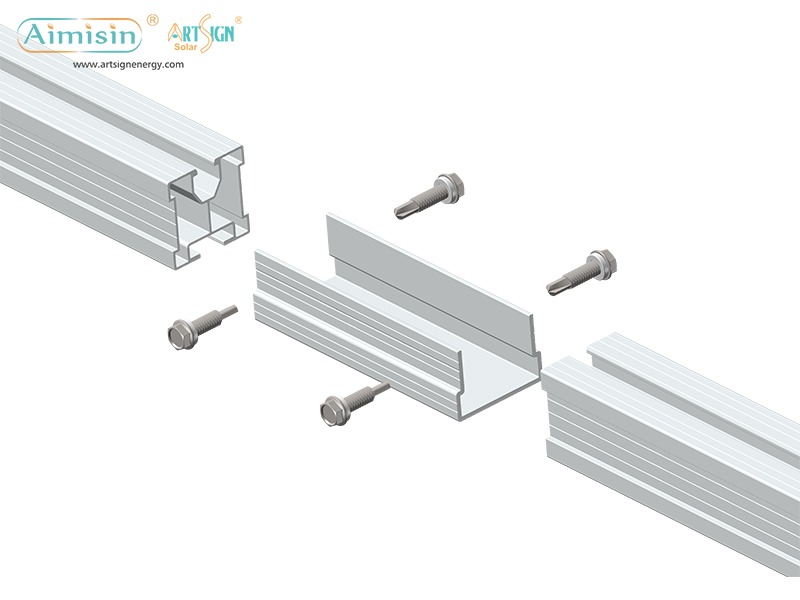

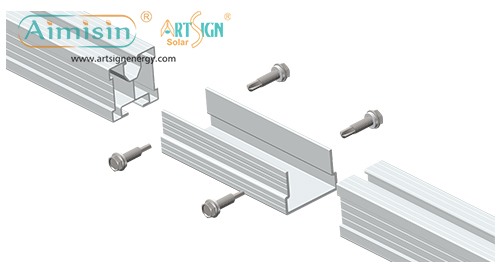

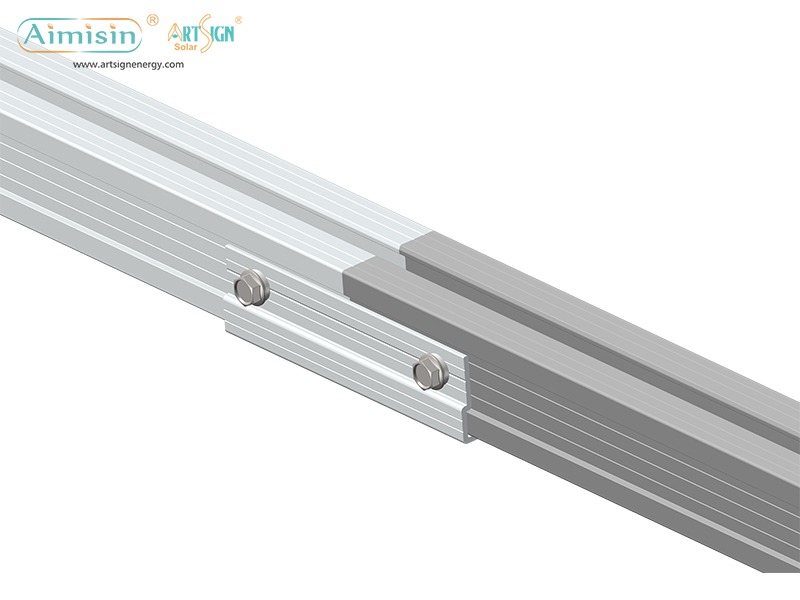

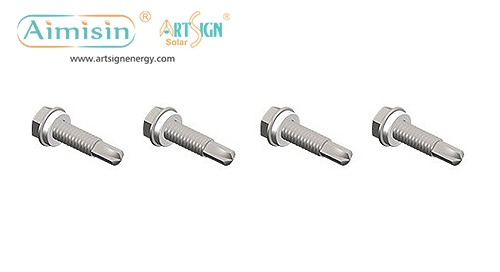

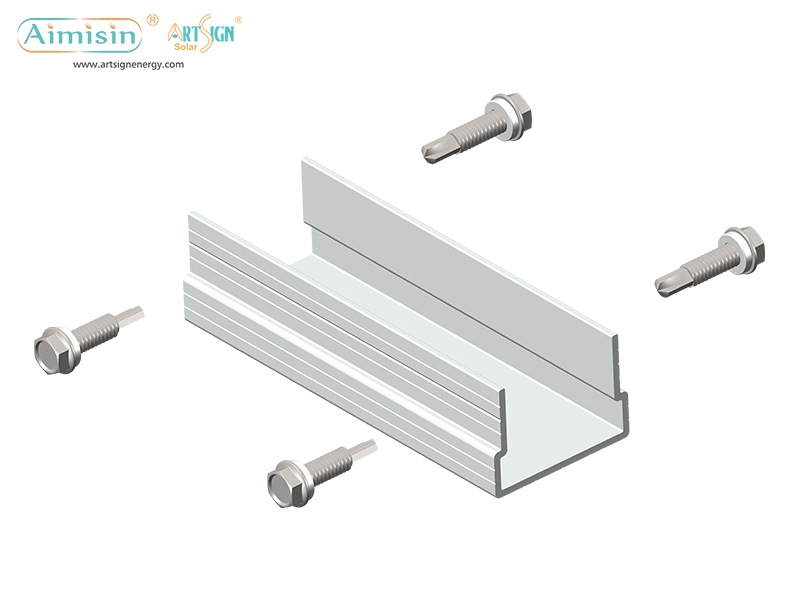

Screws: 4pcs SS410 self drilling bolt M6.3*25	Solar rail splice kit connecting two rails

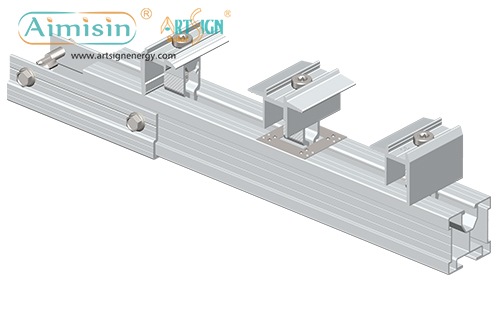

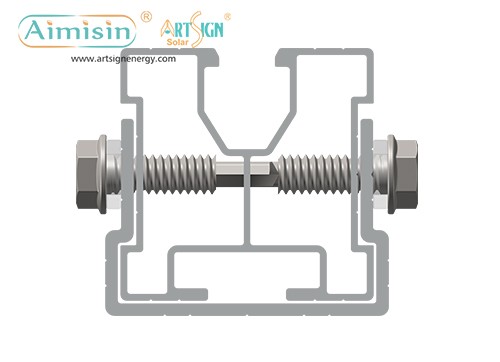

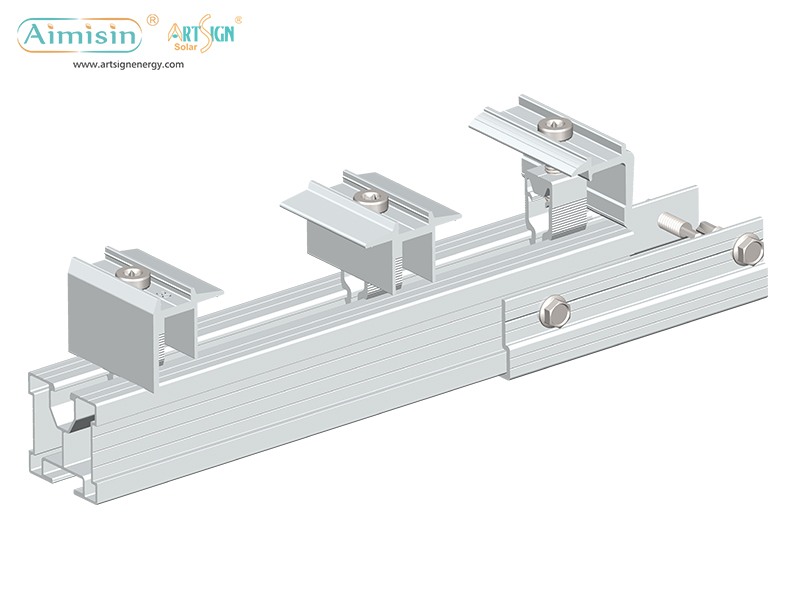

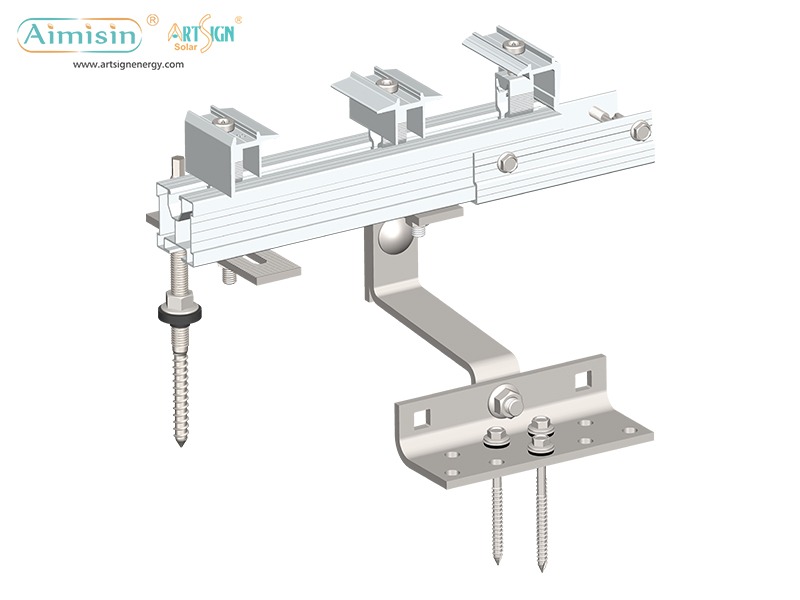

solar rail connector making a strong installation	Sectional Drawing of solar rail splice

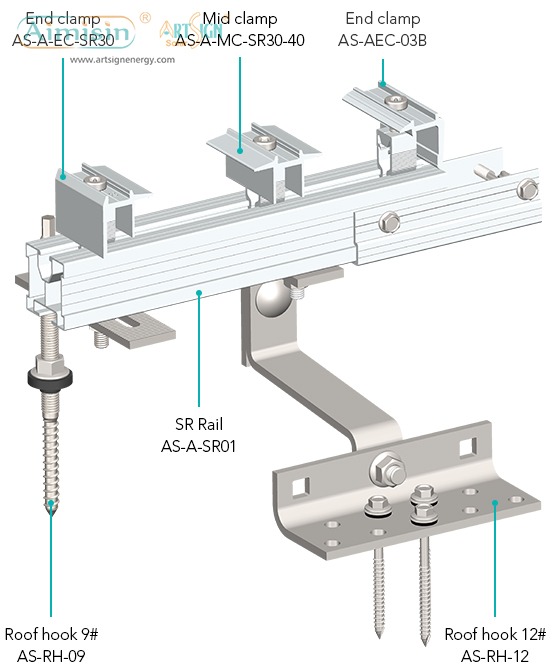

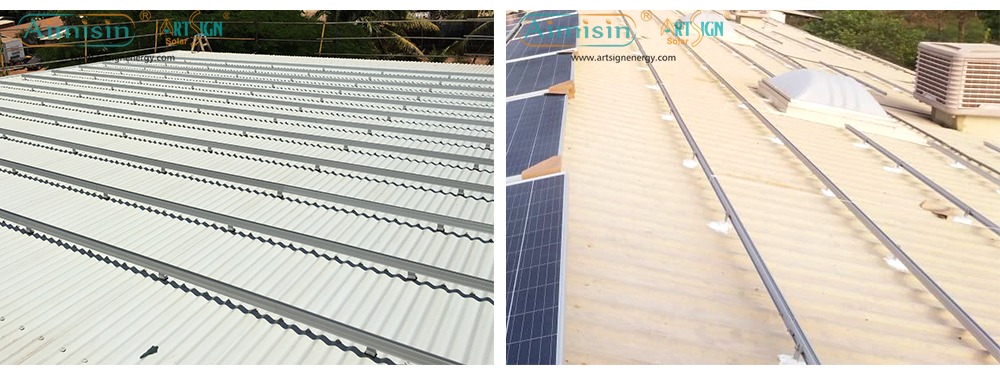

Art Sign solar rail connector AS-A-A159 case study

ART SIGN solar mounting related accessories

Click to see more SR series rail system.

Art Sign solar rail connector AS-A-A159 related accessories
