Durable aluminum mid clamp for secure solar mounting.

Item NO.:
AS-A-MC32
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Factory direct durable aluminum mid clamp for PV bracket mounting system |Art Sign

Design Features

— High Quality Material: Made from Aluminum 6005-T5. This ensures the mid clamp is highly durable.
— Pre-assembled to Save Time: The clamp comes fully pre-assembled. This allows workers to install it quickly and saves labor costs.
— Anti-Slip Teeth Design: Anti-slip teeth on the gripping edges. This design prevents the panels from slipping.
— Anodized Surface Finish: Available in silver and black anodized finishes.
— Universal Compatibility: Highly reliable part for various roof and ground solar mounting systems.

Mode Number	AS-A-MC32	Brand Name	ART SIGN
Specs	W39.4*H12.5mm, Length customized	Material	Aluminum 6005-T5
Application	solar rooftop mounting	Packing	Processed wood pallet
Keyword	Solar panel mounting clamps manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting system products details

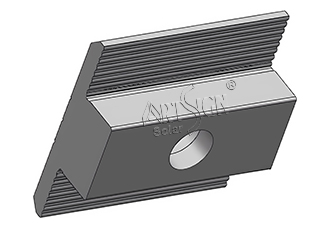

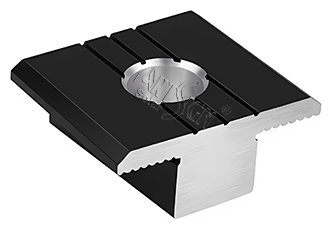

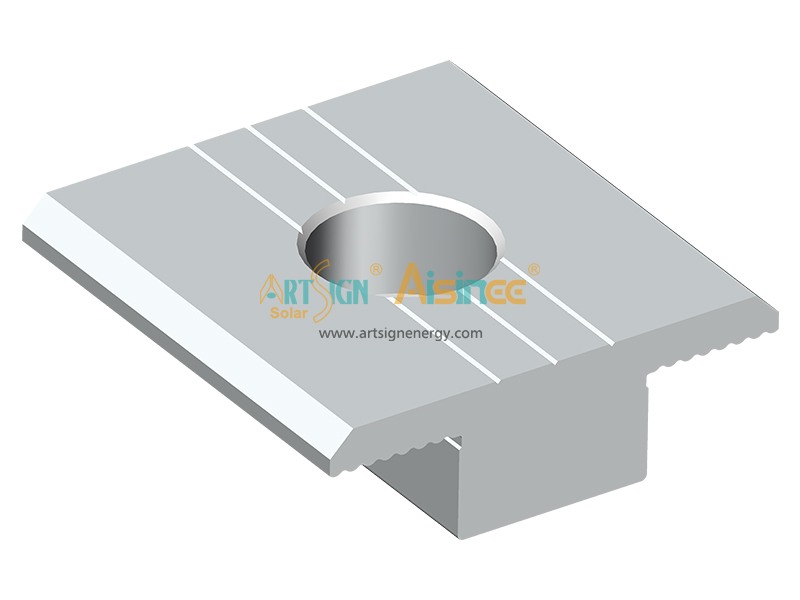

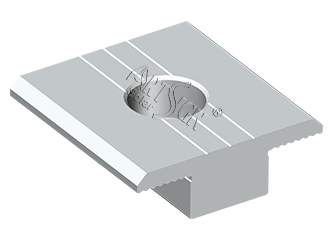

High quality aluminum 6005-T5 mid clamp	Black anodized finished available	Anti-slip rear design: Increases friction and prevents panel slippage.

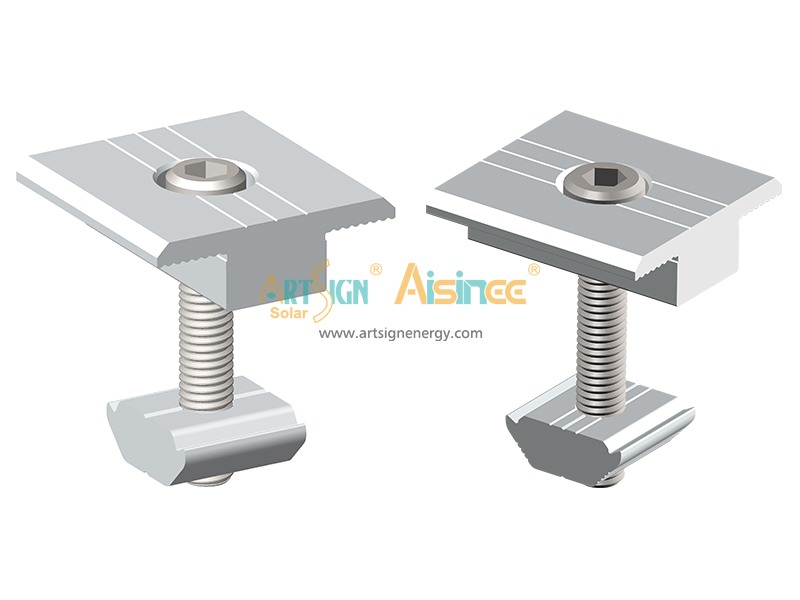

The clamp comes with or without bolts and nuts.

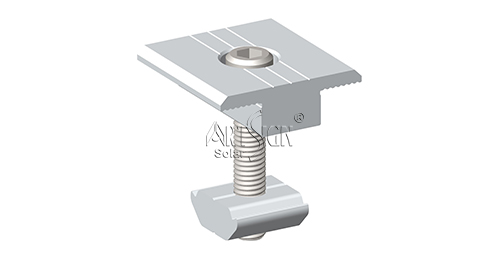

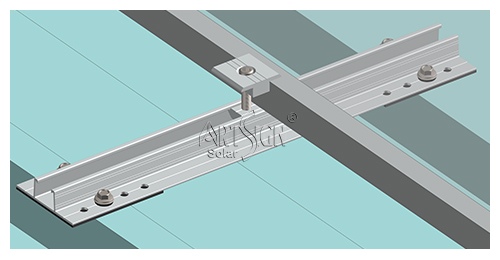

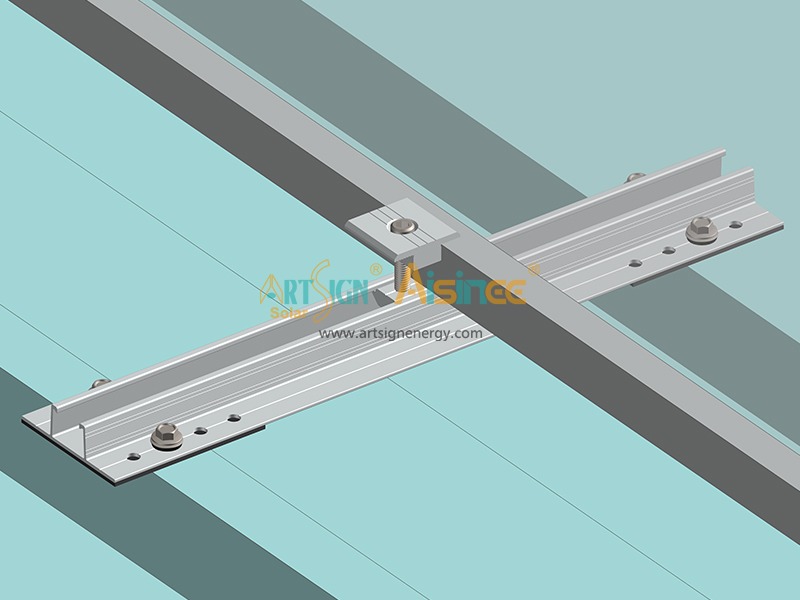

Actual mounting view,Mid clamp with earthing lug	The clamp comes fully pre-assembled to save the labor cost

ART SIGN solar pv clamps AS-A-MC32 packages

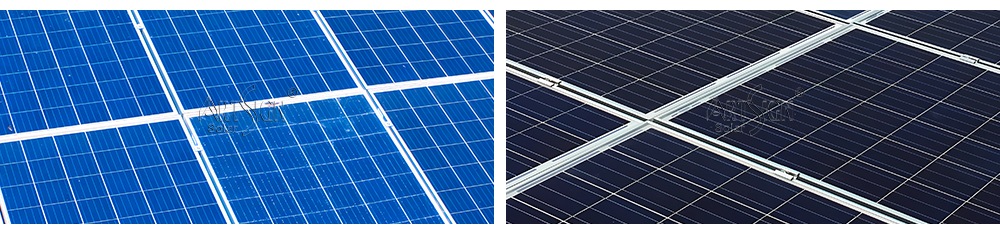

ART SIGN solar pv clamps AS-A-MC32 casestudy

ART SIGN solar mounting related accessories

AS-A-MC32 Mid Clamp is universally compatible with standard solar panels available on the market. Art Sign also provides standard end clamps and adjustable mid/end clamps.

Click to see more Module clamp.


AS-A-EC32	AS-A-MC01	AS-AMC	AS-AEC
