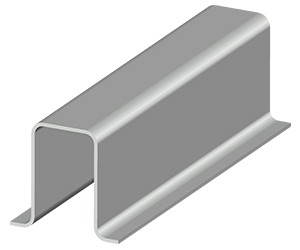

ART SIGN Galvanized solar pv panel steel structure solar ground mount system - U90x95 hat section
· Design Features
— U shape steel profile is widely used for solar power plant construction.
— Few elements, more econimical price, stronger strenth.
— New and envirenmental matarial Zn-Mag-Al steel sheet, (more details of Zn-Mag-Al steel as below)
Zn-Mag-Al steel Features
Anti-corrosion
Self-healing
Long life time
Easy Processing
Anti-corrosion property is 10 - 20 times better than galvanized steel materials.
Zn (OH) 2, ZnCl2 and Mg (OH) 2 form protective film and restrain cutting places orroded.
Normally, lifetime not less than 30 years.
Perfect property in stretching, bending, welding or other processing.
Category : Steel C profile
|
Mode Number |
AS-U90x95 |
Brand Name |
ART SIGN |
|
Specs |
U90x95 hat section |
Material |
Hot dipped galvanized steel |
|
Application |
Solar panel ground mounting system |

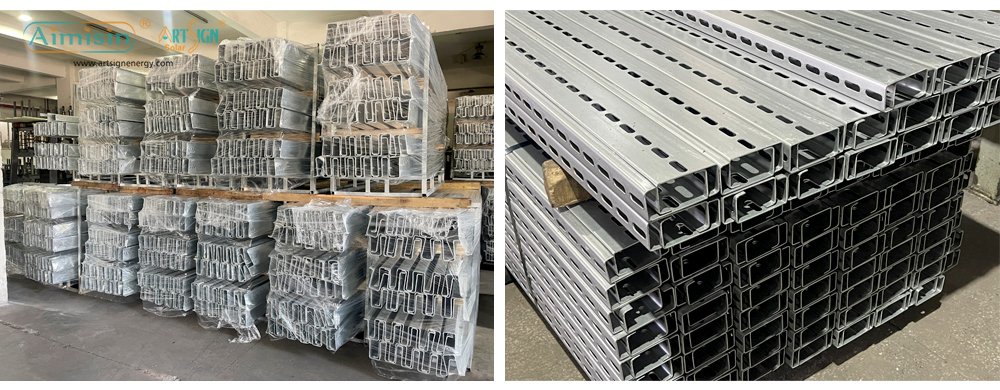

Packing |
Wooden case/pallet |
|
Keyword |
ZM steel solar ground mount system factory Solar panel steel structure manufacturer since 2006 |
Surface treament |
Hot dipped galvanized |
|
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
Service Life |
25 years |
|
Quality Warranty |
20 years |
|
|

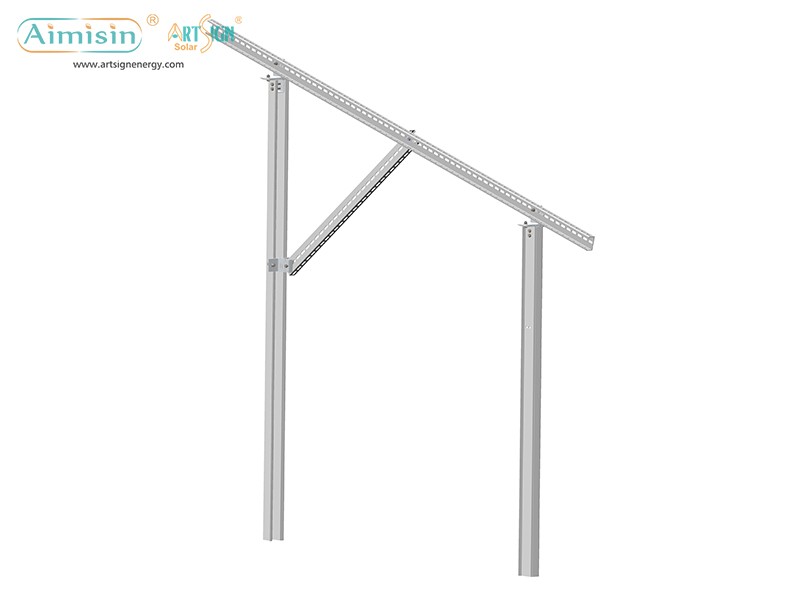

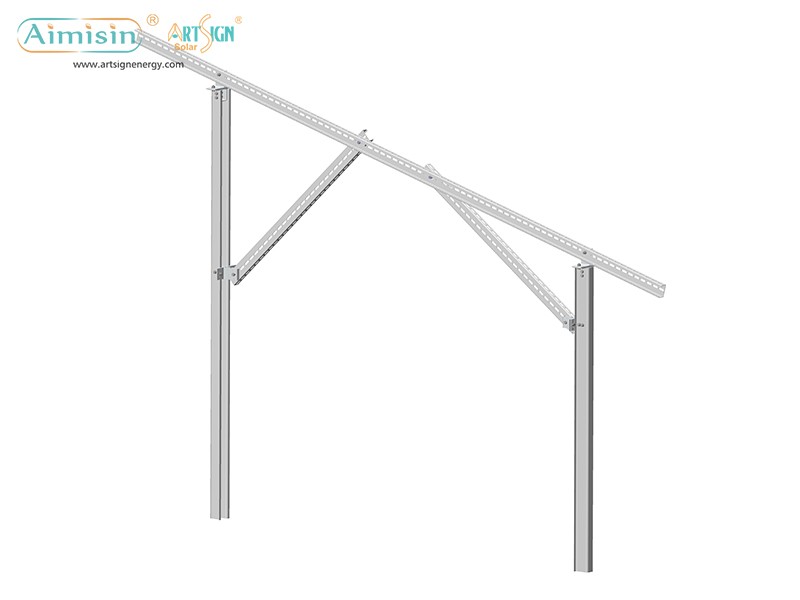

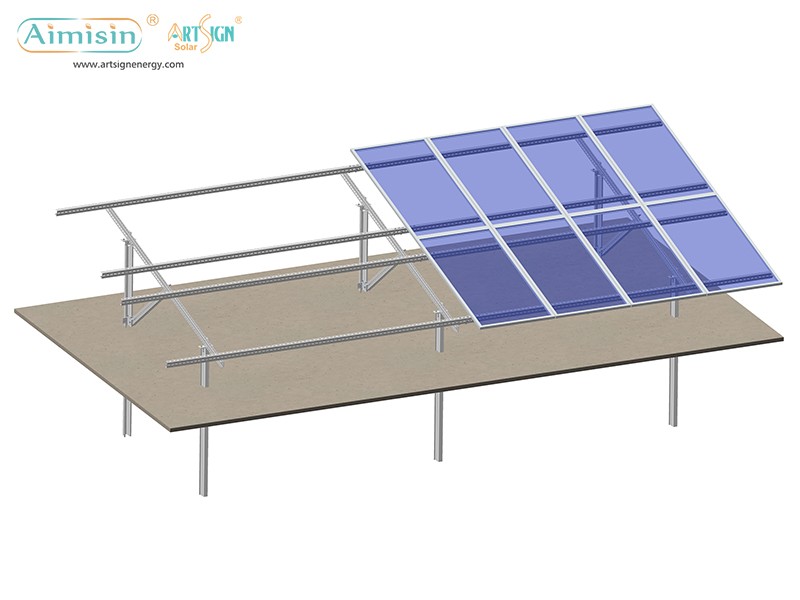

Flexible installation which is apply to landscape and portrait panel.
|

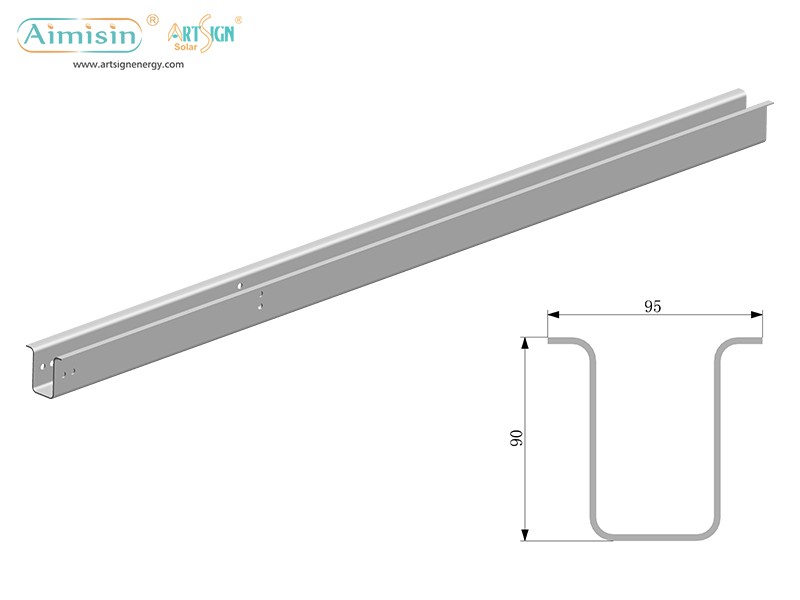

U90X95 hat section Specification |
||||
|
Item Name: |
U90X95 hat section |
Yield stregnth: |
350Mpa |
 |
|
Material: |
Zn-Mag-Al steel |
Tensile stregnth: |
420Mpa |
|
|
Size: |
H90*W95mm, customized length |
Coating thickness: |
above 275g/m2 |
|
|
Thickness: |
3-5mm or customized |
OEM: |
Available |
|
See more dimesnion of U/C shape steel profiles.
 |
 |
 |
 |
|
AS-Z-C41X41 |
AS-Z-C41X52 |
AS-Z-C50X30 |
AS-Z-C62X41 |
 |
 |
 |
|
|
AS-Z-C80X40 |
AS-Z-C100X50 |
AS-Z-C120X60 |
|
 |
 |
|
|
|
AS-Z-U90X95 |
AS-Z-U133X132 |
|
|

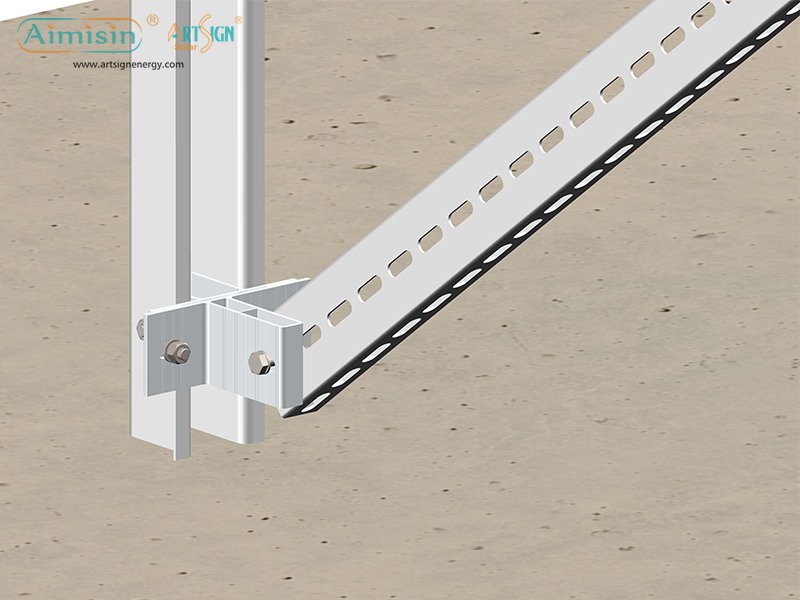

Relative connector
AS-Z-A017(C62X41)
AS-A-A018(C80X40)
Steel frame

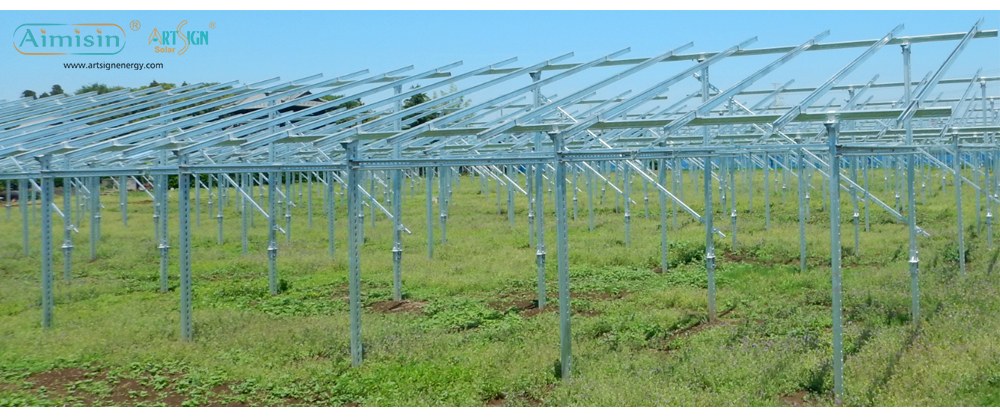

Installation in Japan
