No Drilling Construction Onto Vertical Folded Edge Zinc Roof Clamps for Solar Metal Roof Mounting Rack System| ART SIGN
Design Features:
— Stainless steel.
— Adjustable, quicker and easier installation for solar roof mount.
—No damage to the roof.
—Adjustable width, wide range of use.
|
Mode Number |
AS-SRC-06 |
Brand Name |
ART SIGN |
|
Specs |
90*50*50mm |
Material |
SUS 304 |
|
Application |
Solar metal roof |
Packing |
Carton |
|
Keyword |
OEM Metal Roof Solar Mount Clip |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
 |
 |
|

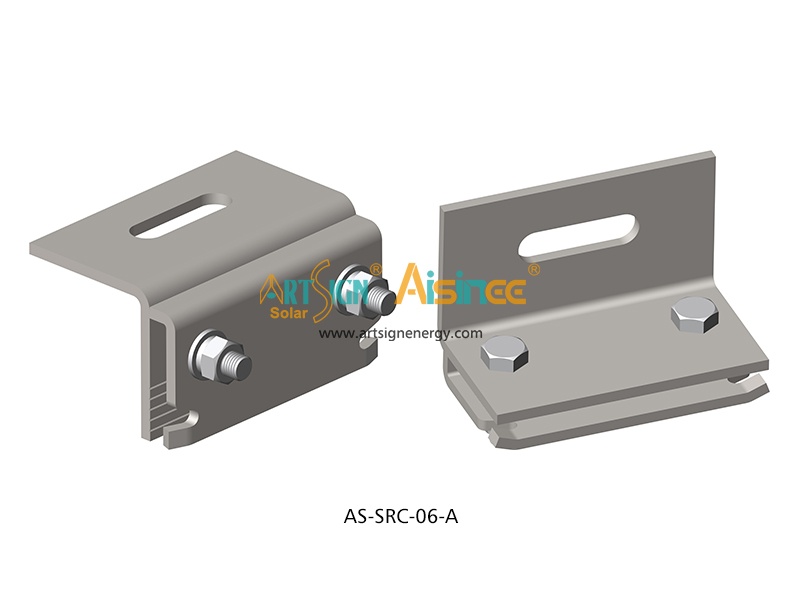

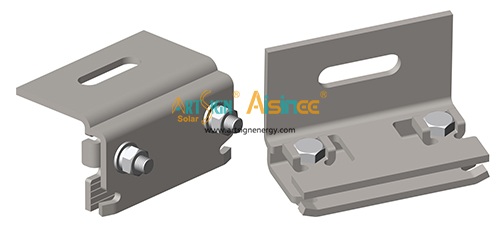

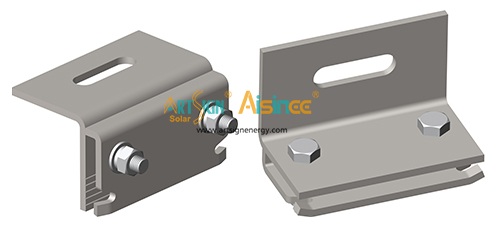

stainless steel roof bracket AS-SRC-06-A |

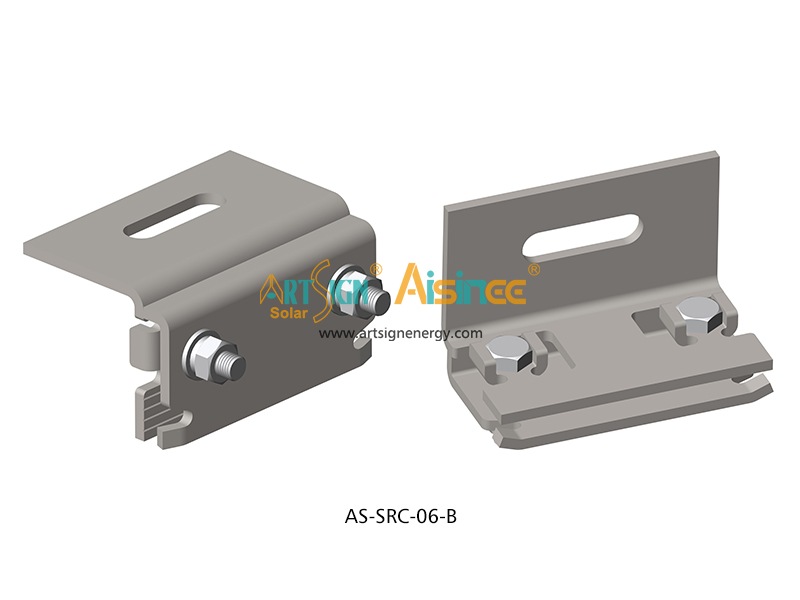

stainless steel roof bracket AS-SRC-06-B |
|
Designed to be able to attach the solar system superstructure profiles to seam metal joints. |
|
 |
 |

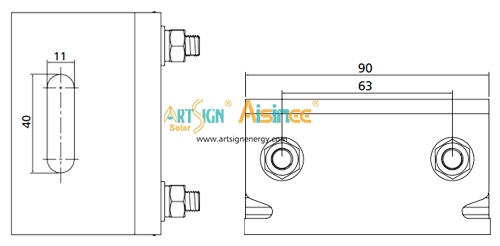

| The length is 90mm |

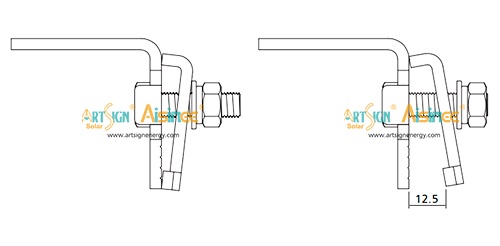

The maximum opening size of the clip is 12.5mm |
 |
|
|

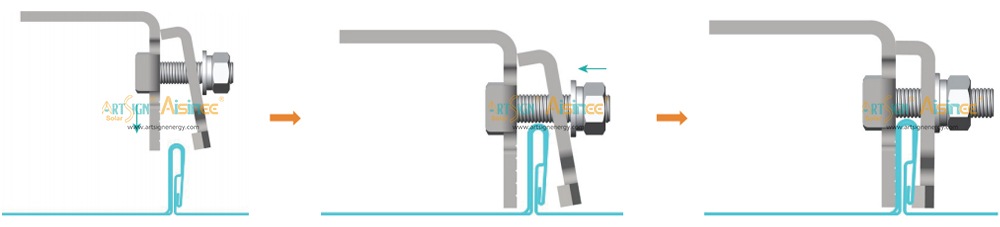

Position the roof clamp, and then fasten the bolt and nut |
|
 |
|
|

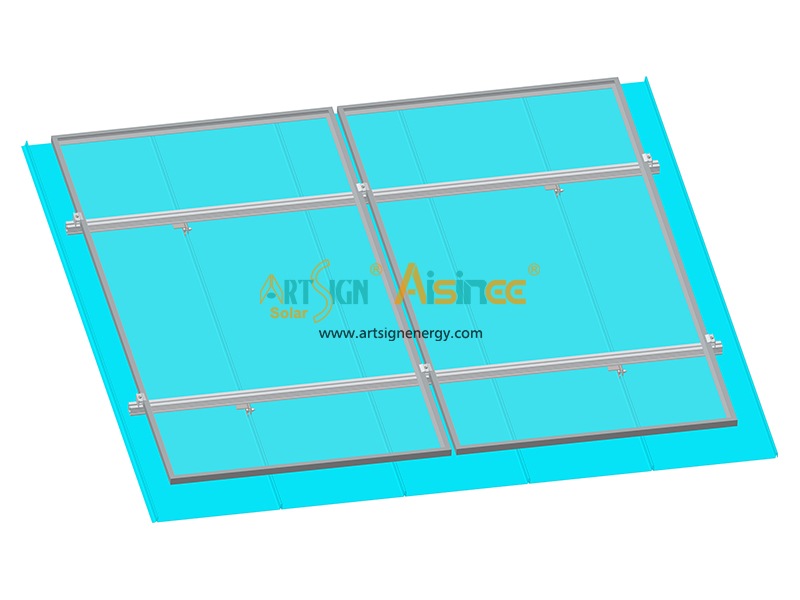

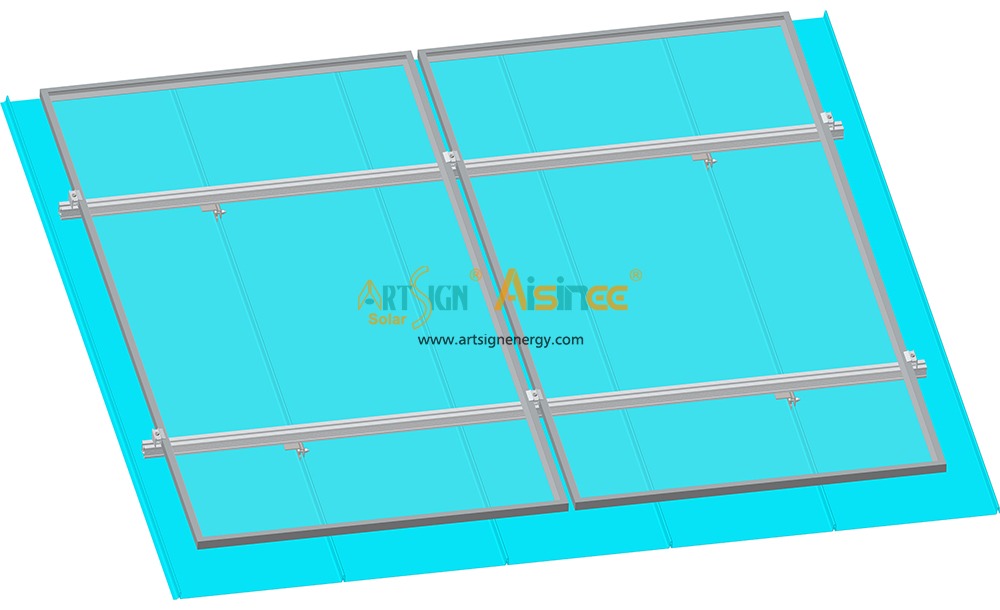

The clamp is installed on the seam roof |
|

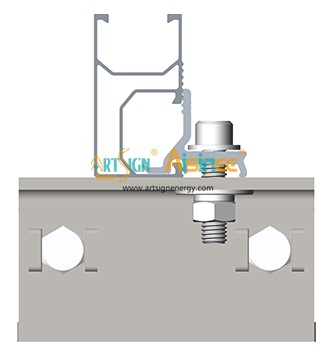

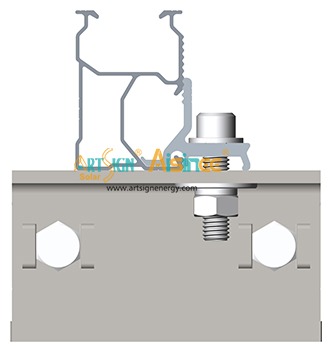

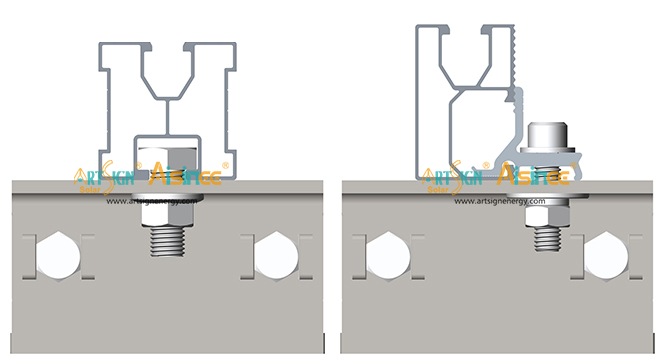

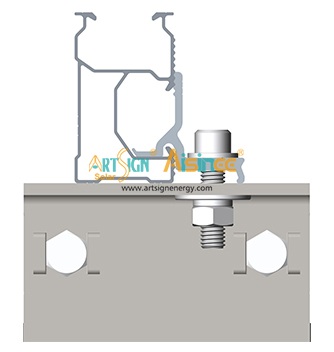

AS-SRC-06 With different rail.
 |
 |
|
|
Well fit with 40x40mm square solar profile, such as SR02, GR05, etc. |
Work with CR01 rail clip to be well-fitting for CR series rails |
|
 |
 |
 |
|
Work with 5# rail clip to be well-fitting for DR01A and DR01B solar rails |
Work with 4# rail clip to be rail clip to be well-fitting for DR03, DR04, SR04 |
Work with 4# rail clip to be well-fitting for XR01, XR02, XR03, XR05 |
Adjustable solar roof hook 12# for solar roof mounting system, various design of roof hooks for your options. Stainless steel SUS304 hook, high corrosion resistant surface treatment.
