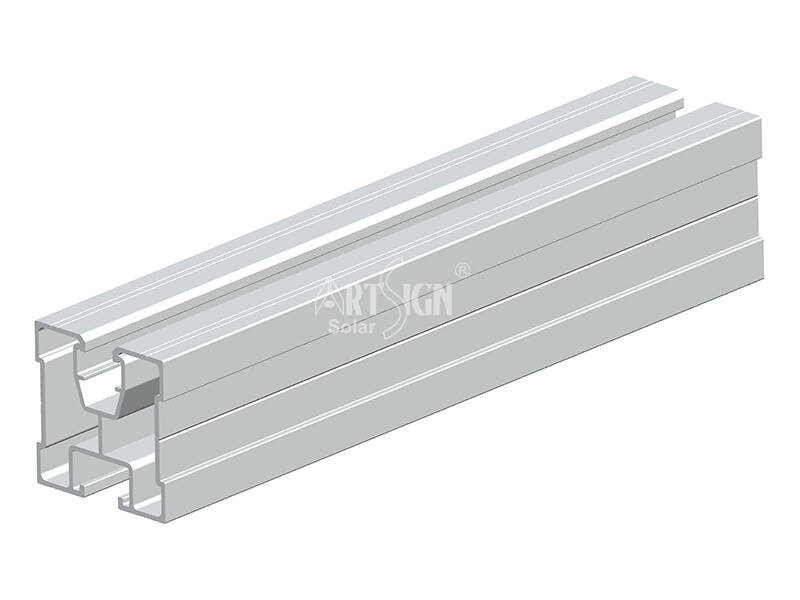

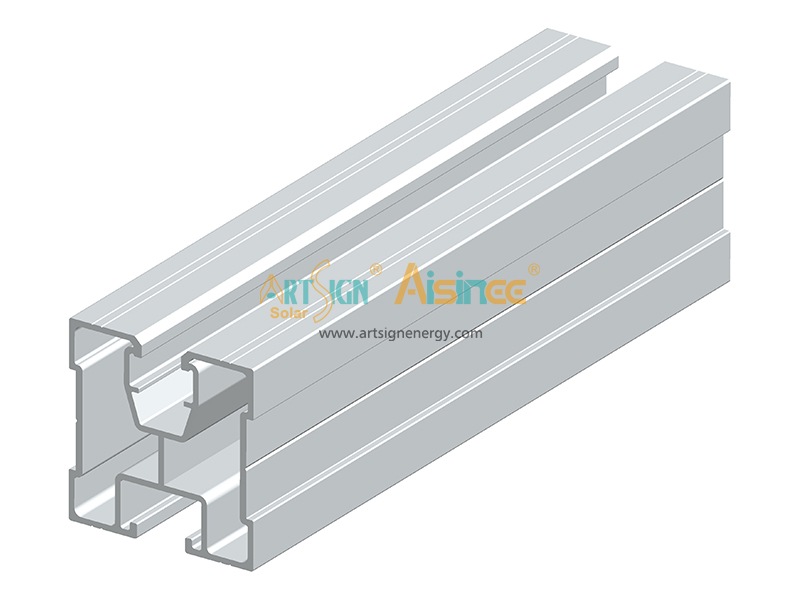

Solar panel roof mount aluminum G rail 05#

CE certified Solar Panel Roof Mounting Aluminum Rail |ART SIGN

Design Features

-- Solar panel rail mount,allowing both horizontal and inclined installations.
-- Available in various finishes: mill, silver anodizing or black anodizing.

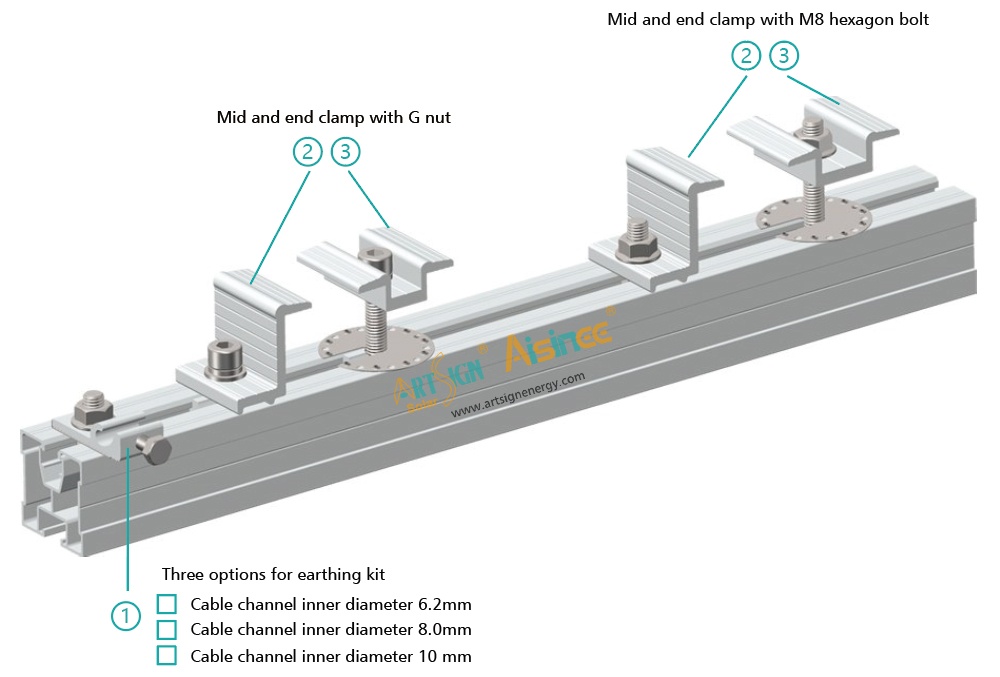

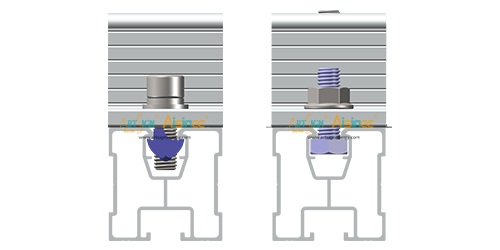

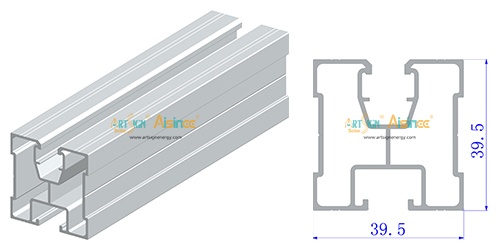

The (AS-GR-05) rail serves as a structural element to support and secure solar panels, connecting to bases, clamps, and other mounting accessories.	Using with G nut G02 or Using with M8 hexagon bolt The 8 mm hexagon bolt is compatible with standard M8 bolts and sliding nuts, suitable for most solar mounting systems.

Quick Assembly：Common lengths are 2 m, 3 m, or 4.2 m, even 6m solar rails, but can be cut to custom sizes depending on project requirements.

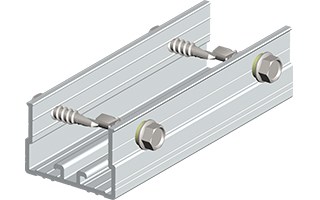

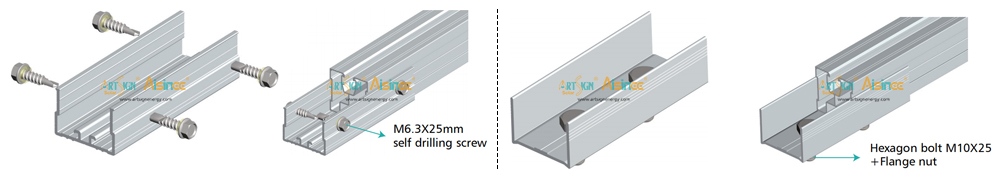

Two types of rail splice connectors can be used.
GR05 rail splice 2: (AS-BG07)
GR05 rail splice 1: (AS-I-A054)

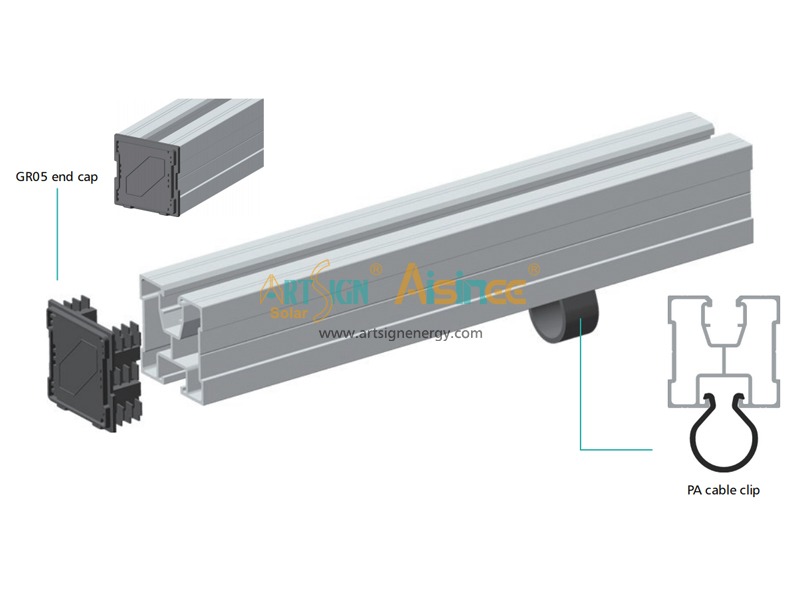

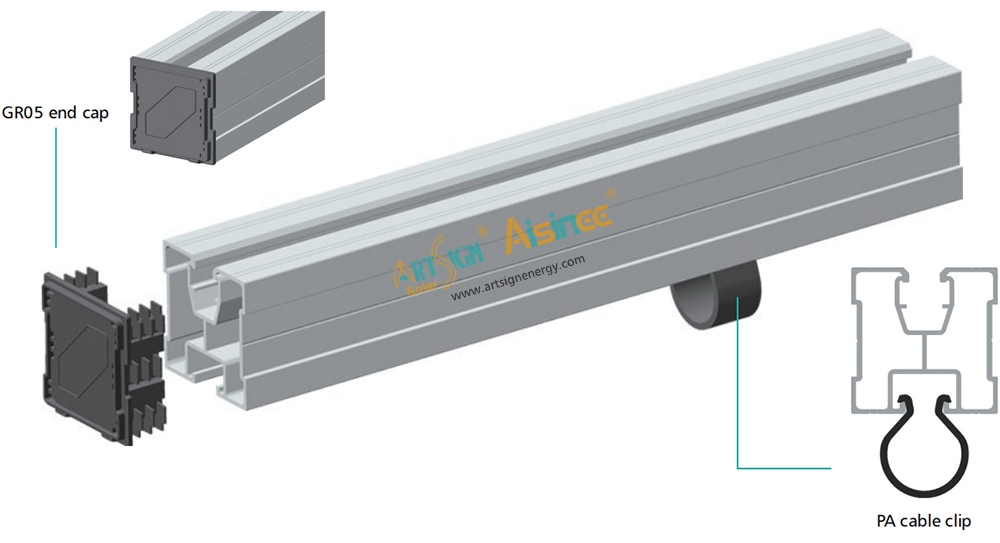

The GR05 end cap is designed to fit securely into the open ends of the solar mounting rail. It provides both a protective and aesthetic function for the PV rail system.

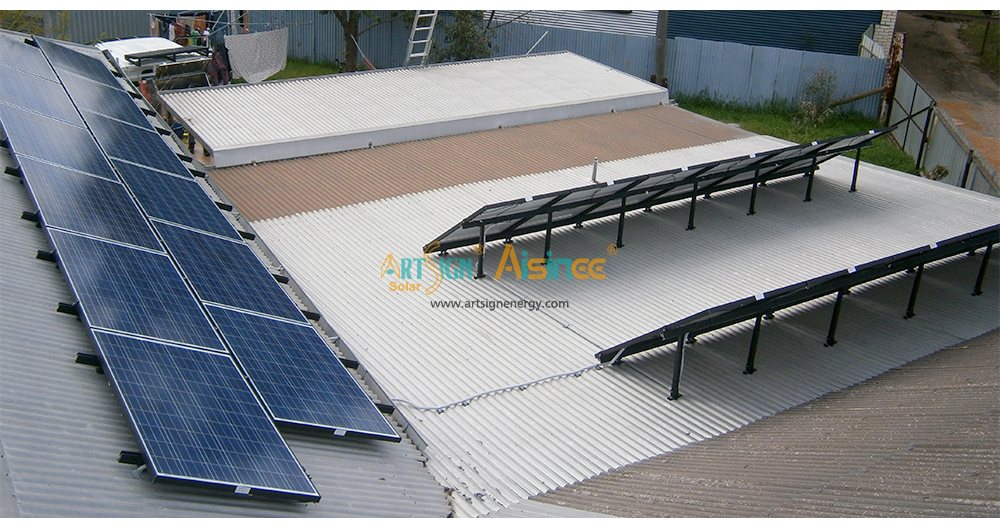

Typical Applications：Rooftop PV systems (tile roof, metal roof, or flat roof).
Quick Assembly：Common lengths are 2 m, 3 m, or 4.2 m, even 6m solar rails, but can be cut to custom sizes depending on project requirements.

Inner packing: Kraft paper packaging	Outer packing: wooden case /pallet

Solar panel roof mount aluminum G rail 05# AS-GR-05 is with anodized treatment, it is most suitable for solar panel roof mount, we offer customized length and well pack it with kraft paper, normally it's 8pcs per pack, and then put them into plywood case.

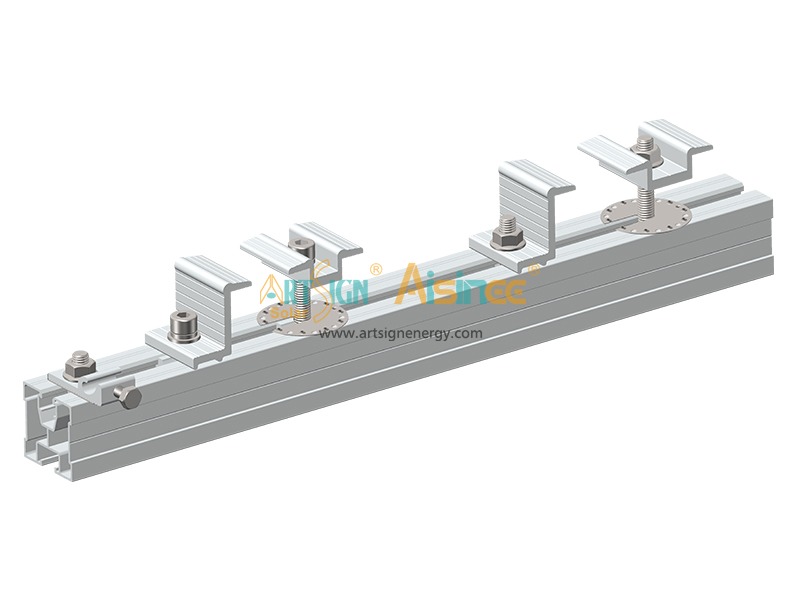

Hex bolt	G nut	Mid clamp and end clamp

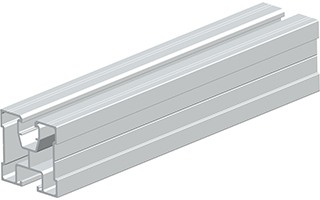

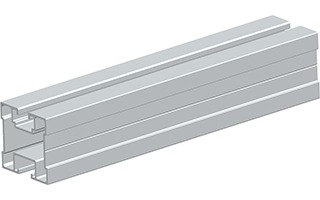

G rail AS-GR-01		G rail AS-GR-05
