Pv railing aluminium XR rail 01#

X nut series rails are the most economical solution with optimal rail slot design.
  • Item NO.:

    AS-XR-01
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail


ART SIGN OEM manufacturer XR aluminum profile solar rail


Design Features

— Have multiple height for choice and custom cutting length.
— Available in various finishes: mill, silver anodizing or black anodizing.

Mode Number

  AS-XR-01

Brand Name

  ART SIGN

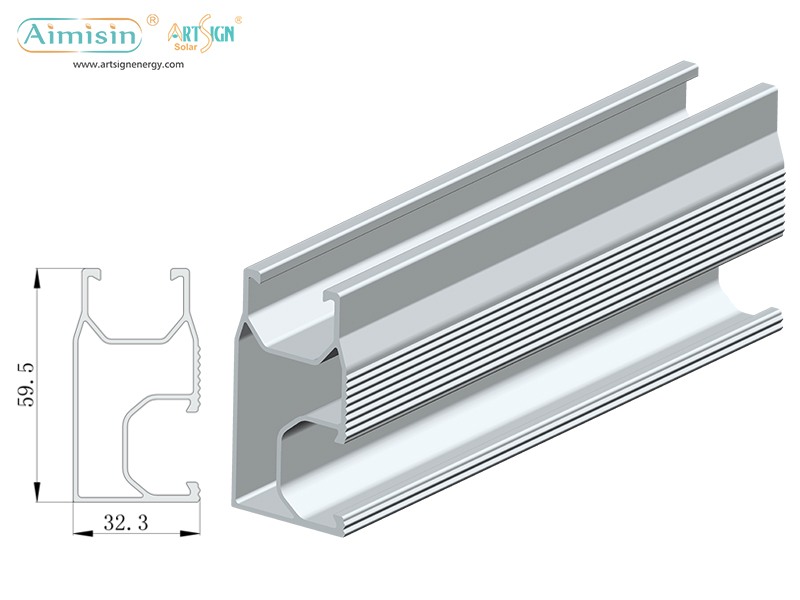

Specs

  W32.3*H59.5mm

Material

  Aluminum 6005-T5

Application
   Aluminium rails for solar panels Packing
  Wooden Pallet
Keyword
  Factory aluminium solar panel mounting rails Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years

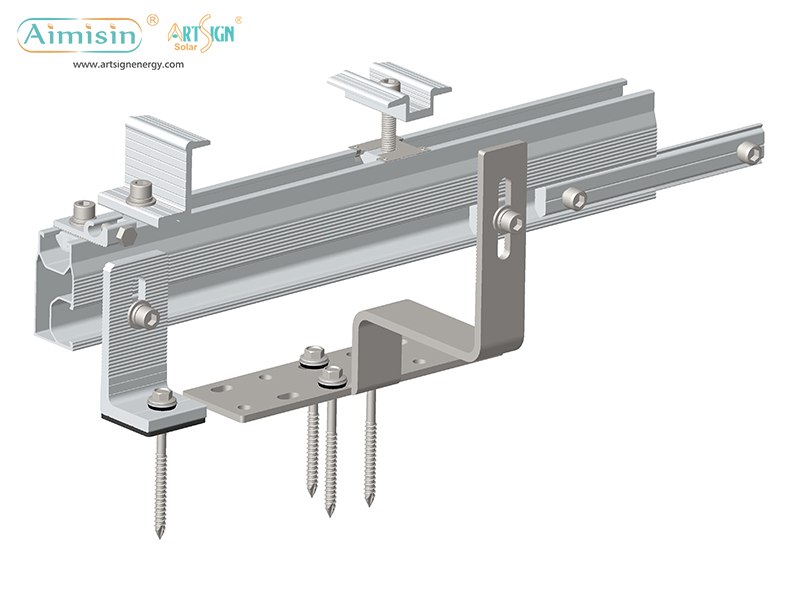

ART SIGN solar mounting details

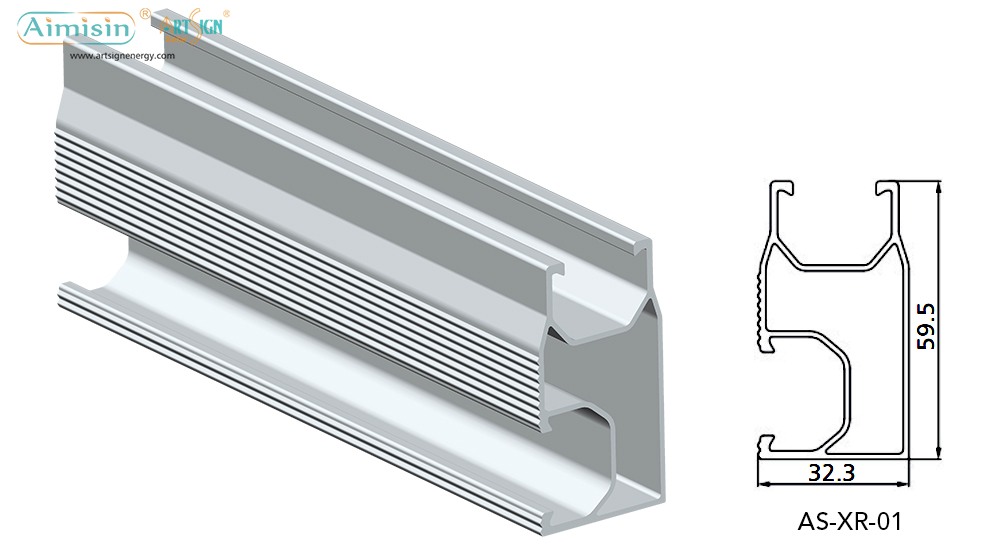

ART SIGN pv racking rail AS-XR-01

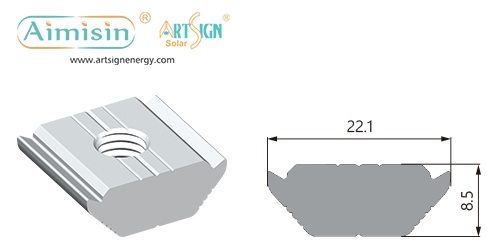

ART SIGN pv racking rail x nut

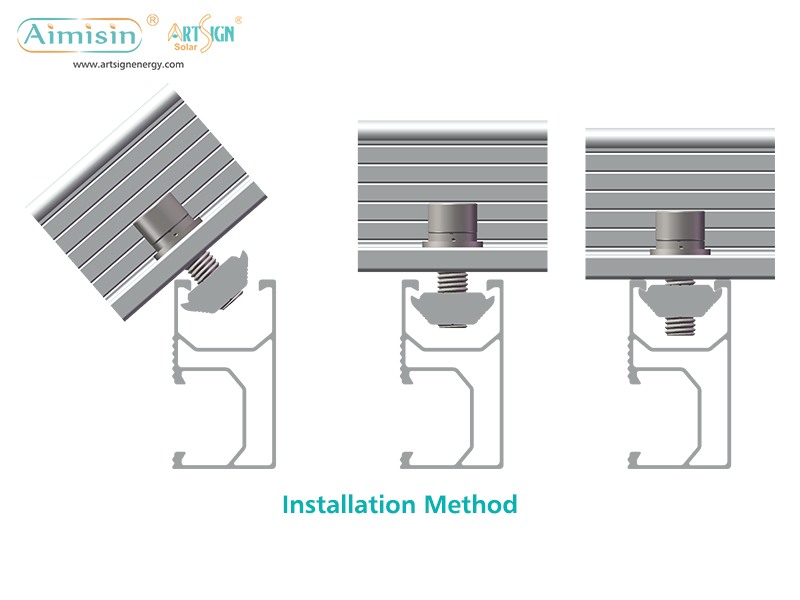

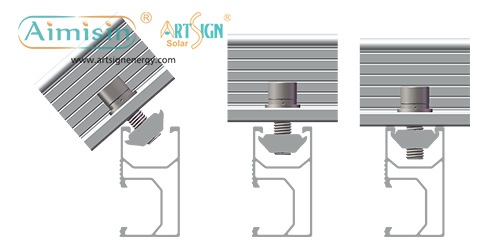

ART SIGN pv racking rail AS-XR-01 installation method

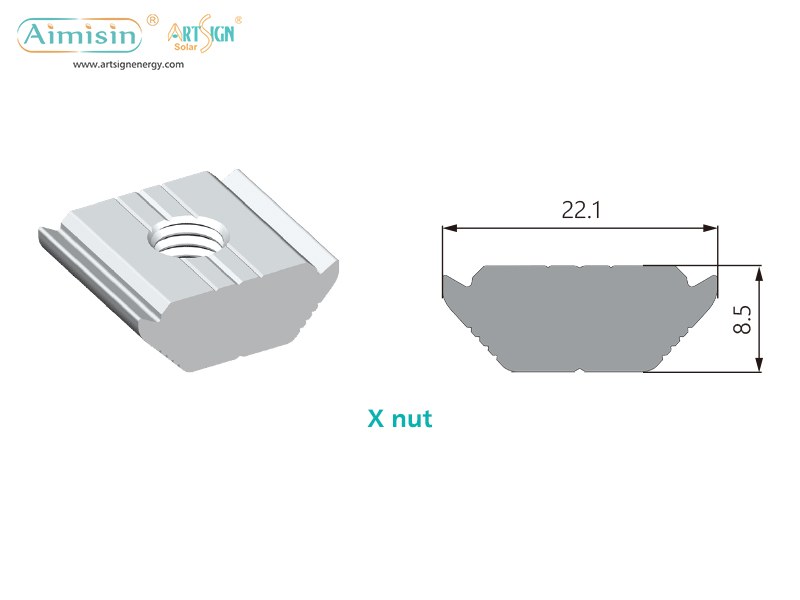

X nut

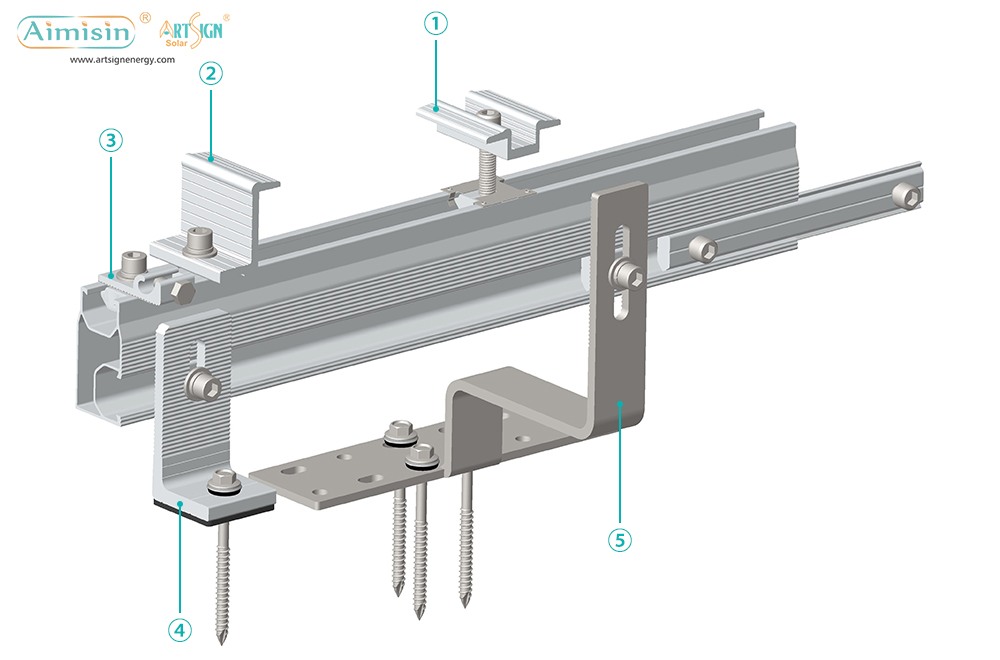

Installation Method
ART SIGN pv racking rail AS-XR-01

  ① 1pcs anodized aluminum mid clamp + 1pcs SUS304 allen bolt M8x50mm + 1pcs SUS304 spring washer + 1pcs anodized aluminum D nut

  ② There're three options for end clamp, please refer to below optional accessories for details

  ③ Two options for earthing kit: (1) Cable channel inner diameter 5.8mm   (2) Cable channel inner diameter 8.0mm

  ④ Four different heights' L feet

  ⑤ Refer to the optional accessories table for more options


  Package Type
  Inner packing: Kraft paper packaging ART SIGN pv racking rail AS-XR-01 packages
  Outer packing: wooden case / pallet

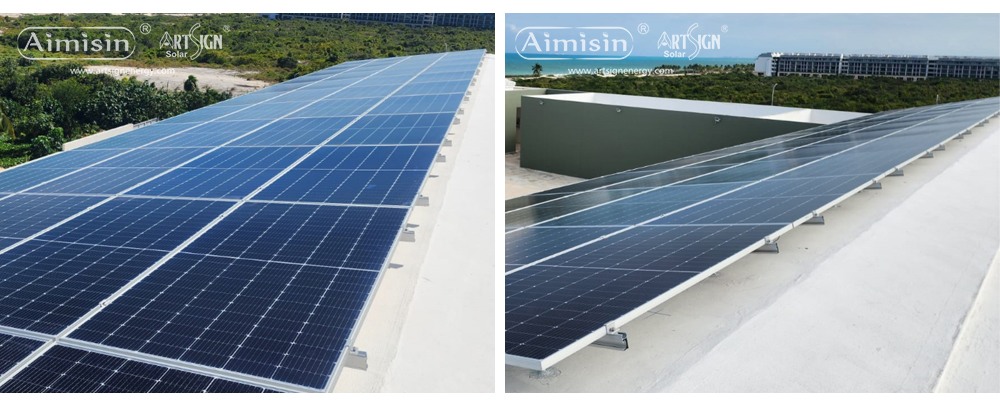

ART SIGN pv racking rail AS-XR-01 case study


ART SIGN solar mounting related accessories



Aluminum Solar panel roof rails AS-XR-01 which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

Click to see more XR nut series;

ART SIGN pv racking rail AS-XR-01
ART SIGN pv racking rail AS-XR-02
ART SIGN pv racking rail AS-XR-03
ART SIGN pv racking rail AS-XR-05
AS-XR-01
AS-XR-02
AS-XR-03
AS-XR-05
ART SIGN pv racking rail AS-XRS-01



AS-XRS-01
