Solar panel roof mounting system bracket roof hook 103#

English

AS-RH-02

AS-RH-02W

AS-RH-105

AS-RH-125

AS-RH-150

AS-RH-19

AS-RH-20

AS-RH-21

AS-RH-103

AS-RH-123

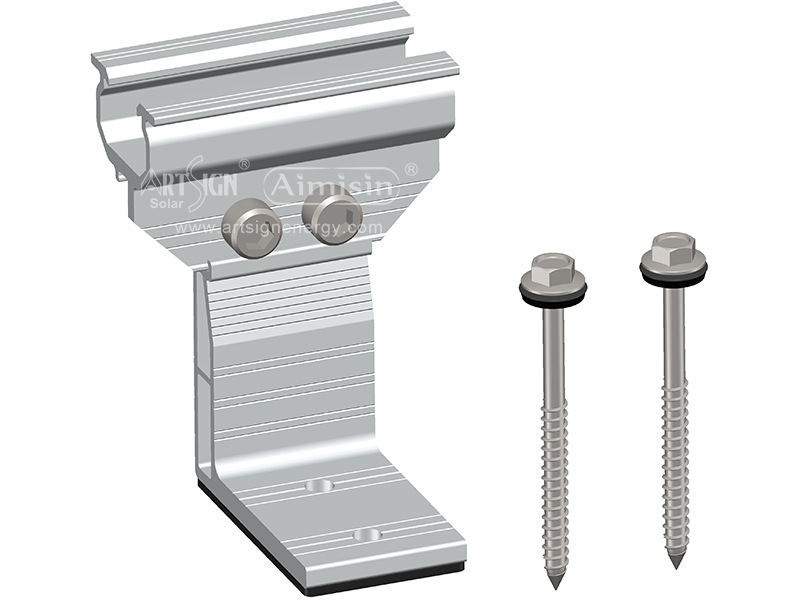

Solar mounting bracket roof hook 103# is one of rail-less solar mounting bracket solutions, it's easy to be installed with solar mid clamp and solar end clamp. The material we use is aluminum 6005-T5, with anodizing treatment, the surface treatment is with thickness above 10um. The aluminum is light for transportation, not only can save labour costs but also can save installation time. Besides, all of our products are with 20 years warranty.

Item NO.:
AS-RH-103
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

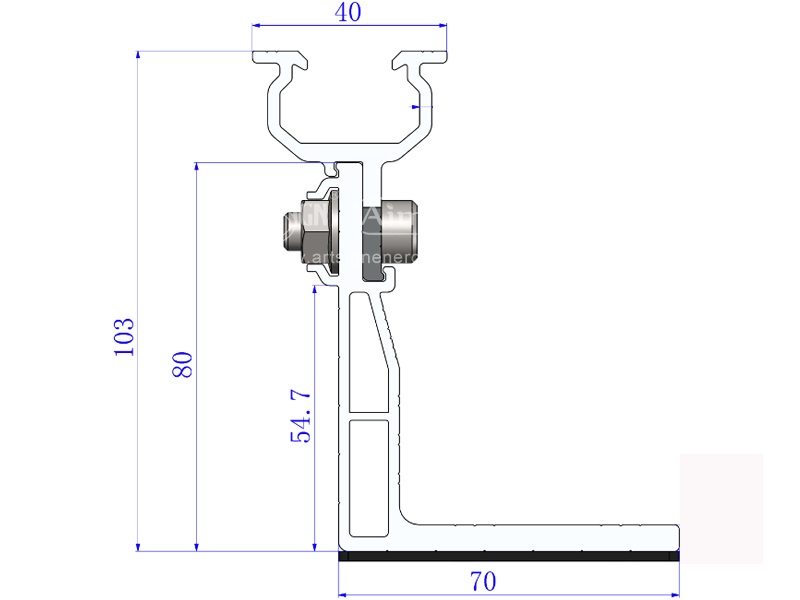

Solar mounting bracket roof hook 103#

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN
Mode Number	AS-RH-103	Specs	Self-tapping screw M6.3*80
Material	Aluminum 6005-T5	Application	solar panel roof mounting system
Surface treament	Anodized above 10um	Packing	cartons, plywood pallets / cases
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	Solar panel roof mounting system bracket roof hook	Service life:	25 years
Quality Warranty	20 years	Name	Solar mounting bracket roof hook

Selling Units

per set

Package Type

cartons, plywood pallets / cases

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time (work days)	1 - 3	3 - 7	7 - 15	To be negotiated

Solar mounting bracket roof hook 103#

Customized cutting length to be suitable for different wind load and snow load requirements.

Category : L Feet

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : Solar panel roof mounting system bracket roof hook 103#
