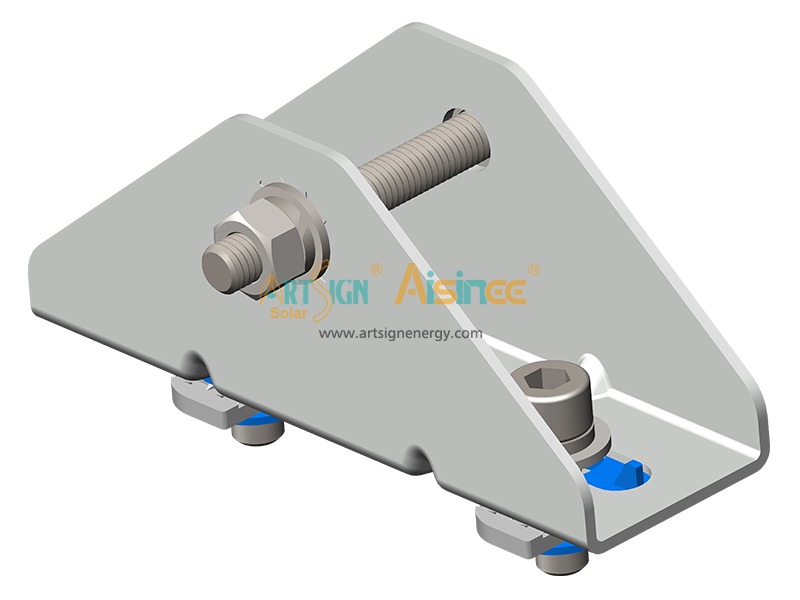

OEM Customized Steel Bracket for Solar Mounting Structure |ART SIGN

Design Features

-Provides stable connection steel structure for solar panels.
-Ensures precise angle fixation and uniform load transfer.

Mode Number	AS-Z-A001	Brand Name	ART SIGN
Specs	L150W48H65mm	Material	Zinc-aluminum-magnesium
Application	Tripod triangle bracket for solar steel structure	Packing	Wooden pallet
Keyword	Certification steel structure manufacture	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

Accessories Details


Material: ZM Steel (Zinc-Aluminum-Magnesium coated steel, offering superior corrosion resistance)	1 × Hexagon Bolt M10 × 70 mm	2 × Allen Bolts M10 × 30 mm SUS304 / Q235 Steel T-nut Plastic cup (for insulation and anti-loosening)

ART SIGN pv steel structure

Function and Installation Position

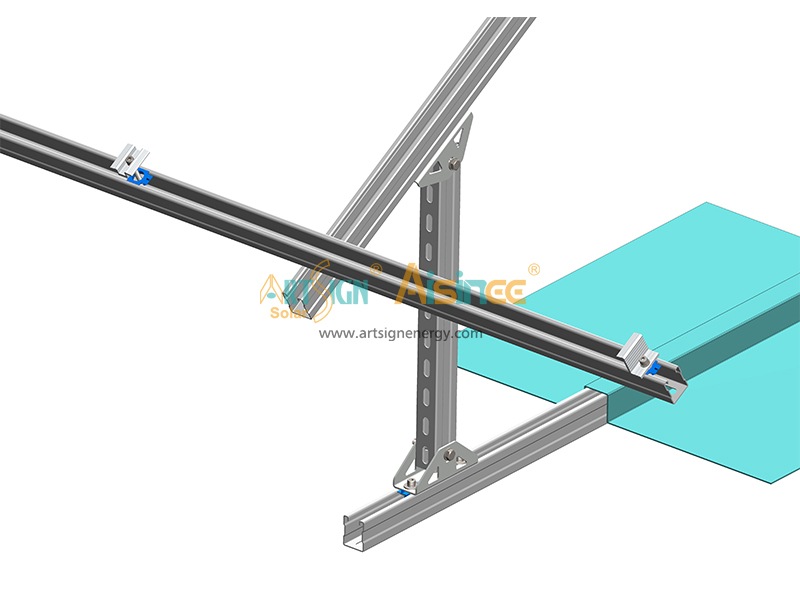

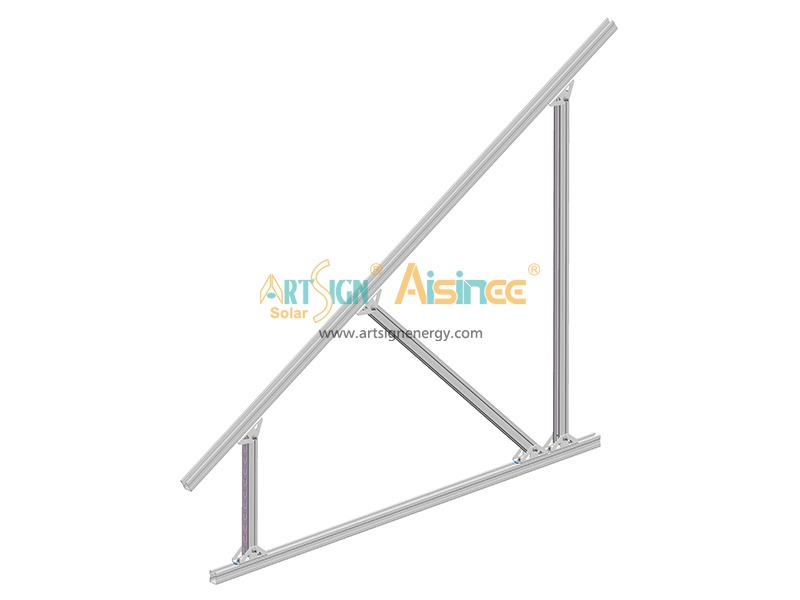

Located at the lower joint between the C-type beam and the diagonal brace (as shown in your image).

Provides angle locking between the two steel members.

Ensures load transfer and lateral stability of the support frame under wind or vibration loads.

Enables tool-free installation with bolts and T-slot nuts — no welding or drilling required on-site.

Compatible with standard C-type rails used in ballasted or non-penetrating rooftop solar systems.


Inner packing: Kraft paper packaging	Outer packing: wooden case /pallet
