Solar panel roof mount rail G rail 01#

Solar panel roof mount rail AS-GR-01 which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

Item NO.:
AS-GR-01
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Solar roof mounting rail aluminum profile G rail 01#

Design Features

— Anti corrosion: Surface Anodizing treatment, above 10μm thickness, maximum can be 25μm as per OEM requests.

— 20 years warranty: ArtSign offers 20 years warranty for all of it's products.

— Easy installation: Simply installation with one or two tools.

Mode Number	AS-GR-01	Brand Name	ART SIGN
Specs	W39.10*H39.10mm	Material	Aluminum 6005-T5
Application	Solar panel roof mounting system	Packing	Wooden case
Keyword	China solar panel roof mounting aluminum rail manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

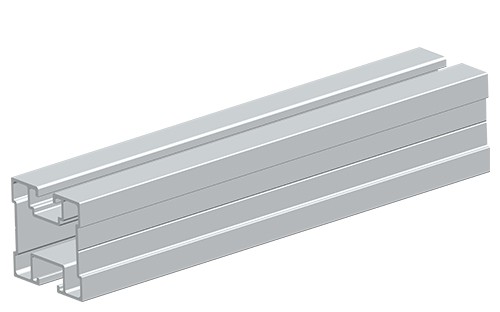

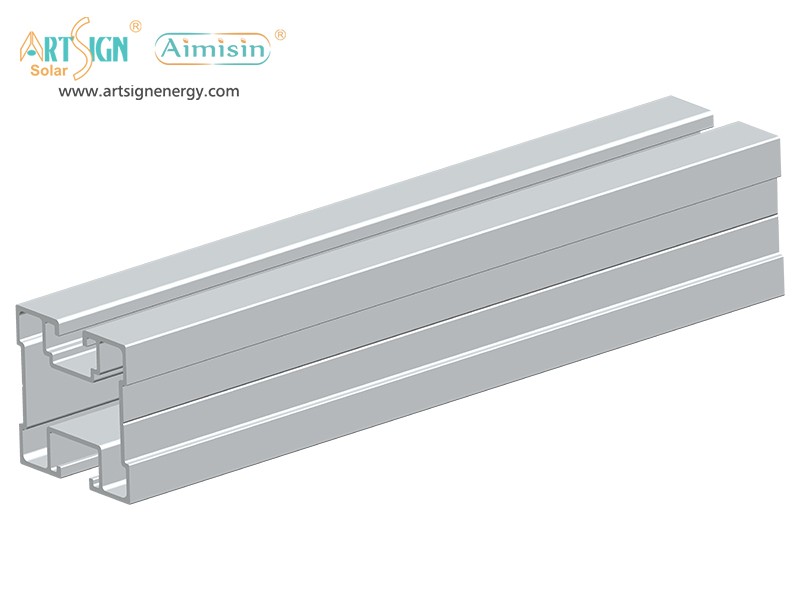

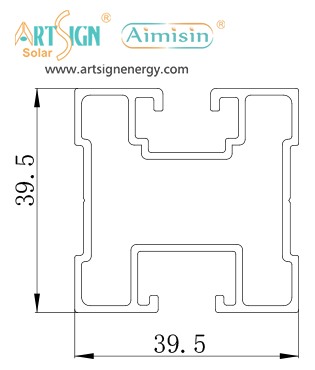

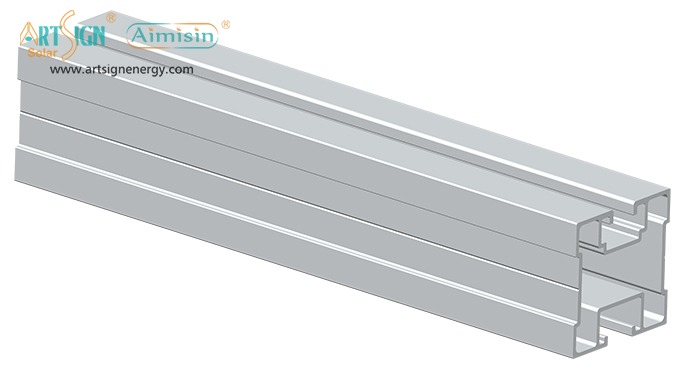

Overview of solar mounting system al rail AS-GR-01	Specs: 39.10mm width and 39.10mm height

Two different installation methods

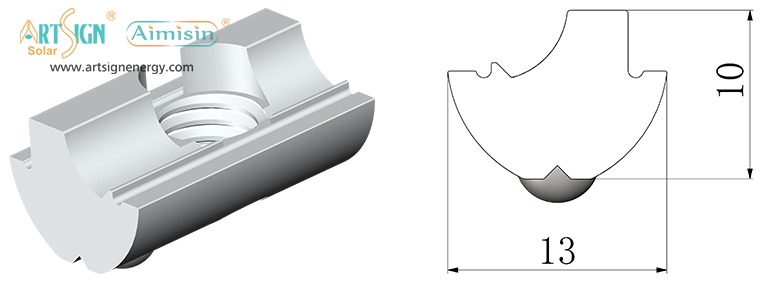

ART SIGN solar aluminum rail G nut

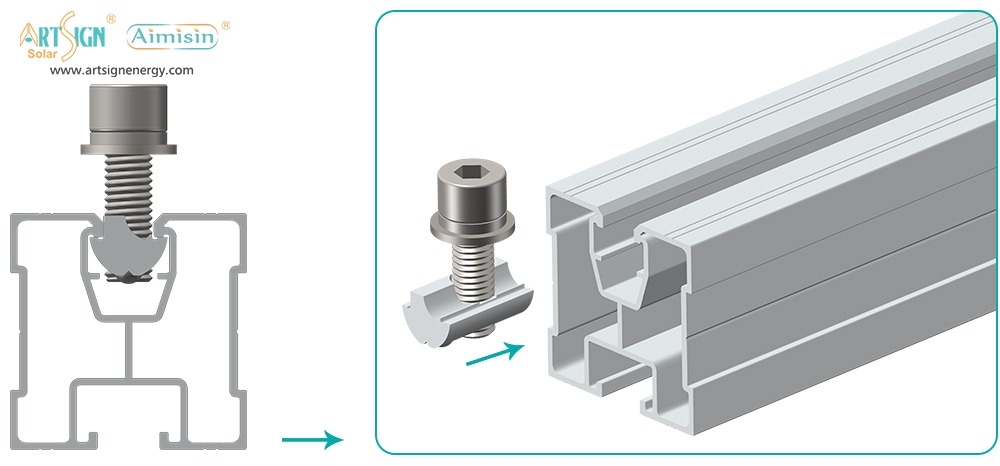

G rail is a kind of rail design with multiple installation way, the rail slot is match sliding G nut, meanwhile it is also suited for Hex bolt installation. Available in various finishes: mill, silver anodizing or black anodizing.

ART SIGN solar aluminum rail AS-GR-01 installation method 1

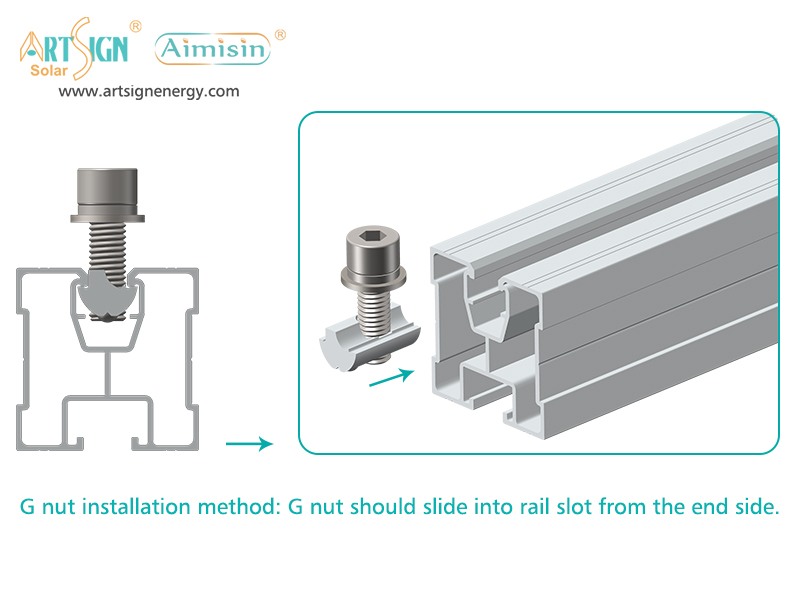

G nut installation method: G nut should slide into rail slot from the end side.

ART SIGN solar aluminum rail T nut

ART SIGN solar aluminum rail AS-GR-01 installation method 2

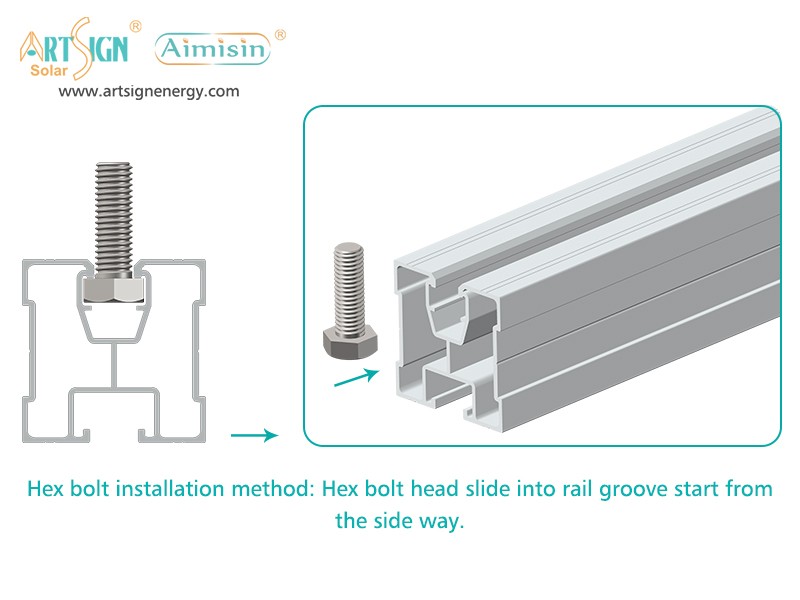

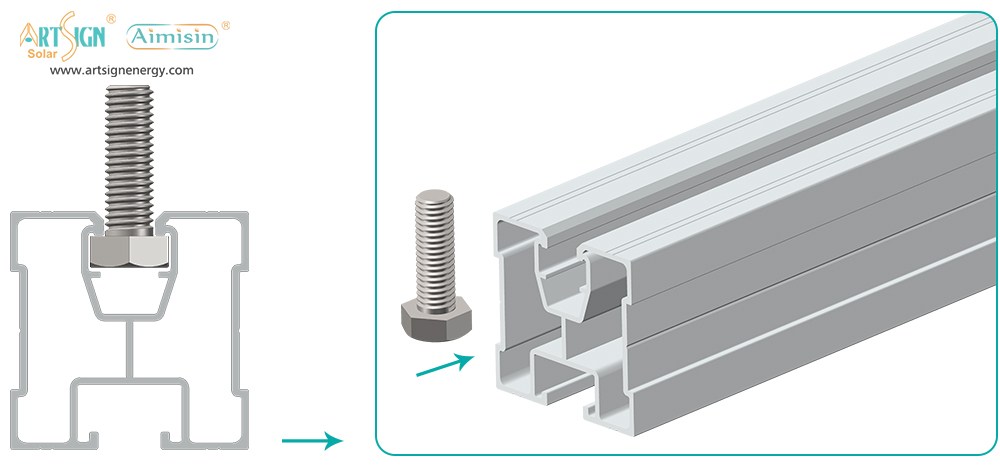

Hex bolt installation method: Hex bolt head slide into rail groove start from the side way.

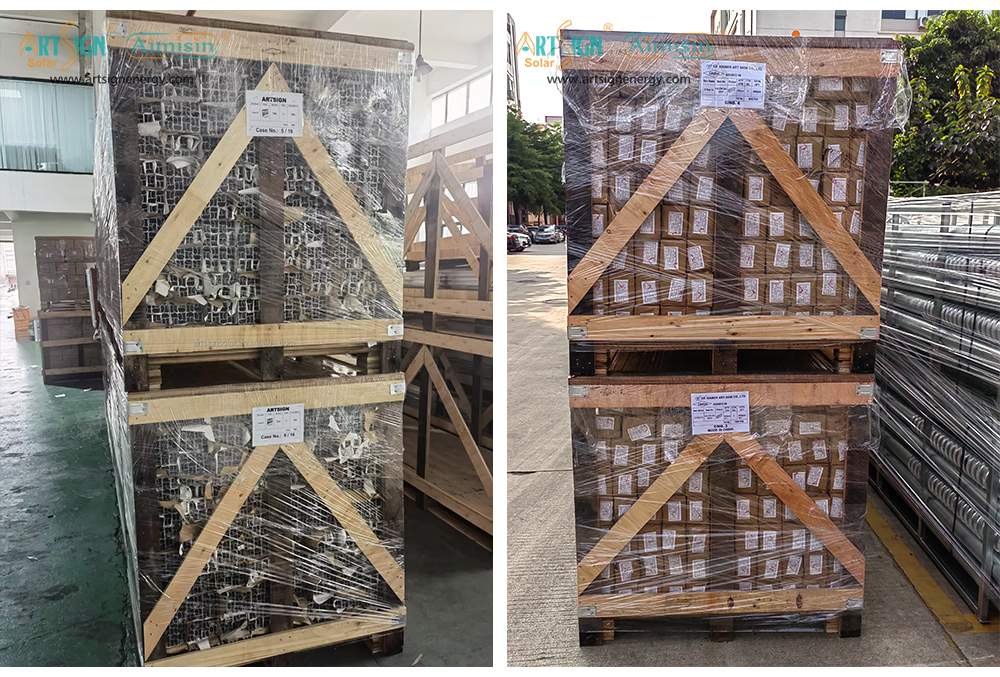

ART SIGN solar aluminum rail AS-GR-01 packages

ART SIGN solar mounting related accessories

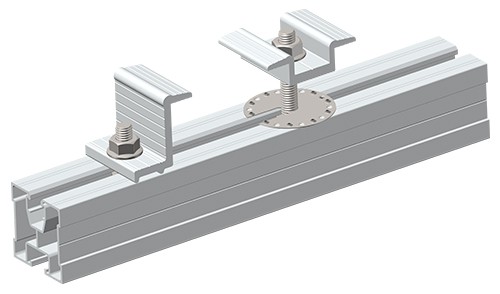

AS-GR-01 is suitable for G rail mounting system. Available in various finish. Can be used in conjunction with hex bolt and G nut accessories.

Click to see more G nut series;

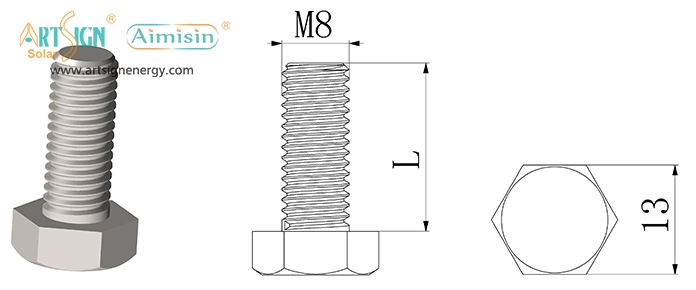

Hex bolt	G nut	Mid clamp and end clamp

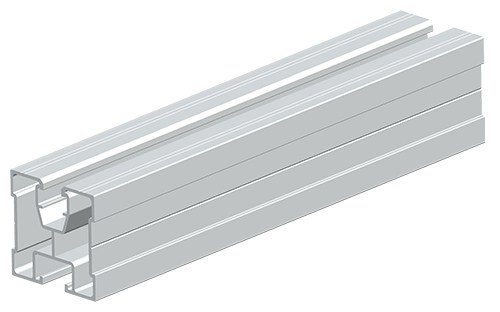

G rail AS-GR-01		G rail AS-GR-05
