Aluminum solar middle clamp for fixing brackets with CE certified |ART SIGN

Aluminum solar middle clamp for fixing brackets with CE certified |ART SIGN

Artsign middle clamp solar solution designed to secure solar panels in a row. As a Top 10 solar mid clamp manufacturers, we ensure our solar middle clamps are made of high-strength AL6005-T5 aluminum, offering excellent corrosion resistance and durability for any environment.

Item NO.:
AS-A-MC02
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Aluminum solar middle clamp for fixing brackets with CE certified |ART SIGN

Design Features

---Universal Compatibility: Optimized pv module clamps suitable for most framed solar panels.
---Easy Installation: Pre-assembled design to save labor costs on-site.
---Reliable Quality: Engineered as robust solar mid clamps to withstand high wind and snow loads.

Mode Number	AS-A-MC02	Brand Name	ART SIGN
Specs	L=40mm,50mm or customized	Material	Aluminum 6005-T5
Application	for fixing solar module with frame	Packing	cartons, plywood pallets / cases
Keyword	customized solar mid clamp manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting system products details

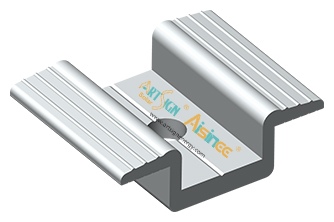

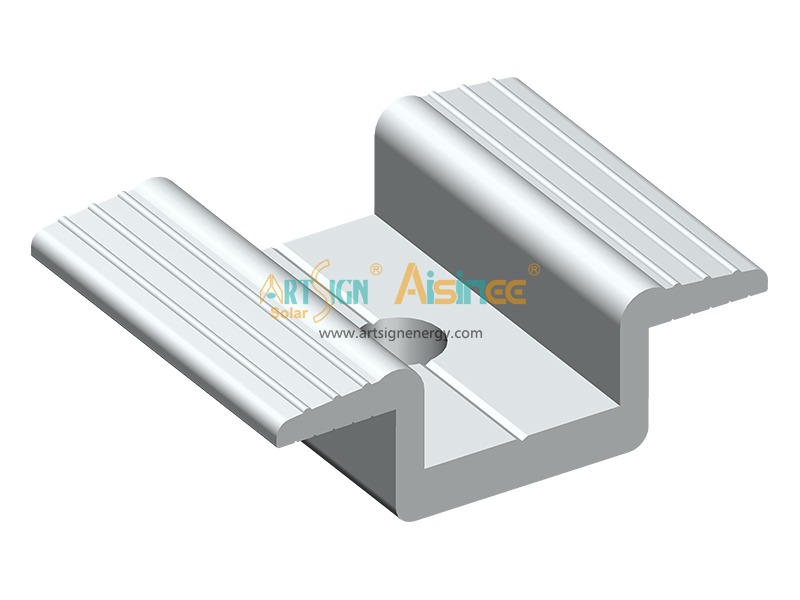

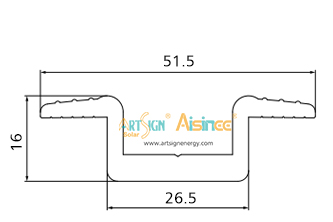

The 26.5mm width groove design ensures universal compatibility with all standard framed solar panels, providing a secure fit for diverse PV module brands.	Classic Professionalism: Our silver anodized mid clamps provide a seamless color match for standard silver-frame solar panels, offering superior heat dissipation and corrosion resistance for long-term outdoor reliability.	Seamless Aesthetics: Our black anodized finish is specifically designed for black frame solar panels, ensuring a sleek, uniform appearance for residential rooftop systems.

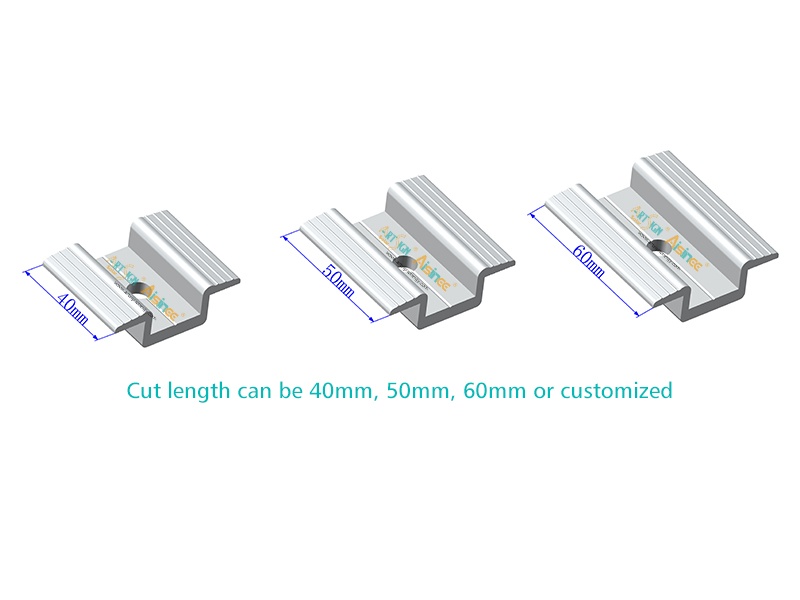

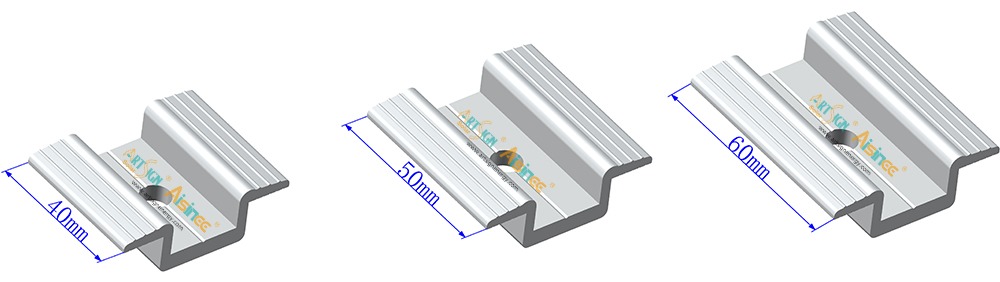

Available Cut Lengths: 40mm, 50mm, 60mm, and fully customized sizes to fit any PV project requirements.

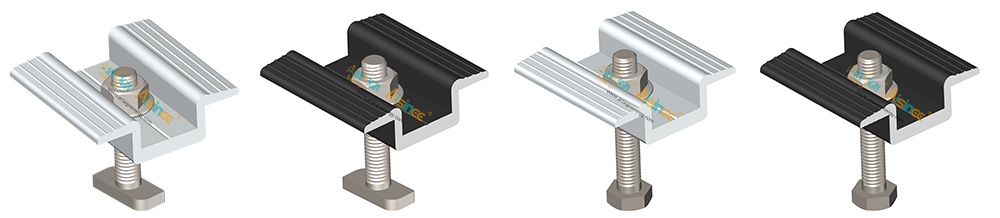

Enhanced Versatility: Our mid clamps feature interchangeable fixing nuts (such as T-nuts, Hex bolts, or square nuts), making them fully compatible with various aluminum profile slots and mounting rail systems globally.


Using carton for inner packing	Using pallet for outer packing

ART SIGN solar mounting system case study

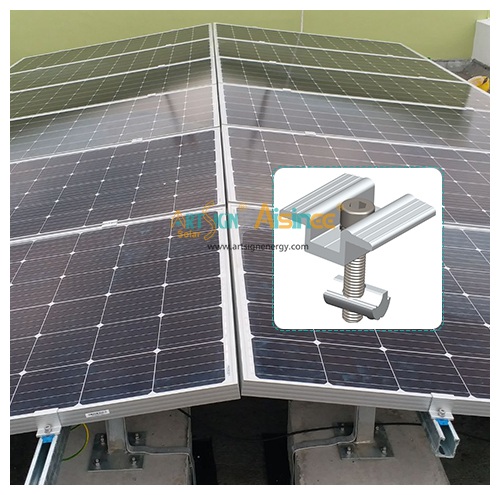

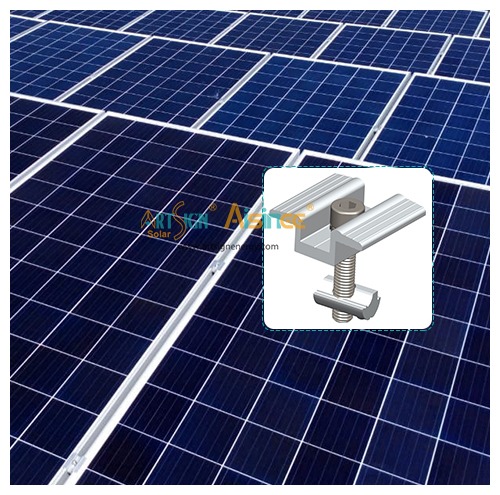

Project in Dominican	Project in Singapore

ART SIGN solar mounting related accessories

We have different kinds of nuts to match the different rails.

Click to see more Module clamp.


26.5mm Mid Clamp with T-Bolt & Flange Nut)	26.5mm Mid-Clamp with Standard M8 Bolt	26.5mm Mid Clamp with Black Anodized, T-Bolt & Spring Nut
