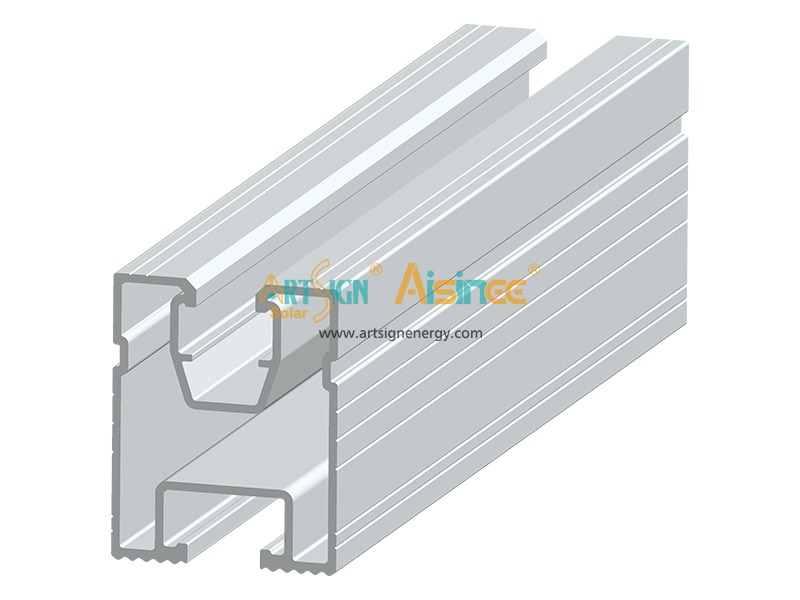

The rail serves as a structural element to support and secure solar panels, connecting to bases, clamps, and other mounting accessories.

Item NO.:
AS-GR-06
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Weather-Resistant Support Aluminum Rail for Rooftop Solar Installations |ArtSign

Design Features

-- Solar panel rail mount,allowing both horizontal and inclined installations.
--Available in various finishes: mill, silver anodizing or black anodizing.

Mode Number	AS-GR-06	Brand Name	ART SIGN

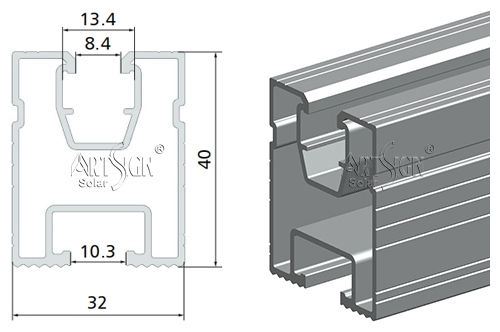

Specs	W32*H40mm	Material	Alu 6005-T5
Application	aluminium rails for solar panels	Packing	Wooden pallet
Keyword	Premium Solar Roof Mount Rails Aluminum Profiles Professional OEM Factory	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting system details

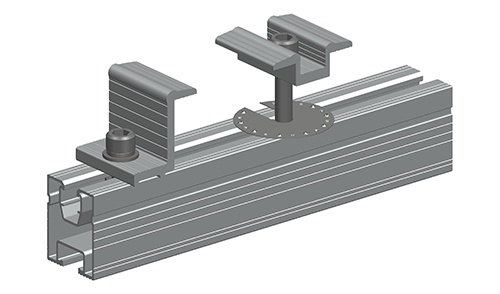

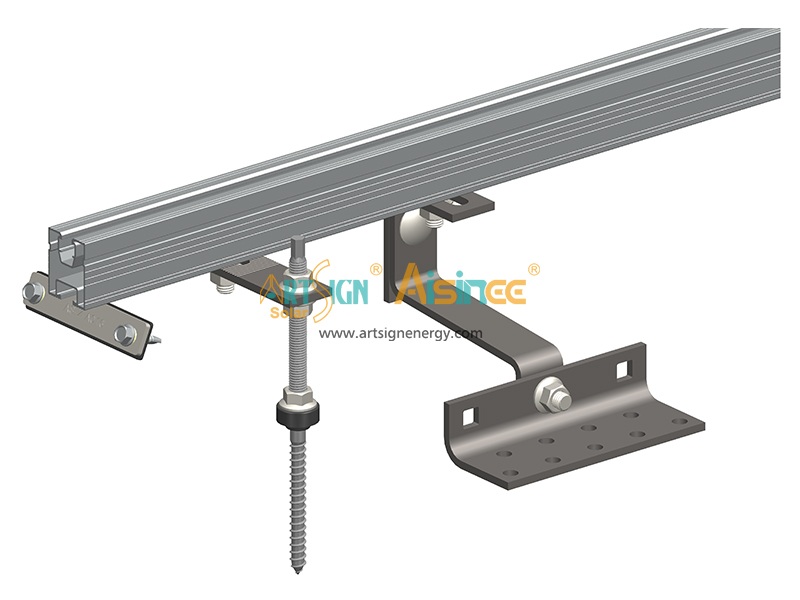

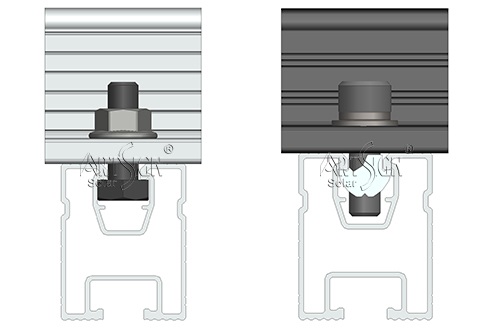

The (AS-GR-06) rail serves as a structural element to support and secure solar panels, connecting to bases, clamps, and other mounting accessories.	Using with G nut G02 or Using with M8 hexagon bolt. The 8 mm hexagon bolt is compatible with standard M8 bolts and sliding nuts, suitable for most solar mounting systems.

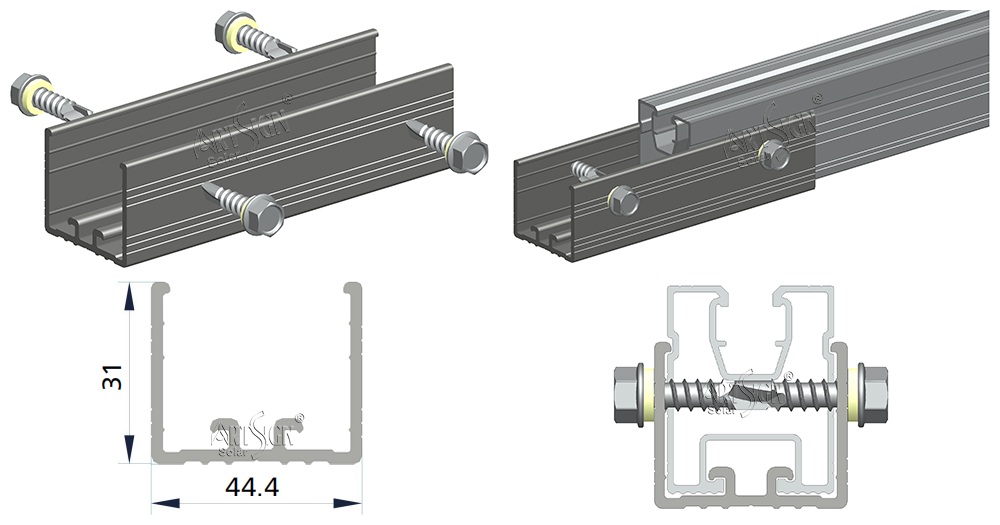

GR06 rail splice: (AS-A-A073)

ART SIGN solar roof rail

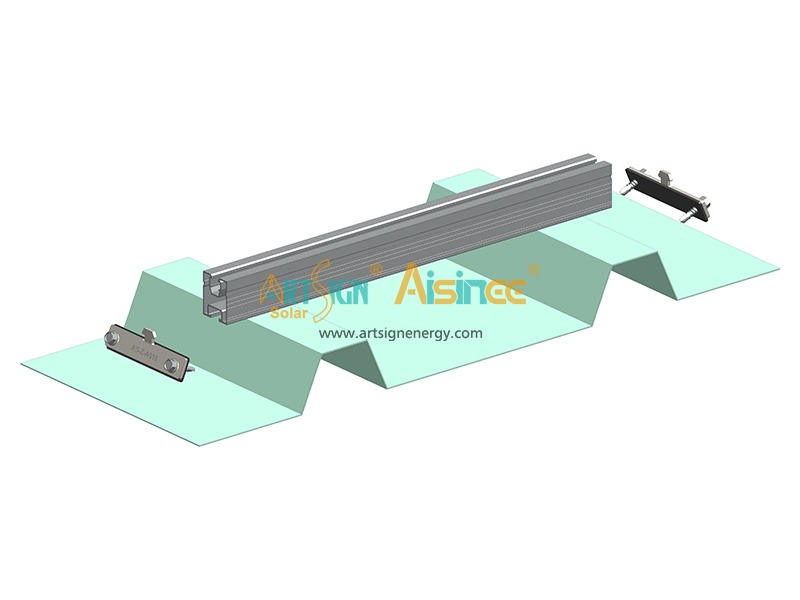

Using as mini rail.

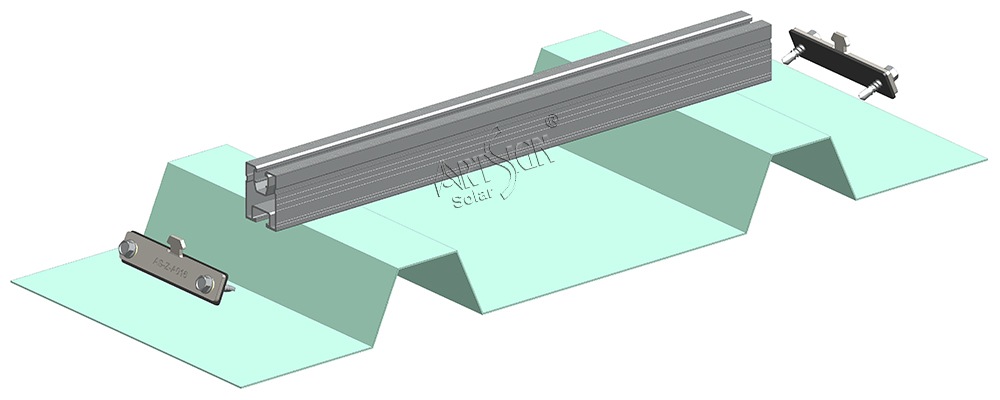

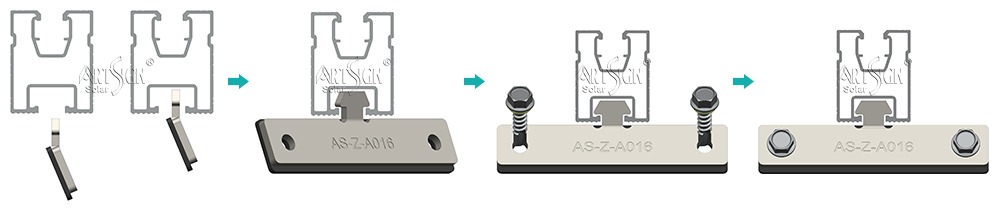

Installation with fixing plate AS-Z-A016.

ART SIGN solar roof rail

Rail length is customized.

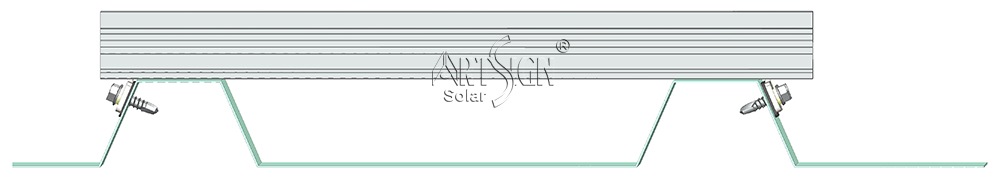

solar roof rail

The fixing plate is with 2pcs ST6.3 screw and 1pcs EPDM.

Inner packing: Kraft paper packaging

Outer packing: wooden case /pallet

Solar panel roof mount aluminum G rail 06# AS-GR-06 is with anodized treatment, it is most suitable for solar panel roof mount, we offer customized length and well pack it with kraft paper, normally it's 8pcs per pack, and then put them into plywood case.


Hex bolt	G nut	Mid clamp and end clamp

G rail AS-GR-01		G rail AS-GR-05
