Solar mounting G rail splice 05#

Easy installation solar panel rail splice kit, Made of anodized aluminum for durable, corrosion-resistant performance ensures a reliable structural bond in PV mounting project.

Item NO.:
AS-A-A054
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

CE certified Solar Panel Roof Mounting Aluminum Rail |ART SIGN

Design Features

-- Solar panel rail mount,allowing both horizontal and inclined installations.
-- Available in various finishes: mill, silver anodizing or black anodizing.

Mode Number	AS-GR-05	Brand Name	ART SIGN
Specs	W39.5*H39.5mm	Material	Alu 6005-T5
Application	aluminium rails for solar panels	Packing	Wooden pallet
Keyword	aluminium solar rail factory	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting system details

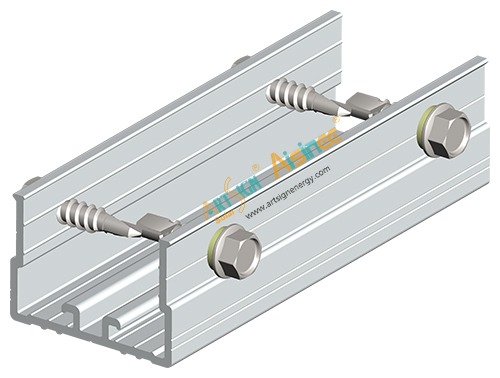

1.This Solar Rail Splice（AS-A-A054） is engineered as a high-performance solar mounting rail connector to deliver reliable, long-lasting performance in photovoltaic mounting systems.

2.Crafted from Al6005-T5 aluminum alloy, it combines lightweight durability with exceptional structural strength, making it the ideal solar rail jointer for extending and joining solar rails in residential, commercial, and utility-scale installations.

3.Designed for quick installation and universal compatibility, this essential rail connector ensures a secure, vibration-resistant link that stands up to harsh environmental conditions.

Premium Anodizing Aluminium Material:

1.Provides robust load-bearing capacity while keeping the system lightweight.

2. Enhanced surface hardness and weather resistance for extended service life.

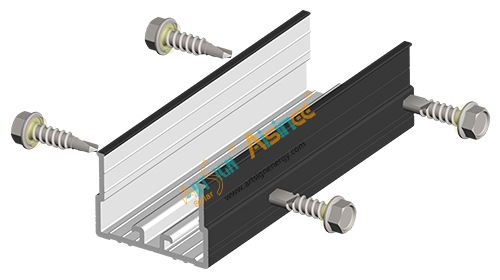

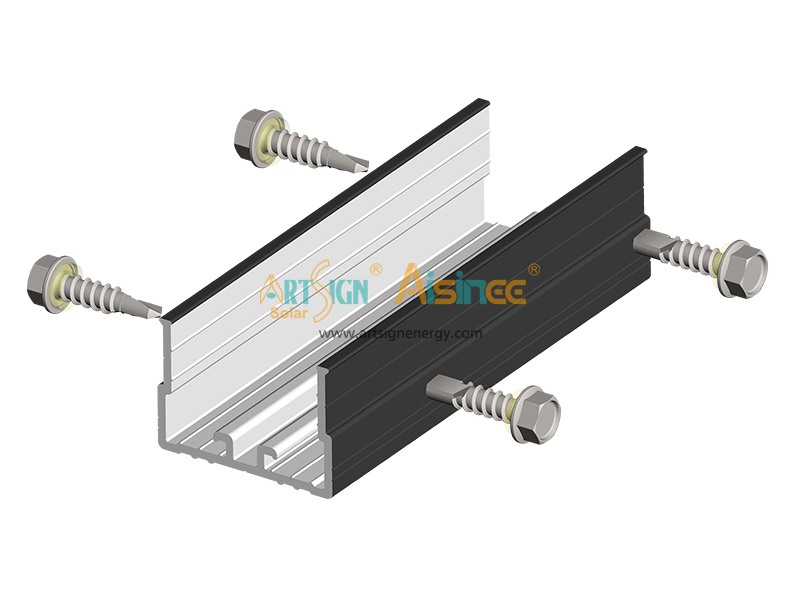

Black style：

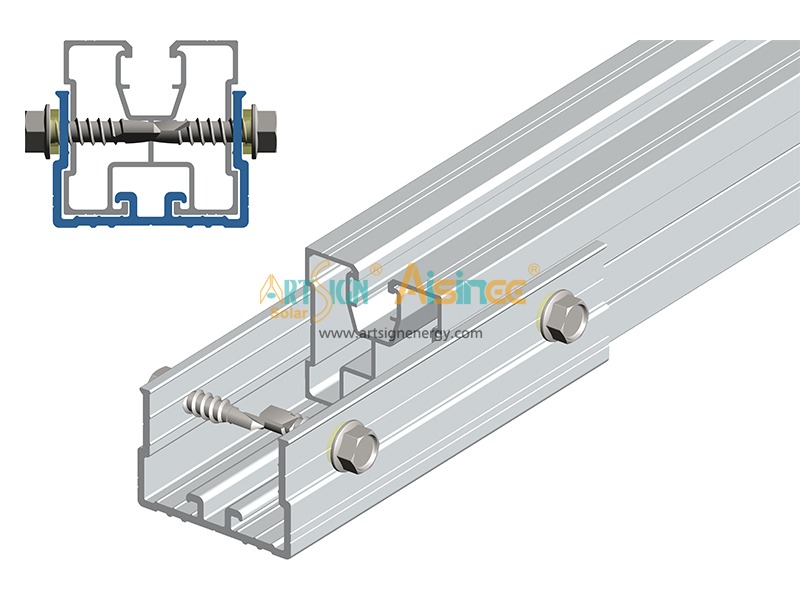

1. It seamlessly connects multiple rail segments to achieve desired length for roof or ground-mounted arrays.

2. Suitable for various mounting scenarios: rooftop (tiled, metal, flat), ground mounts, and carport structures.


Inner packing: Kraft paper packaging	Outer packing: wooden case /pallet

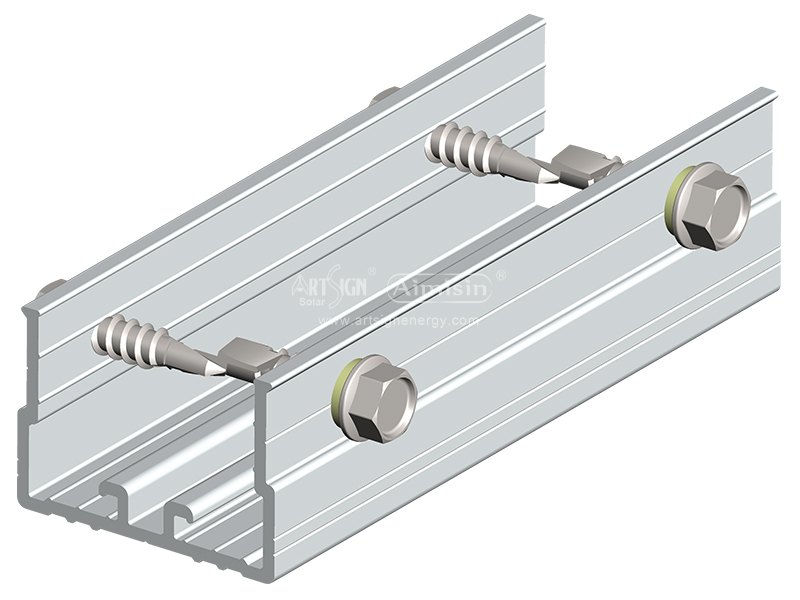

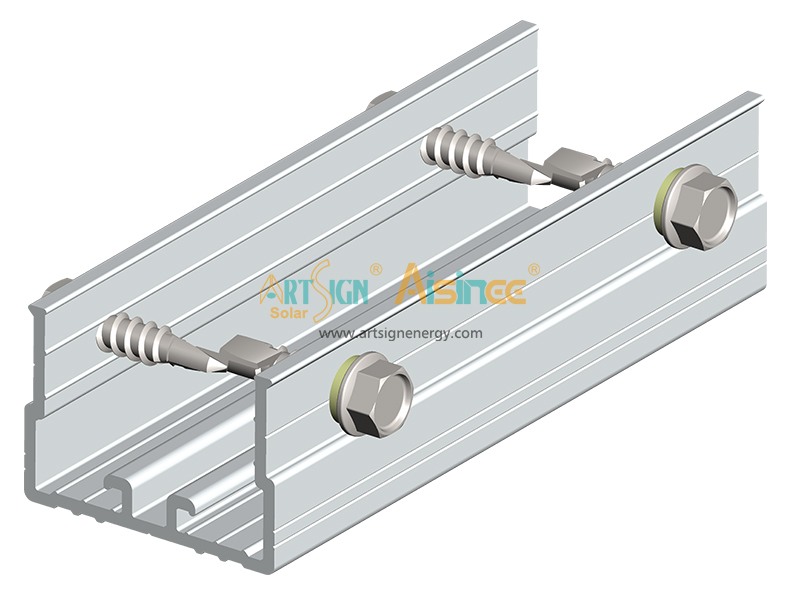

Solar mounting G rail splice 05# is used for G rail connection with 4pcs of self drilling bolt M6.3*25.


AS-GR-01	AS-GR-05	AS-A-A054
