C type carbon hat section steel solar panel ground mounting bracket - U95 pillar

U shape steel bar solar panel mounting racking system is frequently used for large scale solar power system, it is with less components, more economical and easy & quick to install. Can withstand large wind load and snow load.
  • Item NO.:

    AS-SG-U95
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Color:

    silver, black or customer requirement
  • Product Detail

C type carbon hat section steel solar panel ground mounting bracket - U95 pillar



· Design Features

  ① More economical and easier to install.
  ② Few elements, quick installation.
  ③ HDG or Zin-Alu-Mag material for option.



· Surface treatment:

  80μm thk. Hot dipped galvanizing steel or Zin-Mag steel, 10μm thk. Anodozed aluminum, stainless steel 304 or steel Q235B bolts and nuts.


· Design Strength:
  The structure is designed according to the wind load or snow load request.


· Certification:
  Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report - Chemical & Physical test.



Category : Ground Mount


Suitable for
  Open field
Module
  Framed, thin film
Material&Surface treatment
 80um thk. hot dipped galvanized steel or zin-mag steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
 silver, black or customer requirement
Module orientation

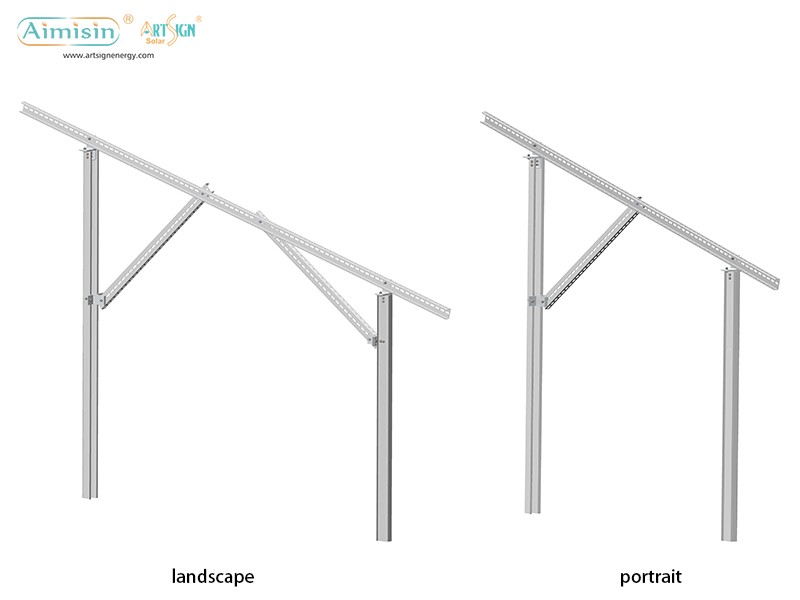

  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-AL-CED AS-AL-CMD
AS-SRS-C80-03



AS-C80
AS-SSJ
AS-U90×95

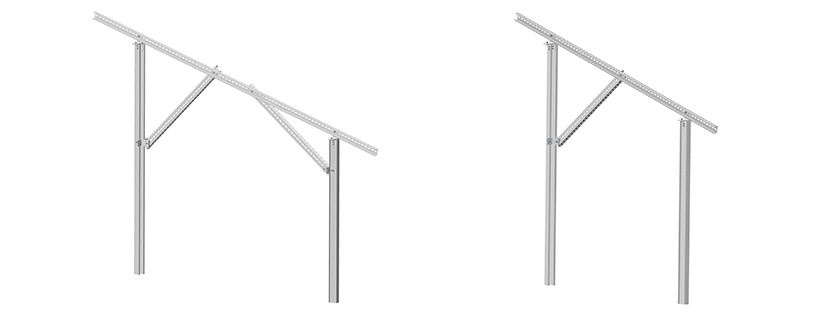

According to customized wind load and snow load request, after strength calculation, the engineer will choose K structure for high load request, V structure for normal load.


C type carbon hat section steel solar panel ground mounting bracket - U95 pillar

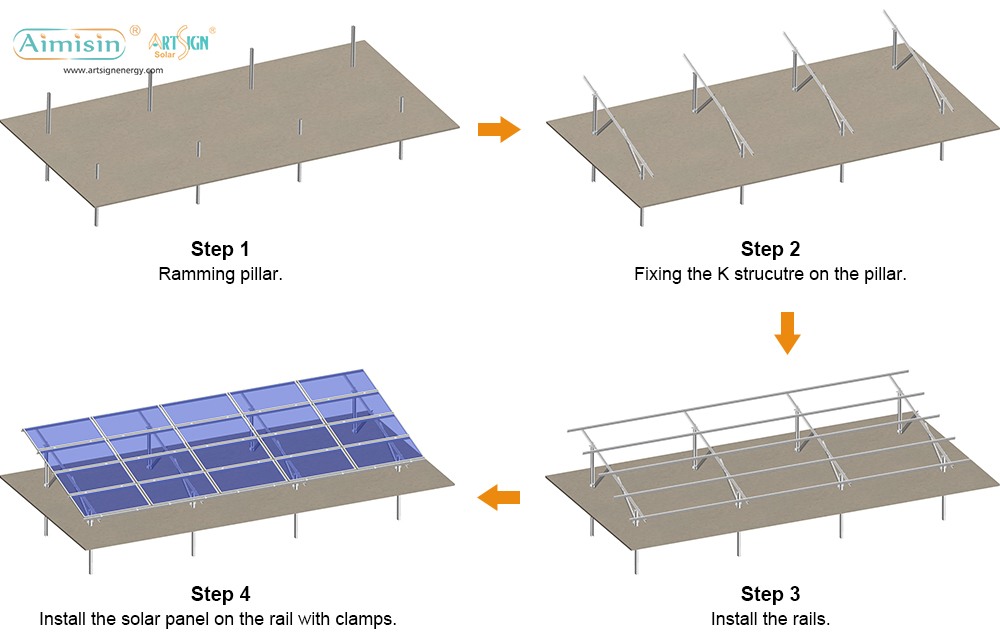

Step 1

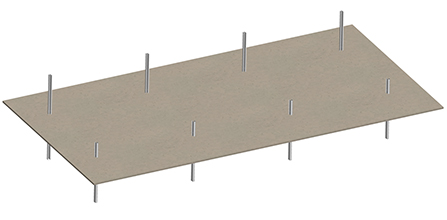

Ramming pillar.


Step 2

Fixing the K strucutre on the pillar.







Step 4

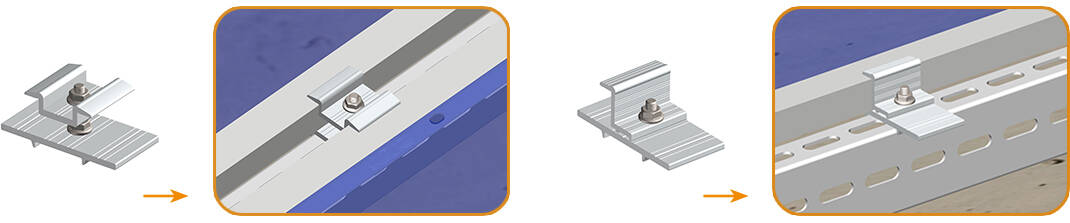

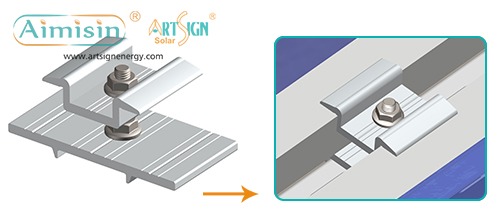

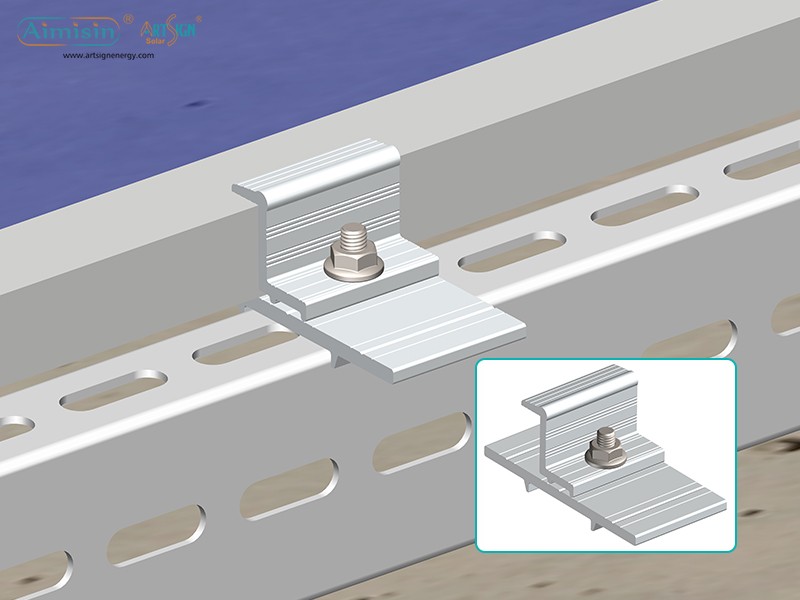

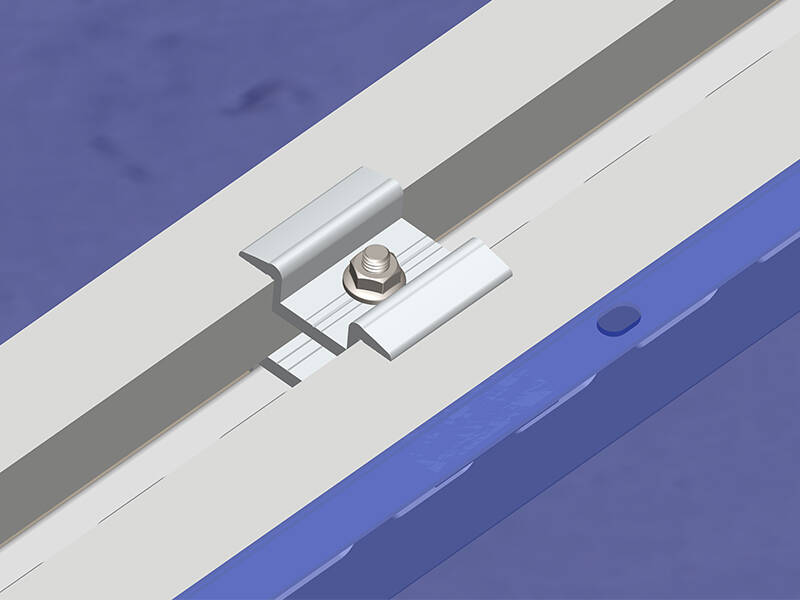

Install the solar panel on the rail with clamps.


Step 3

Install the rails.
