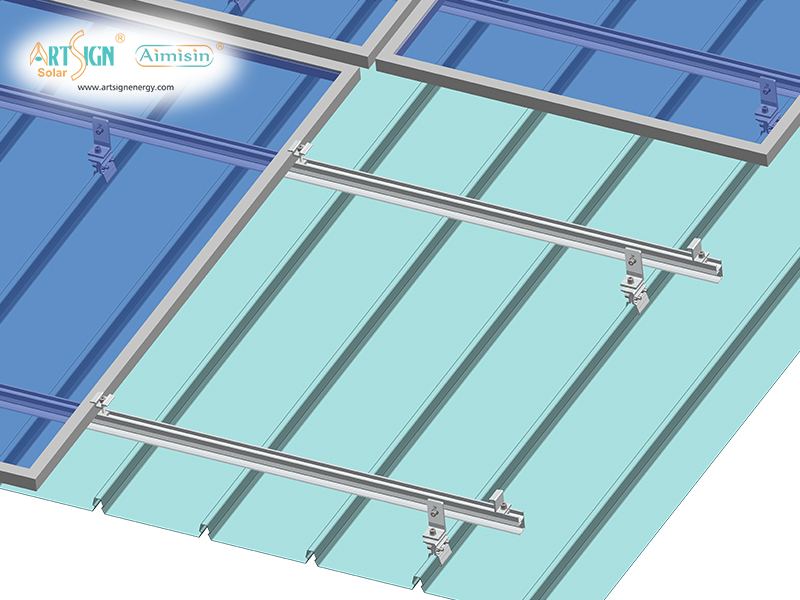

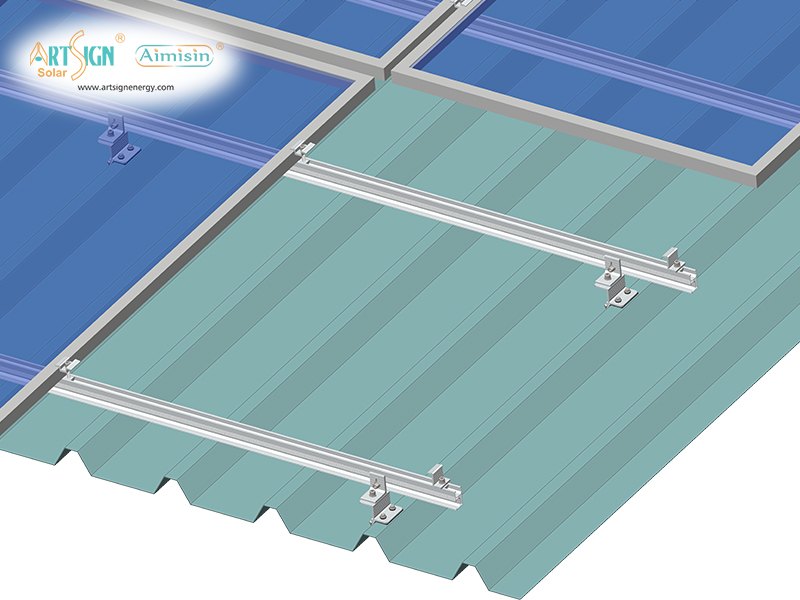

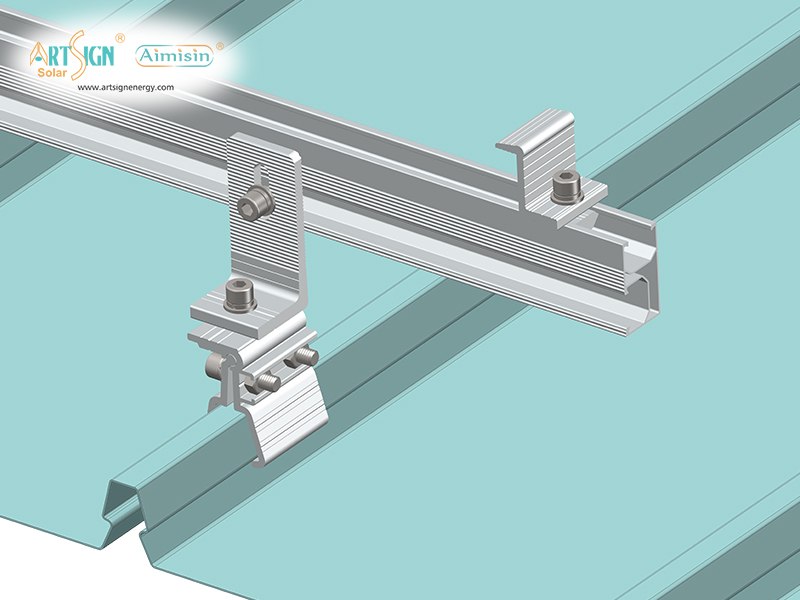

Standing seam roof brackets solar mounting structure for metal roof

Standing seam roof brackets solar mounting structure for metal roof

Standing seam roof brackets solar mounting structure for metal roof: non-penetrating, it won't damage the roof sheet, easy installation,pre-assembled accessories will save installation time.

Item NO.:
AS-SR-ARB
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Standing seam roof brackets solar mounting structure for metal roof

· Design Features

With or without rail; No drilling roof surface.

· Surface treatment:
10µm thk. Anodized aluminum, stainless steel 304 bolts and nuts.

· Design Strength:
Suited fornormal wind load.

Category : Pitched Roof Mount

Suitable for	Metal roof
Module	Framed, thin film
Material & Surface treatment	10µm thk. Anodized aluminum, stainless steel 304 bolts and nuts.
Color	silver, black or customer requirement
Module orientation	Landscape and portrait
Wind load	Max 60m/s
Snow load	Max 1.5kn/m2
Standards	Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty	20 years

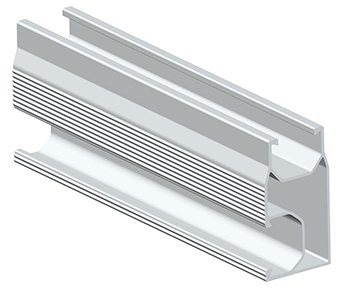

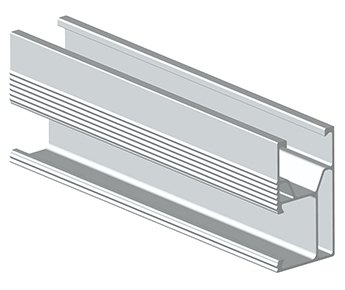

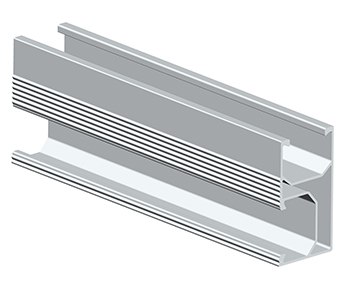

AS-XR-01	AS-XR-02	AS-XR-03

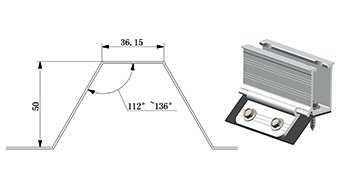

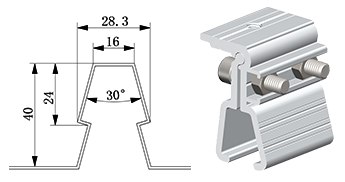

AS-XRS-01	AS-ARH-03	AS-ARH-18D

AS-ARH-11	AS-ARH-20

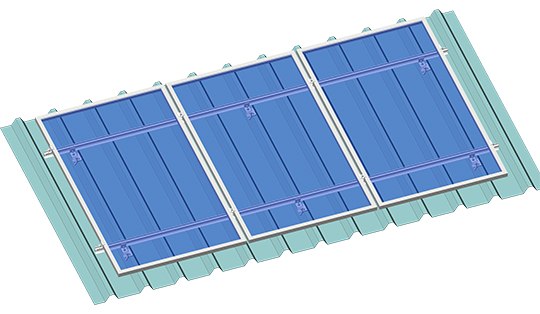

Step 1

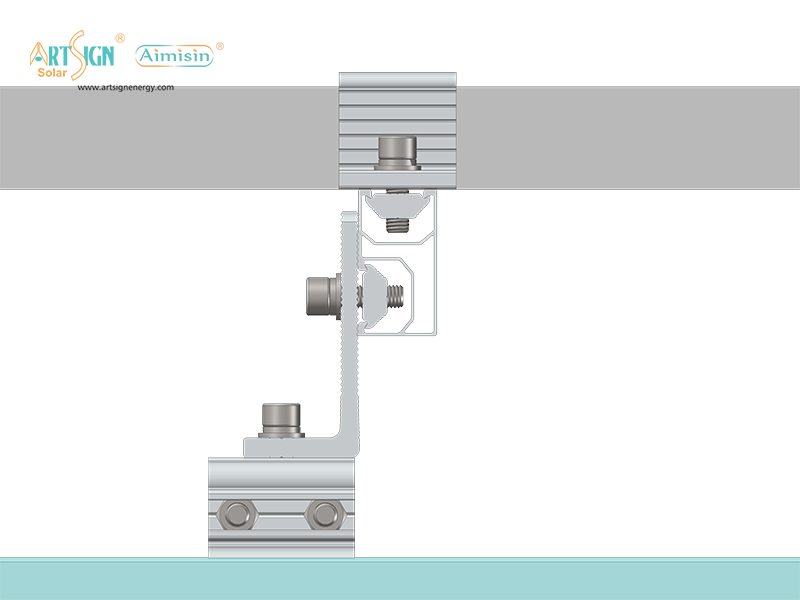

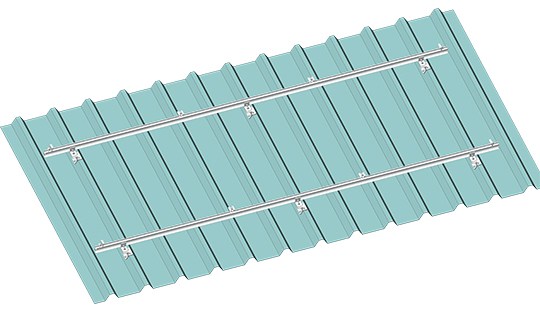

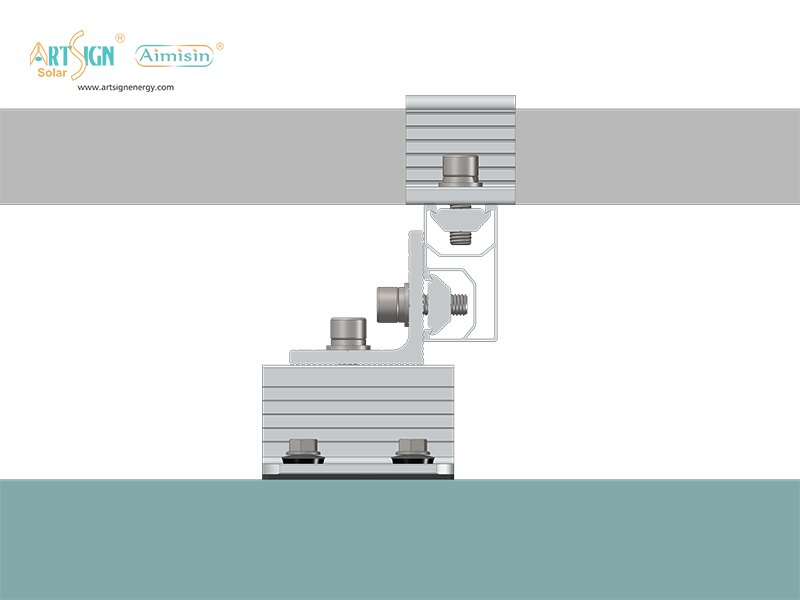

Fix standing seams roof brackets on the roof

Step 2

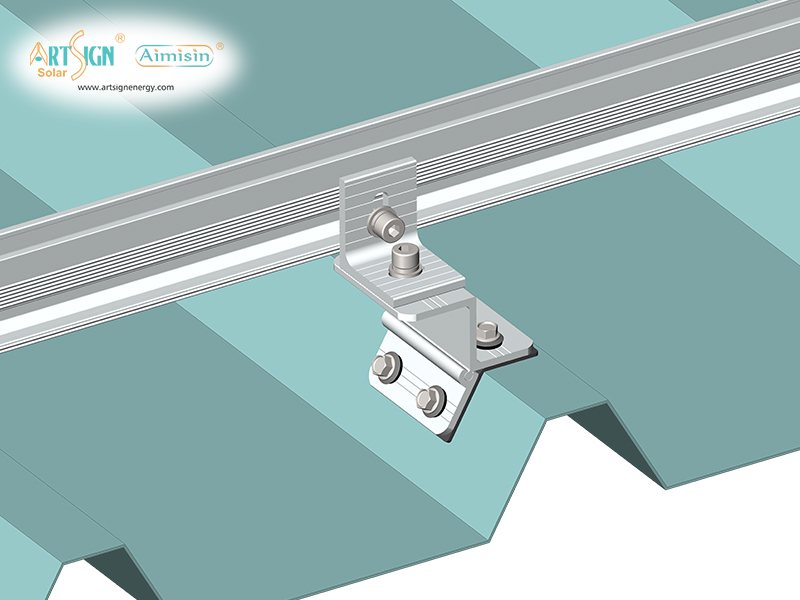

Fix the rail on the sanding seam roof brackts

Step 3

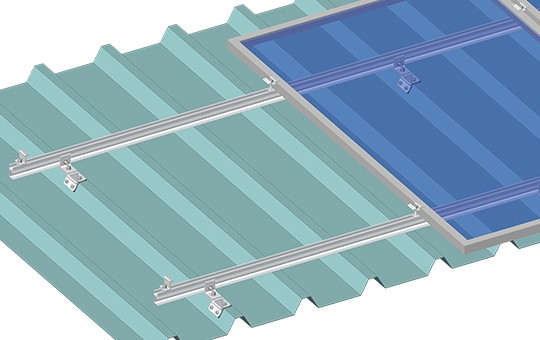

Install solar panel by using solar mid clamp and end clamp

Standing seam roof brackets solar mounting structure for metal roof
