Standing seam roof clamp solar panel racking mount

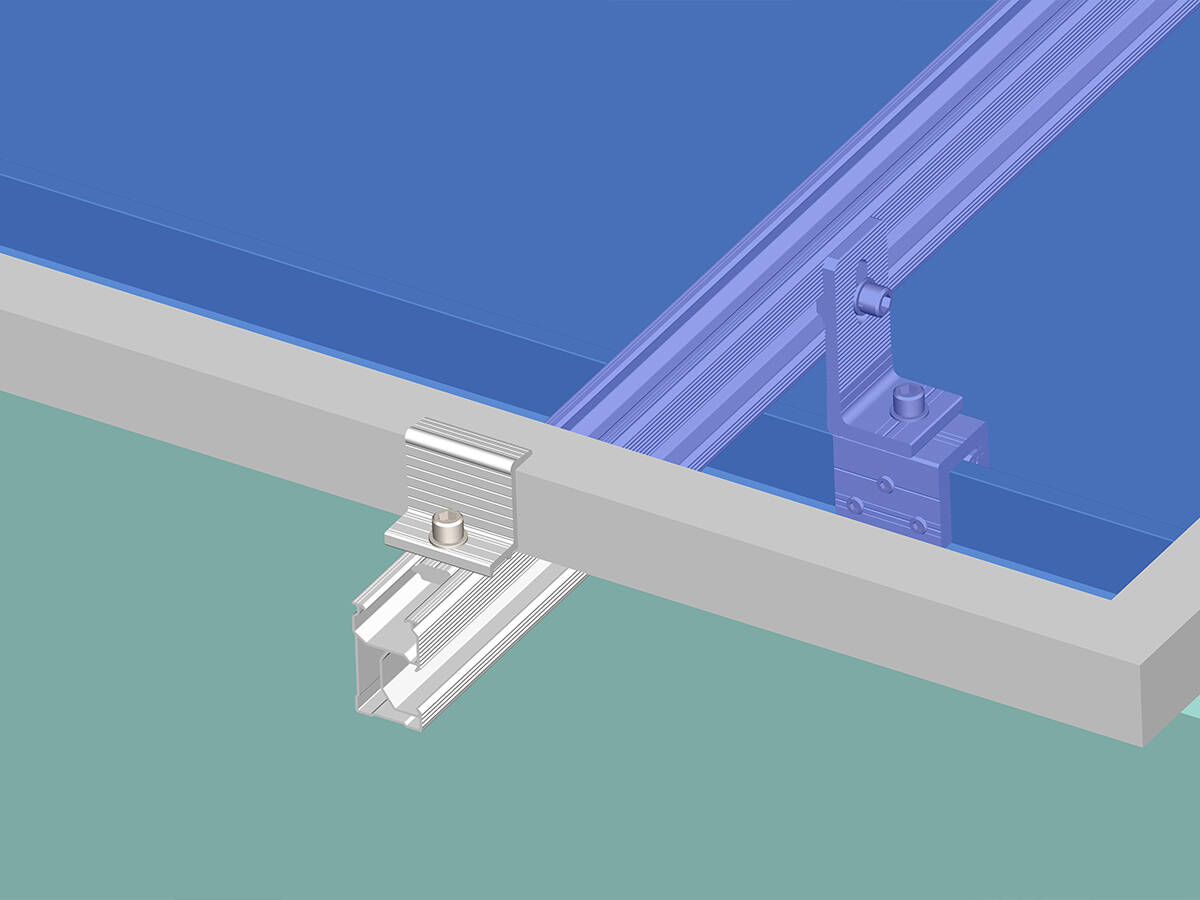

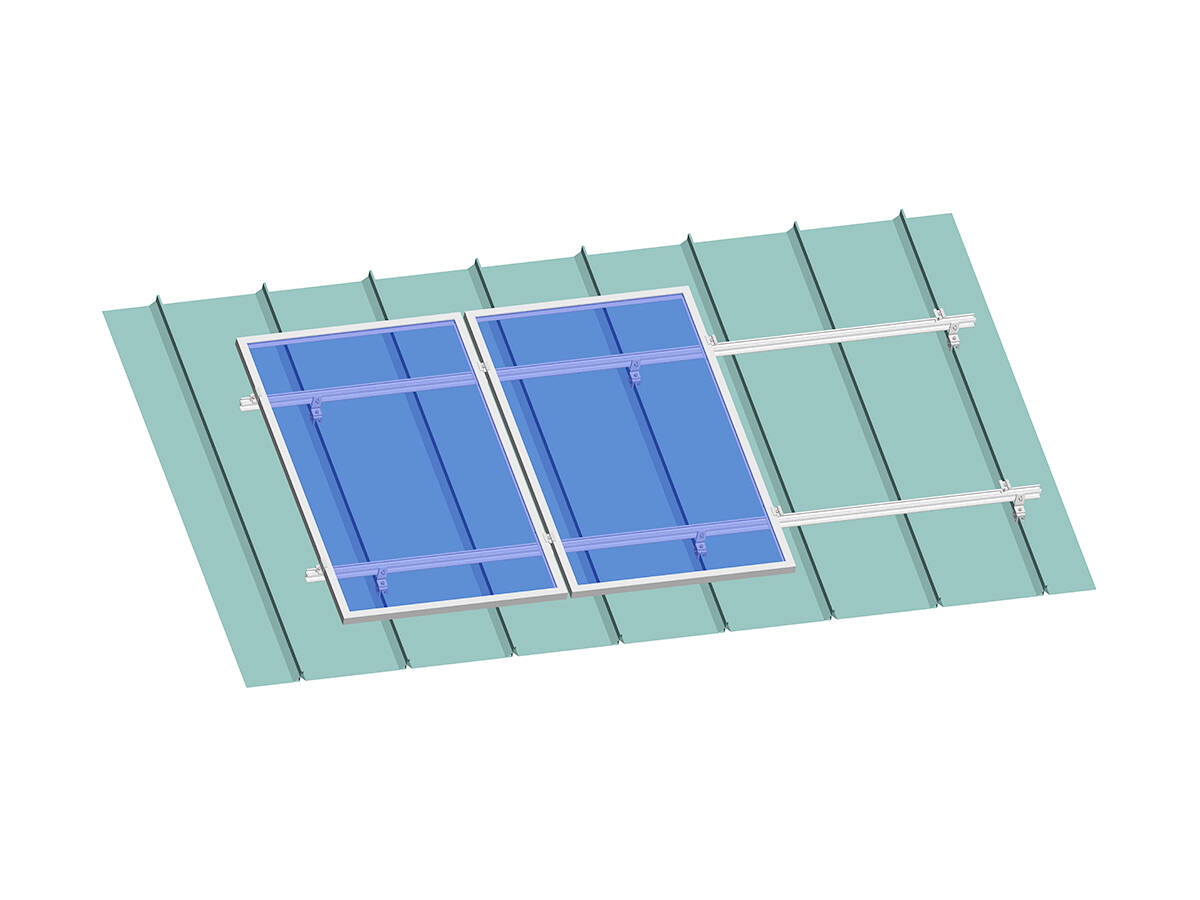

Panel fixed on the rail,
rail is parallel to the roof rib.
Panel fixed on the rail,
rail is perpendicular to the roof rib.

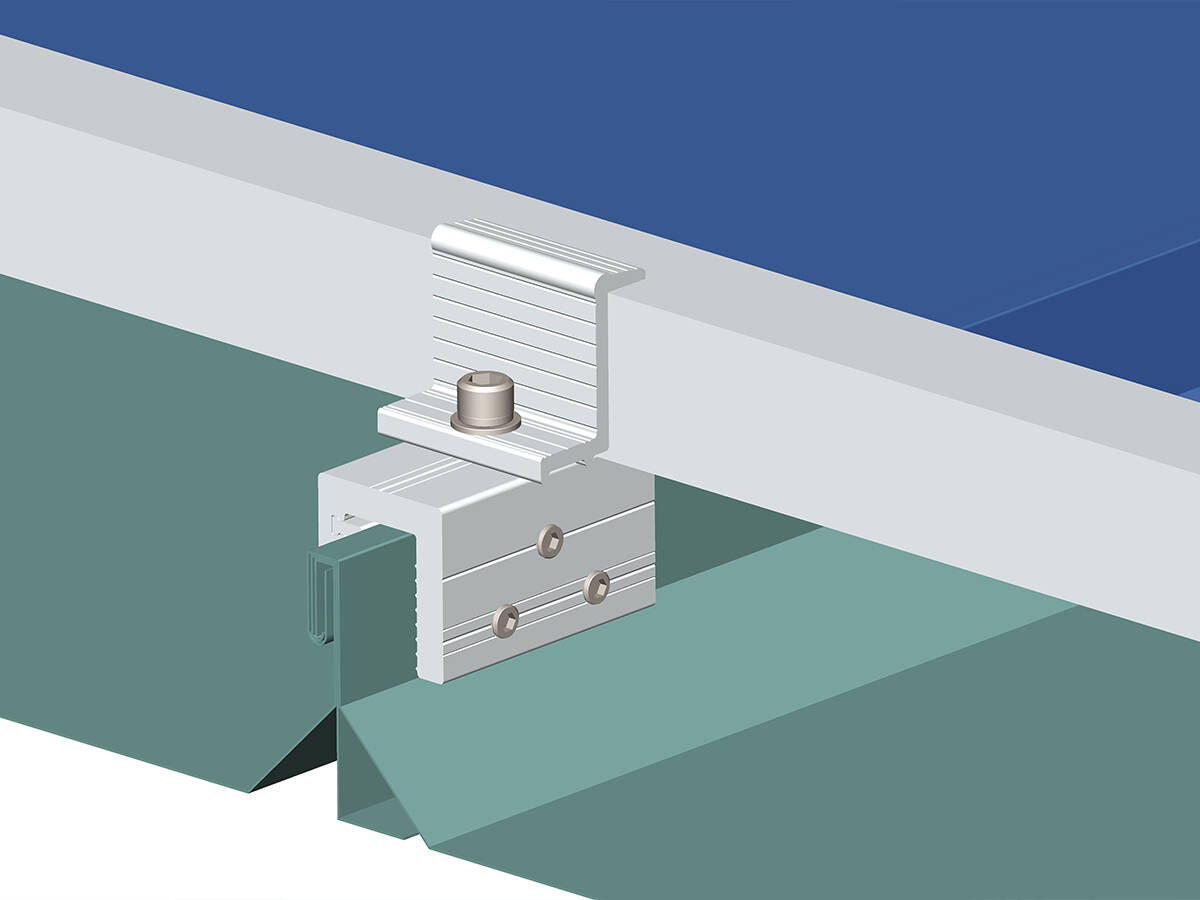

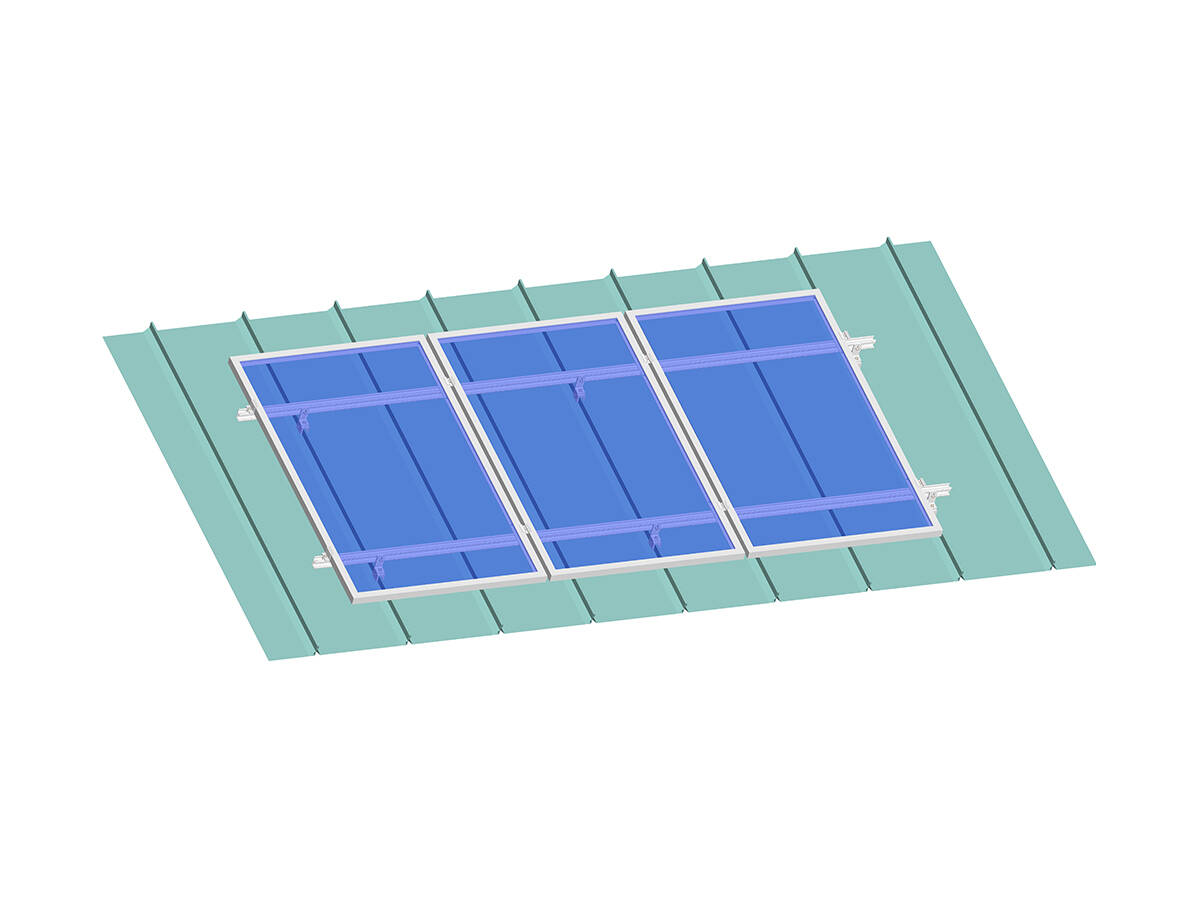

Panel fixed on the roof clip
without rail
· Design Features
Non-penetrating the roof
Various N clip which is fit for different roof shape. The panel can be installed landscape or portrait alternatively.
Panel can be installed on the rail or without rail (on the roof clip directly).
· Surface treatment:
10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.
· Design Strength:
Suited for different range of wind load and snow load.
|
Suitable for |
Metal roof |
|
Module |
Framed, thin film |
|
Material&Surface treatment |
10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts |
|
Color |
silver, black or customer requirement |
|
Module orientation |
Landscape and portrait |
|
Wind load |
Max 60m/s |
|
Snow load |
Max 1.5kn/m2 |
|
Standards |
Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS |
|
Warranty |
20 years |
Category : Pitched Roof Mount
 |
 |
 |
| AS-RH-02 |
AS-RH-105 |
AS-RH-125 |
 |
 |
 |
|
AS-RH-150 |
AS-DR-01A |
AS-DR-01B |
 |
 |
 |
|
AS-DR-03 |
AS-DR-04 |
AS-DRS-01 |
 |
 |
 |
|
AS-DRS-02 |
AS-DEC |
AS-DMC |
 |
 |
 |
|
AS-N50-01A |
AS-N50-02E |
AS-N50-02F |
 |
 |
 |
|
AS-N50-03 |
AS-N50-N5 |
AS-N50-N5B |
 |
||
|

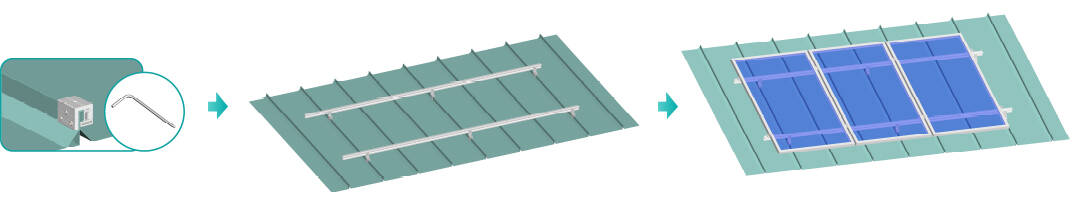

Step 1
Install standing seam clamp
|
Step 2

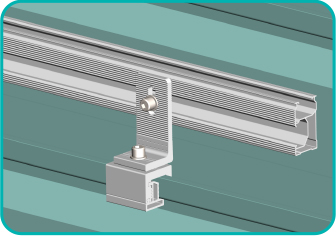

Solar rail and L foot installation
|
Step 3
Solar panel installation
|
