Universal clamp with different fixing nut for various of aluminum profile slot.

Item NO.:
AS-A-MC01
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Hotselling universal solar panel mid clamps for fixing solar modules | ART SIGN

Design Features

— Different cut length for choice, like 40mm,50mm,ect
— It is suitable for all kinds of solar module with frame.
— Color can be silver, black

Mode Number	AS-A-MC01	Brand Name	ART SIGN
Specs	L=40mm or customized	Material	Aluminum 6005-T5
Application	for fixing solar module with frame	Packing	wooden case
Keyword	Hot selling universal solar panel mid clamps for fixing solar modules	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting system products details

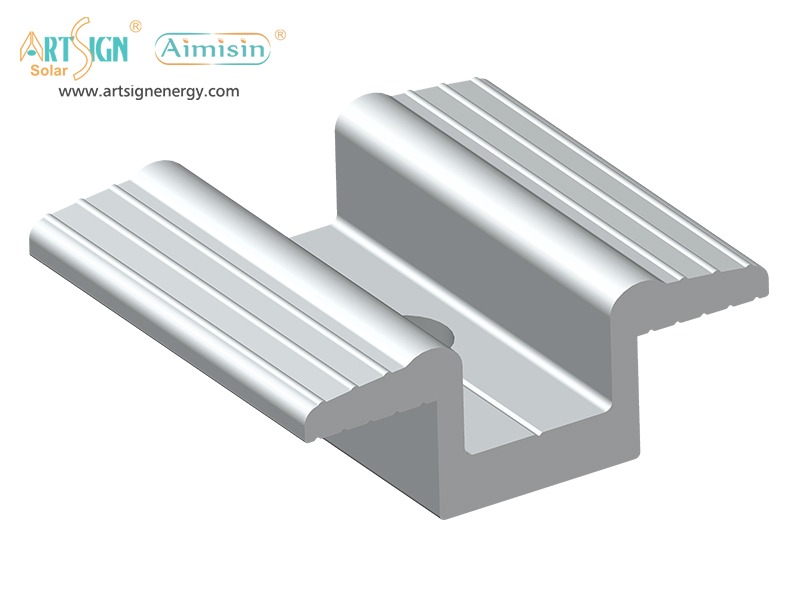

ART SIGN solar panel mid clamps AS-A-MC01

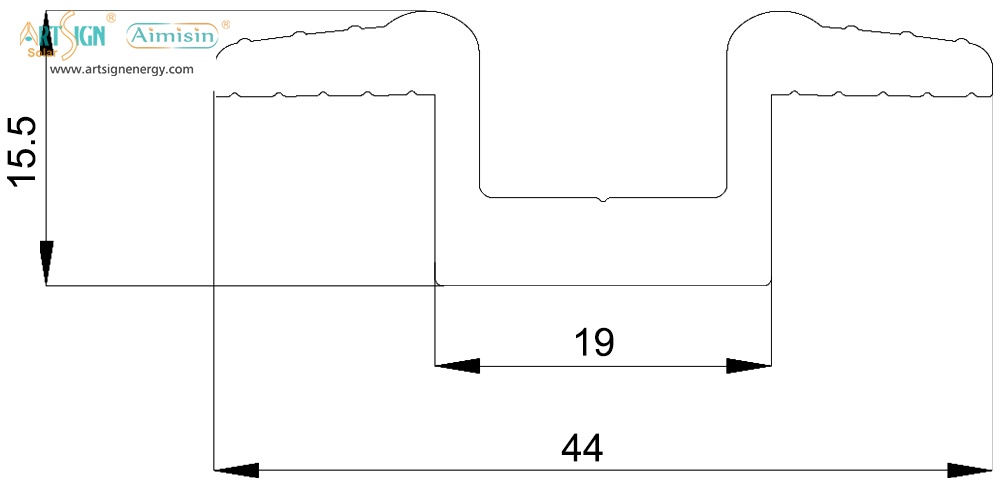

19mm width groove is suitable to all kinds of panels with frame

ART SIGN solar panel mid clamps AS-A-MC01

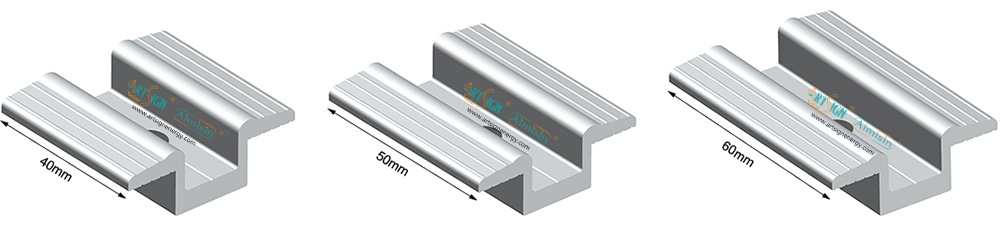

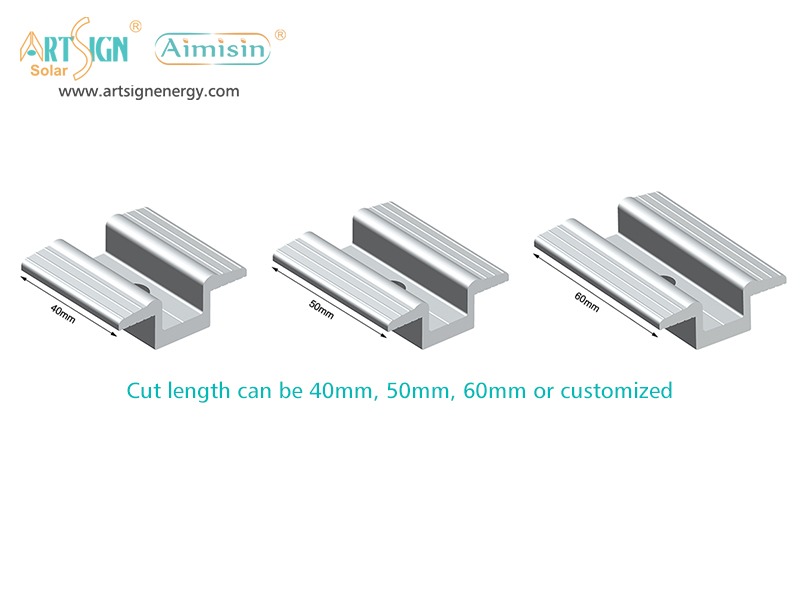

Cut length can be 40mm, 50mm,60mm or customized

The cut length can be 40mm,50mm or customized.

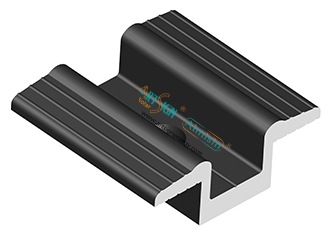

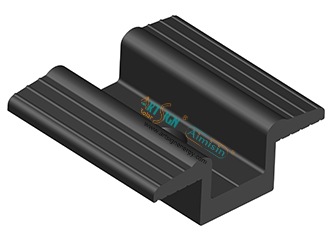

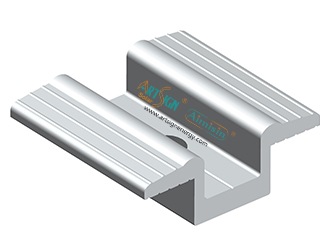

Silver color: for silver color solar panel frame	Black color: for black color solar panel frame	Full black

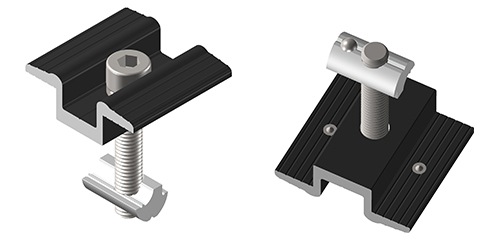

Clamp with different fixing nut for various of aluminum profile slot.

ART SIGN solar panel mid clamps

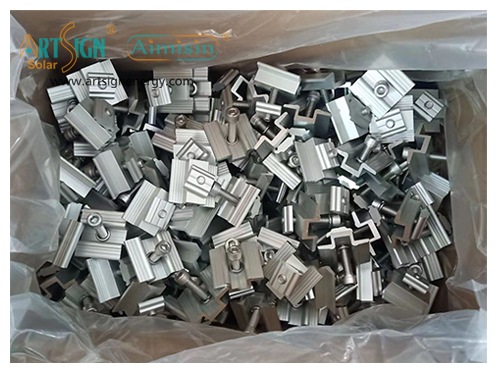

Using carton for inner packing	Using pallet for outer packing

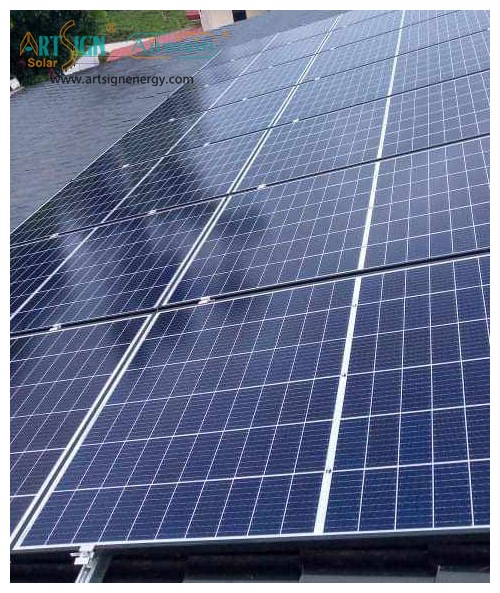

ART SIGN solar mounting system case study

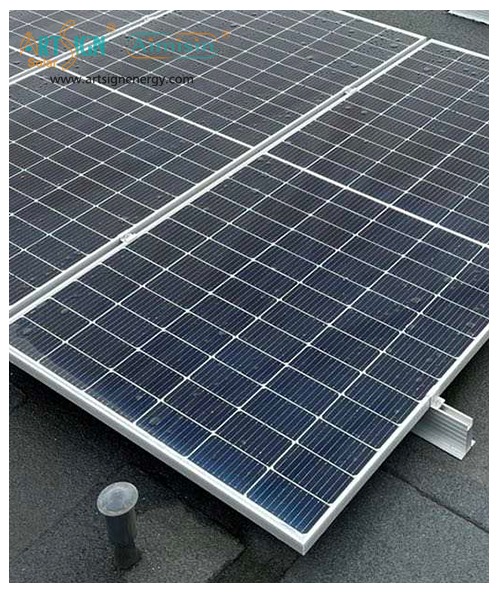

Project in Philippines	Project in Danmark

ART SIGN solar mounting related accessories

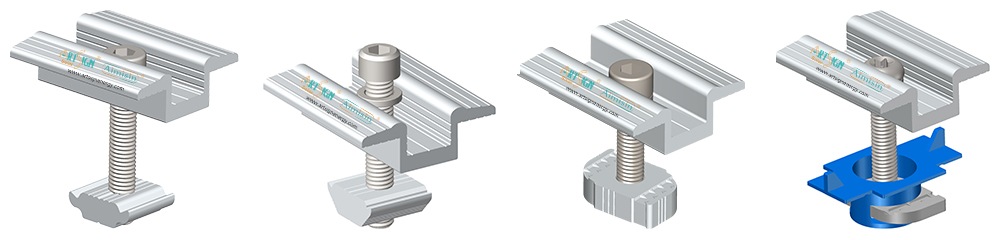

We have different kinds of nuts to match the different rails.

Click to see more Module clamp.


AS-DMC	AS-XMC	AS-CTMC-P	AS-GMC

AS-GMC-G
