Railless solar mounting to support panels

Chinese manufacture aluminum railless solar mounting system for metal rooftop

Chinese manufacture aluminum railless solar mounting system for metal rooftop

Railless solar mounting structure for metal roof: Very few components which is easy to install and time-saving. The mini rail and clamps are pre-assembled and ready for installation.

Item NO.:
AS-SR-RRMS
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Chinese manufacture aluminum railless solar mounting system for metal rooftop

Design Features:

— The system contains only four components.
— It's easy for transportation and installation.
— Rails are pre-cut in customized length, clamps are pre-assembled.

Mode Number	AS-SR-MRMS	Brand Name	ART SIGN
Specs	Customized	Material	Aluminum 6005-T5
Application	metal roof	Packing	wooden case
Keyword	Chinese manufacture roof solar mounting system	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

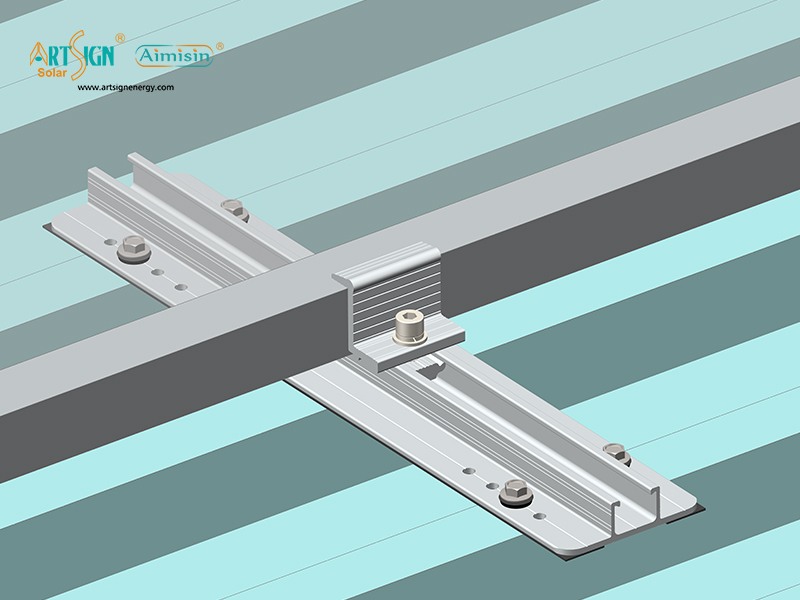

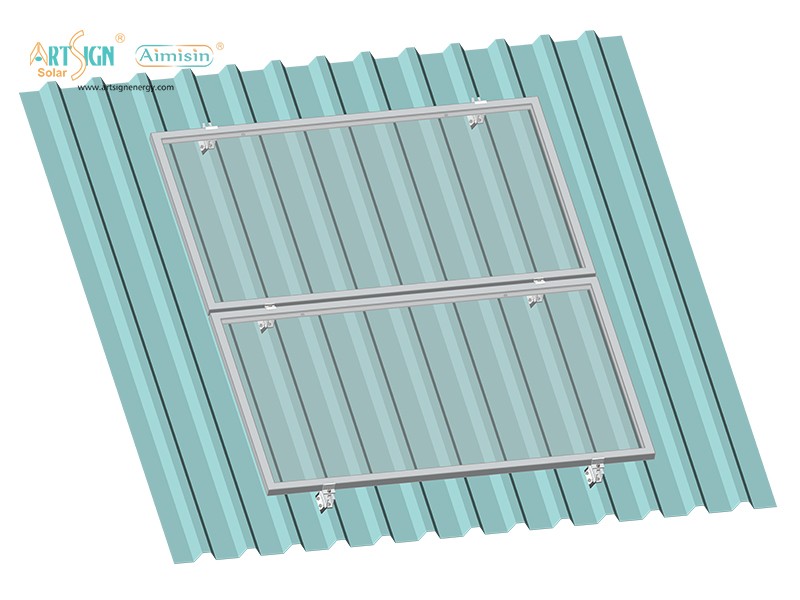

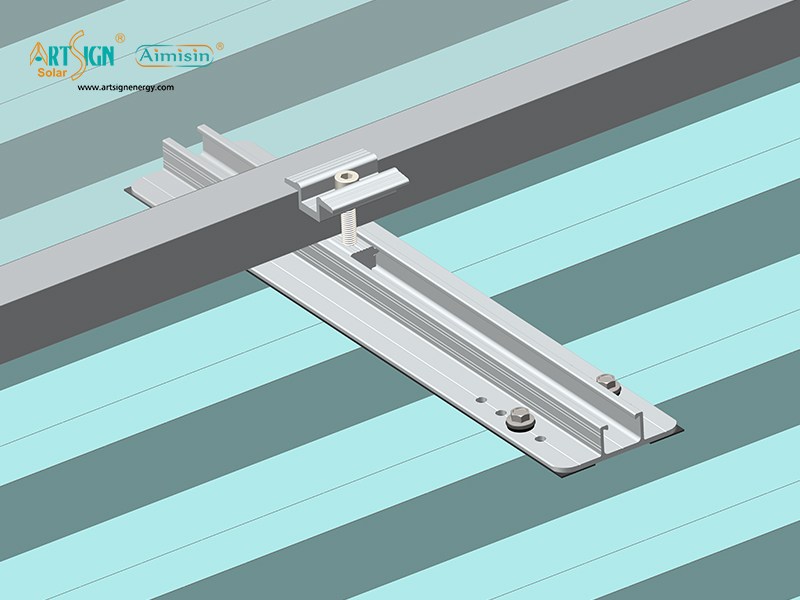

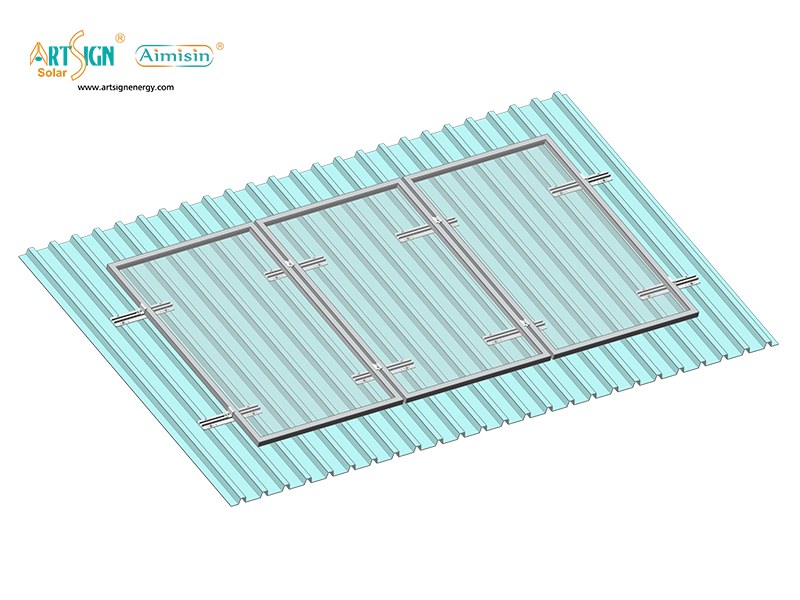

	Railless solar mounting system for metal rooftop	Mini rail with screws

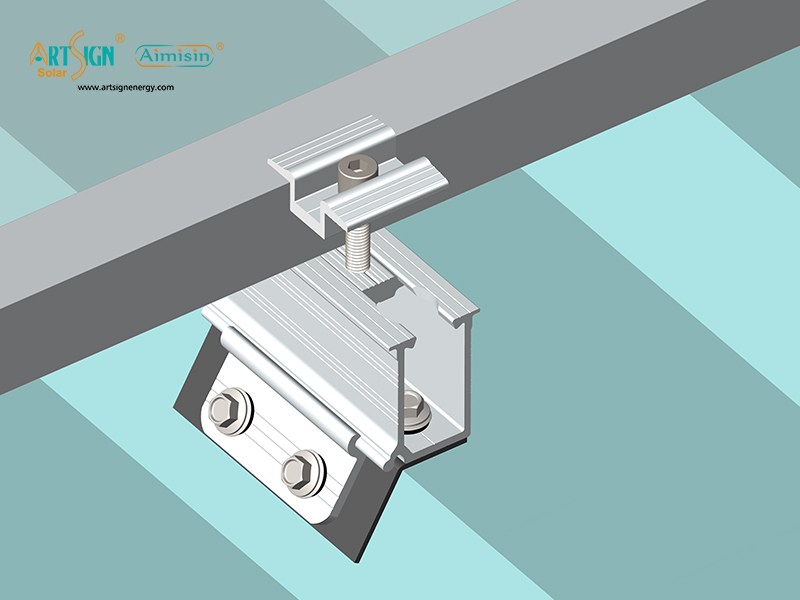

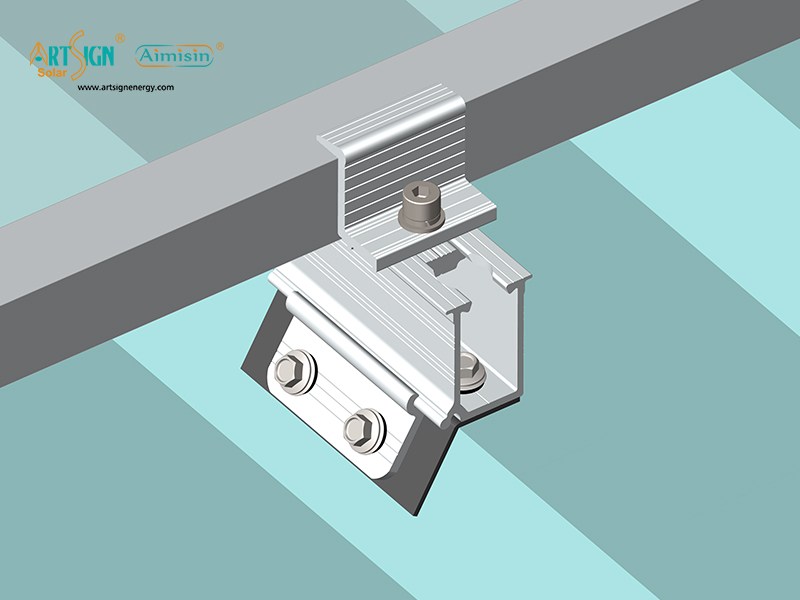

	Mid clamp for fixing 2 panels	End clamp for fixing the side panels

	Four components in this system	Details sizes for mini rail

Installation step

ART SIGN Railless solar mounting system for metal rooftop installation step

ART SIGN solar mounting package


Small quantity will be packed by carton	Put the mini rails on the pallet

1000pcs are packed into small wooden pallet	2016pcs mini rails are packed into big wooden pallet

ART SIGN Railless solar mounting system for metal rooftop case study

Oman Mini Rail

ART SIGN Railless solar mounting system for metal rooftop case study

Vietnam project

ART SIGN Railless solar mounting system for metal rooftop case study

South Africa Project
