 /Solar panel mounting rail 9H#

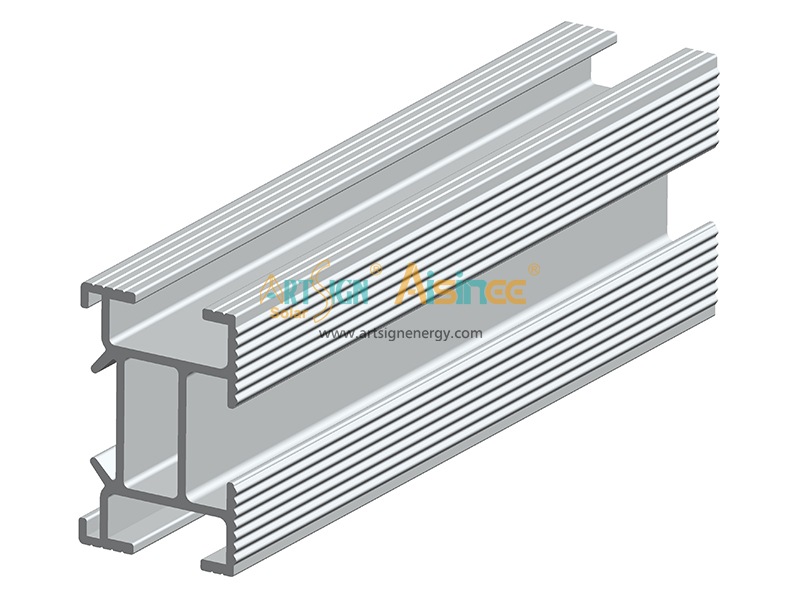

Solar panel mounting rail
Solar panel mounting rail 9H#

Solar panel mounting rail 9H#

solar panel mounting rail AS-R-09H which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

  • Item NO.:

    AS-R-09H

  • Lead Time:

    7-15 days for LCL, 20 days for FCL

  • Product origin:

    China

  • Shipping Port:

    Xiamen port, China

  • Payment:

    100% TT, L/C at sight

  • Surface Treatment:

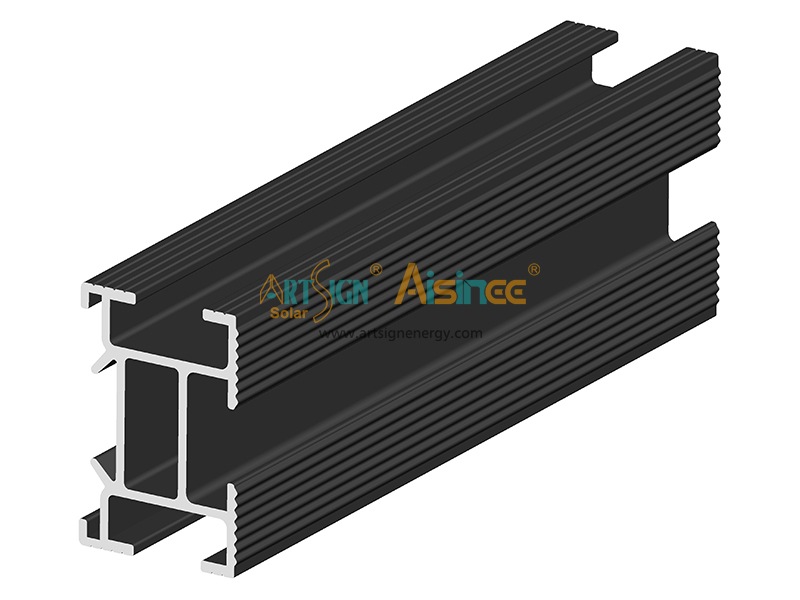

    natural or black

Inquiry now
  • Product Detail

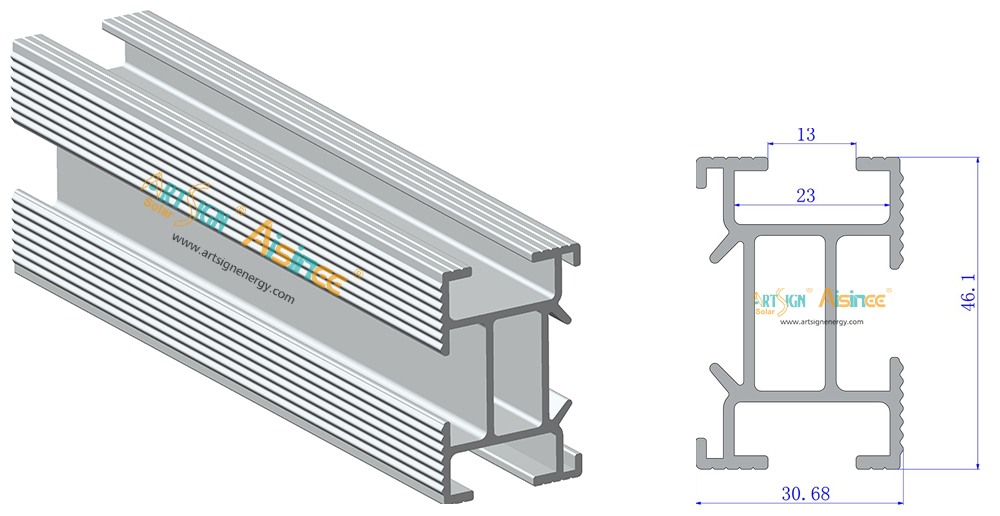

Solar panel mounting rail 9H#



  Place of Origin

  Xiamen China (mainland)

Brand Name

  ISEEenergy
  Mode Number
   AS-R-09H
   Specs

  W30.68*H46.10mm

  Material
   Aluminum 6005-T5
   Application
   solar panel roof mounting system
  Surface treament
   Anodized above 10um
   Packing
   wooden case
  Color
   Silver
   Certificate
   ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
  Keyword
  solar panel mounting rail , aluminum profile for solar panel

Service life:

  25 years
  Quality Warranty
   20 years




  Selling Units
   per meter/ per pcs

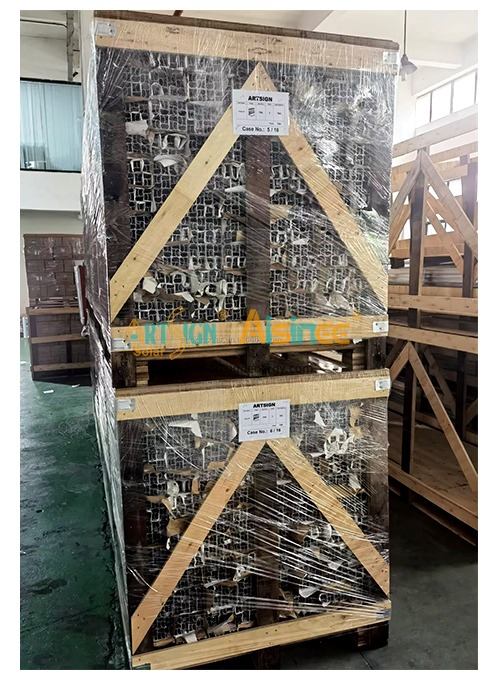

   Package Type
   Inner packing:wrapping paper/film; Outer packing:wooden case
  Lead Time：
  Quantity(Sets) 1 - 1000
 1001 - 5000
 5001 - 10000
   >10000
  Est. Time      ( working days)  1-7 7-10 10-15   To be negotiated



Solar panel mounting rail 9H#


solar panel mounting rail AS-R-09H which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

Category : Aluminum profile









AS-R-09H

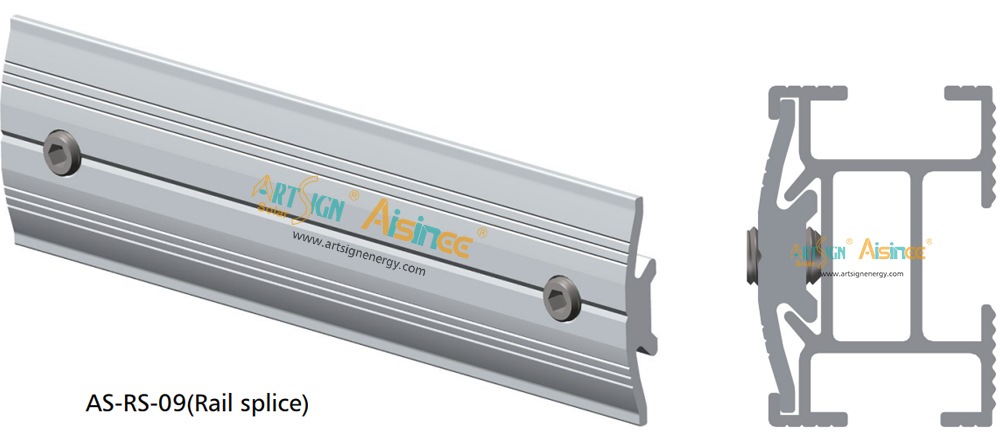

AS-R-09B AS-RS-09
AS-R-15







AS-R-15C
