China adjustable solar roofing hooks for tile roof |ART SIGN
Design Features:
— Adjustable stainless steel solar roofing hooks for tile roofs
— Good quality with competive prices solar roof hooks
|
Mode Number |
AS-RH-12H |
Brand Name |
ART SIGN |
|
Specs |
Base: L140*56mm |
Material |
SUS 304 |
|
Application |
Solar panel PV roof mounting structures |
Packing |
carton box / plywood pallet |
|
Keyword |
Solar PV systems mounting roof hooks China supplier |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
OEM&ODM stainless steel tile roofs hooks.

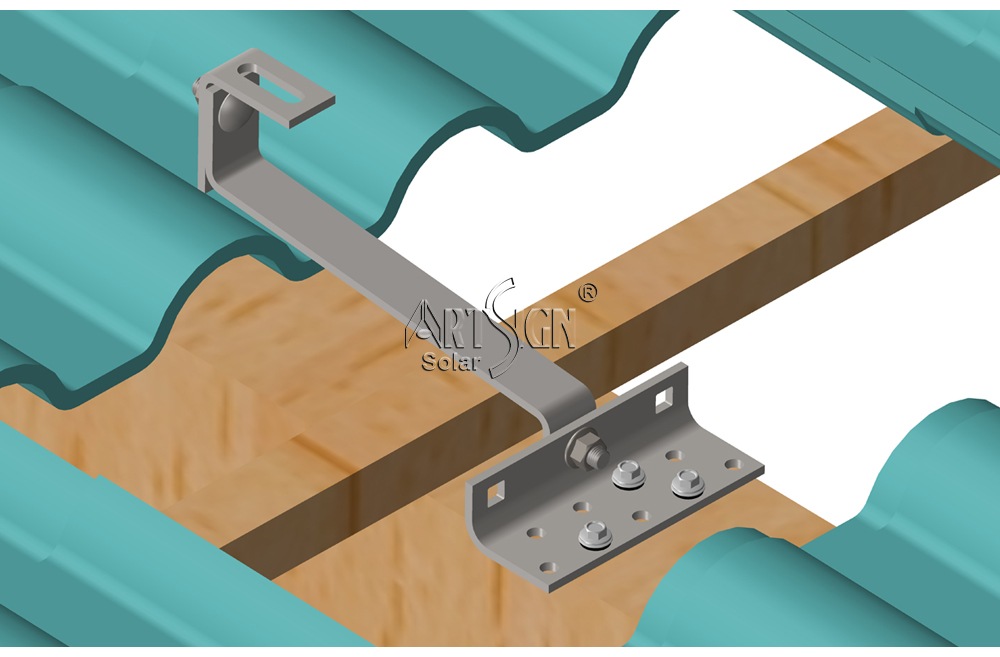

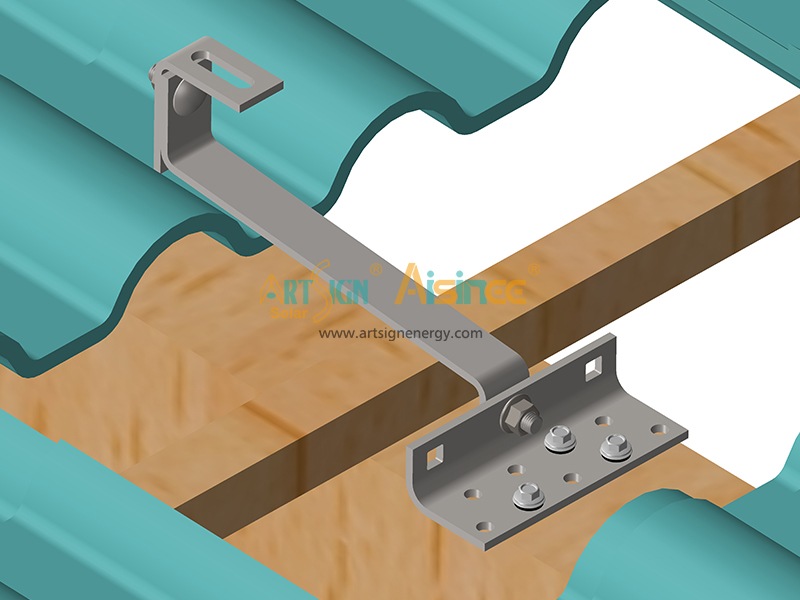

This roofing hook is suitable for your different tile roofs.
pre-assembled, easy and quickly installed to save your time and cost.
![]() |
![]() |
|

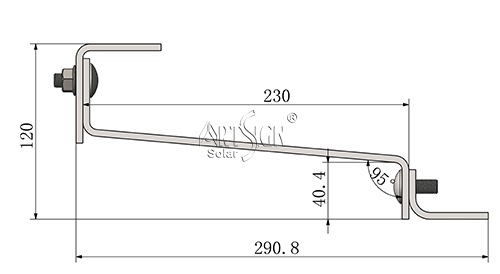

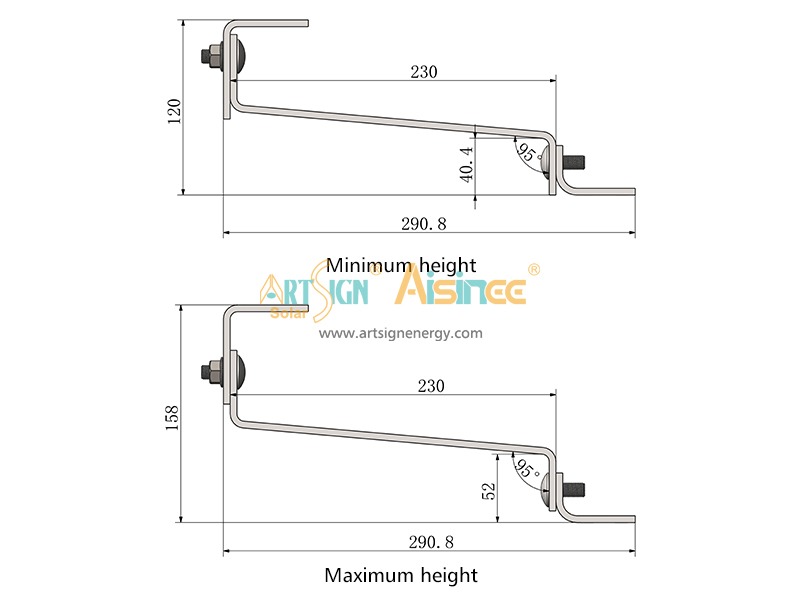

Minimum height |

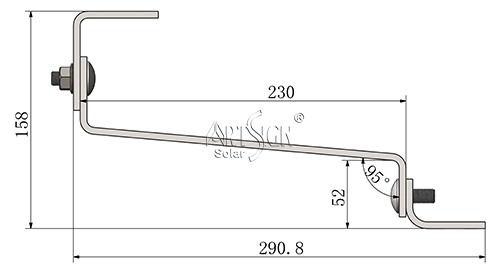

Maximum height |

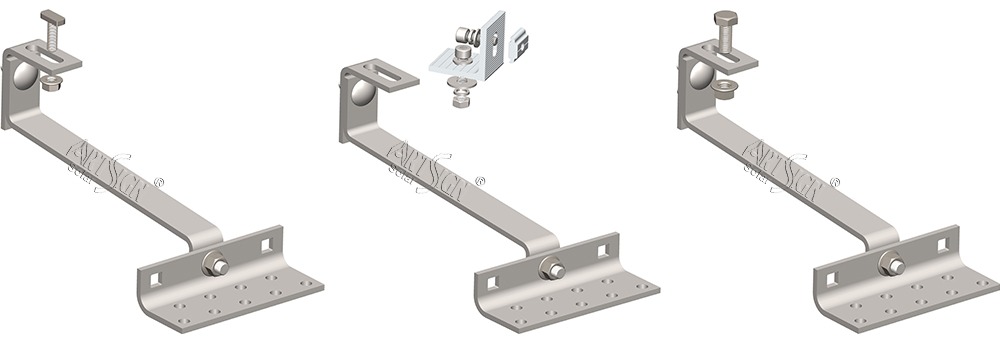

Tile roof hooks with various nuts which are suitable for various rails.
There are L connector, secrews, T bolt etc nuts for your reference.
This roof hooks can be adjustable according to your specific requirements.

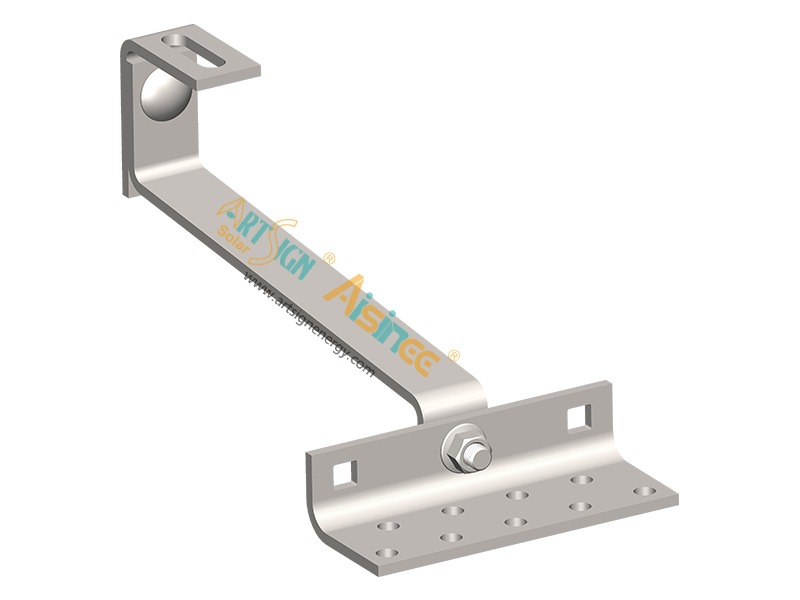

Adjustable solar roof hook 12# for solar roof mounting system, various design of roof hooks for your options. Stainless steel SUS304 hook, high corrosion resistant surface treatment.
Click to see more stainless steel roof hooks.
![]() |
![]() |
![]() |
![]() |
|
AS-RH-12 |
AS-RH-12F |
AS-RH-12G |
AS-RH-12H |
![]() |
![]() |
|
|
|
AS-RH-12M |
AS-RH-12N |
|
