ART SIGN Anodizing aluminum solar panel mounting mid clamps for SR rail

ART SIGN Anodizing aluminum solar panel mounting mid clamps for SR rail

Made from high-quality aluminum,the SR mid clamp provides resistance to corrosion and weathering, ensuring a long lifespan for the overall solar installation.

Item NO.:
AS-A-MC-SR30-40
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

ART SIGN Anodizing aluminum solar panel mounting mid clamps for SR rail

Design Features

— Mid clamp with SR rail to suite your installation way.
— Adjustable, quicker and easier installation.

Mode Number	AS-A-MC-SR30-40	Brand Name	ART SIGN
Specs	Specs: cutting length 50mm, stop bolt M8X43mm, compression spring(optional)	Material	AL6005-T5, SUS304
Application	30-40mm solar panel mounting system	Packing	wooden case
Keyword	manufacturer direct sales mid clamps with factory price	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

Accessories of mid clamp

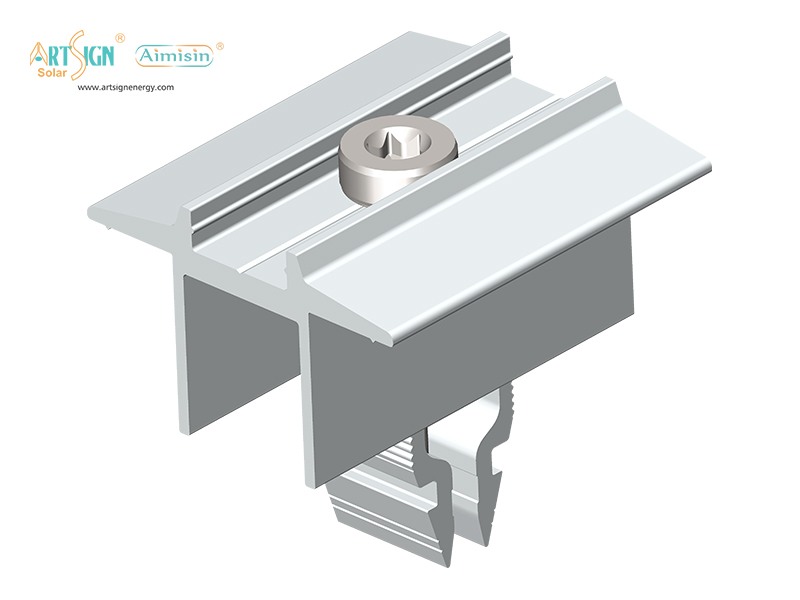

Mid clamp

Suitable for 30-40mm thickness solar panel

SR nut

Adaptable for all of the SR rails' top groove

Anti-theft bolt M8X43mm

Spring length 20mm

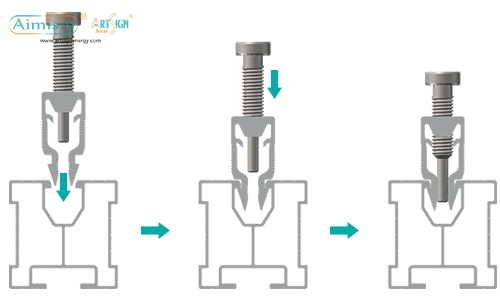

Installation step

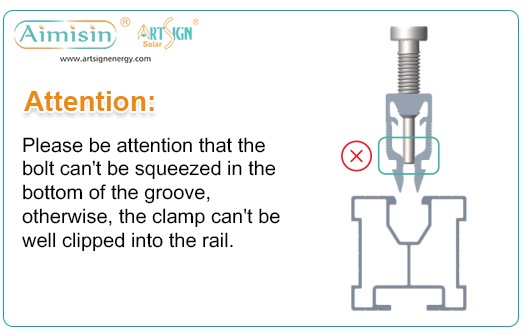

SR mid clamp can be inserted into any position.	Position → Click → Fasten

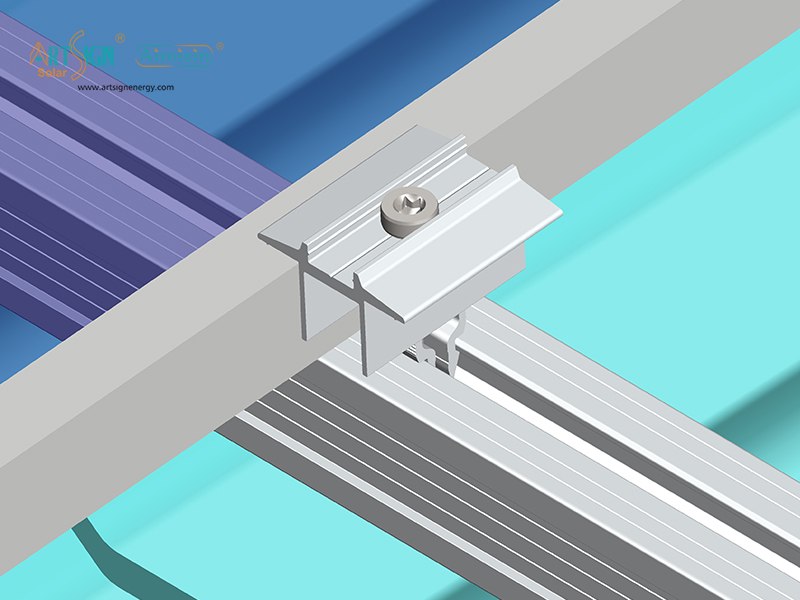

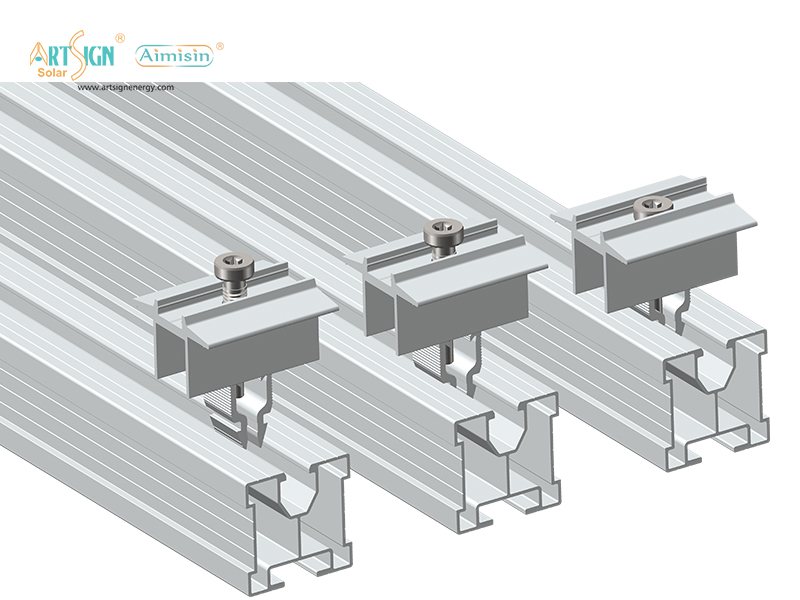

ART SIGN SR rail mid clamp

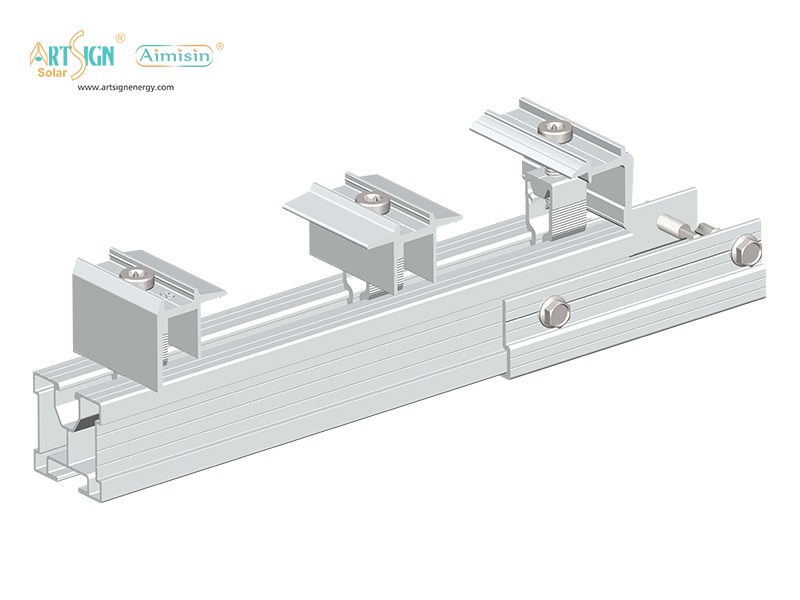

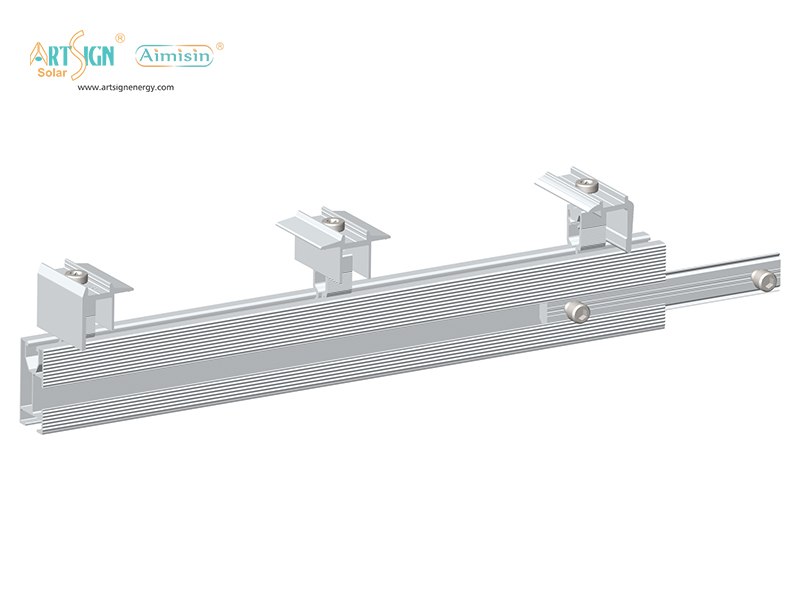

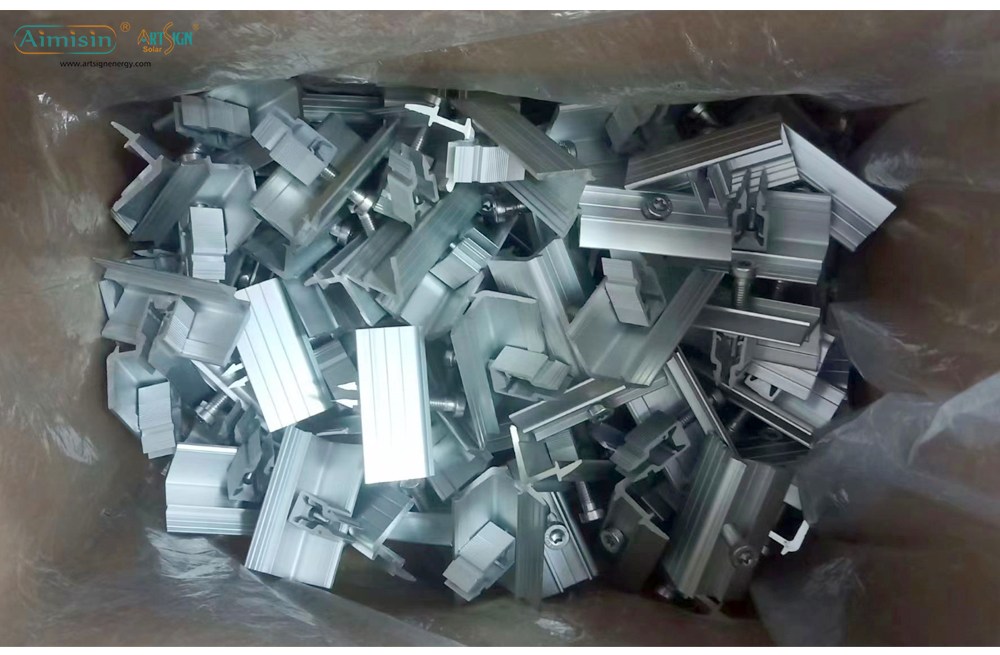

ART SIGN solar mounting package

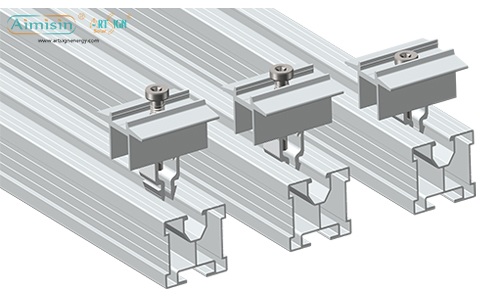

ART SIGN SR rail mid clamp

The clamp is made of anodized, high-strength, corrosion-resistant aluminum alloy material.It is used on the Art Sign SR profile.

Click to see more aluminum profiles;


AS-A-MC-SR30-40	AS-AEC-03B	AS-A-EC-SR30	AS-A-EC-SR35
