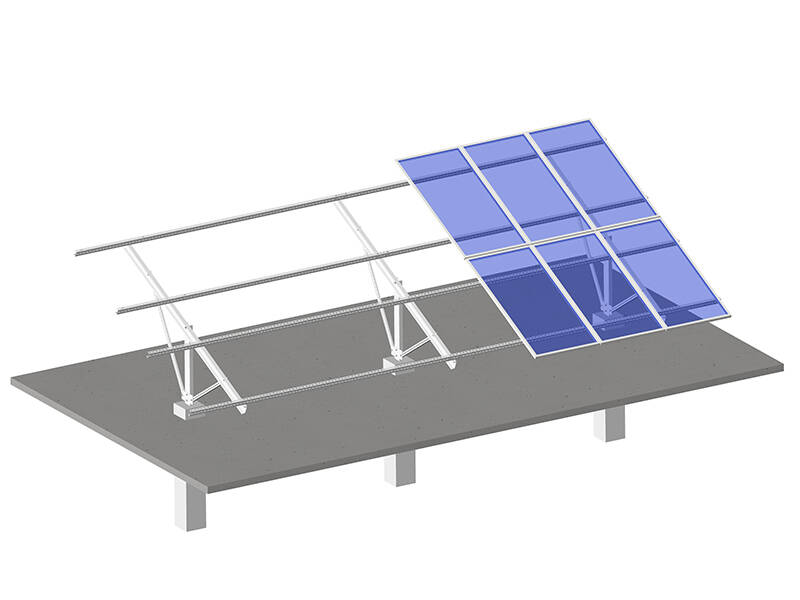

U shape steel bar solar panel mounting racking system

U shape steel bar solar panel mounting racking system

U shape steel bar solar panel mounting racking system is frequently used for large scale solar power system, it is with less components, quick to install. Can withstand large wind load and snow load.

Item NO.:
AS-SG-DP
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

U shape steel bar solar panel mounting racking system

· Design Features

① Driving pile is the cheapest foundation type.
② Most for larger scale solar power system.
③ Less compoentns, quick installation.

· Surface treatment:

80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum, stainless steel 304 or steel Q235B bolts and nuts.

· Design Strength:
The structure is designed according to the wind load or snow load request.

· Certification:
Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report - Chemical & Physical test.

Category : Ground Mount

Suitable for	Open field
Module	Framed, thin film
Material&Surface treatment	80um thk. hot dipped galvanized steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color	silver, black or customer requirement
Module orientation	Landscape and portrait
Wind load	Max 60m/s
Snow load	Max 1.5kn/m2
Standards	Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty	20 years


AS-C50×30	AS-C80×40	AS-SPB-280×130

AS-SRS-C80-02	AS-C126/53

U shape steel bar solar panel mounting racking system

Step 1

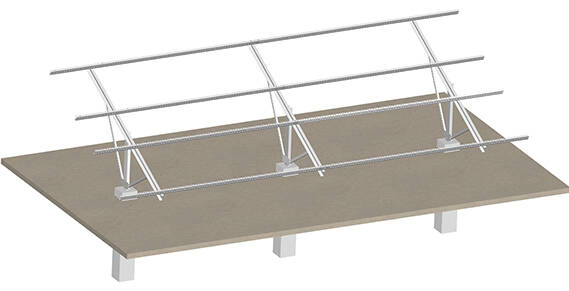

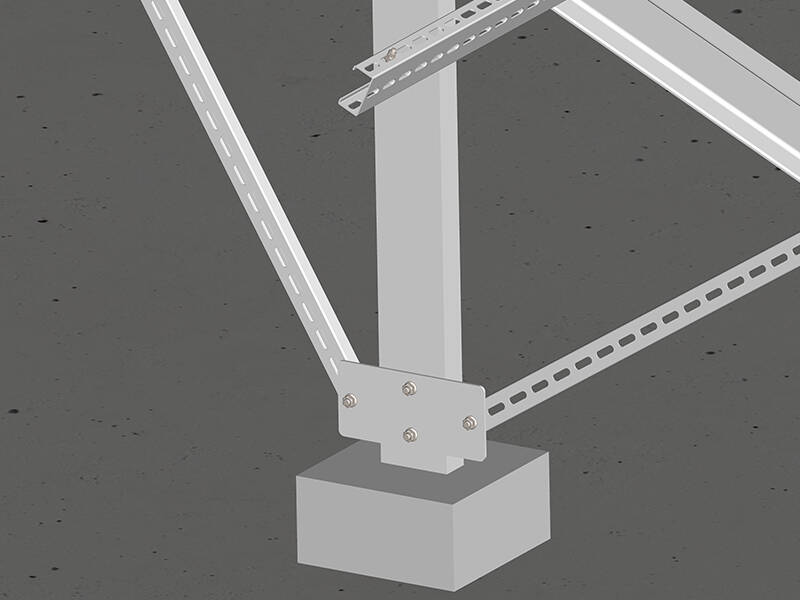

Post, side bars and beam installation

Step 2

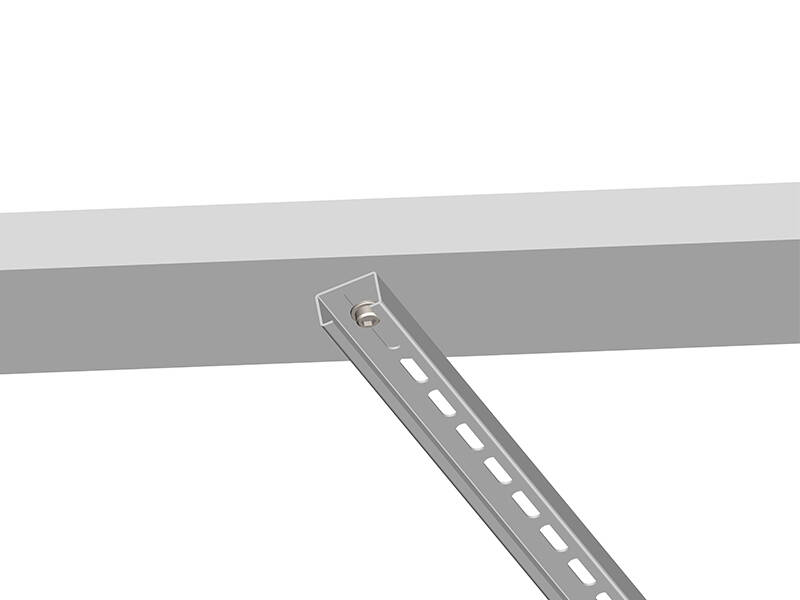

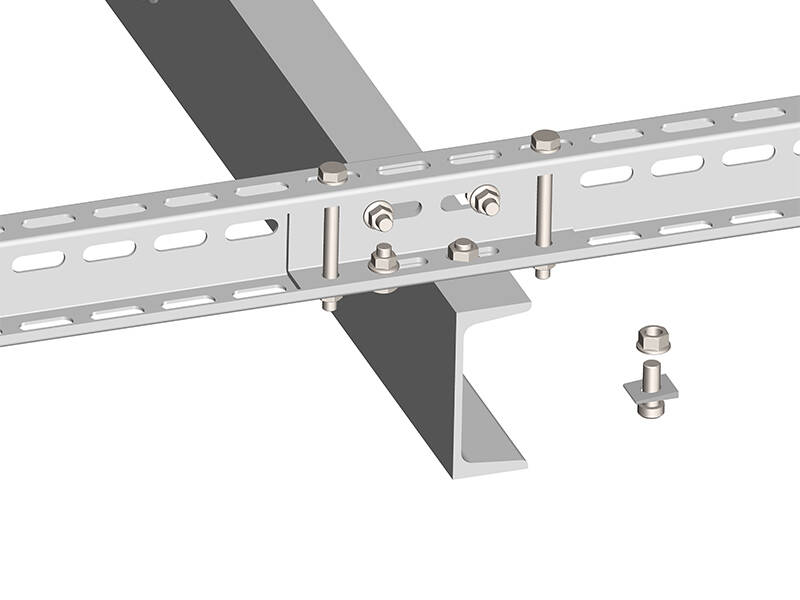

C channel steel rail installation

Step 3

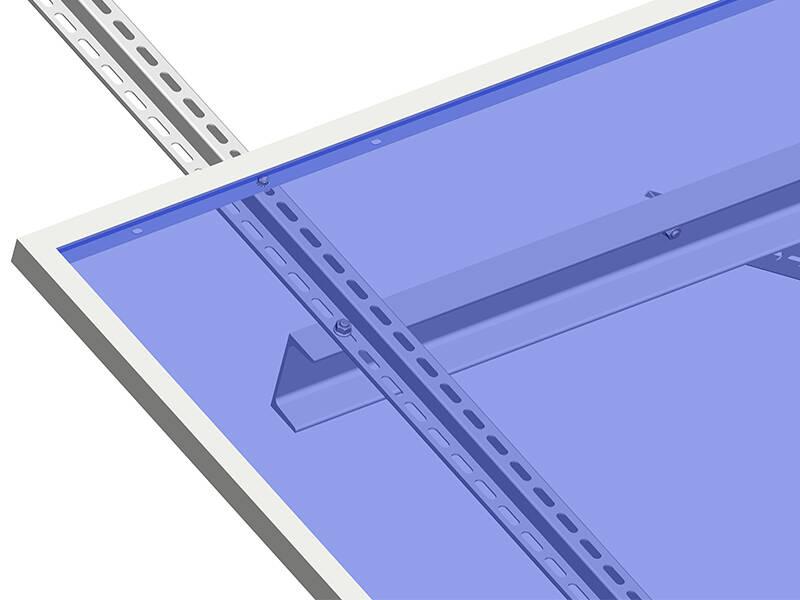

Solar panel installation

U Steel Bar solar panel racking system

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : U shape steel bar solar panel mounting racking system

Tags :

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

best sellers

Related products

Ground mount solar racking with galvanized steel screw

Ground mount solar racking with galvanized steel screw is workable for different wind load and snow load. No need welding and cutting on site. The structure is assembly with bolts. Solar module orientation can be both landscape or portrait. The galvanized steel coating is 80μm, aluminum clamp's anodized coating is 10μm. Certificates: Japanese JIS, 1

ART SIGN C channel steel ground solar panel mounting brackets

C channel steel ground solar panel mounting brackets with 20 years warranty, suitable for different terrains. Solar panel orientation can be both portrait and landscape. Less components, strong and easy to be install.

C type steel ground solar panel mounting structures for pv systems

C type steel ground solar panel mounting structures for pv systems with 20 years warranty, can withstand in heavy wind load and snow load areas, with competitive prices.

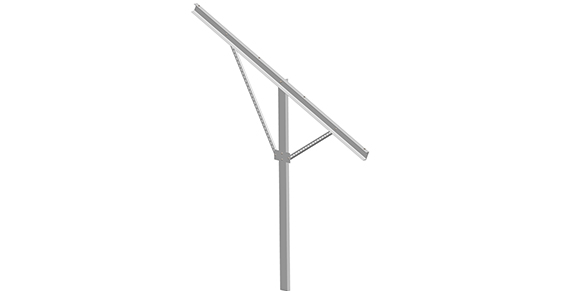

Ground solar panel pole mount racking
