Solar panel mounting system roof rail aluminum profile for roof top

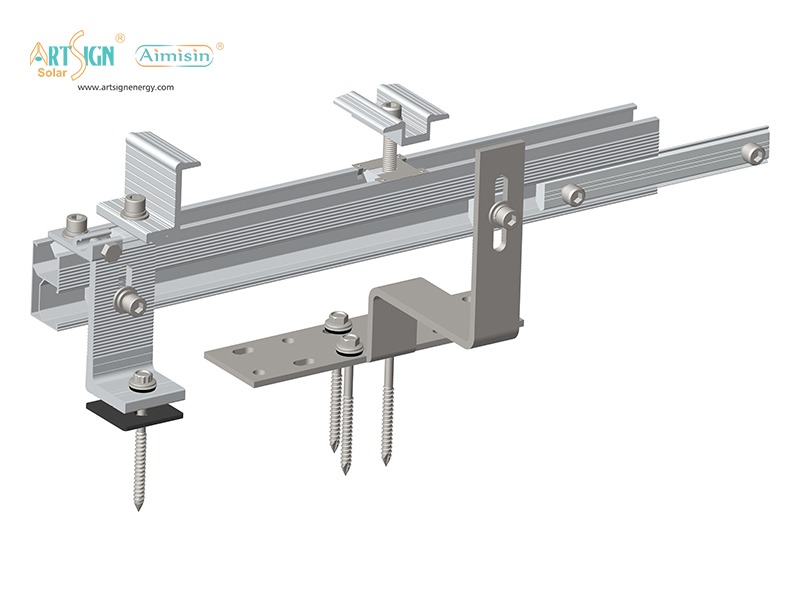

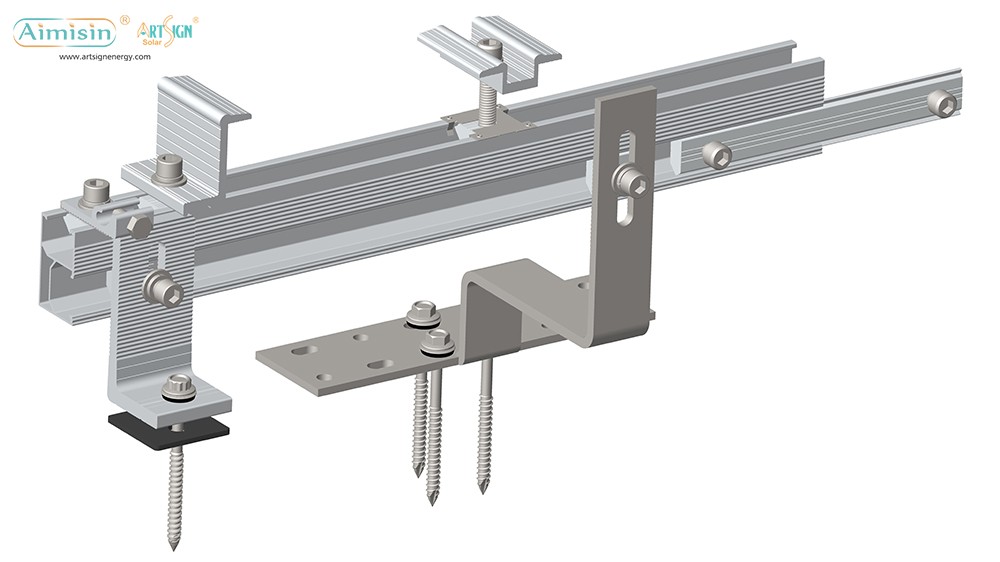

Solar panel roof mounts rail XR05 are available for almost any roof type, from flat roof to pitched roofs, composition shingle to standing seam metal.
  • Item NO.:

    AS-XR-05
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western union,
  • Surface Treatment:

    Anodized

  • Product Detail

Solar panel mounting system roof rail aluminum profile for roof top


Design Features

— Compatible with most types of solar panels.
— Scalable design that allows you to add more solar panels as needed.
— Easy to install.

Mode Number

  AS-XR-05

Brand Name

  ART SIGN
Specs

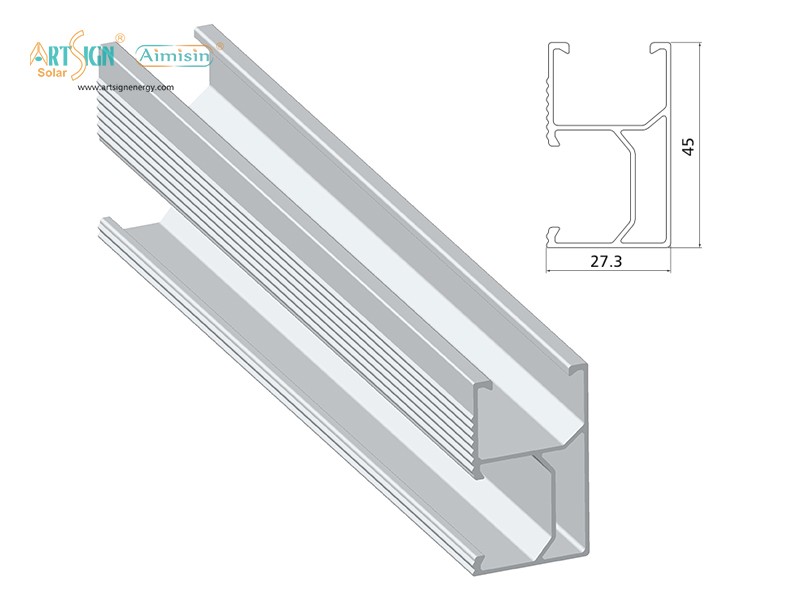

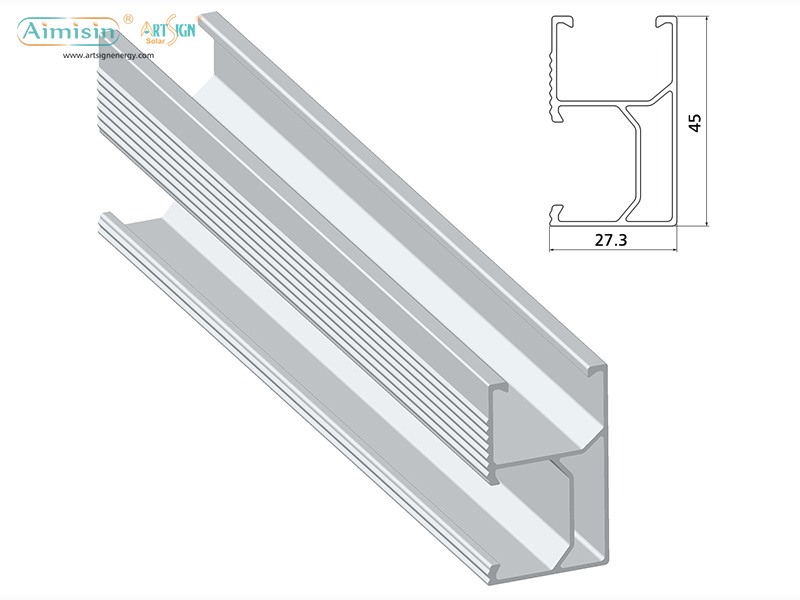

  W27.3*H45mm

Material

  Aluminum 6005-T5

Application
   solar panel roof mounting system Packing
  wooden case
Keyword
  oem solar aluminum rail manufacturer Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

solar rail mount


Product Description


solar rail mount
solar rail mount

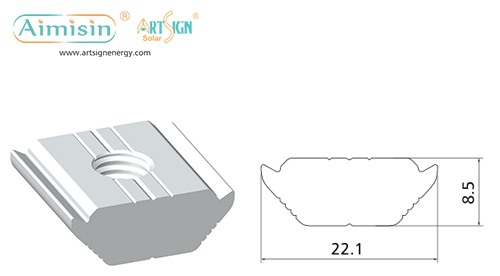

The XR nut size 22.1*8.5mm

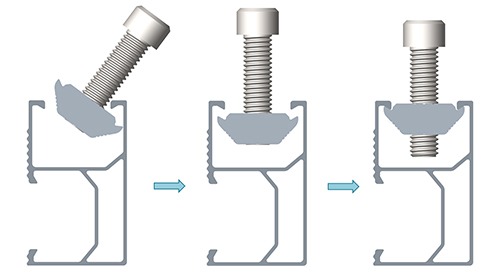

Position → Click → Fasten


solar rail mount


ART SIGN solar mounting related accessories

Click to see more XR Nut Series.

ART SIGN solar roof rails
ART SIGN solar roof rails
ART SIGN solar roof rails
ART SIGN solar roof rails
AS-XR-01
AS-XR-02
AS-XR-03
AS-XR-05
ART SIGN solar roof rails



AS-XRS-01
