ART SIGN Solar panel aluminum mounting rails SR rail 09#

SR rail profile 09# is suitable for most of metal roof mount.
  • Item NO.:

    AS-SR-09
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western union,
  • Surface Treatment:

    Anodized

  • Product Detail

ART SIGN Solar panel aluminum mounting rails SR rail 09#


Design Features

— Customized length rail can suitable for your metal roof solar project.
— Adjustable solar clamps are quicker and easier for installation.

Mode Number

  AS-SR-09

Brand Name

  ART SIGN
Specs

  385*70*30mm

Material

  Aluminum 6005-T5

Application
   Solar panel roof mounting system Packing
  Wooden case
Keyword
  Chinese solar panel mount racking rails Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

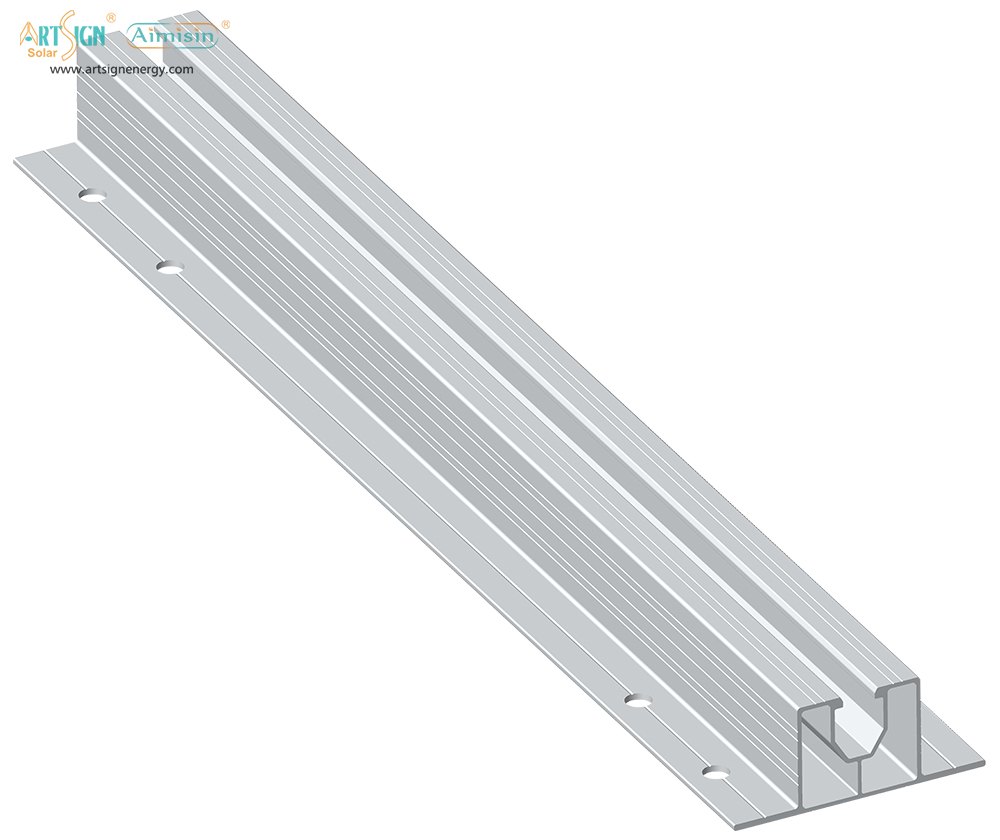

ART SIGN solar panel aluminum rail mount SR-09#



ART SIGN solar panel aluminum rail mount SR-09#

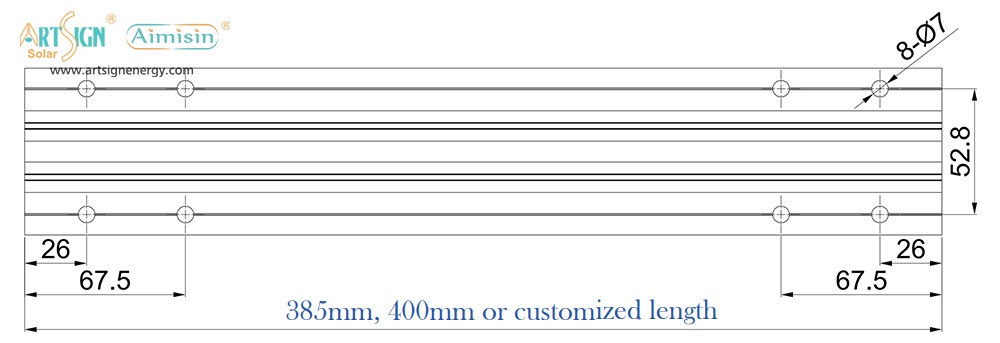

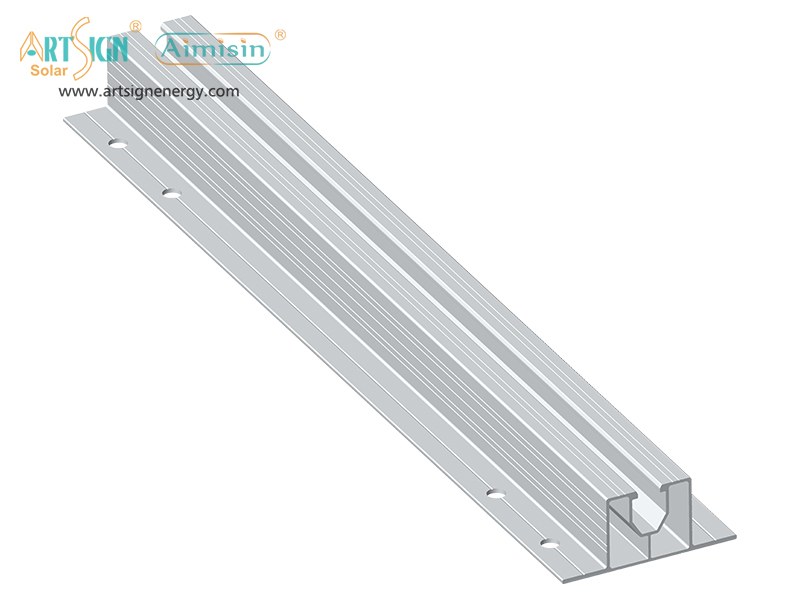

The length of solar SR rail 9# can be customized.
The holes can be made in advance.


Product Description


solar rail mount
solar rail mount

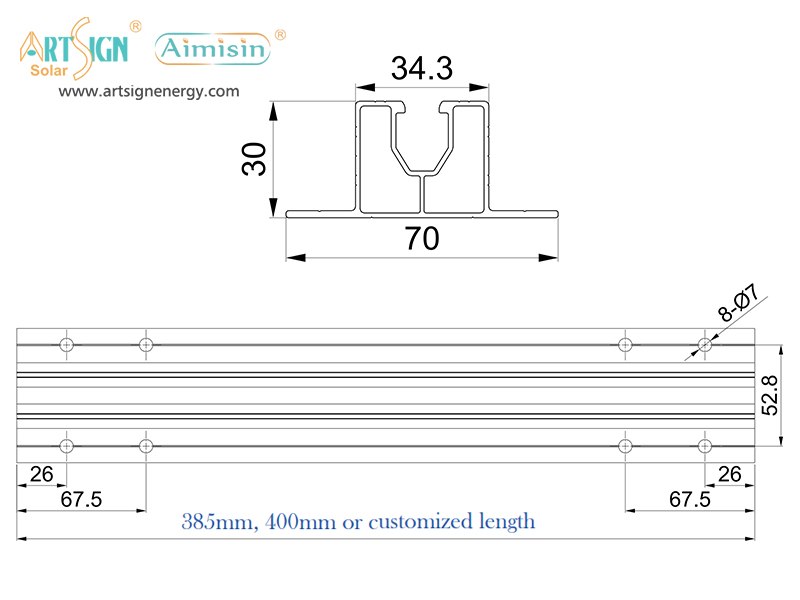

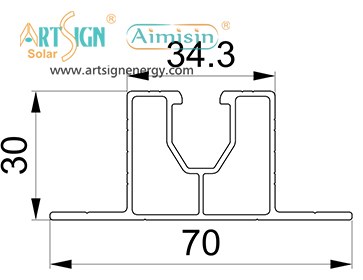

Section size of solar SR rail 9#, which is suitable for adjustable SR series solar clamps. So that more quick and easy for installation.

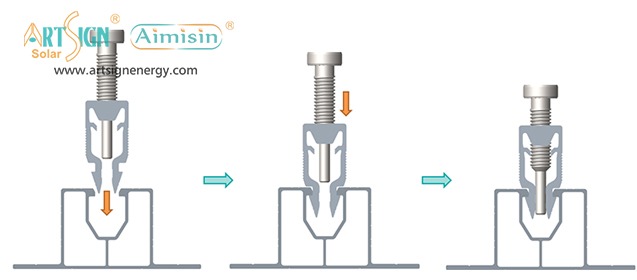

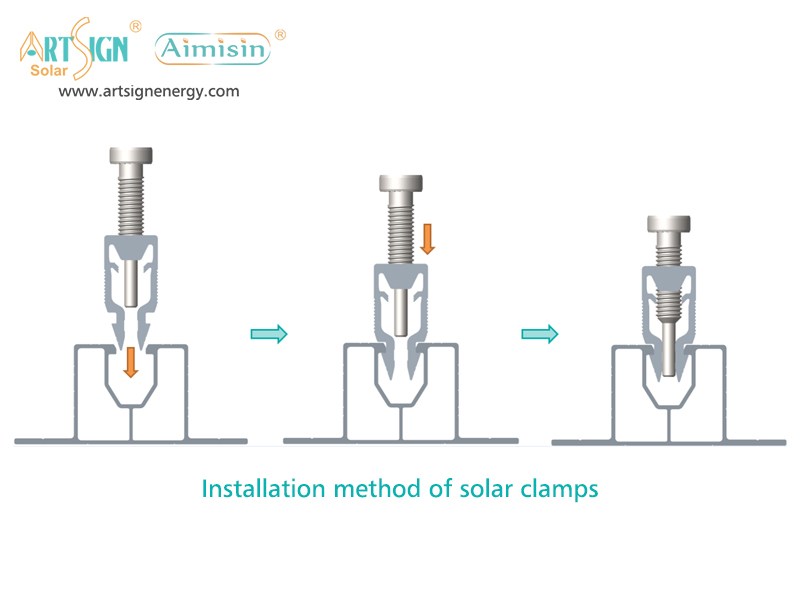

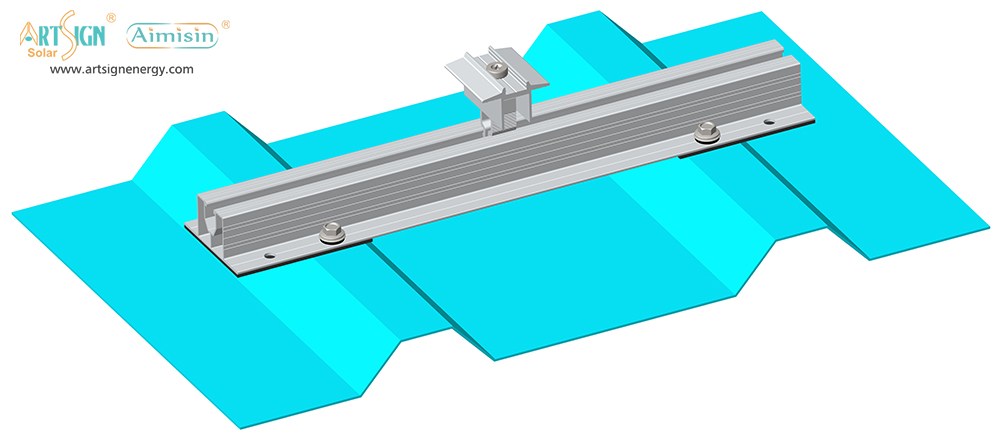

Installation method of solar clamps.


solar rail mount

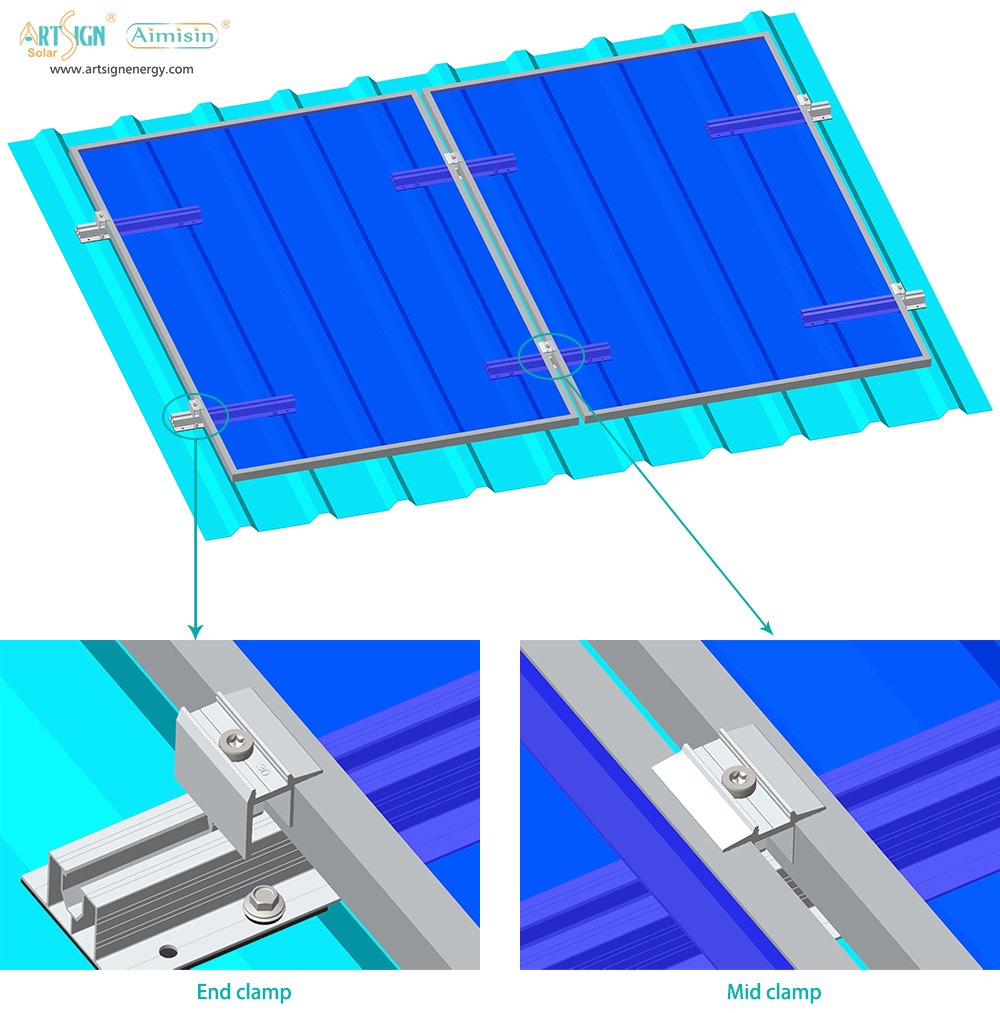

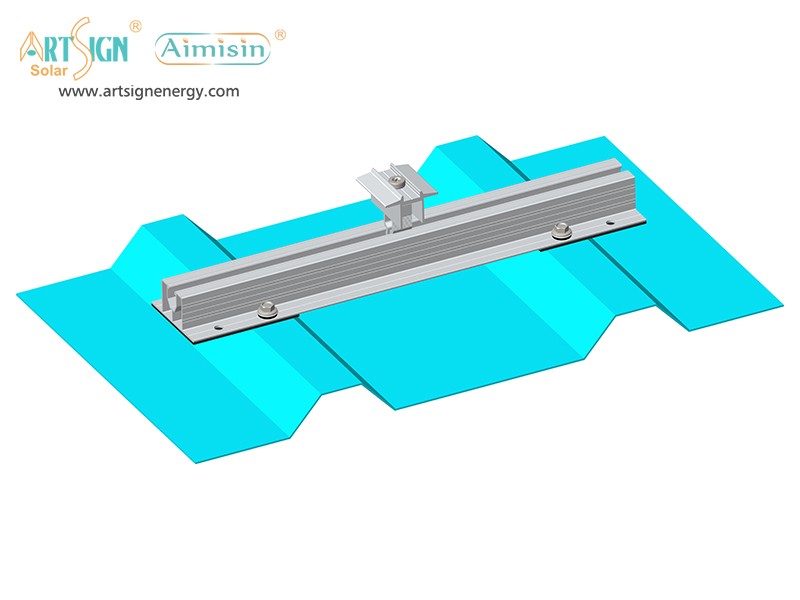

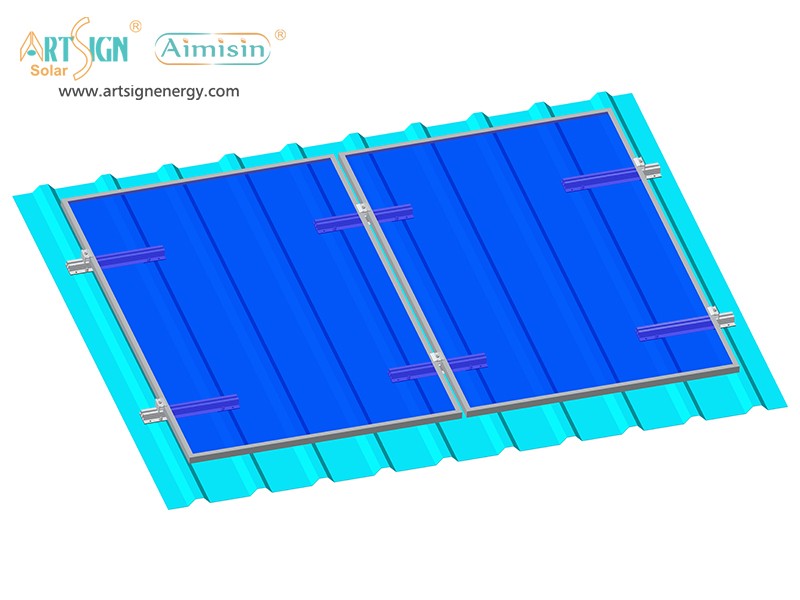

Solar SR rail 9# use as mini solar rail, which save installation time and labor cost.




1: Bolts are anti-theft bolt M8*43mm.
2: Mid clamp is suitable for 30-40mm thickness solar panel.
3: End clamp is suitable for 30-40mm thickness solar panel.

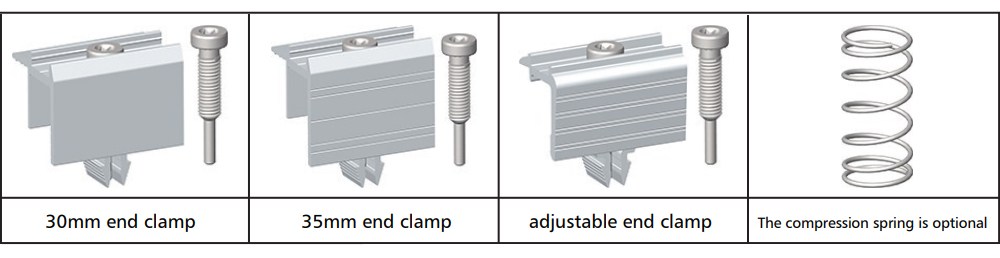

There are 3 kids of solar end clamps for your reference.
