Newly Launched Aluminum L Feet Bracket for Roof Solar Mounting System | Artsign

Newly Launched Aluminum L Feet Bracket for Roof Solar Mounting System | Artsign

The L-feet with flashing bracket racking system provides a simple and efficient way on asphalt shingle roofs.

Item NO.:
AS-A-A473
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

Newly Launched Aluminum L Feet Bracket for Roof Solar Mounting System | Artsign

Design Features

— L feet hook with flashing is the most cost-effective way for flat roof mounting.
— Unique design allows ashpalt shingle roof L bracket kits to withstand greater wind loads.

Mode Number	AS-A-A473	Brand Name	ART SIGN
Specs	L51W43H77.5mm	Material	Aluminum 6005-T5
Application	Asphalt shingle roof solar mount	Packing	Wooden pallet
Keyword	Solar structure L feet roof mount bracket	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

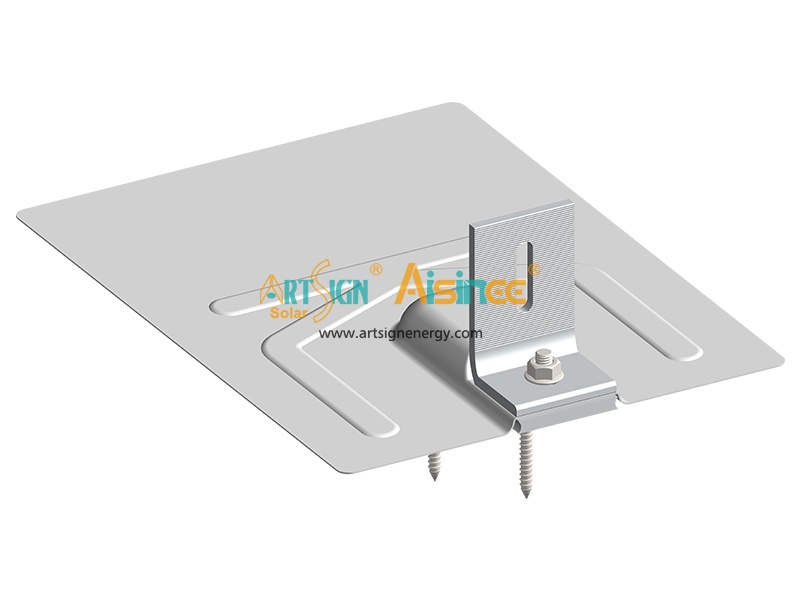

ART SIGIN solar mounting system L foot roof mounting structure components list

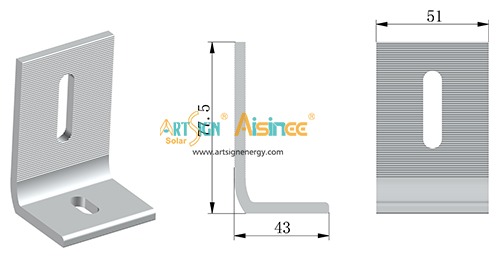

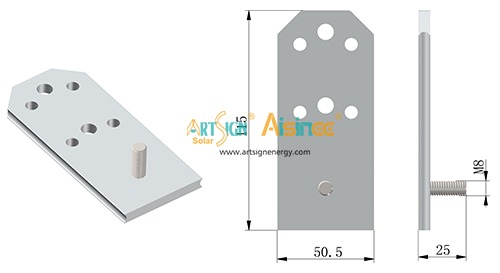

L feet hook size: Length 51mm, Width 43mm, Height 77.5mm.	Fasterner size: Length 115mm, Width 50.5mm.

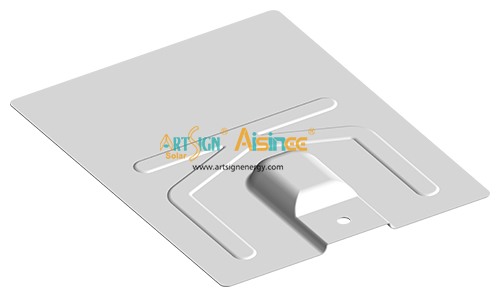

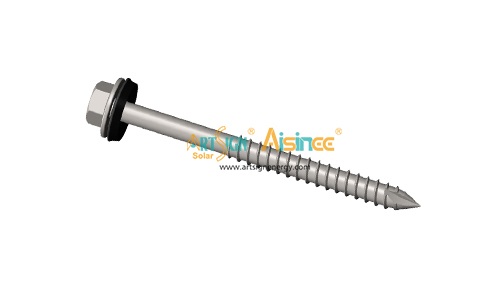

Waterproof flashing size: Width 228mm, Length 301mm.	Cutting thread self tapping screw.

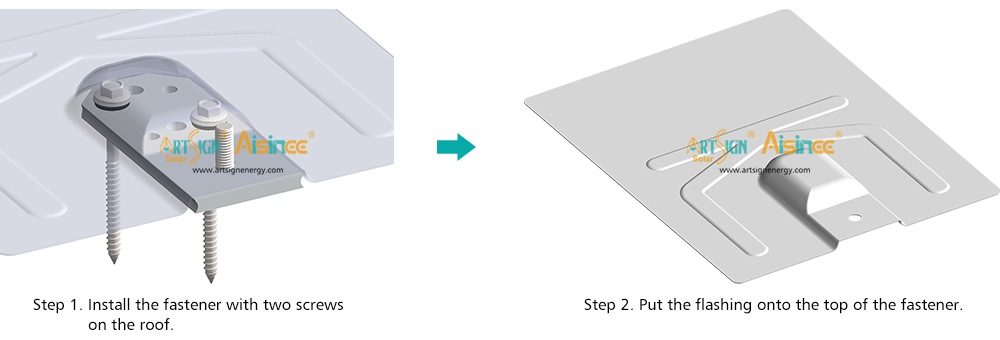

ART SIGIN solar mounting system Installation step of L feet solar mounting kits

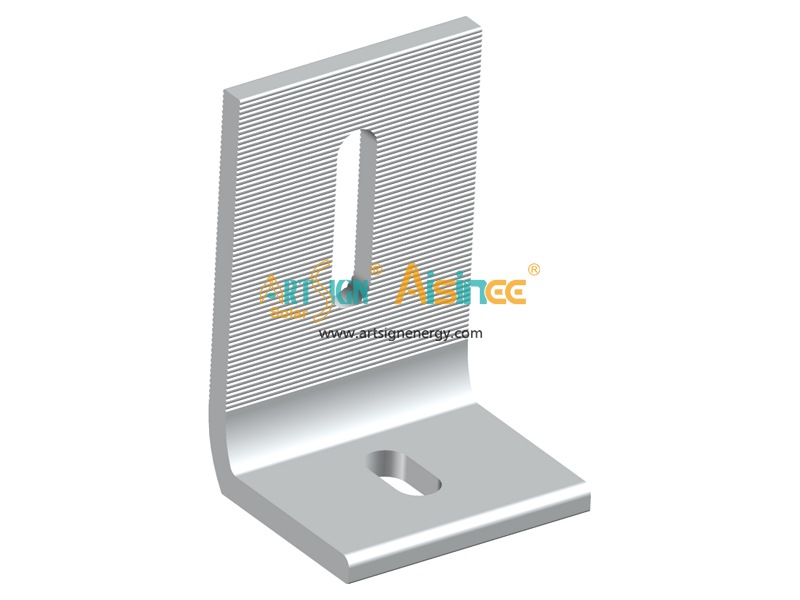

ART SIGN pv L feet AS-A-A473

Click to see more L feet.


AS-RH-02	AS-RH-105	AS-RH-150

AS-RH-150	AS-RH-103	AS-RH-123

AS-RH-19	AS-A-A111	AS-A-A124
