Wholesale Aluminum Mini Rail Solar Mounting System Roof Short Rail |ART SIGN
Design Features:

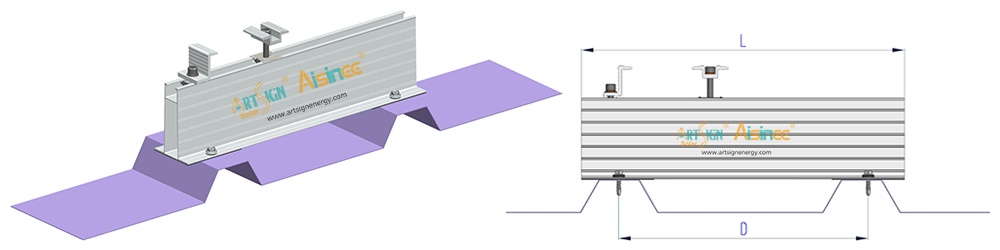

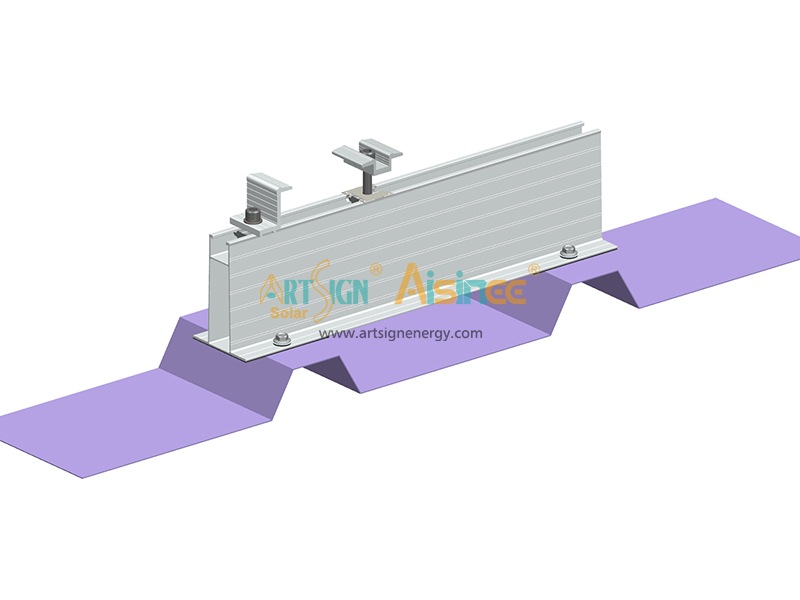

— Solar Module is fixed on to roof metal sheet directly which will not used extra aluminum profile.
— Easier,quicker and fast speed installation solution.
|
Mode Number |
AS-DR-07C |
Brand Name |
ART SIGN |
|
Specs |
Anodized Above 10um |
Material |
Aluminum 6005-T5 |
|
Application |
trapezidal metal roof, tin roof |
Packing |
Carton Or Pallet |
|
Keyword |
Customized aluminum solar mini rail supplier |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
Designed specifically for trapezoidal and corrugated metal roofs, this compact solution eliminates the need for long, bulky rails, significantly reducing both material costs and transportation expenses.
1、Premium Material: Crafted from high-strength anodized AL6005-T5 aluminum, offering superior corrosion resistance and a sleek finish.
2、Cost-Effective Design: The short-rail architecture minimizes aluminum usage without compromising structural integrity.
3、Rapid Installation: specialized EPDM backing allow for direct attachment to the roof ribs, slashing installation time by up to 50%.
4、Smart Ventilation: The elevated design ensures optimal airflow beneath the panels, maintaining cell efficiency and preventing heat buildup.
 |

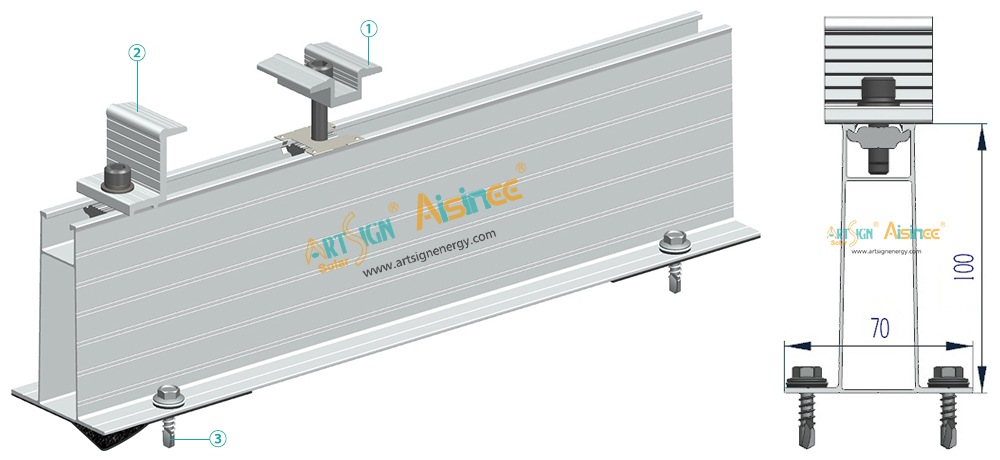

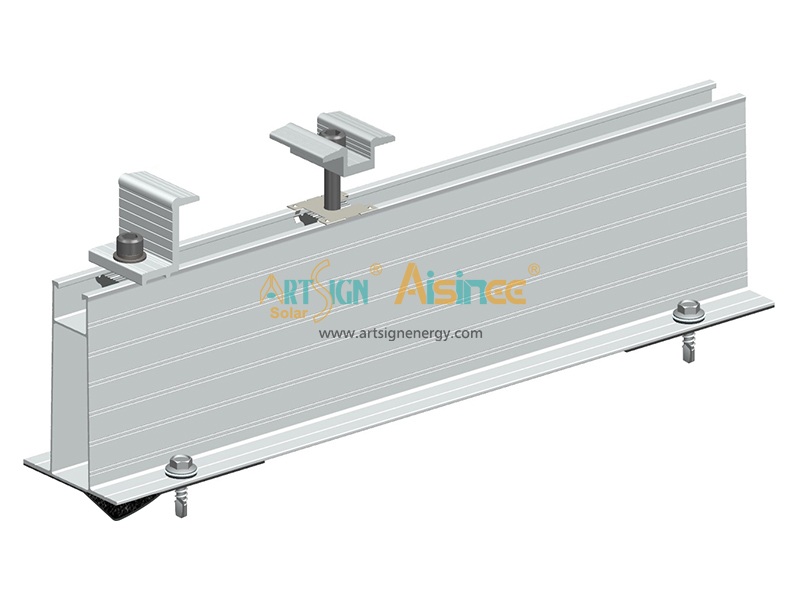

The mid clamp is with M8x50mm T bolt + flange nut It is suitable for 30-42mm solar panel |

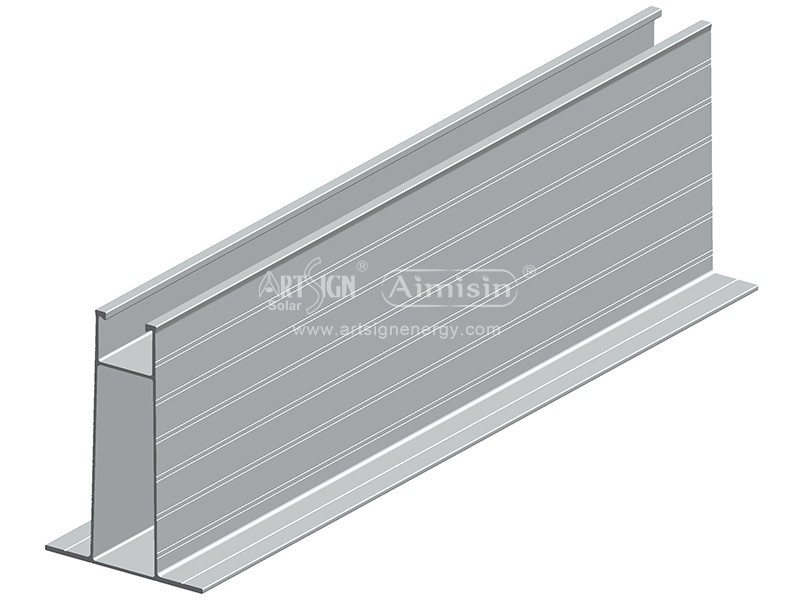

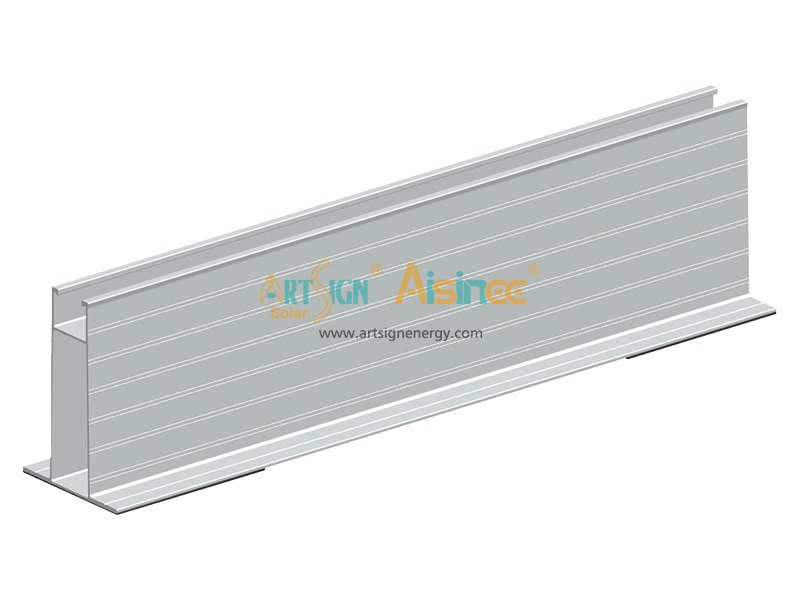

Mini Rail for solar panel AS-DR-07C is for solar metal roof mounting made of anodized aluminum, simple and cost effective solution.
