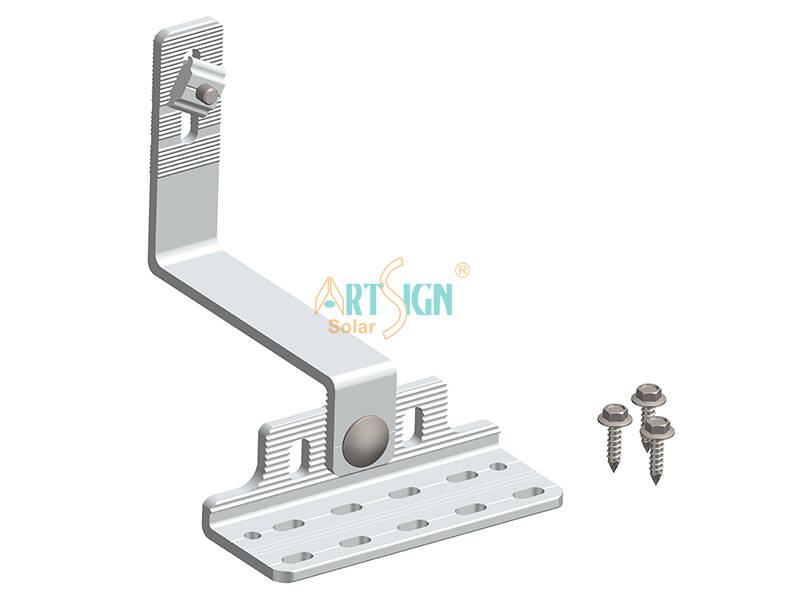

Solar mounting bracket roof hook 21#

Pre-assembled adjustable roof hook for solar mounting installation.
  • Item NO.:

    AS-RH-21
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

Preassembled Adjustable Aluminum Roof Hook for Solar Panel Mounting #21 | ART SIGN


Design Features

— Preassembled for easy installation.
— Height adjustable for various roof type.

Mode Number

  AS-RH-21

Brand Name

  ART SIGN
Specs

  Adjustable range:
  Top part: 161.5~170.5mm
  Bottom part: 48~57mm

Material

  Aluminum 6005-T5

Application
  PV solar roof mounting system Packing
  Wooden pallet
Keyword
  Factory price roof hook Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years

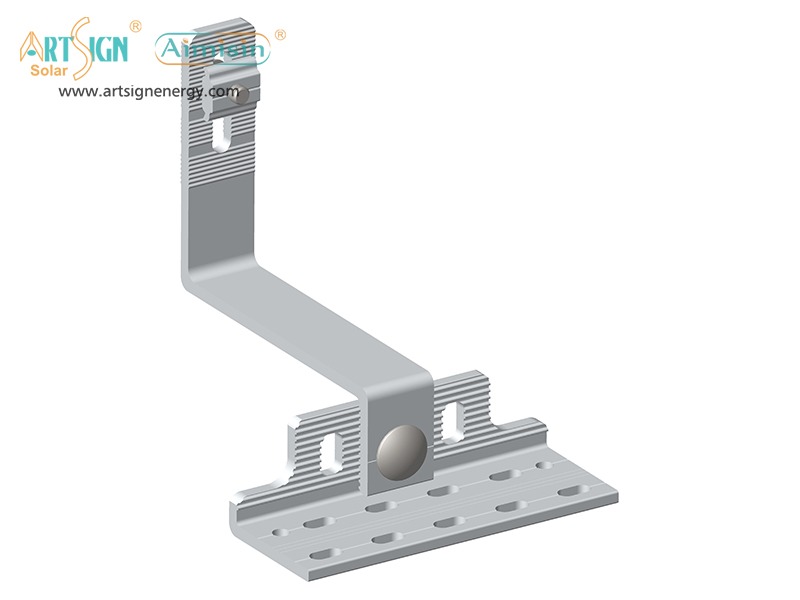

ART SIGN Solar roof mounting brackets AS-RH-21

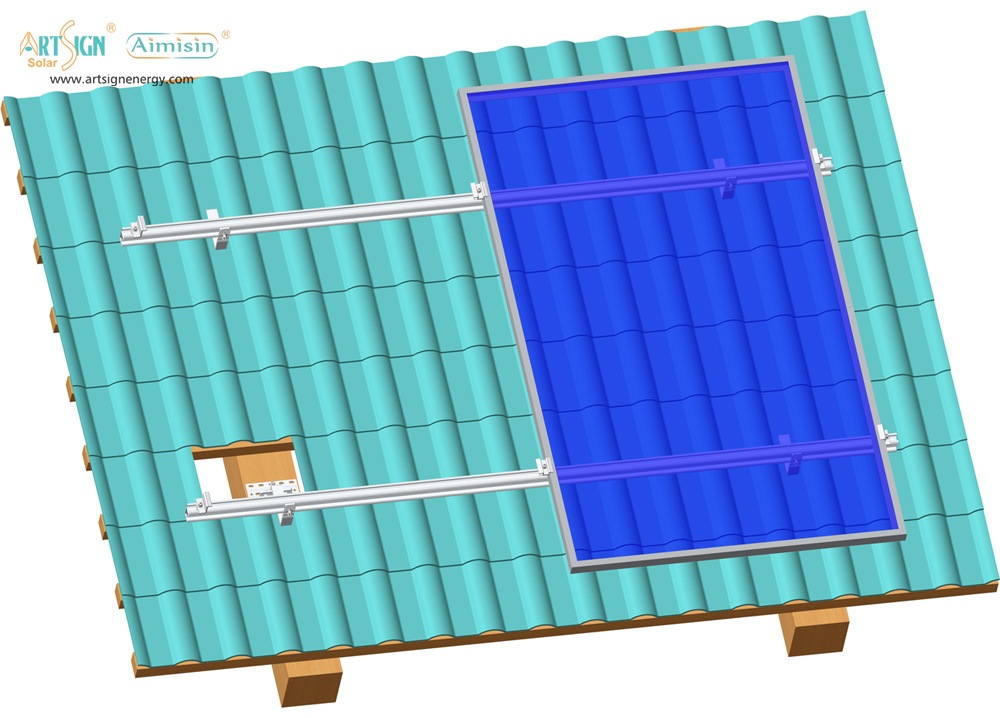

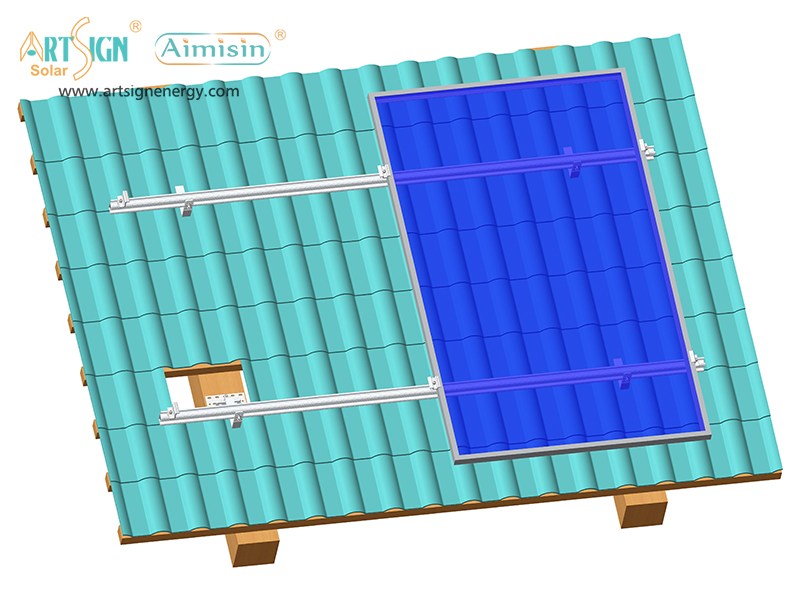

Overview of the mounting system with #21 roof hook


ART SIGN Solar roof mounting brackets AS-RH-21
ART SIGN Solar roof mounting brackets AS-RH-21

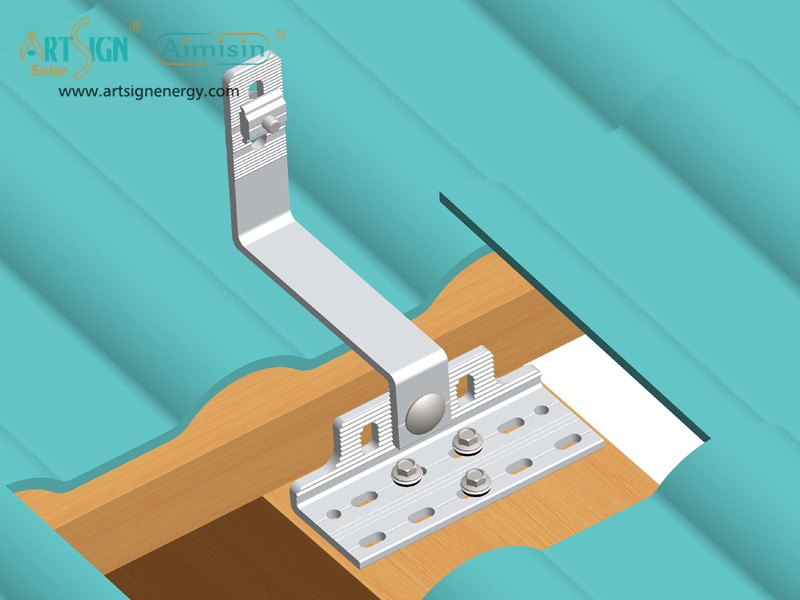

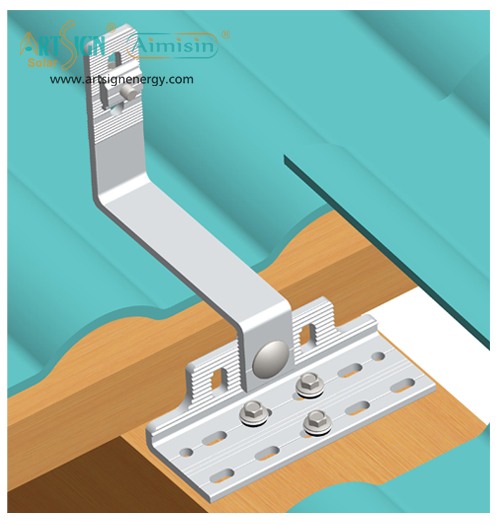

Roof Hook #21 applied for wood purlin and steel beam

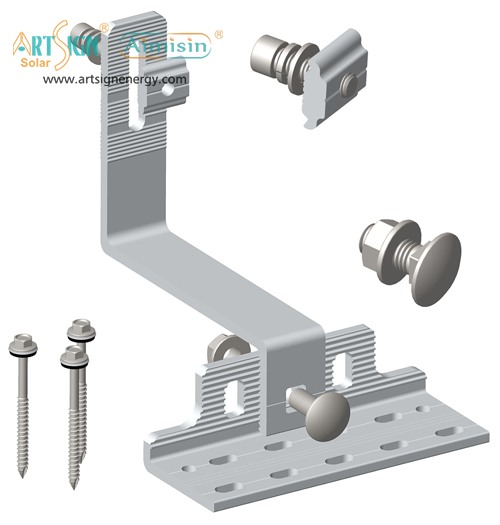

Bolts and screws to be required for installation.


ART SIGN solar mounting detailsAccording to different roof types, different screws are available

ART SIGN Solar roof mounting brackets AS-RH-21 screws

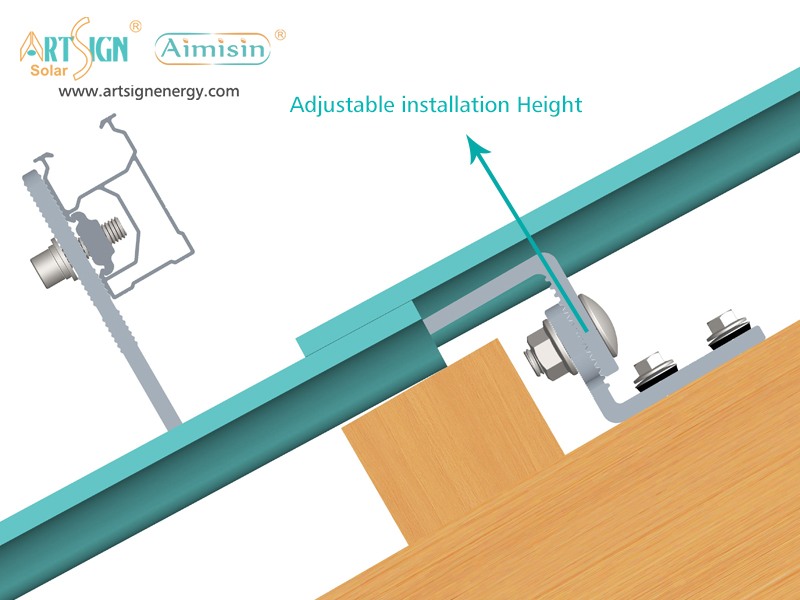

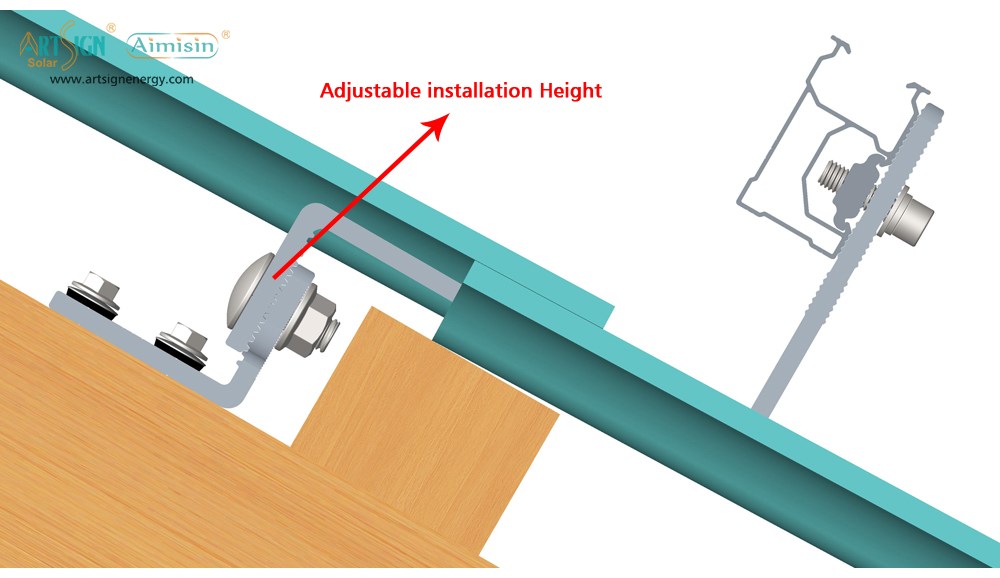

ART SIGN solar mounting detailsThe installation height can be adjusted from 161.5mm-170.5mm

ART SIGN compatible nut and rail for hook 21#



   Package Type
   ● Inner packing: carton boxes
   ● Outer packing: wooden case / pallet
ART SIGN aluminium brackets for solar panels AS-RH-20 packages


ART SIGN quick installation solar end clamp 30-40mm related accessories

Customized cutting length to be suitable for different wind load and snow load requirements.

Category : Aluminum roof bracket


ART SIGN aluminium brackets for solar panels AS-RH-20
ART SIGN aluminium brackets for solar panels AS-RH-21
AS-RH-20 AS-RH-21
