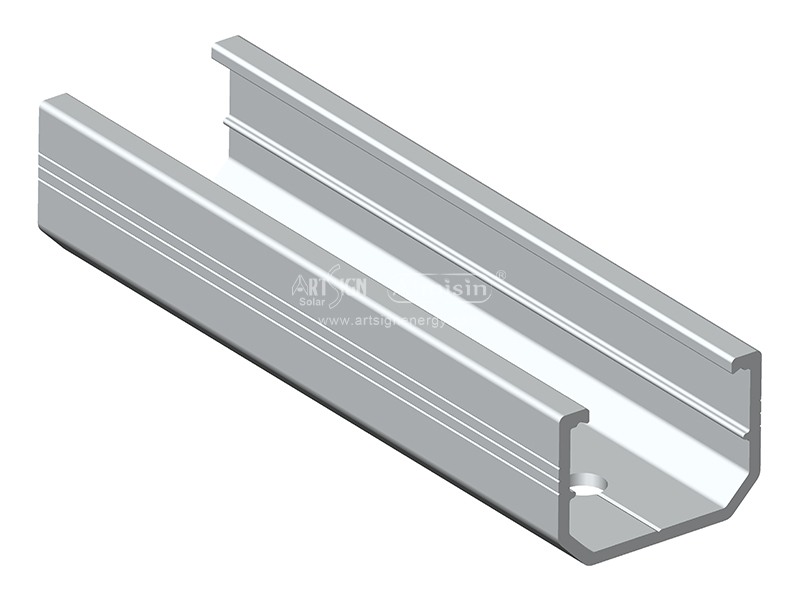

PV panel mini rail mount

Solar mini rail is railess solar mounting solution. Design Feature: --Easier and quicker installation. --More economical price.

Item NO.:
AS-A-R26
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

PV panel mini rail mount

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN

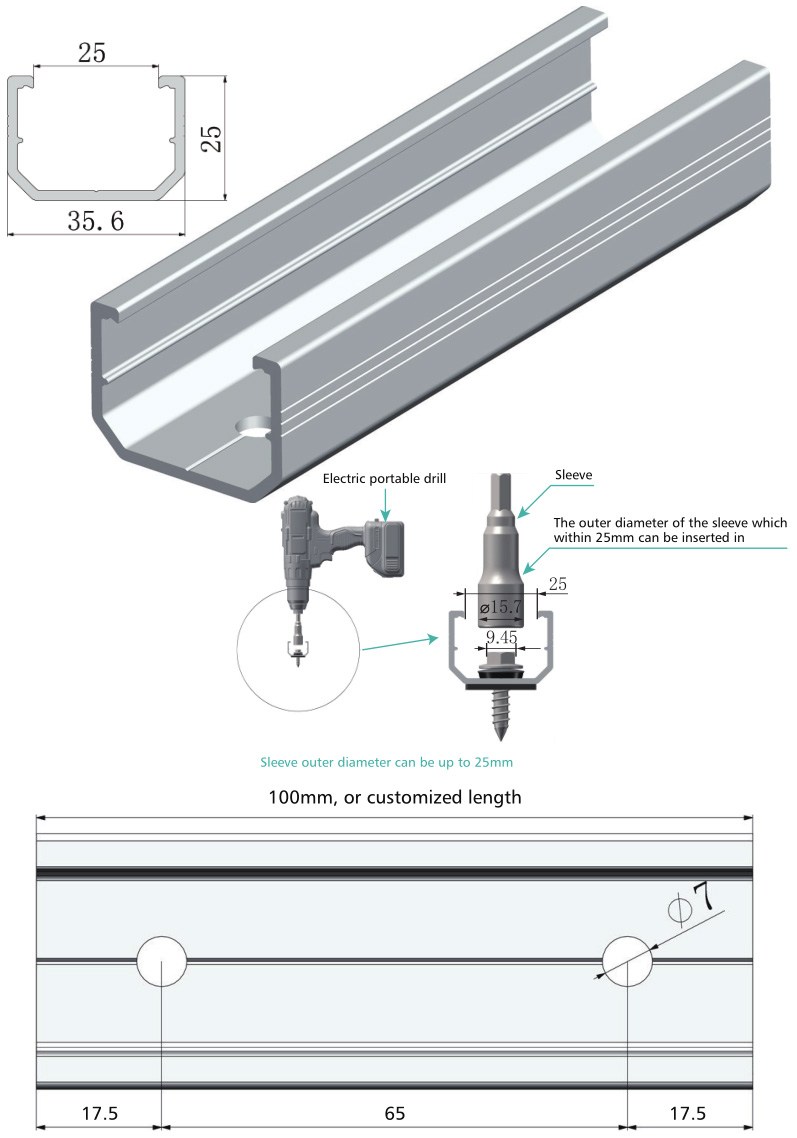

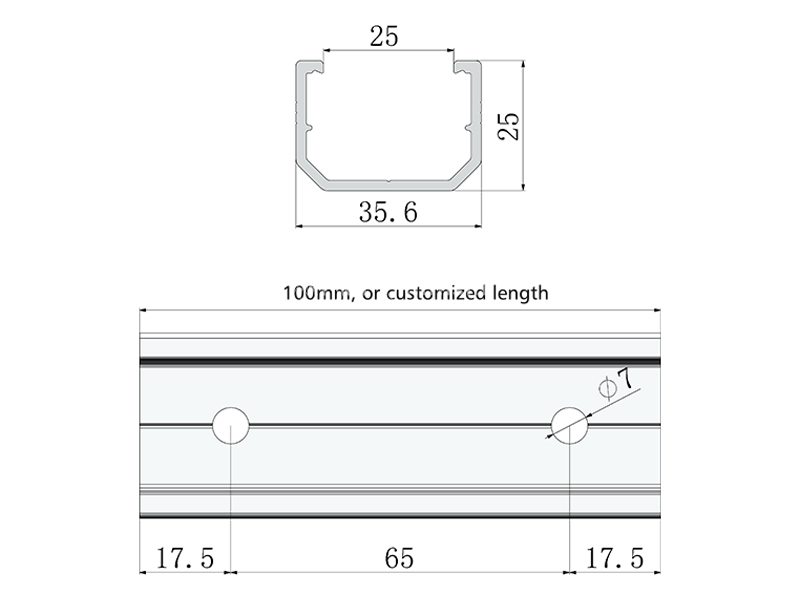

Mode Number	AS-A-R26	Specs	L100W35.60H25.00mm, customized length
Material	Aluminum 6005-T5	Application	solar panel roof mounting system
Surface treament	Anodized above 10um	Packing	Pallet or carton
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	solar short rail, solar mini rail	Service life:	25 years
Quality Warranty	20 years

Selling Units

per pcs

Package Type

Inner packing: carton ;

Outer packing: wooden case

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time (working days)	1-3	3-10	10-15	To be negotiated

PV panel mini rail mount

Solar mini rail is railess solar mounting solution.
Design Feature:
--Easier and quicker installation.
--More economical price.

Category : Aluminum profile

Product Overview

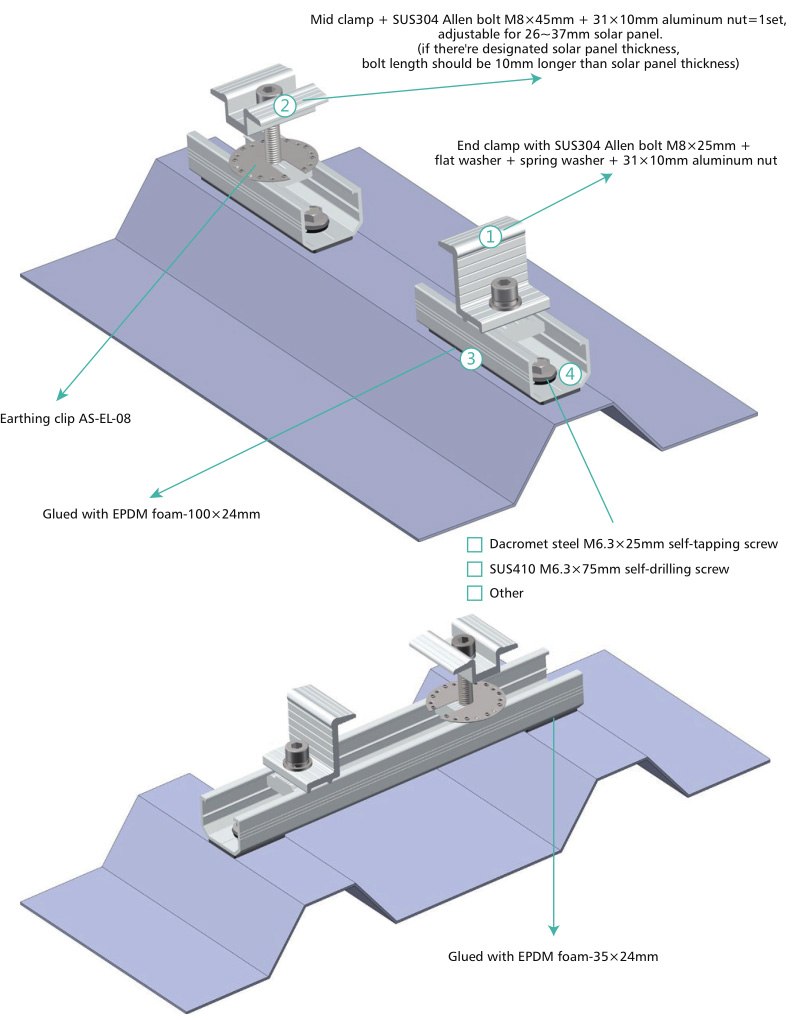

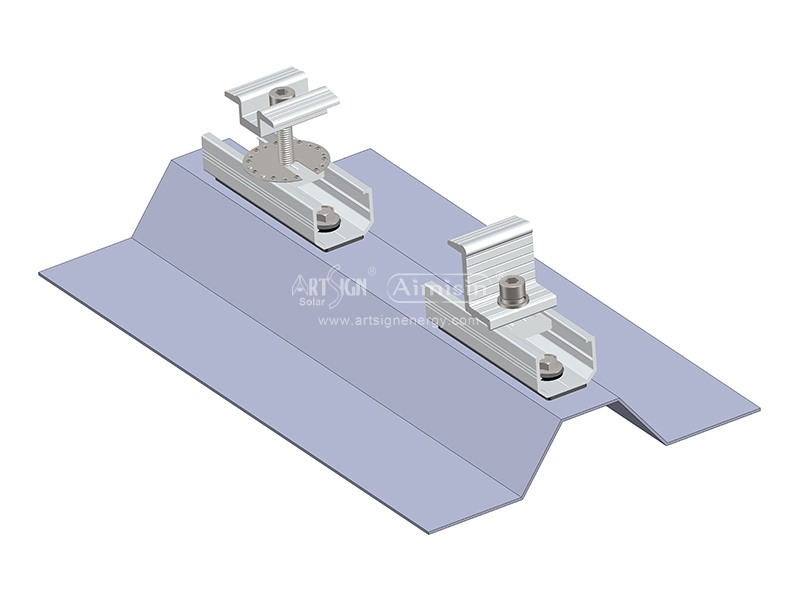

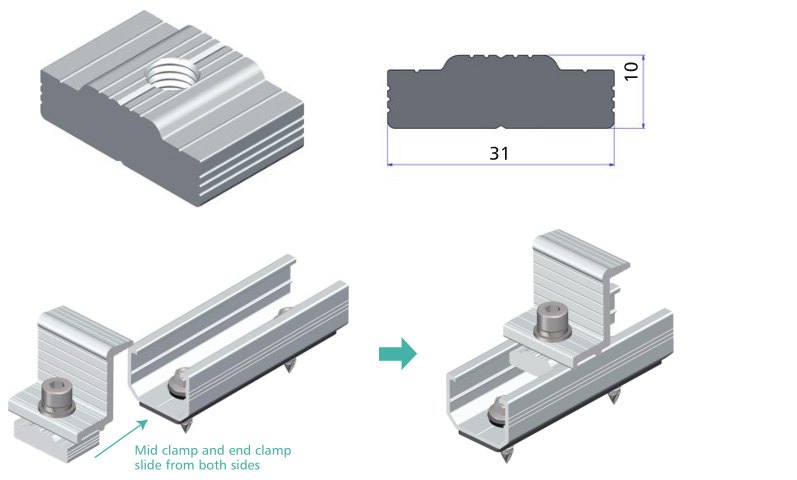

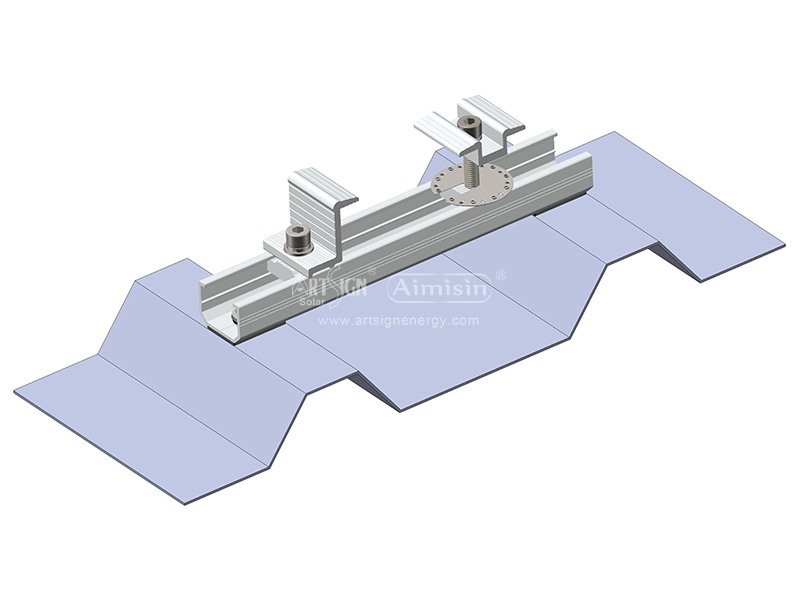

1. Solar mid clamp and end clamp with 31x10mm aluminum nut

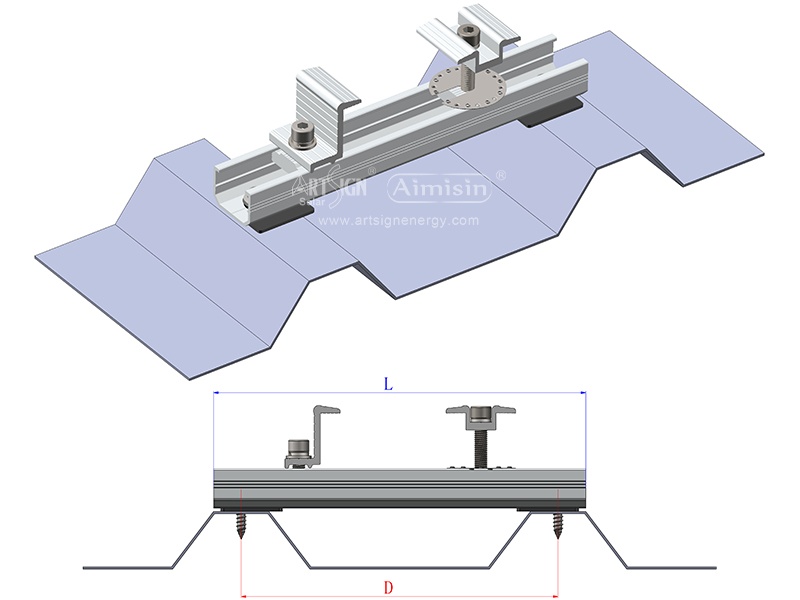

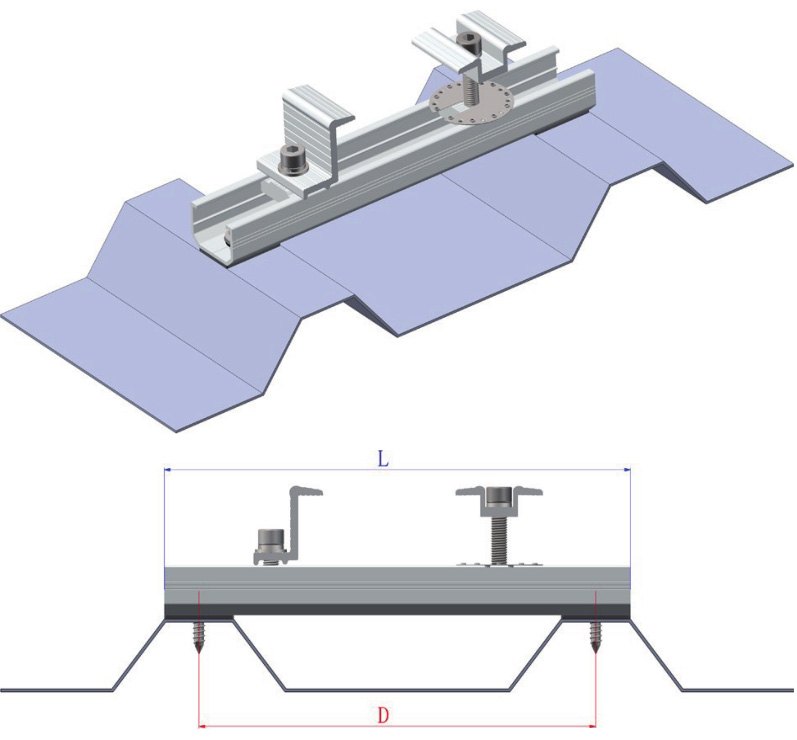

2. When the solar panel is portrait installation, the mini rail length can be customized according to roof ribs distance

Product Description

Related Products:


AS-DR-07	AS-DR-07B	AS-DR-07C

AS-DR-07E	AS-DR-08	AS-A-DR12

AS-A-R25	AS-A-R26	AS-R-15
