Art Sign ODM Manufacturer Aluminum Profile Solar Mounting Rails
Design Features
|
Mode Number |
AS-DR-19 |
Brand Name |
ART SIGN |
|
Specs |

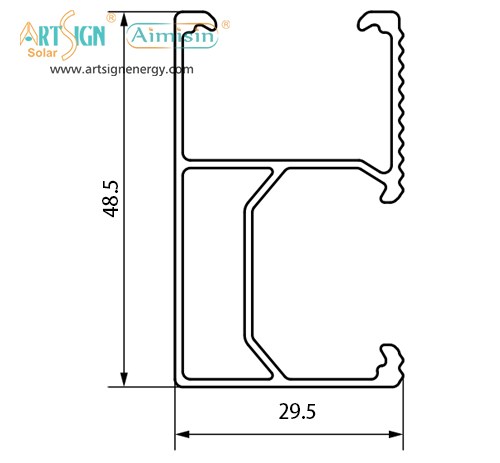

W29.5*H48.5mm |
Material |
Aluminum 6005-T5 |
|
Application |
Aluminium rails for solar panels |
Packing |
Wooden Pallet |
|
Keyword |
Lightweight aluminium profile solar mounting rail |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
 |
 |
|

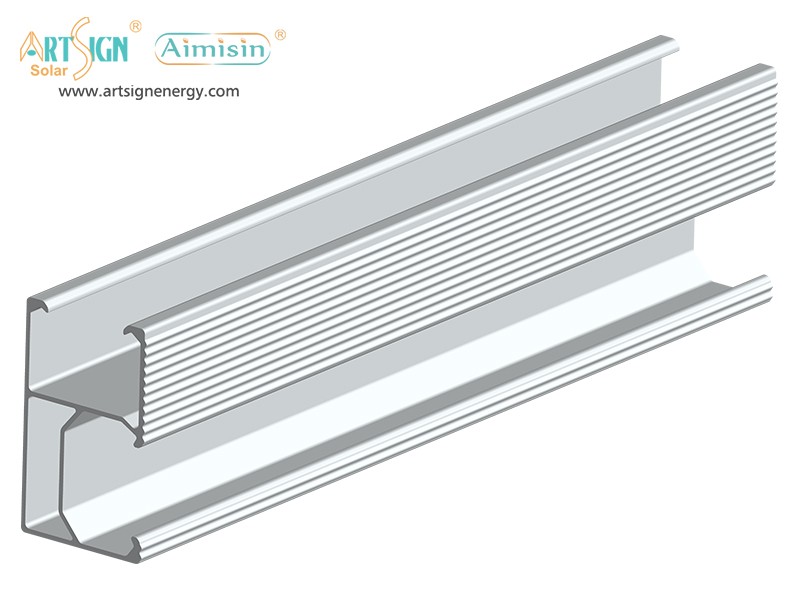

D Rail 19# Size |

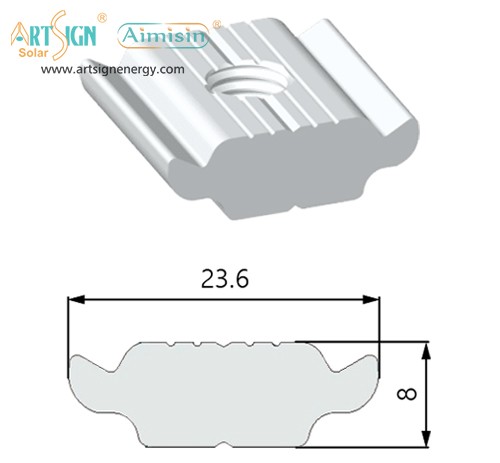

D nut: W23.6mm × H8mm × 23mm |
 |
 |
|

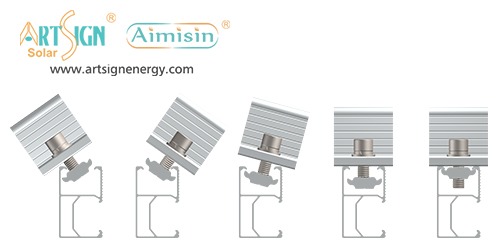

The D nut can be installed from either side |

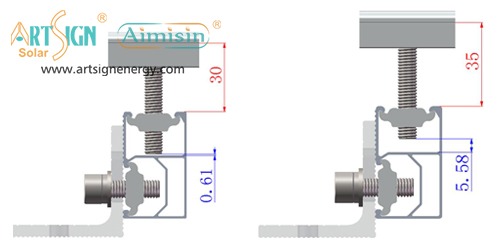

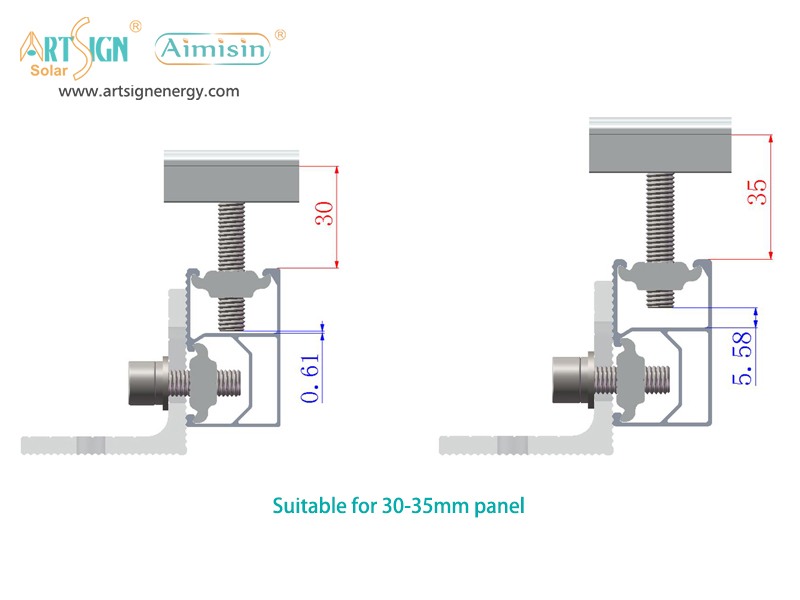

Suitable for 30-35mm panel |
 |
|
|

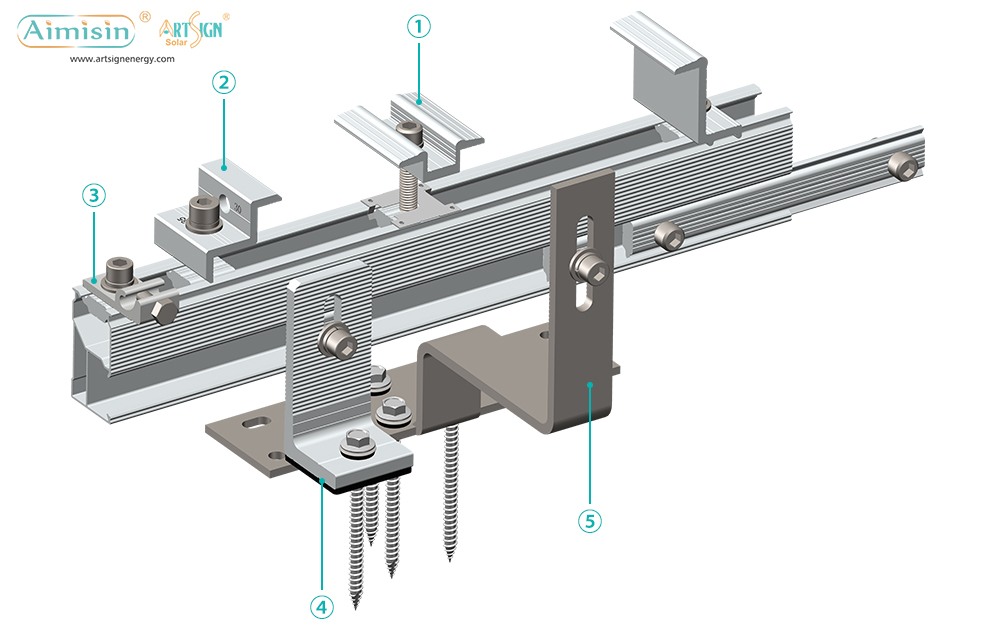

①. 1pcs anodized aluminum mid clamp + 1pcs SUS304 allen bolt M8x50mm + 1pcs SUS304 spring washer + 1pcs anodized aluminum D nut ②. There're three options for end clamp, please refer to below optional accessories for details ③. Two options for earthing kit. (1).Cable channel inner diameter 5.8mm (2).Cable channel inner diameter 8.0mm ④. Four different heights' L feet ⑤. Refer to the optional accessories table for more options |
|
|
Package Type |
Inner packing: Kraft paper packaging |
 |
| Outer packing: wooden case / pallet |

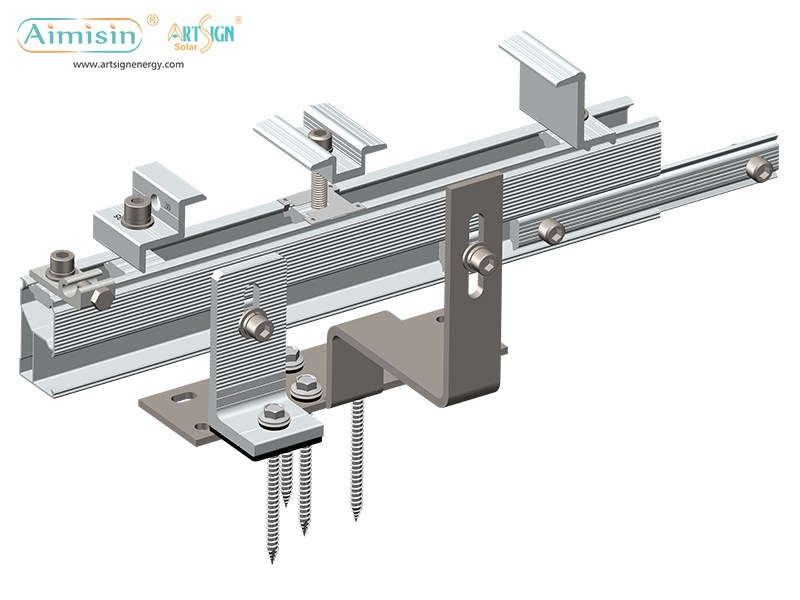

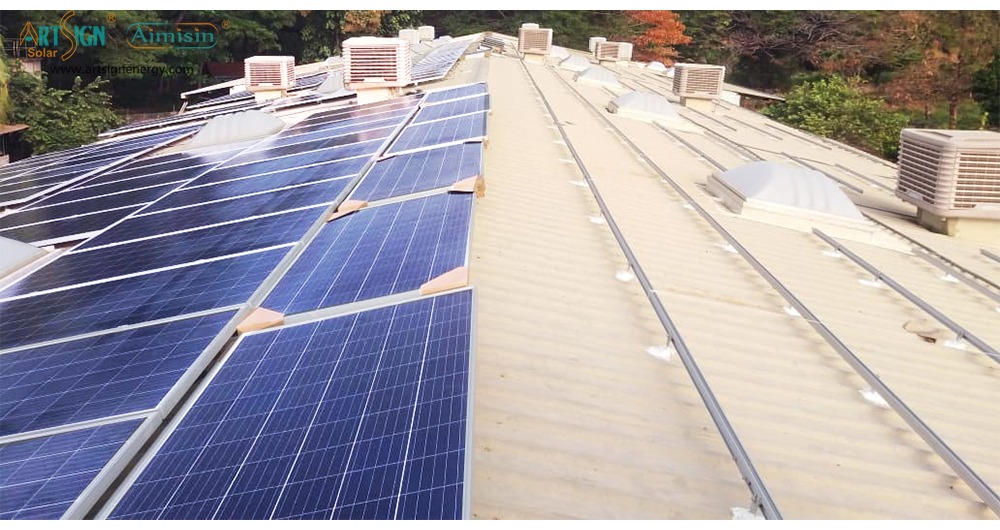

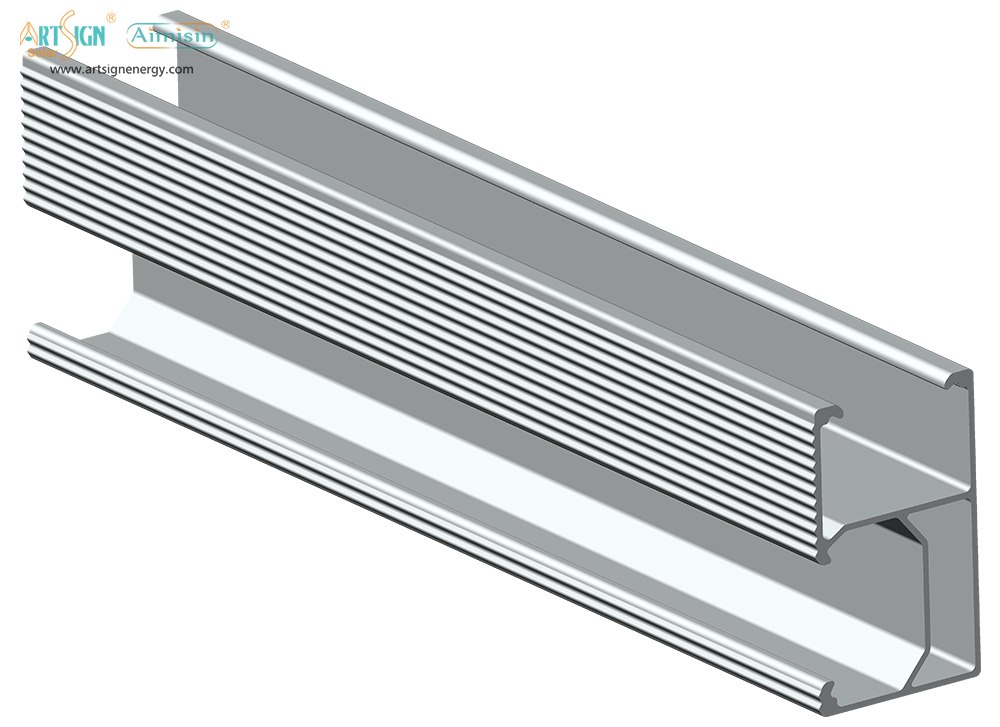

Aluminum Solar panel roof rails AS-DR-19 which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.
Click to see more D nut series;
 |
 |
 |
 |
|
AS-DR-01A |
AS-DR-01B |
AS-DR-03 |
AS-DR-04 |
 |
 |
 |
 |
|
AS-DR-08 |
AS-DR-15 | AS-DR-19 | AS-DR-20 |
| Rail splice |
 |
 |
| AS-DRS-01 | AS-DRS-02 |
