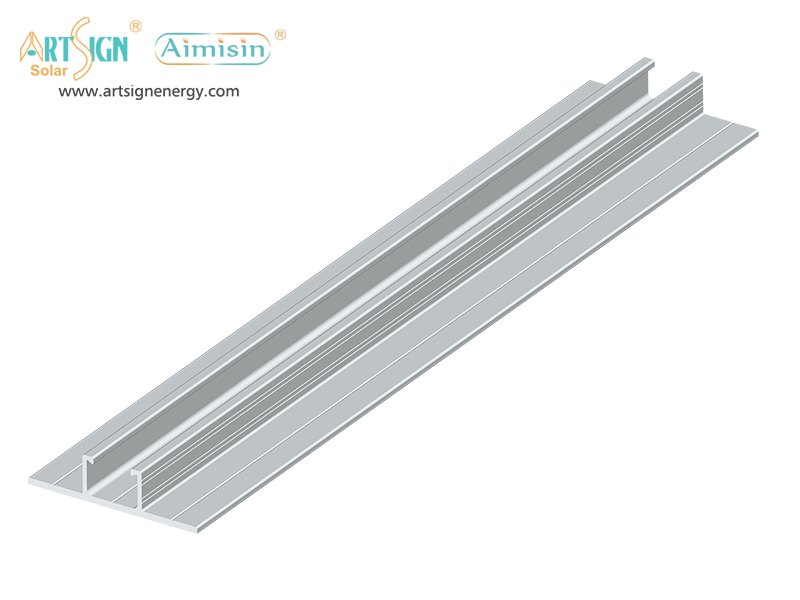

Mini rail for solar roof mounting DR-07#

Solar panels are fixed directly on mini rails without long rail. It is light, small, cost-effective and easy to mount on trapezoidal metal sheet.
  • Item NO.:

    AS-DR-07
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Chinese factory aluminum short rail for solar roof mounting


Design Features:

— 1.The system contains only four components.
— 2.It's easy for transportation and installation.
— 3.Rails are pre-cut in customized length, clamps are pre-assembled.


Mode Number

  AS-DR-07

Brand Name

  ART SIGN
Specs

  W80*H20.5mm

Material

  Aluminum 6005-T5

Application
   solar panel roof mounting system Packing
  wooden case
Keyword
  Chinese factory solar aluminum short rail mounting system Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details


ART SIGN rail less solar mounting AS-DR-07
ART SIGN rail less solar mounting AS-DR-07

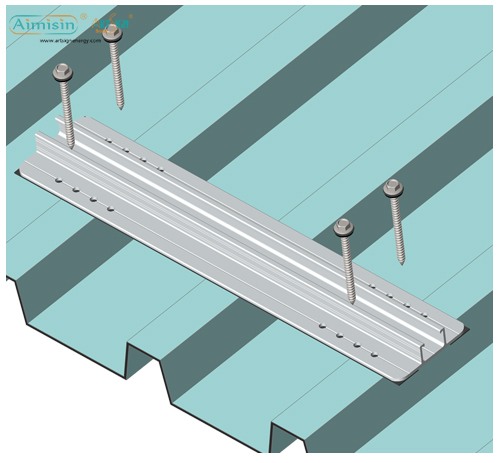

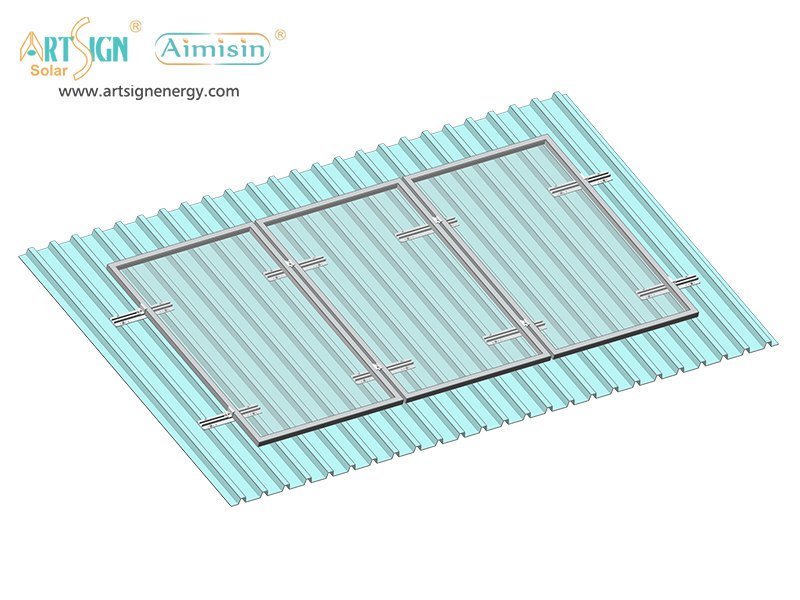

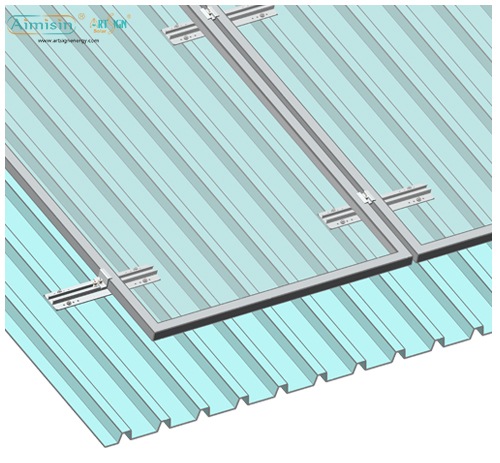

Railless solar mounting system for metal rooftop

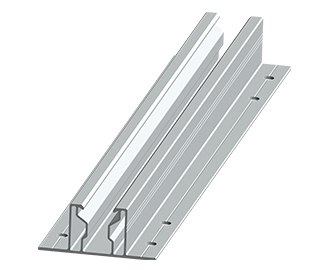

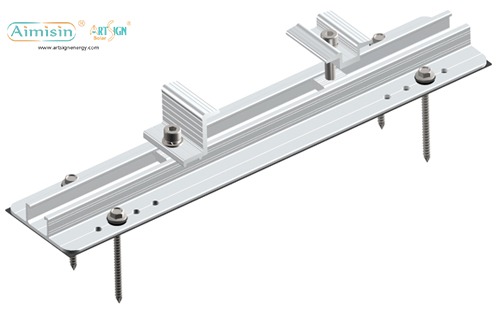

Mini rail with screws

ART SIGN rail less solar mounting AS-DR-07
ART SIGN rail less solar mounting AS-DR-07

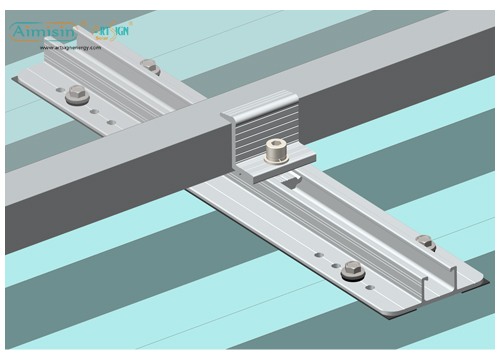

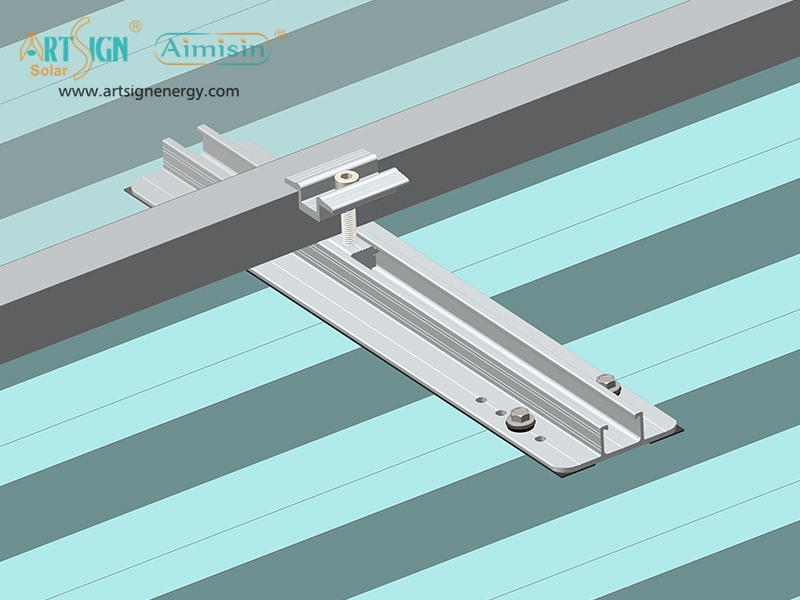

Mid clamp for fixing 2 panels

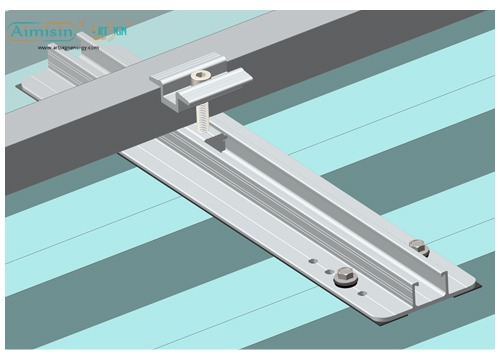

End clamp for fixing the side panels

ART SIGN rail less solar mounting AS-DR-07
ART SIGN rail less solar mounting AS-DR-07

Four components  in this system

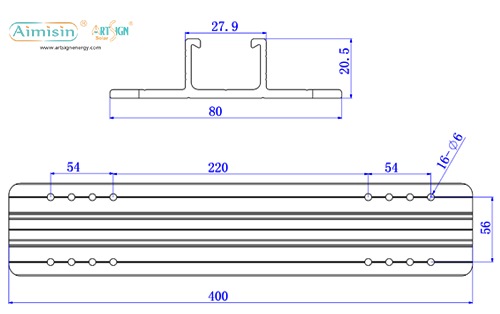

Details sizes for mini rail

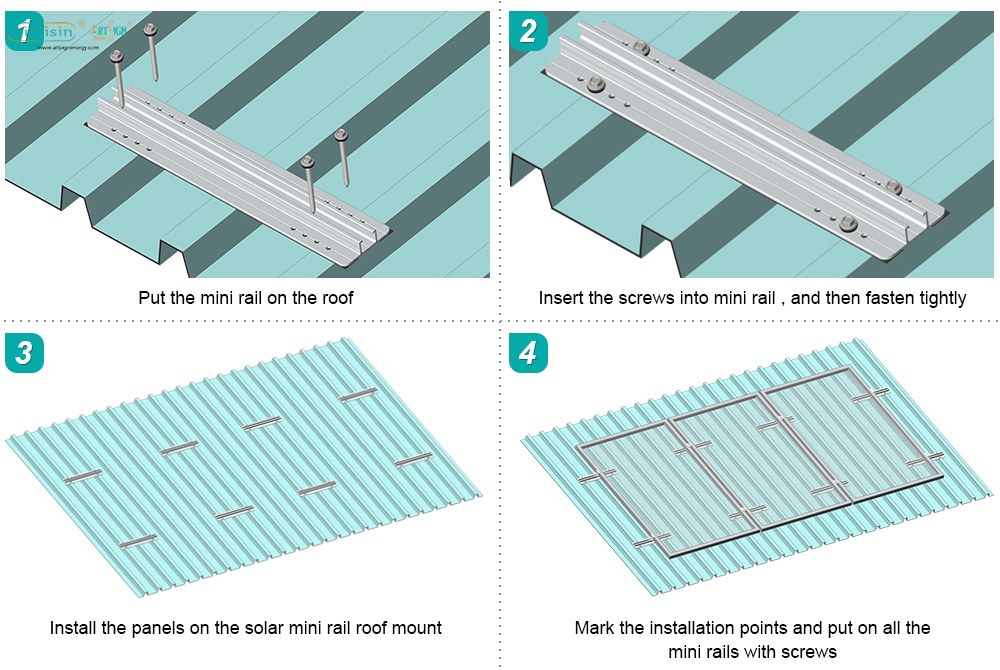

Installation step

ART SIGN rail less solar mounting AS-DR-07


ART SIGN solar mounting package

ART SIGN rail less solar mounting AS-DR-07
ART SIGN rail less solar mounting AS-DR-07

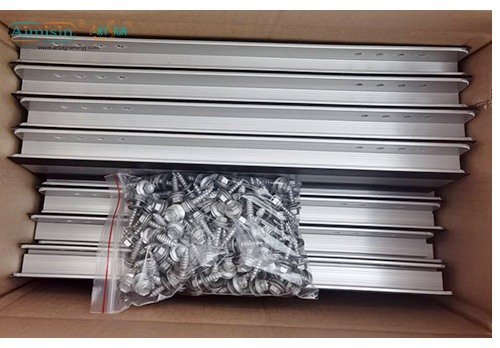

Small quantity will be packed by carton
Put the mini rails on the pallet
ART SIGN rail less solar mounting AS-DR-07
ART SIGN rail less solar mounting AS-DR-07

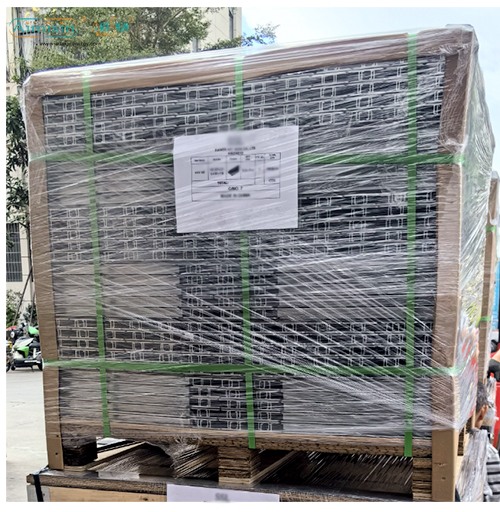

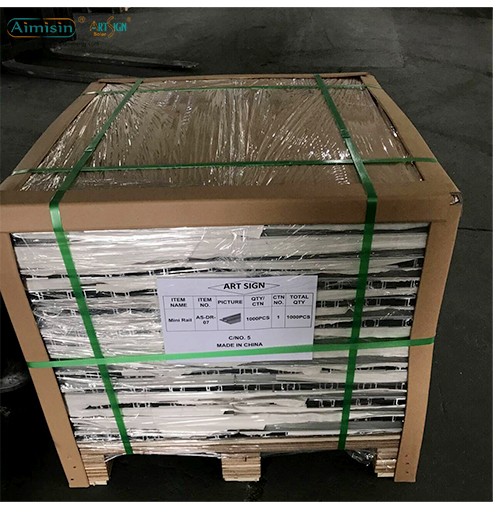

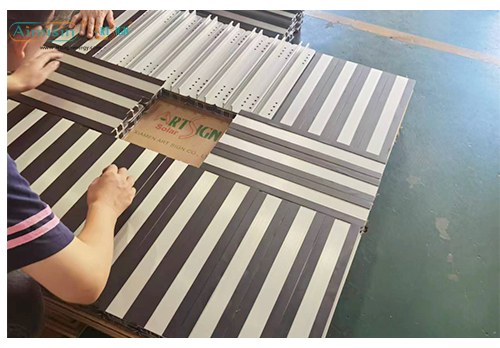

1000pcs are packed into small wooden pallet
2016pcs mini rails are packed into big wooden pallet


ART SIGN rail less solar mounting AS-DR-07

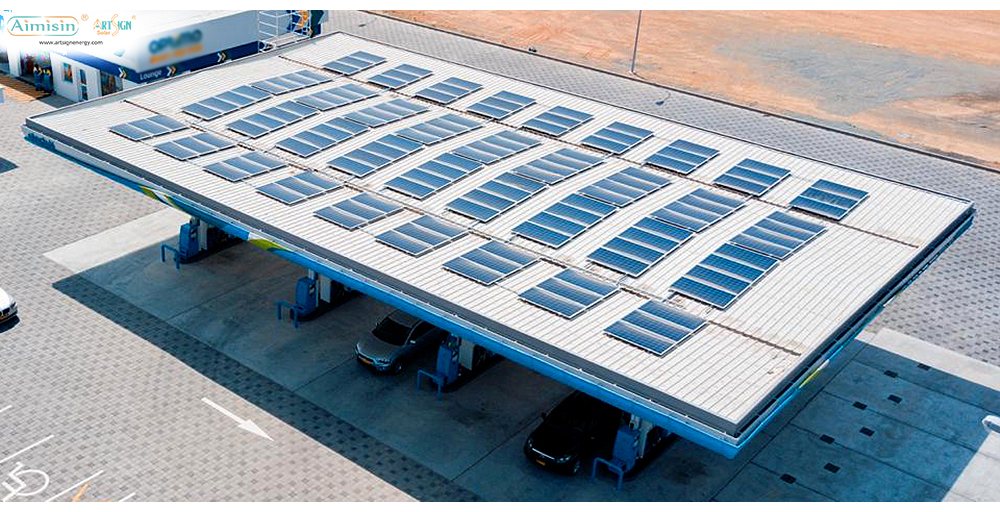

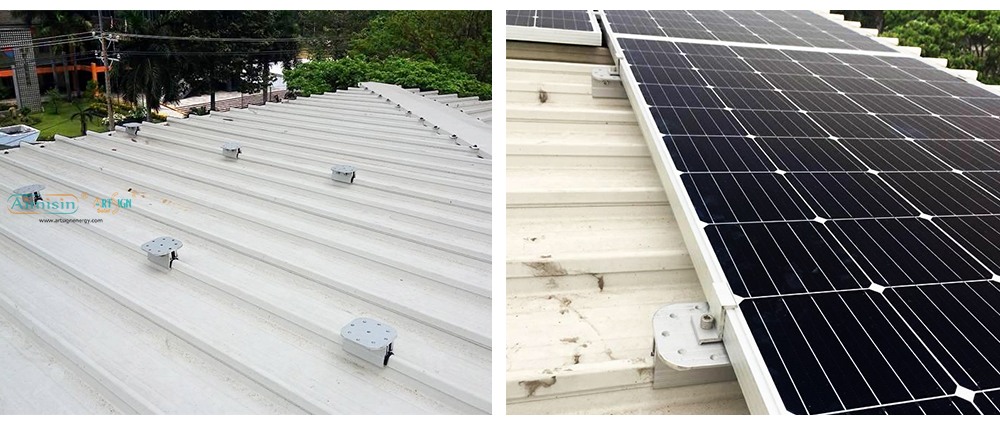

Oman Mini Rail

ART SIGN rail less solar mounting AS-DR-07

Vietnam project

ART SIGN rail less solar mounting AS-DR-07

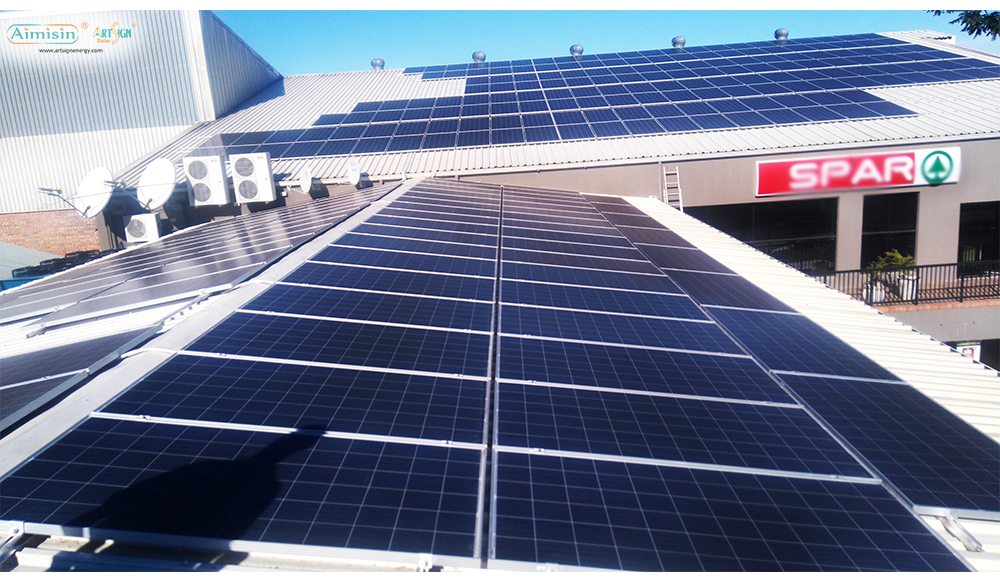

South Africa Project



Mini Rail for solar panel AS-DR-07 is for solar metal roof mounting made of anodized aluminum, simple and cost effective solution.
