Factory Aluminum Solar Mini Rail for Metal Trapezoidal Roof Mounting |Art Sign
Design Features
— Can be directly fixed onto roof metal sheet,will not used extra aluminum profile.
— It is easier,quicker and fast speed installation solution.
|
Mode Number |
AS-DR-07E |
Brand Name |
ART SIGN |
|
Specs |
Anodized Above 10um |
Material |
Aluminum 6005-T5 |
|
Application |
Metal Roof,Trapezoidal Roof, Corrugated Roof |
Packing |
Carton Or Pallet |
|
Keyword |
Customized solar mini rail factory |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |
Easy & Firm Fixing: Fastened directly with durable self-tapping screws for high wind resistance.
100% Waterproof Design: Bottom EPDM rubber pads and screw washers seal out moisture and prevent leaks.
Customizable Length: The length of the mini rail can be customized and cut to any specific size to perfectly meet your project requirements.
Seamless D-Nut Integration: Engineered with a specialized top groove, this mini rail is fully compatible with standard D-nuts. This design allows installers to easily slide, position, and lock solar clamps into place, significantly saving labor time on the roof.

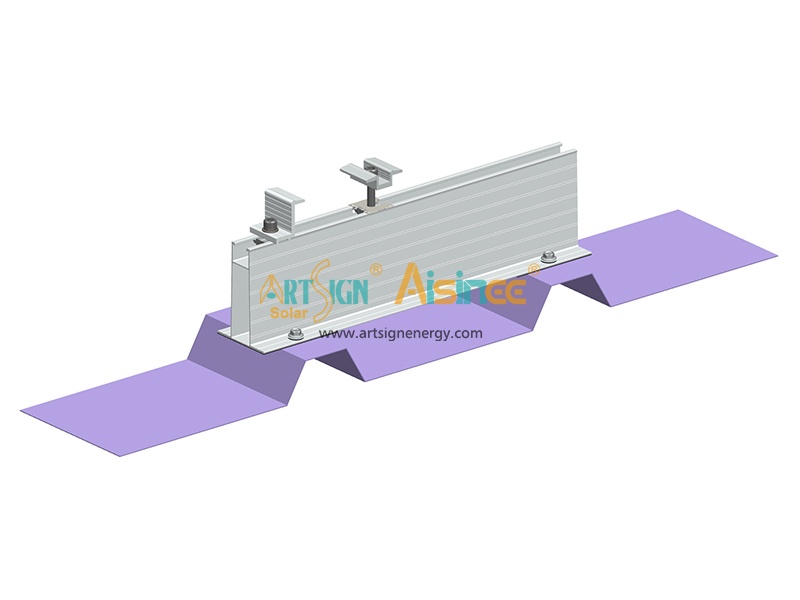

Mini Rail for solar panel AS-DR-07C is for solar metal roof mounting made of anodized aluminum, simple and cost effective solution.
 |
 |
 |
|
AS-DR-07 |
AS-DR-07B |
AS-DR-07C |
 |
 |
 |
|
AS-DR-07E |
AS-A-DR12 |
AS-R-15 |
 |
 |
 |
|
AS-R-15C |
AS-A-R25 |
AS-A-R26 |
 |
 |
 |
|
AS-SR-09 |
AS-SR-12 |
AS-AU-01 |
 |
 |
|
|
AS-XR-06 |
AS-XR-07 |
FAQ1: What is the main function of this Solar Mini Rail?
A: It is a compact, rail-free solution designed to fix solar panels directly onto trapezoidal or corrugated metal roofs, greatly reducing material costs and installation time.
FAQ2: What components are included in this Mini Rail kit?
A: The kit includes a pre-cut aluminum mini rail, EPDM rubber pad underneath for waterproofing, and self-tapping screws with sealing washers.
FAQ3: What are the main benefits of using a mini rail over traditional long rails?
A: It is lightweight, reduces roof load, lowers transportation costs, and simplifies logistics while ensuring an easy and fast installation process.
FAQ4: How does this system ensure water resistance on metal roofs?
A: The pre-assembled EPDM rubber strip on the base and the rubber washers on the self-tapping screws create a tight, durable seal that effectively prevents water leakage.
FAQ5: What kind of solar panels and clamps is this mini rail compatible with?
A: The top channel is compatible with standard solar mid and end clamps, accommodating various panel thicknesses based on the clamp bolts used.
FAQ6: Does it require drilling through the roof structure or purlins?
A: No, it fastens directly onto the raised crests of the metal roof sheet using self-tapping screws, requiring no penetration into the underlying purlins.
