Art sign customized mini railless solar mounting AU rail 01#
Design Features
— Rail-Free & Lightweight: save material costs and install time.
— Universal Fit: fit various solar panel sizes with secure clamping for enhanced stability.
|
Mode Number |
AS-AU-01 |
Brand Name |
ART SIGN |
|
Specs |
75*20mm |
Material |
Aluminum 6005-T5 |
|
Application |
Metal roof |

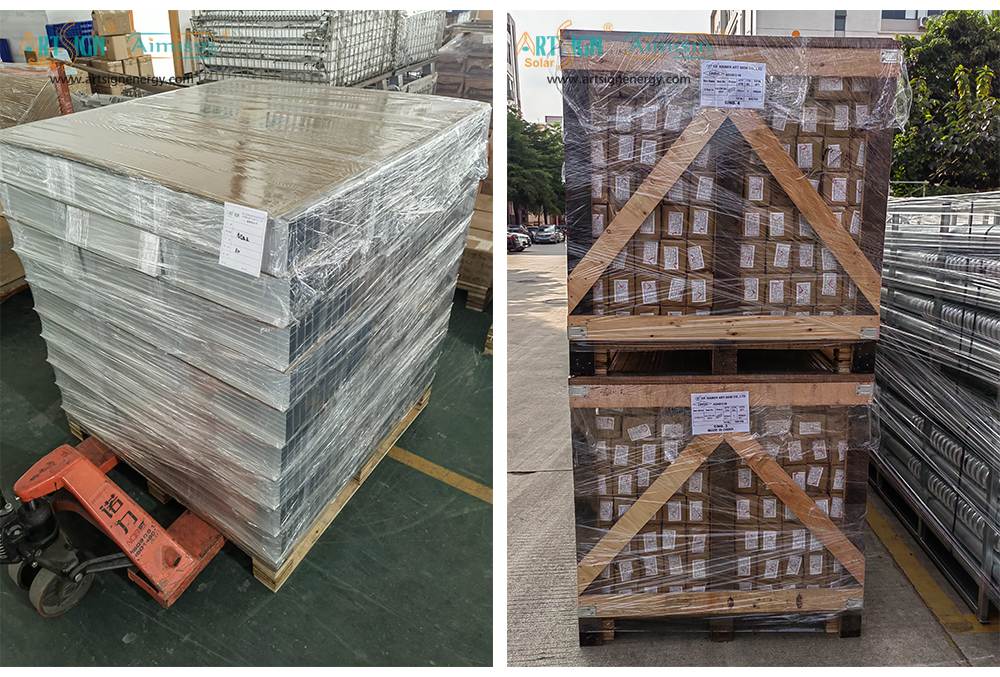

Packing |
Wooden pallet |
|
Keyword |
Customized railless aluminum PV solar panel mounting system |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |

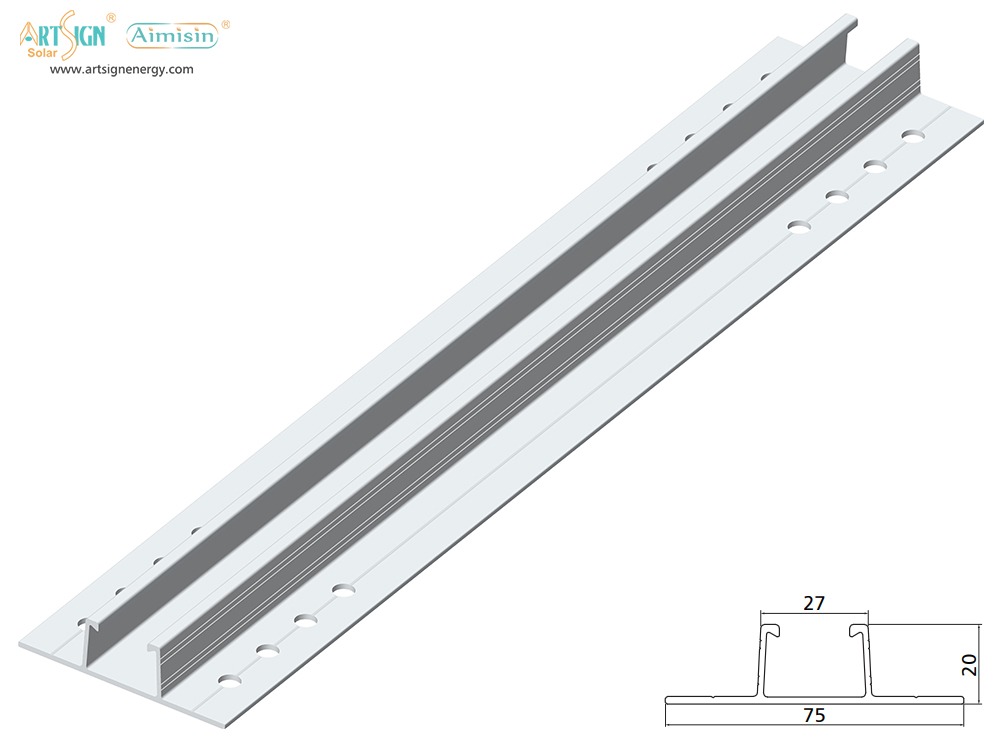

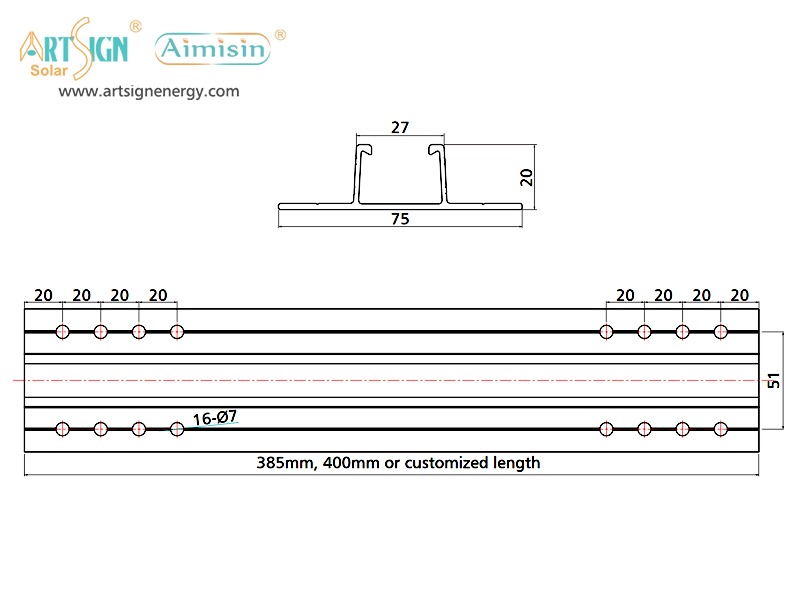

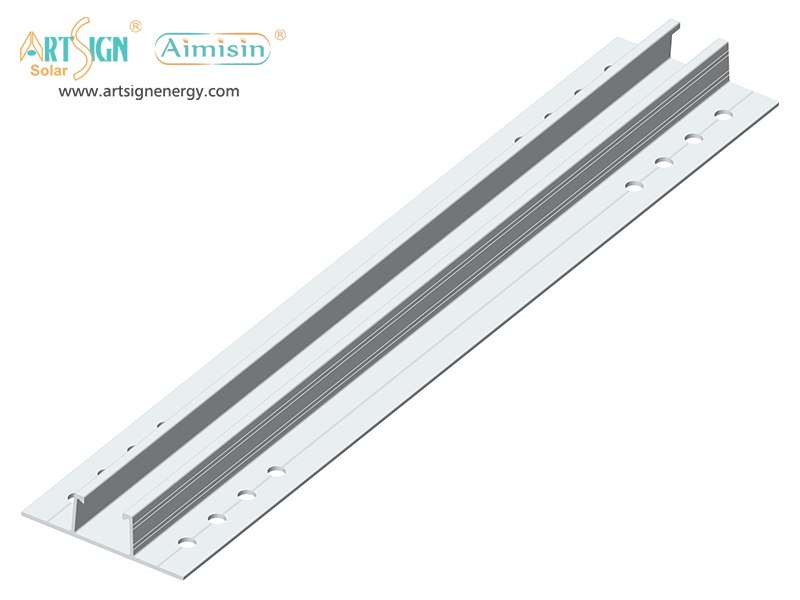

Overview of solar roof mounting profile mini rail AS-AU-R01

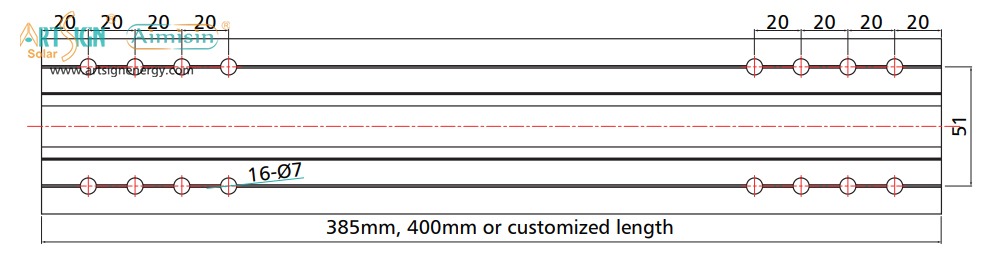

The length of solar AU rail R01# can be customized.
The holes can be made in advance.

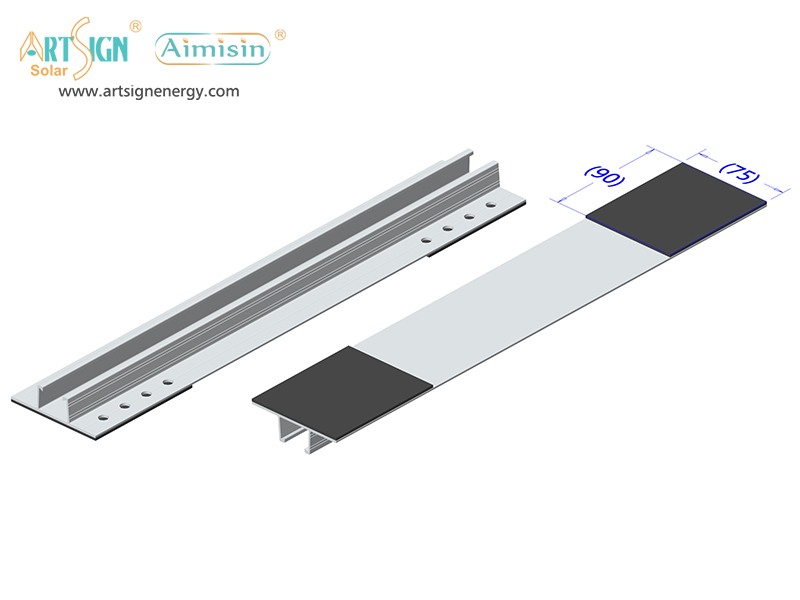

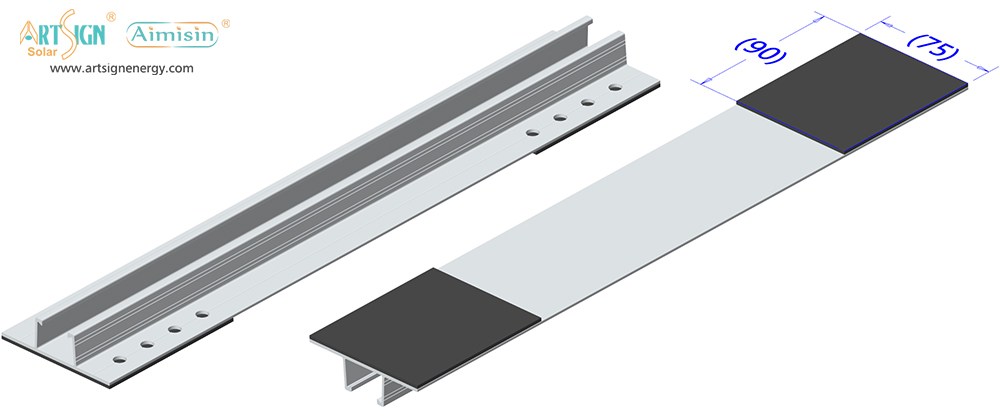

AU rail 01# glued with EPDM 90×75mm for waterproof

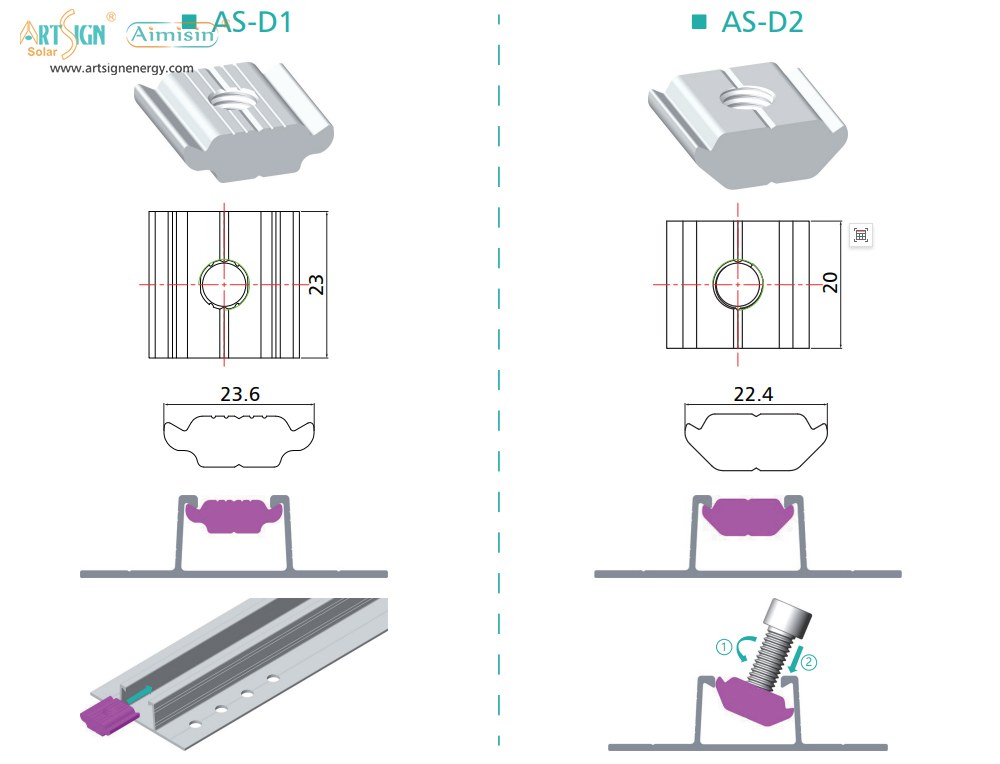

Two kinds of nuts for option, D1 can be only slid in from the sides, can’t be inserted into any position of the mini rail.

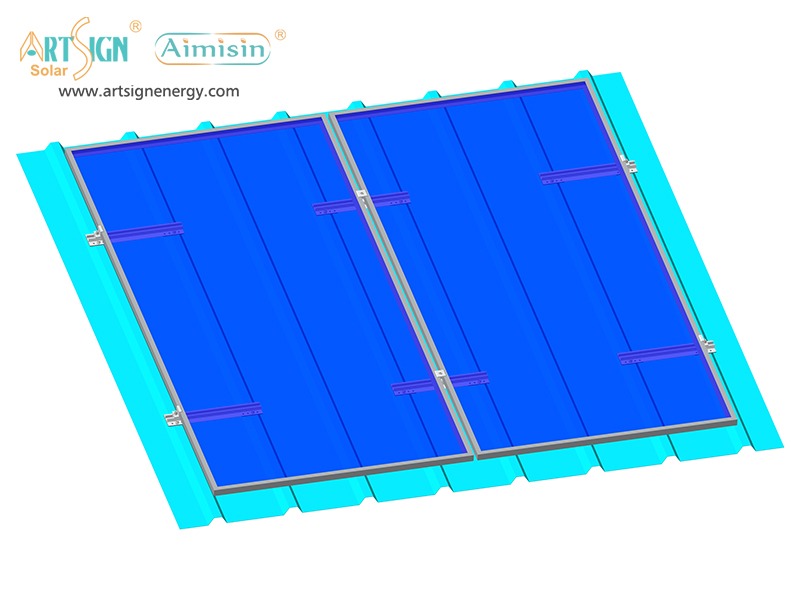

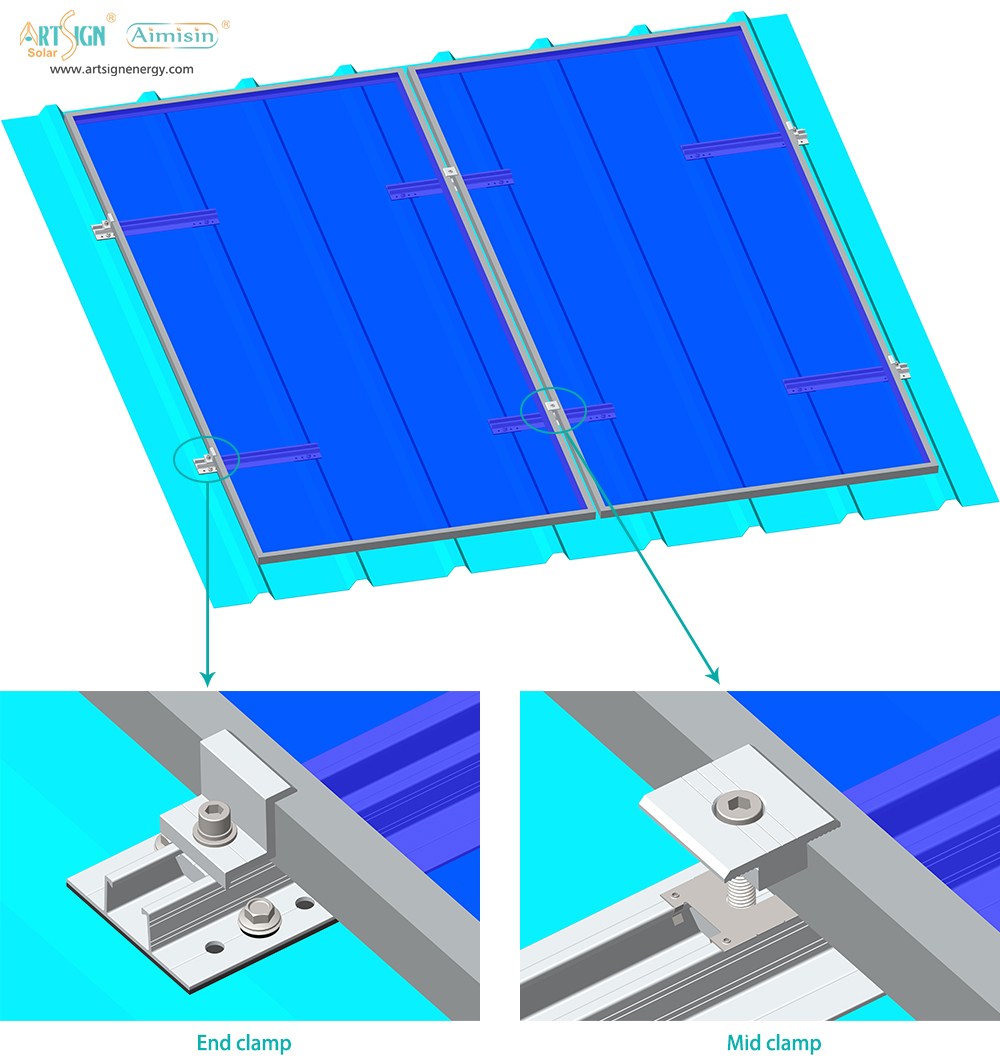

Fasten panels without traditional rails
Solar module fixed by clmaps with AU nut on the rail directly

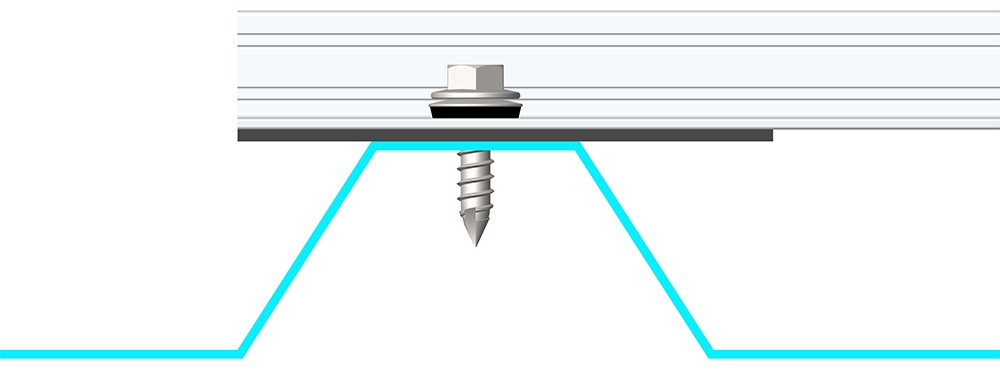

Penetrating onto the metal roof top and fixed by screw

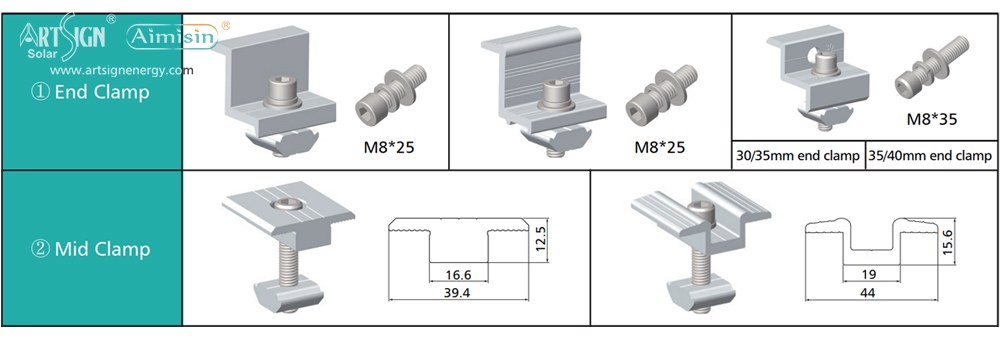

There are 3 kinds of solar end clamps and 2 kinds of solar mid clamps for your reference.
