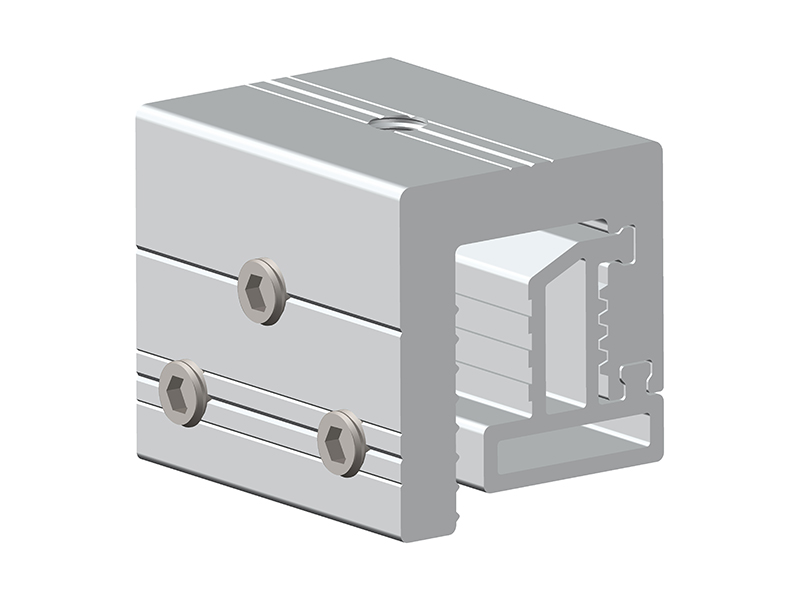

Solar panel seam roof clip mounting stand

OEM Factory Art Sign N-Clips: Professional aluminum solar mounting for standing seam metal roofs. Non-penetrating, no-drill design ensures total roof integrity.
  • Item NO.:

    AS-N2F-50
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

Aluminum Standing Seam Roof Solar Clips Manufacturer |ArtSign


Design Features

— Non-penetrating the roof , fast and cost-effective installation.
— Various N clip which is fit for different roof shape and the panel can be installed landscape or portrait.
— Panel can be installed on the rail or without rail.
— Minimum fasteners to save installation time.
— Suit for different range of wind load and snow load.


Mode Number

  AS-N2F-50

Brand Name

  ART SIGN
Specs

  L50*W38*H42mm

Material

  Aluminum 6005-T5

Application
  N-clip for Stands Seam Roof
Packing
  Wooden pallet
Keyword
  Leading Factory for Solar Panel Mounting Stands Seam Roof Clips Professional OEM Supplier Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details


solar clips
solar clips

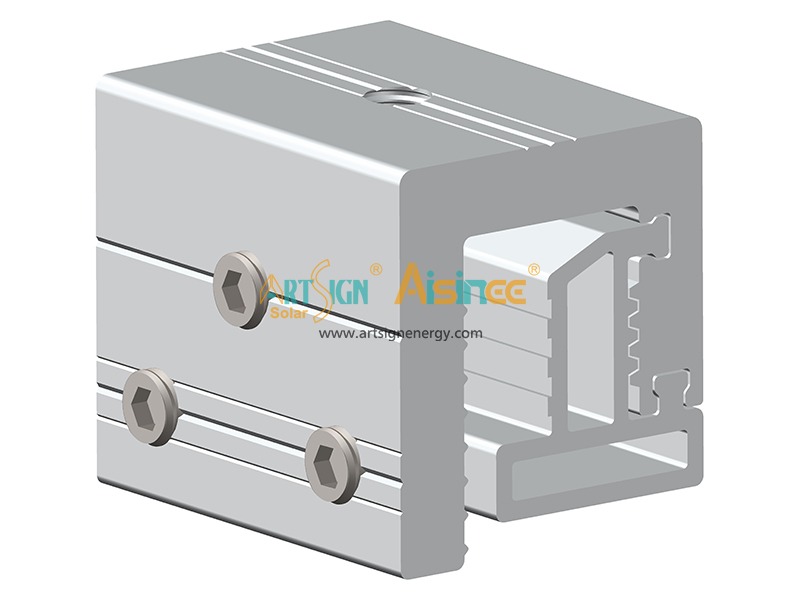

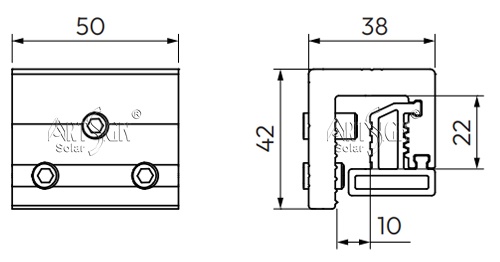

AS-N2F-50 Size

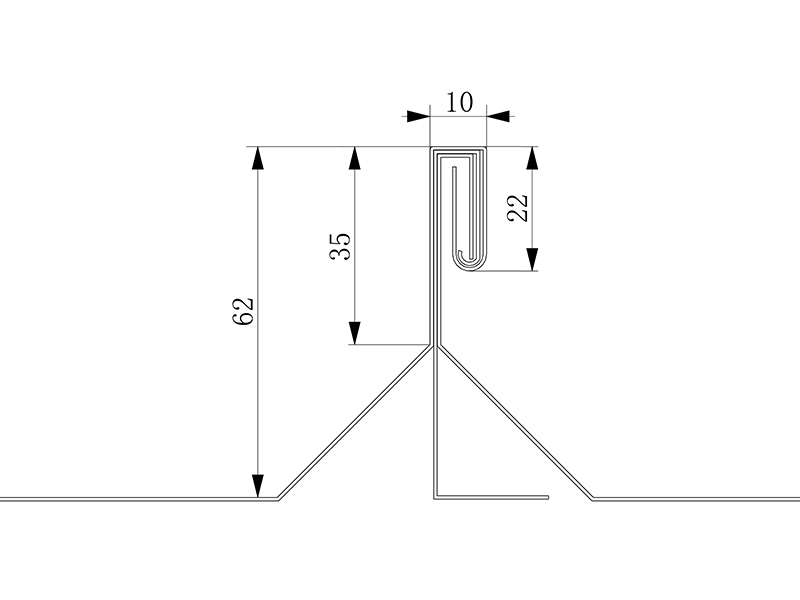

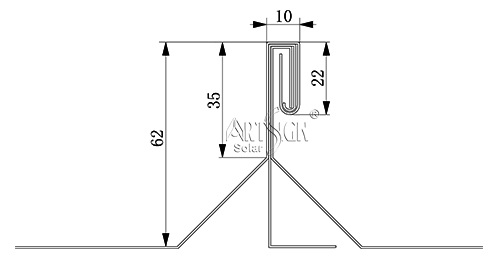

Application Standing seam roof


solar clips

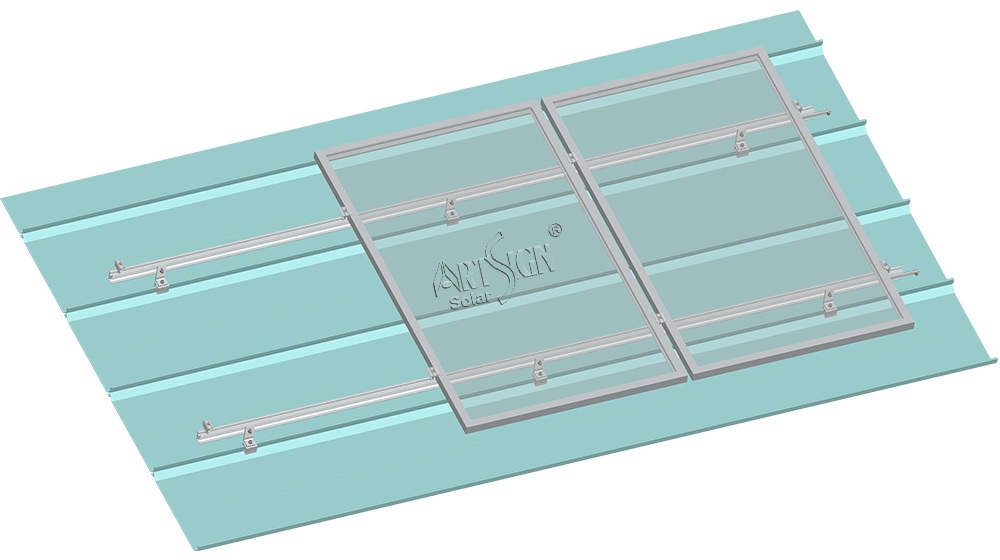

Metal Roofing Projects: Perfect for residential or commercial standing seam roofs.

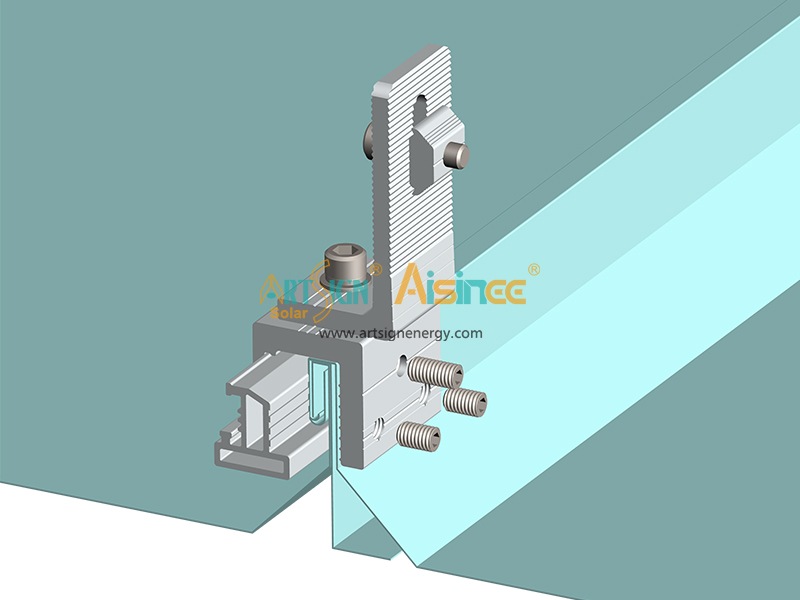

Fast Installation: Shows the simplified interlocking mechanism that reduces labor time.


solar clips

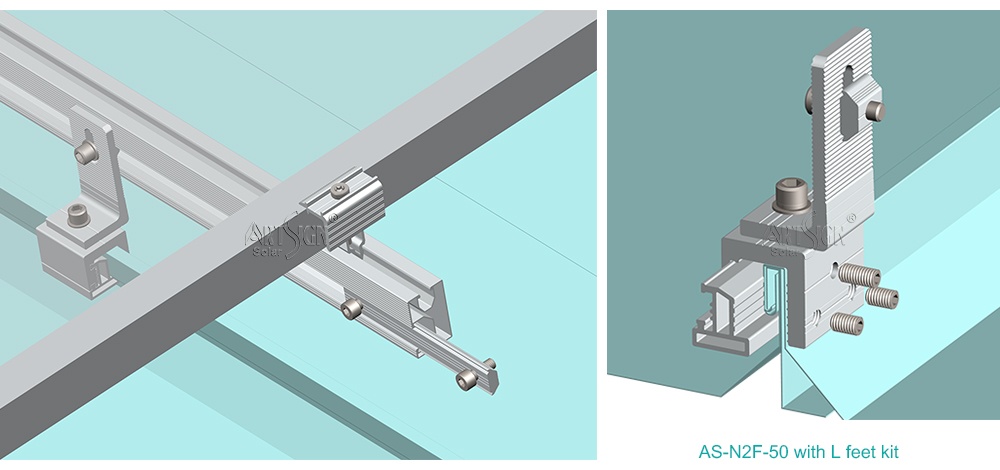

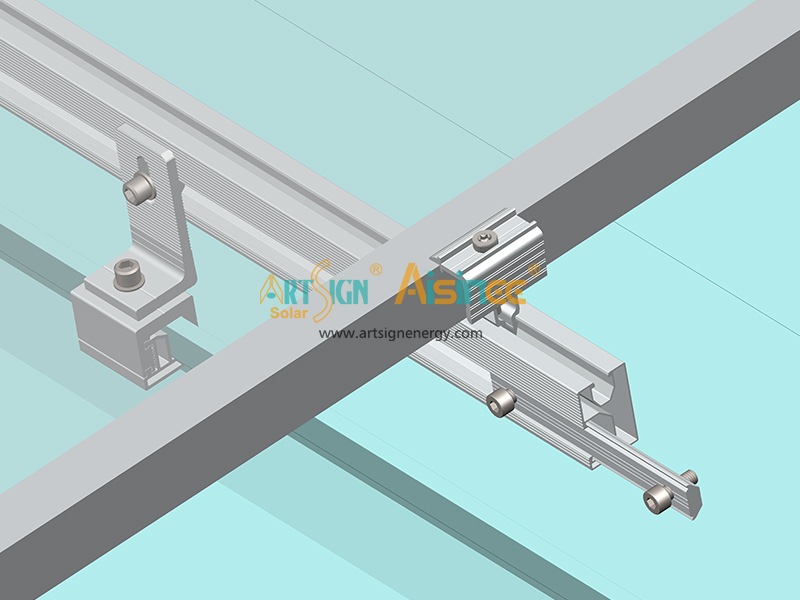

Art Sign Non-Penetrating Standing Seam Roof Solar Mount Rail System Installation.

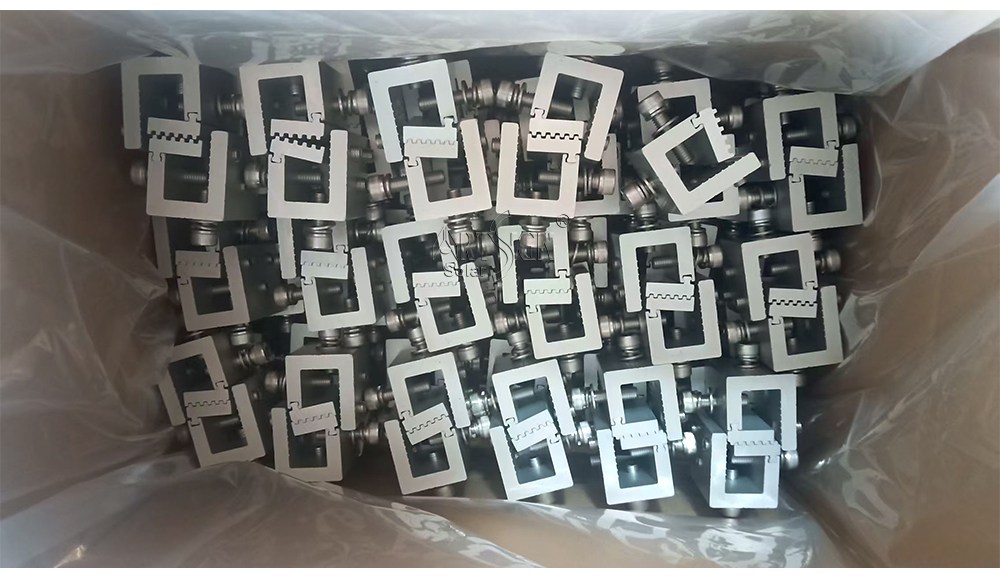

solar clips packages

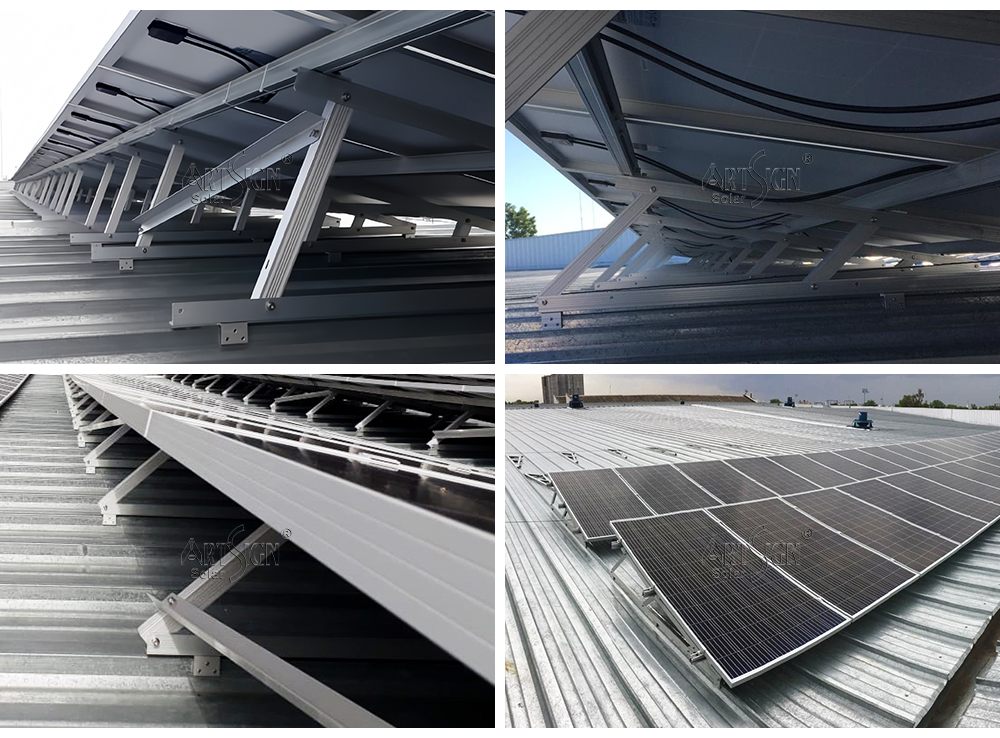

solar clips case study


ART SIGN solar mounting related accessories

Non penetrating and railless solution, it's waterproof and cost-effective, directly work with mid and end clamps. Easy for packing, transportation and installation.

Click to see more N series roof clip(standing seam roof clip);


ART SIGN non-penetrating N-clip AS-N1A-50
ART SIGN non-penetrating N-clip AS-N2E-50
ART SIGN non-penetrating N-clip AS-N2F-50
ART SIGN non-penetrating N-clip AS-N3-50
AS-N1A-50
AS-N2E-50
AS-N2F-50
AS-N3-50
ART SIGN non-penetrating N-clip AS-N4-50
ART SIGN non-penetrating N-clip AS-N5-50
ART SIGN non-penetrating N-clip AS-N5B-50
ART SIGN non-penetrating N-clip AS-N7-70
AS-N4-50
AS-N5-50
AS-N5B-50
AS-N7-70
